Epson L630SU

Laser LCD Projector, WUXGA, 6000 Lumens, D:W 0.85-1.07, White, 3-year warranty
Item #0600-4275 Model #V11HA29020

Overview

Epson L630SU

Short-throw projector

The Epson L630SU 6000-lumen, short-throw projector is ideal for users who need to produce large images in tight spaces.

As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with more compact short-throw display solutions. This Epson laser projector delivers effective, practical and creative applications to meet the display needs in education, corporations, museums and visitor attractions, making it the ideal multimedia projector. All this is achieved without sacrificing image quality or lens shift flexibility.

Also available in black as L635SU.

Key Features:
  • 6,000-lumen brightness: This 6000-lumen projector produces crisp images and bright colours, even in well-lit rooms
  • WUXGA resolution: Sharp Full HD images for excellent clarity
  • Future-proofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
  • Easy, flexible installation: The Epson L630SU offers a lightweight and compact design with wide lens shift
  • Short-throw projection: Large images in tight spaces (0.8:1 throw ratio)

(Model: V11HA29040)

Features

Bright, cost-effective display solutions

  • Bolder, brighter, more engaging and impactful displays even in brightly-lit environments thanks to impressive 6,000-lumen brightness and WUXGA Full HD resolution.
  • Affordable price lets users upgrade to laser performance and reliability, with reduced power consumption, without paying a premium.
  • Short 0.8:1 throw ratio, 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments.
  • Capable of large format and blended displays, without any reduction in clarity or vivid detail.

Enhanced connectivity

  • Future-proofed connectivity options to connect, show multiple sources simultaneously and present wirelessly include HDMI and HDBaseT with 4K signal support, 5 GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.

Easy and flexible installation

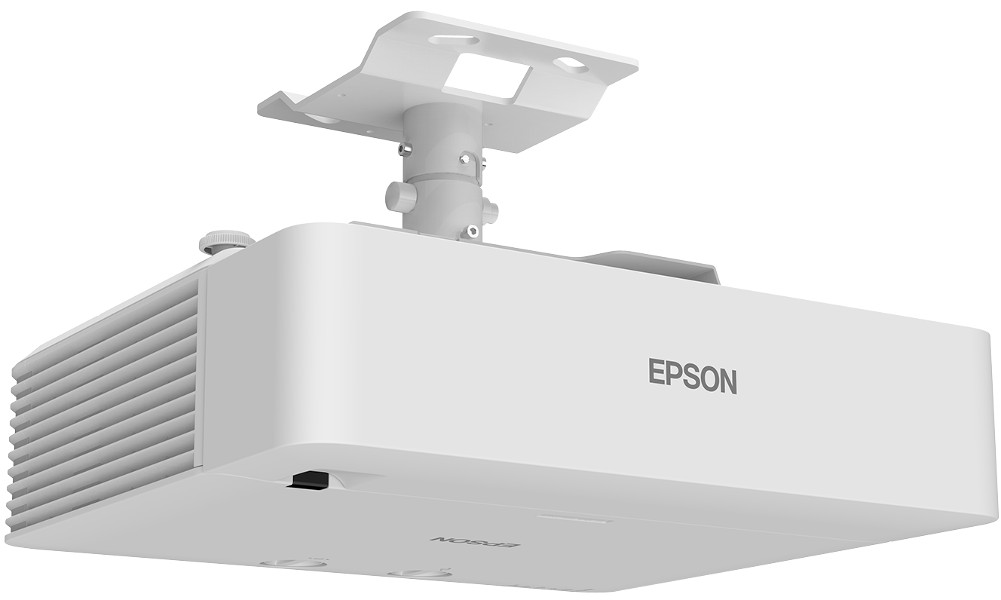

  • Stylish and compact projector supports 360-degree installation without compromising the display quality
  • Supports 16:6 ultra-widescreen, HDMI output and edge blending for multi-projector installs

Specifications

Technology:

Projection System 3LCD Technology, RGB liquid crystal shutter
LCD Panel 0.67 inch with C2 Fine

Image:

Color Light Output

 6,000 Lumens - 4,200 Lumens (economy) in accordance with IDMS15.4

White Light Output

 6,000 Lumens - 4,200 Lumens (economy) in accordance with ISO 21118:2012

Resolution

 WUXGA, 1920 x 1200, 16:10

High Definition

 Full HD

Aspect Ratio

 16:10

Contrast Ratio

 Over 2,500,000 : 1

Light source

 Laser

Laser Light source

 20,000 hours Durability High, 30,000 hours Durability Eco

Keystone Correction
Manual vertical: ± 30°, Manual horizontal ± 30°

Color Video Processing

 10 Bits

Color Reproduction

 Up to 1.07 billion colors

Optical:

Throw Ratio

 0.85 – 1.07:1

Zoom

 Optical, 1 – 1.35x

Lens Shift

 Manual - vertical ± 50 %, horizontal ± 20 %

Screen Size

 50 inches – 200 inches

Projection Distance Wide

 0.9 m – 3.5 m

F/stop

 1.7

Focal Length

 11.76 mm

Focus

 Manual

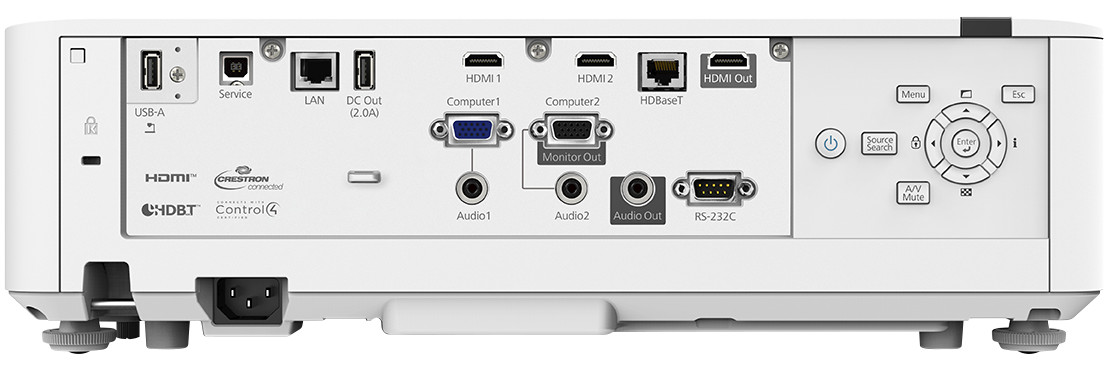

Connectivity

Interfaces USB 2.0 Type A
USB 2.0 Type B
RS-232C
Wired Network
Wireless LAN IEEE 802.11a/b/g/n/ac
Wireless LAN b/g/n (2.4G Hz)
Wireless LAN a/n (5 GHz)
VGA in (2x)
VGA out
HDMI out
HDBaseT
Miracast
Stereo mini jack audio out
Stereo mini jack audio in (2x)
HDMI (HDCP 2.3) (2x)
USB 2 Type A playback

Epson iProjection App

 Ad-Hoc / Infrastructure

Network Protocol

 HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

Security

 Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

2D Colour Modes

 Dynamic, Cinema, Presentation, sRGB, DICOM SIM

Other features

 Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

Video Color Modes

 Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

Projector control

 via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption

 345 W, 258 W (economy), 0.3 W (standby)

Supply Voltage

 AC 100 V – 240 V, 50 Hz – 60 Hz

Product dimensions (WxDxH)

 17.3" x 13.1" x 5.4" (440‎ x 334 x 136 mm)

Product weight

 18.5 lb (8.4 kg)

Noise Level

 Normal: 38 dB (A), Economy: 27 dB (A)

Supported Temperature

 Storage -10° C – 60° C

Supported Humidity

 Operation 20% – 80%, Storage 10% – 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation, which over time could break and cause the projector to drop from the ceiling.

Options

 Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit

Loudspeaker

 10 W

Room Type / Application

 Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction

Positioning

 Ceiling-mounted, Desktop
Color White

What's in the box

  • L630SU projector
  • Cable cover
  • Power cable
  • Remote control incl. batteries
  • User guide
  • Warranty documents
