Epson L635SU
Laser LCD Projector, WUXGA, 6000 Lumens, D:W 0.85-1.07, Black, 3-year warranty
Item #0600-4276
Model #V11HA29120
Overview
Epson L635SU
Short-Throw Laser Projector
The Epson L635SU 6000-lumen, short throw projector is ideal for users who need to produce large images in tight spaces.
As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with more compact short-throw display solutions. This Epson laser projector delivers effective, practical and creative applications to meet the display needs in education, corporations, museums and visitor attractions, making it the ideal multimedia projector. All this is achieved without sacrificing image quality or lens shift flexibility.
Also available in white as L630SU.
Key Features:
- 6,000-lumen brightness: This 6000-lumen projector produces crisp images and bright colors, even in well-lit rooms
- WUXGA resolution: Sharp Full HD images for excellent clarity
- Future-proofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
- Easy, flexible installation: The Epson L635SU offers a lightweight and compact design with wide lens shift
- Short-throw projection: Large images in tight spaces (0.8:1 throw ratio)
(Model: V11HA29140)
Features
Bright, cost-effective display solutions
- Bolder, brighter, more engaging and impactful displays even in brightly-lit environments thanks to impressive 6,000-lumen brightness and WUXGA Full HD resolution.
- Affordable price lets users upgrade to laser performance and reliability, with reduced power consumption, without paying a premium.
- Short 0.8:1 throw ratio, 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments.
- Capable of large format and blended displays, without any reduction in clarity or vivid detail.
Enhanced connectivity
- Future-proofed connectivity options to connect, show multiple sources simultaneously and present wirelessly include HDMI and HDBaseT with 4K signal support, 5 GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.
Easy and flexible installation
- Stylish and compact projector supports 360-degree installation without compromising the display quality
- Supports 16:6 ultra-widescreen, HDMI output and edge blending for multi-projector installs
Specifications
Technology:
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.67 inch with C2 Fine |
Image:
|
Color Light Output |
6,000 Lumens - 4,200 Lumens (economy) in accordance with IDMS15.4 |
|
White Light Output |
6,000 Lumens - 4,200 Lumens (economy) in accordance with ISO 21118:2012 |
|
Resolution |
WUXGA, 1920 x 1200, 16:10 |
|
High Definition |
Full HD |
|
Aspect Ratio |
16:10 |
|
Contrast Ratio |
Over 2,500,000 : 1 |
|
Light source |
Laser |
|
Laser Light source |
20,000 hours Durability High, 30,000 hours Durability Eco |
|
Keystone Correction |
Manual vertical: ± 30°, Manual horizontal ± 30°
|
|
Color Video Processing |
10 Bits |
|
Color Reproduction |
Up to 1.07 billion colors |
Optical:
|
Throw Ratio |
0.85 – 1.07:1 |
|
Zoom |
Optical, 1 – 1.35x |
|
Lens Shift |
Manual - vertical ± 50 %, horizontal ± 20 % |
|
Screen Size |
50 inches – 200 inches |
|
Projection Distance Wide |
0.9 m – 3.5 m |
|
F/stop |
1.7 |
|
Focal Length |
11.76 mm |
|
Focus |
Manual |
Connectivity

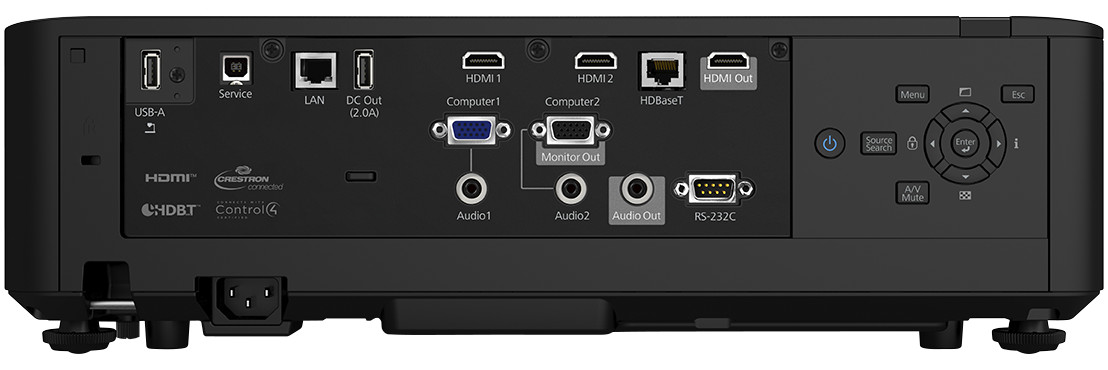

| Interfaces | USB 2.0 Type A USB 2.0 Type B RS-232C Wired Network Wireless LAN IEEE 802.11a/b/g/n/ac Wireless LAN b/g/n (2.4G Hz) Wireless LAN a/n (5 GHz) VGA in (2x) VGA out HDMI out HDBaseT Miracast Stereo mini jack audio out Stereo mini jack audio in (2x) HDMI (HDCP 2.3) (2x) USB 2 Type A playback |
|
Epson iProjection App |
Ad-Hoc / Infrastructure |
|
Network Protocol |
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
Advanced Features
|
Security |
Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
|
2D Colour Modes |
Dynamic, Cinema, Presentation, sRGB, DICOM SIM |
|
Other features |
Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
|
Video Color Modes |
Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection |
|
Projector control |
via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
General
|
Power consumption |
345 W, 258 W (economy), 0.3 W (standby) |
|
Supply Voltage |
AC 100 V – 240 V, 50 Hz – 60 Hz |
|
Product dimensions (WxDxH) |
17.3" x 13.1" x 5.4" (440 x 334 x 136 mm) |
|
Product weight |
18.5 lb (8.4 kg) |
|
Noise Level |
Normal: 38 dB (A), Economy: 27 dB (A) |
|
Supported Temperature |
Storage -10° C – 60° C |
|
Supported Humidity |
Operation 20% – 80%, Storage 10% – 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation, which over time could break and cause the projector to drop from the ceiling. |
|
Options |
Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit |
|
Loudspeaker |
10 W |
|
Room Type / Application |
Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction |
|
Positioning |

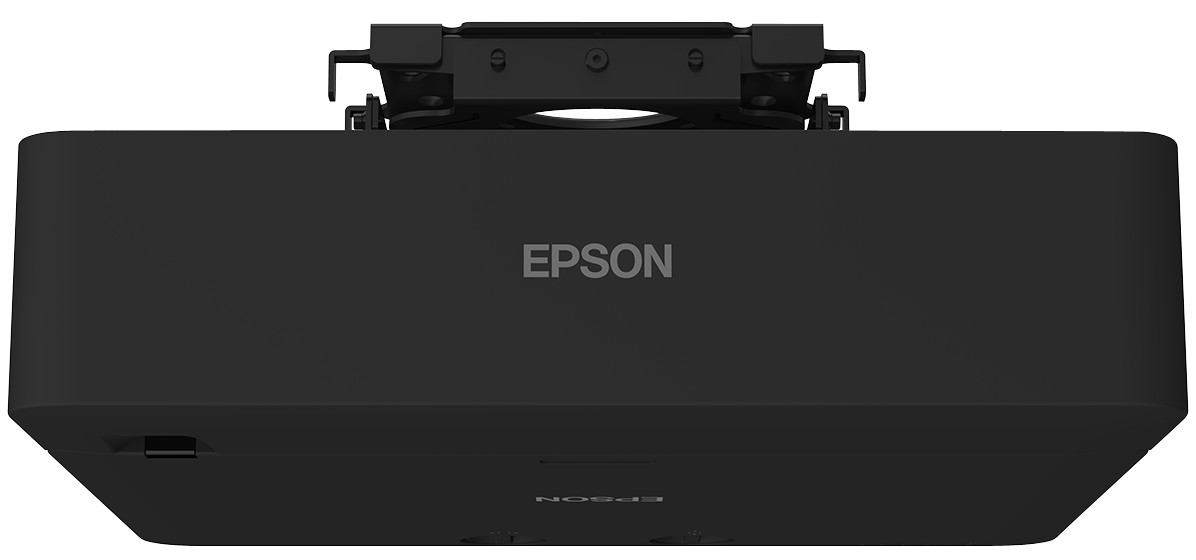

Ceiling-mounted, Desktop |
| Color | Black |
What's in the box
- L635SU projector
- Cable cover
- Power cable
- Remote control incl. batteries
- User guide
- Warranty documents
