Epson EB-PU1006W

Laser LCD Projector, WUXGA, 6000 Lumens, No Lens, White, 3-Year Warranty
Item #0600-4288 Model #V11HA35920


Epson EB-PU1006W

WUXGA 3LCD Laser Projector with 4K Enhancement

Premium, compact large-venue laser projector with 4K enhancement

The Epson EB-PU1006W offers larger-than-life images from a sleek, powerful projector that's easy to install. The most compact within Epson's Pro Series, the 6,000-lumen short-throw projector is compatible with a wide range of optional powered lenses, including a zero offset, 0.35 ultra-short-throw lens.

Delivering best-in-class color brightness, with 6,000 lumens of color brightness and 6,000 lumens of white brightness, this 3-chip, 3LCD projector features a virtually maintenance-free 20,000-hour laser light source and air filter.

Full HD WUXGA resolution and 4K Enhancement Technology (1920 x 1200 x 2) provide crystal-clear, lifelike images. Built-in NFC function reduces the time to install and commission multiple projectors. A clip-on optional external camera allows the Epson 6,000-lumen projector access to powerful automated tools including auto color calibration, screen matching of multiple projectors, tiling assist for edge blends, and the stacking assist function.

NOTE: Mount and lens sold separately.

Key Features:
  • 6,000 lumens color/white brightness
  • Native WUXGA with 4K Enhancement Technology
  • Laser light source — up to 20,000 hours of use
  • 11 optional powered lenses
  • NFC function built-in

The EB-PU1006W is only available as a white projector.

(P/N: V11HA35920)


  • Exceptional widescreen display: Native WUXGA with 4K Enhancement Technology1 (1920 x 1200 x 2); accepts 4K content and provides up to 4.6 million pixels onscreen
  • Best-in-class color brightness2: 6,000 lumens color/white brightness3 from a compact large-venue laser projector
  • Worry-free operation: Virtually maintenance free 20,000 hour laser light source and air filter4
  • Simplified installation features: 11 optional powered lenses including ultra-short throw of 0.35; inputs including HDBaseT™ and HDMI® (HDCP 2.3)
  • NFC function built-in5: Reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app
  • Clip-on optional external camera: Access powerful automated tools including auto color calibration6, screen matching of multiple projectors7, tiling assist for edge blends8, and the stacking assist9 function.
  • Lifelike images: high native contrast ratio, HDR support and scene adaptive gamma correction for more realistic images and easy-to-read presentations

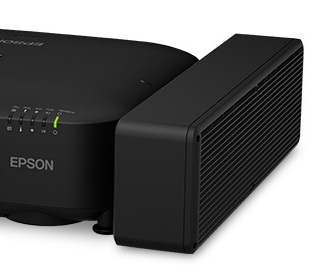

  • Optional external air filter: extends the filter maintenance cycle in dusty environments
  • Dynamic projection capabilities: advanced built-in edge blending, image warping and shape overlay features for a variety of applications; direct content playback from USB storage media
  • Customized performance: brightness modes to maximize light source life and provide a consistent brightness level
  • Powerful remote management: control and monitor projector status via the Epson Projector Management app for Windows


Eco Features:

  • RoHS compliant
  • Recyclable product10
  • Epson America, Inc. is a SmartWay® Transport Partner11


4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for October 2019 – September 2020. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.
Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
 NFC enabled device required.
Requires Epson external camera.
Requires an Epson external camera for each projector.
Requires an Epson external camera for each projector and the Epson Projector Professional Tool app.
Requires Epson external camera for each projector.
10 For convenient and reasonable recycling options, visit
11 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.


Specifications Projector:

Projection System: High-aperture Epson® 3LCD, 3-chip technology
Projection Method: Front/rear/ceiling mount
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 2,304,000 dots (1920 x 1200) x 3 chips
Signal Input: Maximum Display Resolution: 4096 x 2160 (resizing display)
Display Resolution: 1920 x 1200 pixels
Native Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x2)
Resolution on Screen WUXGA with 4K1 Enhancement/4.6 million pixels1
Aspect Ratio: Supports 4:3, 16:9, 16:10
Pixel Arrangement: Cross stripe
Color Brightness2 - Color Light Output: 6,000 lumens
White Brightness2 - White Light Output: 6,000 lumens
Contrast Ratio: 2,500,000:1 (Dynamic Contrast: On)
Brightness Uniformity (typical): 85%
Color Reproduction: Up to 1.07 billion colors
Keystone Correction Vertical: ±45 degrees; Horizontal: ±30 degrees
Illumination Technology Laser Phosphor

Projection Lens:

See Accessories tab for information on optional lenses.

Standard Lens: ELPLM08 (sold separately)
Type: Powered shift/focus/zoom
F-number: 1.7 – 2.3
Focal Length: 24.0 – 38.2 mm
Zoom Ratio: Optical zoom 1 – 1.6x
Throw Ratio Range: 1.45 – 2.32
Lens Shift: Vertical: ±67%; horizontal: ±30%

Other Features

Operating Temperature: 32° to 113°F (0° to 45°C)
Fan Noise: 30 dB (Normal Mode)
29 dB (Medium Mode)
28 dB (ECO Mode)
Security: Security cable hole, lens lock, Kensington lock provision, wireless LAN unit lock


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
Power Consumption: 384 W (Normal, Custom)
321 W (Medium, Quiet, Extended)
2.0 W Standby (Communication on)
0.5 W Standby (Communication off)

Video I/O:

Input Signal: input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160


  • DVI-D x 1
  • HDMI (HDCP 2.3) x 1
  • HDBaseT x 1
  • RGB D-sub 15pin
  • Variable audio out: Mini Stereo x 1
  • USB connector Type-B x 1
  • USB connector Type-A x 2
  • Serial: RS-232c x 1
  • Remote Stereo Mini
  • Network: RJ-45

Dimensions (W x H x D):

Excluding feet, lens: 21.5" x 6.5" x 17.2" (546 x 165 x 437 mm)
Weight: 34 lb (15.4 kg)

Remote Control:

Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
Operating Distance: 98 ft (30 m)
Operating Angle: Angle Front: Right/Left: ±60; Upper/Lower +30 to -20 degrees
Angle Rear: Right/Left: ±30; Upper/Lower +50 to +10 degrees

What's in the Box:

  • EB-PU1006W projector
  • Power cable
  • Remote control with 2 batteries
  • Cable cover
  • Lens connector cap
  • User guide
  • Warranty sheet


1 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.


Optional Lenses

Model: ELPLX01
Std Lens


Add to Cart

Add to Cart

Add to Cart

Add to Cart
Add to Cart

Add to Cart
Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
  ELPLX01 lens ELPLU03 lens ELPLU04 lens ELPLW05 lens  ELPLW08 lens ELPLW08 lens ELPLW06 lens ELPLM15 ELPLM10 lens ELPLM11 lens ELPLL08 lens
0.76" chip
0.35:1 0.65–0.78:1 0.87–1.05:1 1.04–1.46:1 1.181.66:1 1.44–2.32:1 1.62–2.22:1 2.16–3.48:1 3.32–5.06:1 4.85–7.38:1 7.21–10.11:1
F/stop 1.9 2.0–2.26 2.0–2.1 2.0–2.2 2.0–2.2 1.7–2.3 1.8–2.3 1.8–2.35 1.8–2.4 1.8–2.4 1.8–2.5
Max Lumens 8,500 U03 12,000
U03S 20,000
20,000 10,500 20,000 8,500 20,000 M09  12,000
M15 20,000
20,000 20,000 20,000
Notes ELPLX01 is discontinued.
ELPLX01S has a mounting point for the ELPEC01 external camera

ELPLU03 is discontinued.

ELPLW05 & ELPLM08 are more cost effective if within light output limits.

ELPLM09 is discontinued.


Other Accessories

Chief mount RPMA-UW Ceiling mounts

ELPAF46 air filter

Air filters (ELPAF46, ELPAF63)
ELPEC01 external camera External camera (ELPEC01)
Add to Cart
HDBaseT transmitter (v13h134a30) HDBaseT transmitter for large venue projectors (ELPHD01)

HDBaseT Transmitter and Control Pad (ELPHD02)

Add to Cart
Epson ELPAP11 Wireless LAN Adapter

Wireless LAN adapter (ELPAP11)

Add to Cart
