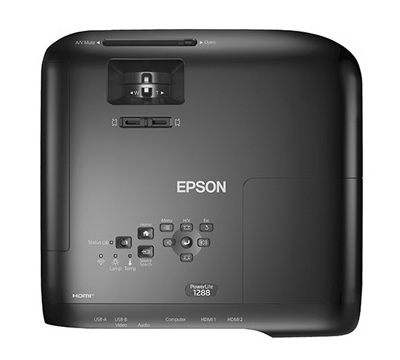

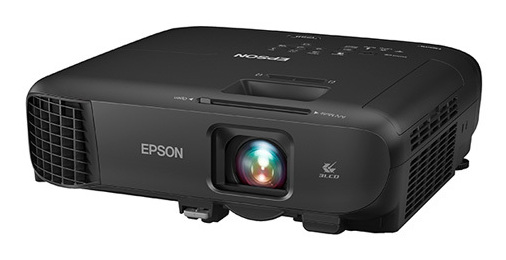

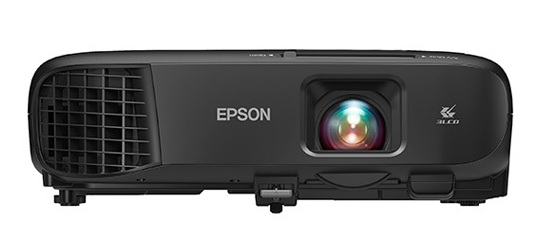

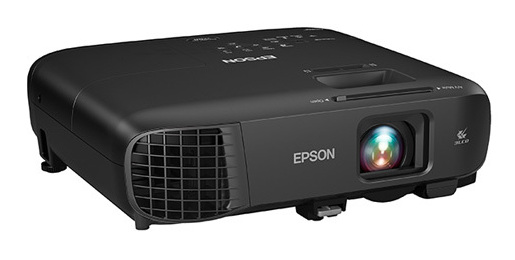

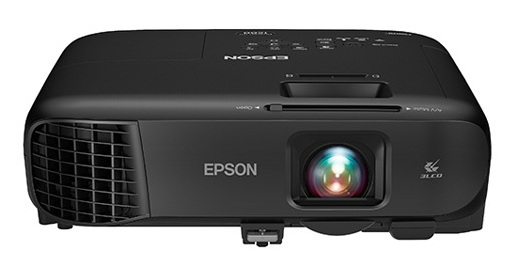

Epson PowerLite 1288

LCD Projector, 1080p, 4000 Lumens, W/L, 2-Year Warranty
Part #: 0600-4291    Mfr #: V11H978120

Epson PowerLite 1288

Overview

Epson PowerLite 1288

Full HD 1080p Meeting Room Projector with Built-in Wireless and Miracast

Bring ultra bright displays to meeting rooms with this wireless portable projector

Deliver engaging, ultra bright presentations, video and more with the innovative PowerLite 1288 projector. Designed with meeting spaces in mind, this high-powered, portable projector features Miracast to easily mirror photos, videos and apps directly from your laptop or smart device.

Built using advanced 3LCD technology, the PowerLite 1288 provides 4,000 lumens of color and white brightness and Full HD 1080p resolution to display outstanding, high-quality images.

Ideal for a variety of business applications, this wireless projector offers fast, easy installation, HDMI® connectivity and built-in 16W speakers for easy projection on the go.

  • Projection System: 3LCD, 3-chip technology
  • Native Resolution: Full HD 1920 x 1080 (1080p)
  • Color Brightness: 4000 lumens
  • White Brightness: 4000 lumens

(Model: V11H978120)

Features

  • Built-in wireless with Enterprise-level security: Easily connects to laptops and smart devices1 for enhanced flexibility and convenience during presentations
  • 3-chip 3LCD technology for best-in-class color brightness3: 4,000 lumens of color and white brightness2
  • Vibrant, high-quality images with full HD 1080p resolution: Delivers sharp, vivid displays for presentations, videos and more
  • Wireless screen mirroring: Mirror device photos, videos and apps using Miracast®
  • Works with the latest laptops and media players: Supports HDMI the standard in connectivity, for digital video and audio in one cable
  • Fast, easy setup with Epson®: Get up and running in no time with easy image adjustments and convenient control
  • The portability you need for presentations on the go: convenient carrying case included
  • Built-in 16 W speaker and microphone input: for engaging projector displays
  • Long-lasting lamp life: up to 12,000 hours in ECO Mode4
  • Project images up to 300" plus split-screen capability5 : for side-by-side viewing

Eco Features:

  • RoHS compliant
  • Recyclable product6
  • Epson America, Inc. is a SmartWay® Transport Partner7

Notes:

1 For wireless functionality, including via the Epson iProjection™ App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See http://epson.com/iprojection for details.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.

4 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

5 Split Screen feature requires remote control. Consult your user manual for input combinations.

6 For convenient and reasonable recycling options, visit www.epson.com/recycle

7 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: 3LCD, 3-chip technology
Projection Method: Front/rear/ceiling mount
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 2,073,600 dots (1920 x 1080) x 3
Native Resolution: 1920 x 1080
Resize Support: 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 800 (WXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 900 (WXGA++), 1680 x 1050 (WSXGA+)
Aspect Ratio: 16:9
Color Brightness1 - Color Light Output: 4,000 lumens
White Brightness1 - White Light Output: 4,000 lumens
Contrast Ratio: Up to 16,000:1
Color Reproduction: Over 1.07 billion colors
Size (projected distance): 30" – 300" (0.9 – 9 m)
Keystone Correction (Auto): Vertical: ± 30 degrees
Keystone Correction (Manual): Horizontal: ± 30 degrees (Easy-Slide Horizontal Image Correction)
USB Plug 'n Play: Projects audio and video, PC and Mac® compatible
Lamp Type: 230 W UHE
Lamp Life2: Normal Mode: Up to 5,500 hours
ECO Mode: Up to 12,000 hours

Projection Lens:

Type: Optical Zoom (Manual) / Focus (Manual)
F-number: 1.51 – 1.99
Focal Length: 18.2 – 29.2 mm
Zoom Ratio: Optical zoom 1.0 – 1.6
Throw Ratio Range: 1.32 (Zoom:Wide) to 2.14 (Zoom:Tele)

Other Features

Display Performance: NTSC: 480 lines; PAL: 576 lines (Depends on observation of the multi-burst pattern)
Input Signal: NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM
Operating Temperature: 41° to 104°F (5° to 40°C)
Fan Noise: 37 dB (Normal Mode); 28 dB (ECO Mode)
Security: Password Protect function
Speaker 16 W

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
Power Consumption: 345 W (Normal Mode)
235 W (ECO Mode)

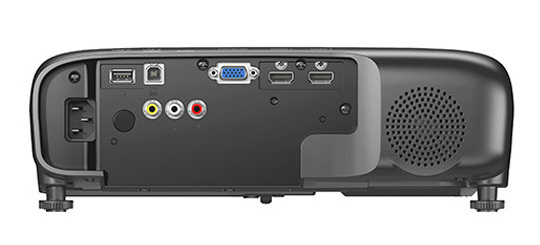

Interfaces:

  • 2x HDMI
  • Computer/component video: 1x D-sub 15 pin
  • Composite video: 1x RCA (Yellow)
  • Audio in: 1x RCA (White/Red)
  • 1x USB connector Type A: PC-free USB and other
  • 1x USB connector Type B: USB Plug 'n Play

Dimensions (W x D x H):

Including feet: 12.2" x 11.5" x 4.1"
Excluding feet: 12.2" x 11.1" x 3.5"
Weight: 6.83 lb

Remote Control:

Features: Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions
Operating Distance: 19.7 ft (6 m)
Operating Angle: Right/left: ± 30 degrees
Upper/lower: +15 degrees

Wireless (LAN):

Supported Speeds: IEEE 802.11b (2.4 GHz): 11 Mbps*
IEEE 802.11g (2.4 GHz): 54 Mbps*
IEEE 802.11n (2.4 GHz): 72.2 Mbps*
IEEE 802.11a (5 GHz): 54 Mbps*
IEEE 802.11n (5 GHz): 150.0 Mbps*
*These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.
Supported Mode: Infrastructure, Access Point
Frequency Type (Modulations): 802.11b/g/n (2.4 GHz) (DSSS/CCK, OFDM) 802.11a/n (5 GHz) (OFDM)

Wireless (Miracast):

Supported Speeds: IEEE 802.11g (2.4 GHz): 54 Mbps*
IEEE 802.11n (2.4 GHz): 130.0 Mbps*
IEEE 802.11a (5 GHz): 54 Mbps*
IEEE 802.11n (5 GHz): 270.0 Mbps*
IEEE 802.11ac (5 GHz): 780 Mbps*
*These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.
Supported Connection Mode: Wi-Fi Direct®3
Certification: Wi-Fi CERTIFIED™ Miracast
Frequency Type: OFDM, MIMO-OFDM

What's in the Box:

  • PowerLite 1288 projector
  • Power cable
  • Computer cable (VGA)
  • Soft carrying case
  • Projector remote control
  • Batteries,
  • Quick Setup Sheet

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

3 Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used.
