Barco I600-4K8

Laser DLP Projector, 4K UHD, 8000 ISO Lumens, Black, No Lens, 3-Year Warranty
Item #0600-4901 Model #R9010810


Barco I600-4K8

8,000 ISO lumen, 4K UHD, single-chip laser phosphor projector (no lens)

The Barco I600-4K8 is a lightweight high-resolution projector with 4K UHD image quality and 8,000 ISO lumens of brightness. With its focus on long-lasting image quality, multichannel compatibility and its compact size, this single-chip Barco projector is your perfect pick for a wide range of applications requiring high-quality content.

Running on the next generation Barco Pulse electronics and our unique Barco SuperShift® technology, the I600-4K8 makes for smoother images and sharper pixels at the lowest latency. This 4K UHD projector has a laser phosphor light source, ensuring exceptional color fidelity and image uniformity.

Featuring an optional input slot, a black or white chassis, a full range of peripherals, and a large fleet of swappable ILD lenses with variable ratios (from 0.37 UST to 7.4:1 long-throw), the I600-4K8 8000-lumen projector is tailored to match all your single and multi-channel installation needs.

What's more, the single-chip projector is fully integrated in Barco’s Pulse ecosystem, which includes various software tools such as Pulse Prospector, Pulse Mobile App, Pulse toolset and Insights Management Suite to enable easier projector control on-site and in the cloud. In addition, Barco I600-4K8 owners can benefit from the Barco swap-based service model and global support.

Key Features:

  • Most compact and lightweight design in its category
  • Premium 4K UHD image quality thanks to SuperShift®
  • Smooth integration in single and multi-channel setups
  • Next-gen Barco Pulse electronics


Note: The specifications in this document are preliminary

Projector type 4K UHD 1-chip DLP digital projector
Technology 0.8" DMD™
IR for NVG No
Resolution 3840 x 2400 (4K UHD) with pixel shifting
1920 x 1200 (native)
Brightness 8000 ISO lumens
Contrast ratio 1.200:1
Brightness uniformity >90%
Light source Blue laser phosphor with inorganic phosphor wheel
Light source lifetime 20,000 hrs
Aspect ratio 16:10 native
Color space REC 709
Color correction P7 RealColor™
CLO (constant light output) Yes
Sealed DLP™ core Yes
24/7 operation Yes
Processing Pulse electronics
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D / Passive stereo compatible
Max 4K @120 Hz or WUXGA at 240 Hz
1xHDMI/1xDP frame sequential or through the optional 4xDP1.2 input board

Keystone correction

Image processing Embedded warp & blend
Picture-by-picture Two sources simultaneously (supported when using the optional 4x1.4 DP input board)
Lens type Optional ILD lenses with throw ratios from 0.37:1 to 7.4:1 (See Accessories tab.)
Lens range 0.37:1 / 0.5:1 / 0.65-0.8:1 / 0.8-1.0:1 / 1.0-1.4:1 / 1.4-2.1:1 / 2.1-4.0:1 / 4.0-7.4:1
Optical lens shift Vertical up to 110%, depending on lens
Horizontal up to 50%, depending on lens
Prime lenses N/A

HDMI2.1 (HDCP2.2)
RJ45 Ethernet
12V out
BNC 3D sync in-out

Optional Inputs

Quad DP1.2
Fiber SFP
HDBaseT V3
Input Module DP1.2 HDMI2.0 DUAL HDBaseT Quad 12G (+loop)

Input resolutions Including and up to:
1920x1200@240 Hz
3840x2400@120 Hz
Input color depth up to 36 bpp
Software tools

Projector Toolset + Android app + iOS app + IMS



Network connection

10/100 base-T RJ-45 connection, Wifi (through optional dongle)

User interface

LCD touch, local keypad remote control, wired remote control

Web browser Yes
Power requirements

100-240 V / 50-60 Hz

Power consumption

640 W Typical

Standby power

< 0.5W

Noise level (typical at 25°C/77°F)

40 dB(A)

Operating temperature

32°–104°F / 0°40°C (sea level)

Storage temperature

 -4°F to 140°F / -20 to 60 °C

Operating humidity

0%80% RH (non-condensed)

Storage humidity

1090% RH (non-condensed)

Dimensions (WxLxH)

without feet: 19.8 x 20.6 x 8.1 in / 504 x 524 x 207 mm


without lens: < 55.1 lb / 25 kg

Standard accessories

Power cord, wireless remote control


Plastic cover


Compliant with UL60950-1 and EN60950-1
Complies with FCC rules & regulations
Part 15 Class A and CE EN55022 Class A RoHS

Warranty Limited 3 years on parts and labor. Extendable up to 5 years.

Horizontal and vertical edge blending

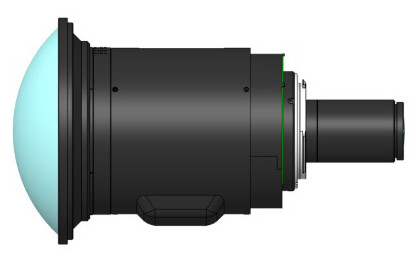

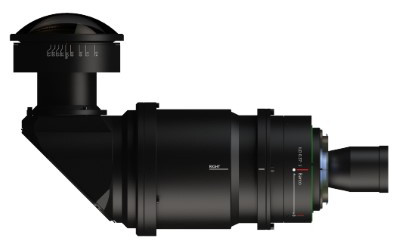

Optional Lenses

ILD Series
Model R9803077 R9803076 R9803072 R9803071 R9803070 R9803061 R9803075 R9803073
R9803077 lens R9803076 lens R9803072 lens R9803071 lens R9803070 R9803061 lens R9803075 lens R9803073
0.37:1 0.5:1 0.650.8:1 0.8–1.0:1 1.0–1.4:1 1.4–2.1:1 2.1–4.0:1 4.0–7.4:1


Other Accessories

Quad DP 1.2 Input Board (R9864002) Quad DP 1.2 Input Board (R9864002) $5,469.00
Add to Cart
12G-SDI Input Board (R9864003) DP1.2, HDMI2, HDBaseT, 12G-SDI Input Board (R9864003)
Add to Cart
Direct 12G-SDI Fiber Input Card

Direct 12G-SDI Fiber Input Card (R9802253)

Add to Cart
