Barco I600-4K15-B

14,000 ISO lumen, 4K UHD, single-chip laser phosphor projector (black, no lens)

The Barco I600-4K15-B is a lightweight high-resolution projector with 4K UHD image quality and 14,000 ISO lumens of brightness. With its focus on long-lasting image quality, multichannel compatibility and its compact size, this single-chip Barco projector is your perfect pick for a wide range of applications requiring high-quality content.

Running on the next generation Barco Pulse electronics and our unique Barco SuperShift^® technology, the I600-4K15-B makes for smoother images and sharper pixels at the lowest latency. This 4K UHD projector has a laser phosphor light source, ensuring exceptional color fidelity and image uniformity.

Featuring an optional input slot, a black chassis, a full range of peripherals, and a large fleet of swappable ILD lenses with variable ratios (from 0.37 UST to 7.4:1 long-throw), the I600-4K15-B 14,000-lumen projector is tailored to match all your single and multi-channel installation needs.

What's more, the single-chip projector is fully integrated in Barco’s Pulse ecosystem, which includes various software tools such as Pulse Prospector, Pulse Mobile App, Pulse toolset and Insights Management Suite to enable easier projector control on-site and in the cloud. In addition, Barco I600-4K15-B owners can benefit from the Barco swap-based service model and global support.

Key Features:

Most compact and lightweight design in its category
Premium 4K UHD image quality thanks to SuperShift^®
DynaBlack® contrast enhancement
Smooth integration in single and multi-channel setups
Next-gen Barco Pulse electronics

Note: The I600-4K15-B is a black projector. For a white model, see the I600-4K15-W.

Specifications

Projector type	4K UHD 1-chip DLP digital projector
Technology	0.8" DMD™
IR for NVG	No
Resolution	3840 x 2400 (4K UHD) with pixel shifting 1920 x 1200 (native)
Brightness	14,000 ISO lumens
Contrast ratio	Full field 1.600:1 Barco DynaBlack® 20.000:1
Brightness uniformity	>90%
Light source	Blue laser phosphor with inorganic phosphor wheel
Light source lifetime	20,000 hrs
Aspect ratio	16:10 native
Color space	REC 709
Color correction	P7 RealColor™
CLO (constant light output)	Yes
Sealed DLP™ core	Yes
24/7 operation	Yes
Processing	Pulse electronics
Orientation	360° rotation, no restrictions
3D	Active stereoscopic 3D / Passive stereo compatible
Keystone correction	Yes
Image processing	Embedded warp & blend
Picture-by-picture	Two sources simultaneously (supported when using the optional 4x1.2 DP input board)

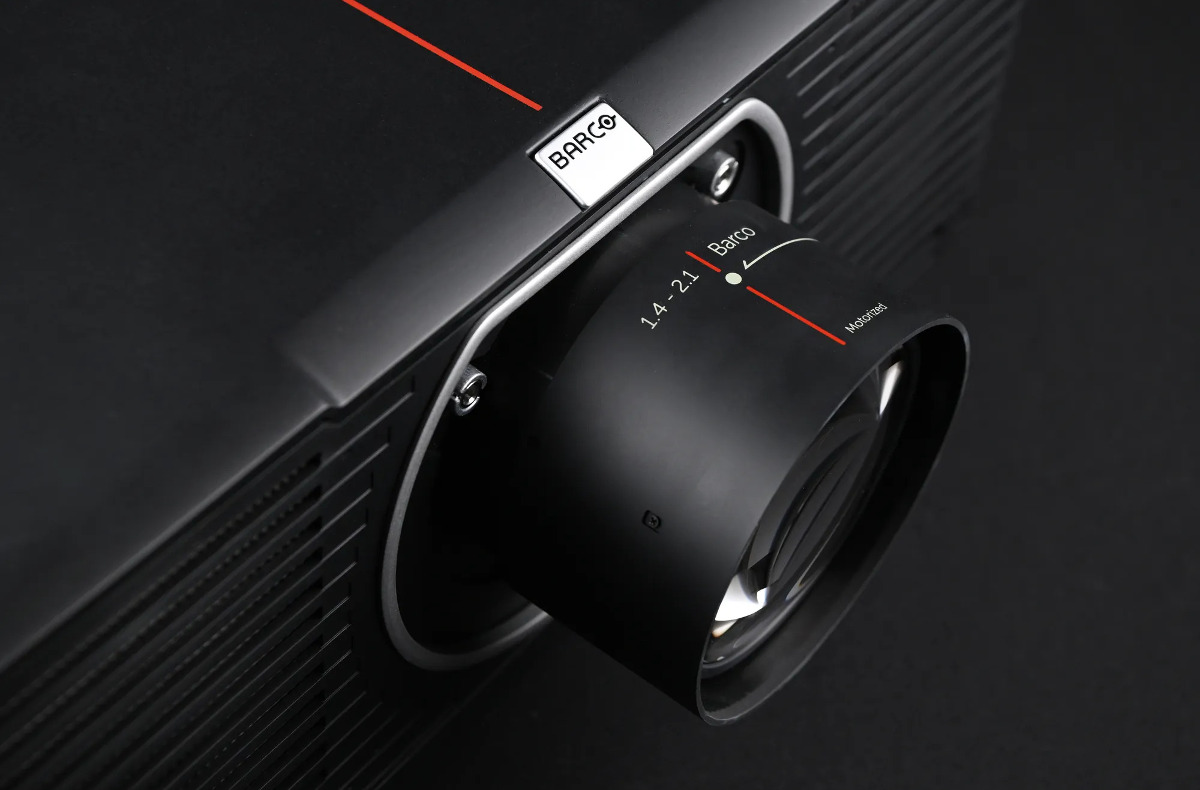

Lens type	Optional ILD lenses with throw ratios from 0.37:1 to 7.4:1 (See Accessories tab.)
Lens range	0.37:1 / 0.5:1 / 0.65-0.8:1 / 0.8-1.0:1 / 1.0-1.4:1 / 1.4-2.1:1 / 2.1-4.0:1 / 4.0-7.4:1
Optical lens shift	Vertical up to 110%, depending on lens Horizontal up to 30%, depending on lens
Prime lenses	N/A
Inputs/Outputs	HDMI™2.1 (HDCP2.2) DP1.4 RJ45 Ethernet USB(5v) 12V out BNC 3D sync in-out
Optional Inputs	Quad DP1.2 Fiber SFP HDBaseT(Lite)/ HDMI™/ Quad-3G/ 12G/ DMX/ remote CTRL HDBaseT
Input resolutions	Including and up to: WUXGA: 1920x1200@240 Hz 4K UHD: 3840x2400@120 Hz
Input color depth	up to 36 bpp
Software tools	Projector Toolset + Android app + iOS app + IMS
Control	IR RJ45
Network connection	10/100/1000 Mbit, Wifi (through optional dongle) Note: Wifi and GSM options are not available in all countries.
User interface	LCD touch, local keypad remote control, wired remote control
Web browser	Yes
Power requirements	100-240 V / 14A / 50-60 Hz
Power consumption	1200 W Typical
Standby power	< 0.5W
Dissipation BTU	4095 BTU/h
Noise level (typical at 25°C/77°F)	40 dB(A)
Operating temperature	41°–104°F / 5°–40°C (sea level)
Storage temperature	-4°F to 140°F / -20 to 60 °C
Operating humidity	10–80% RH (non-condensed)
Storage humidity	10–90% RH (non-condensed)
Dimensions (WxLxH)	20.5 x 19.4 x 7.8 in (522 x 494 x 198 mm)
Weight	52.3 lb / 23.7 kg without lens
Standard accessories	Power cord, wireless remote control
Housing	Plastic cover
Certifications	Compliant with UL: UL 62368-1, EN IEC 62368-1, and GB 4943.1; Complies with FCC rules & regulations: Part 15 Class A and CE EN55022 Class A, GB/T 9254.1 A􀀀 and GB 17625.1; RoHS;
Warranty	Limited 3 years on parts and labor. Extendable up to 5 years. Service: single swap of projector
Blend	Horizontal and vertical edge blending
DMX 512	Optional
TAA compliancy	Optional

Accessories

Optional Lenses

ILD Series

Model	R9803077	R9803076	R9803072	R9803071	R9803070	R9803061	R9803075	R9803073

D:W 4K UHD	0.37:1	0.5:1	0.65–0.8:1	0.8–1.0:1	1.0–1.4:1	1.4–2.1:1	2.1–4.0:1	4.0–7.4:1
f/stop	2.0	2.0	2.0–2.16	2.0–2.2	2.0–2.15	2.0–2.25	2.0–2.25	2.0

Other Accessories

	Mounts
	Quad DP 1.2 Input Board (R9864002)	$2,590.00 Add to Cart
	DP1.2, HDMI2, HDBaseT, 12G-SDI Input Board (R9864003)	Add to Cart
	Direct 12G-SDI Fiber Input Card (R9802253)	Add to Cart

Downloads

Essential Care Brochure
