Barco F400-N4K

RGB Laser DLP Projector, native 4K, 5000 ANSI Lumens, No Lens, Pulse Controls, 5-Year Warranty

Item #0600-4937 Model #R9010037

Overview

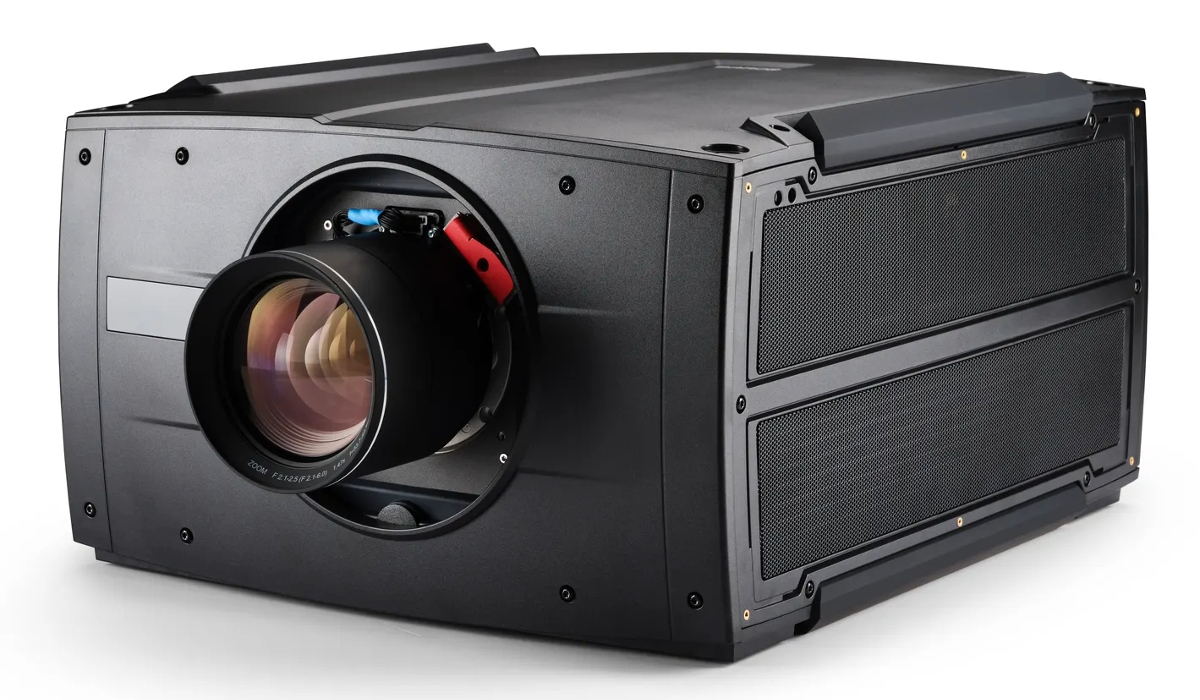

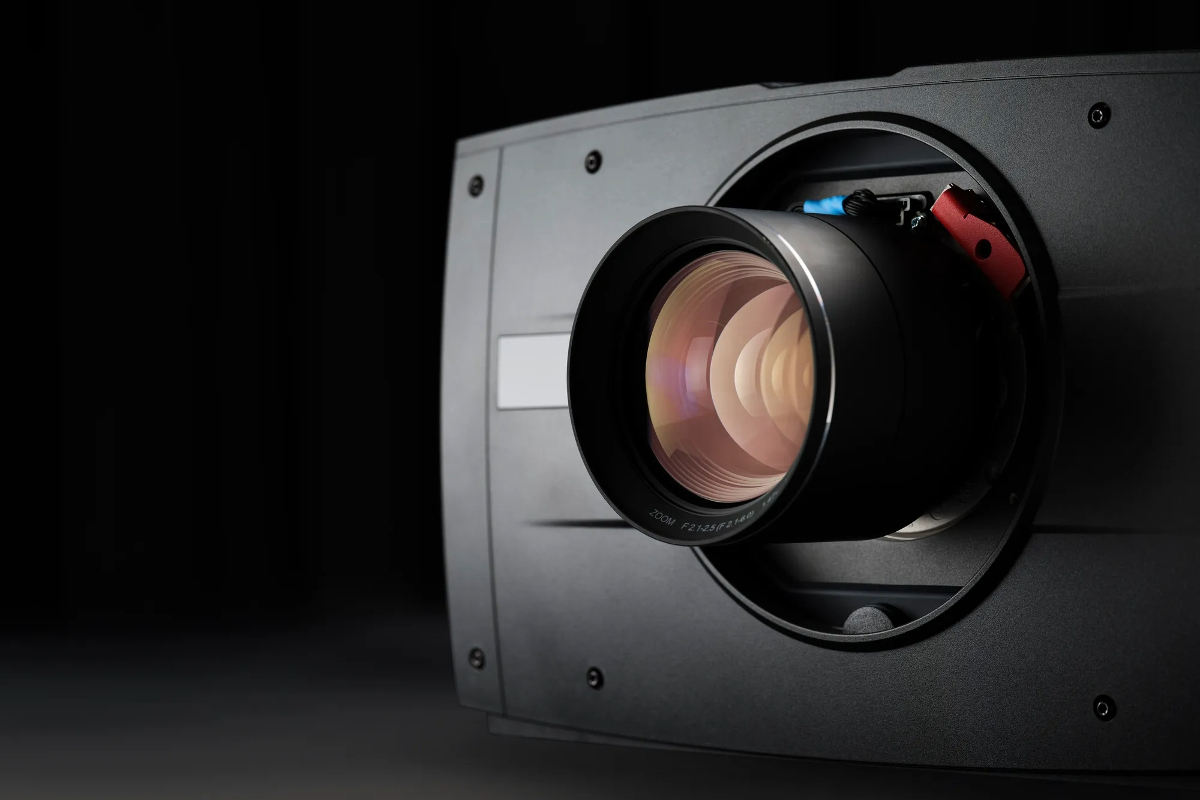

Barco F400-N4K

Reliable native 4K projector for simulation and training

The Barco F400-N4K is a true solid-state static laser-phosphor projector designed for the simulation and training market. With its processing speeds of up to 240 Hz at 4K resolution, the F400-N4K brings all details to life in even the fastest moving scenarios. This extreme performance never comes at the cost of image quality, which follows the high-speed scenario perfectly, with very low latency. This projector is a brilliant match for even the most demanding applications, including fast jet or racing simulators.

The F400-N4K is Barco's first single-chip DLP native 4K (4096 x 2176) projector. Using built-in or external pixel-shift, the dynamic resolution can be raised beyond 4K, up to 6K. Project on larger screens without losing any detail, and further expand the freedom of the simulation system designers.

The F400-N4K benefits from the next generation proprietary Barco Pulse electronics, the powerful and flexible software architecture that ensures advanced low-latency processing operations, like pixel-shifting, warping, and blending, take place in one single step. This is a huge advantage in the real-time processing environment of most simulator systems. What's more, our Barco Pulse API enables partners to integrate custom management tools and value-added features to complement the projector's software.

Motion platforms, with their rapid sudden movements, are challenging environments for projectors. The F400-N4K is a true solid-state product, which means no moving parts like color or phosphor wheels, and full rating for shock and vibration. With the electronics, hardware and software built around a unique H-beam shaped aluminum core, the F400-N4K has an optimized strength-to-weight ratio providing a sturdy platform as well as easy access if servicing is required. Optional accessories to support the lens on motion-based simulators are also available, and contribute to even higher image robustness.

Breathe realism into every simulation system with the F400-N4K, an extreme performance projector designed specifically for the demands of the training and simulation customer.

Features

Dynamic resolution up to 6K (4K native) with built-in or external pixel-shift, and frame rate up to 240 Hz for incredible image performance

Revolutionary static laser-phosphor for speckle-free, outstanding image quality

5000 ANSI lumens (5300 center lumens) of brightness

Rock-solid and true solid-state, fully rated for shock and vibration

Next Gen Barco Pulse for more powerful processing and unified interface across all Barco projectors

Barco Pulse API for integrating custom management tools and value-added features to the projector's software

Electronics, hardware and software built around a unique H-beam shaped aluminum core provide a sturdy platform and easy access for service.

Compatible with all current FLD/FLDX type lenses

5 years warranty as standard

Specifications

Brightness	5,000 typical ANSI lumens 5,300 typical center lumens
Contrast ratio	2,000 – 10,000:1 sequential
IR for NVG	No
Brightness uniformity	90%
Aspect ratio	1.88:1
Projector type	4K 1-chip DLP LaPh RGB projector
Resolution	4,096 x 2,176 (4K native) 6,144 x 3,264 (6K)
Lens type	FLD+ / FLDX / FLC (See Accessories tab.)
Optical lens shift	Vertical up to 134% depending on iris Horizontal up to 50% depending on lens Motorized zoom & Focus + Lens memory (FLDX) Motorized lens shift (all lenses)
Color correction	P7 RealColor™
Color space	REC709
CLO (constant light output)	Yes
Light source	RGB LaPh (static laser phosphor)
Light source lifetime	Minimum 25,000 hours at full power Up to 50,000 hours, depending on mode of operation
Sealed DLP™ core	Yes
Orientation	360° rotation, no restrictions
3D	Active stereoscopic 3D
Image processing	Embedded warp & blend engine
Keystone correction	Yes
Inputs	1 x DP 1.4 (HDCP 2.2) 1 x HDMI™ 2.1 (HDCP 2.2) 4 x DP 1.2
Input resolutions	Including and up to: 4,096 x 2,176 @ 60 Hz 4,096 x 2,176 @ 120 Hz 4,096 x 2,176 @ 240 Hz* 6,144 x 3,264 @ 60 Hz
Input color depth	Up to 12-bit, depending on configuration
Software tools	Pulse Toolset + Android app + iOS app + IMS
Control	IR, RJ45, Cabled Remote Control
Network connection	10/100/1000 Mbit
Power requirements	100-240 V / 50-60 Hz
Power consumption	815 W typical; 1200 W maximum rated
BTU per hour	2781 BTU/h typical 4095 BTU/h maximum
Noise level (typical at 25°C/77°F)	34 db(A)
Operating temperature	50-104 °F (10–40 °C) at sea level
Standby power	< 0.5 W
Storage temperature	-4 to 140 °F (-20 to 60 °C)
24/7 operation	Yes
Operating humidity	20–80% RH
Storage humidity	10–90% RH
Dimensions (WxLxH)	18.6 x 22.1 (21.3) x 11.5 in / 472 x 562 (542) x 293 mm (front cover removed)
Weight	68 lbs / 31.0 kg
Standard accessories	Power cord, wireless remote control
Certifications	CE, FCC Class A and cSGSus, KCC, CCC
Warranty	Limited 5 years parts and labor, extendable.

* Future software release

Accessories

Optional Lenses

FLC lenses (optimized for native 4K resolution)

P/N	R9867889
Model	EN83

D:W 4K	1.10–1.61:1
f/stop	2.1–2.38
Notes	Motorized iris F/2.1-9.0, zoom and focus

FLD+ lenses^* (optimized for WQXGA resolution)

P/N	R9802232	R9801220
Model	EN68	EN45

D:W 4K	0.30:1	0.70–1.06:1
f/stop	2.5	2.4–3.29
Notes		Motorized, Long Focus

FLDX lenses^* (optimized for WQXGA resolution, with encoder)

P/N	R9801832	R9802244	R9802010	R9802243	R9802003/R9010091	R9802242	R9802241	R9802473
Model	0.38:1 UST 90°	EN67	EN62	EN66	EN76/EN76-M	EN63	EN61	EN64

D:W 4K	0.36:1	0.53:1	0.70:1	0.71–1.06:1	0.83–1.14:1	1.06–1.50:1	1.48–2.18:1	2.19–4.05:1
f/stop	2.40	2.1	2.1	2.4–3.29	2.1–2.32	2.4-2.7	2.1–2.5	2.04–2.87
Notes		Motorized iris (F# 2.1-6.0) and focus with memory	Motorized iris (F# 2.1-6.5) and focus	Motorized iris (F# 2.4-6.5), zoom, and focus with memory	Motorized iris (F# 2.1-9.0), zoom, and focus	Motorized iris (F# 2.4-6.5), zoom, and focus with memory	Motorized iris (F# 2.1-6.5), zoom, and focus with memory	Motorized iris (F# 2.04-6.0), zoom, and focus
