Epson PowerLite Pro L1490U
Overview
Epson L1490U
Premium large-venue WUXGA 3LCD laser projector with 4K enhancement and lens
Experience the vibrancy of crystal-clear projection with the Epson® Pro L1490U. Equipped with powerful 3-chip, 3LCD and native WUXGA with 4K Enhancement Technology, this state-of-the-art, large-venue laser projector displays crisp, luminous images at 9,000 lumens of color and white brightness.
Designed with ease in mind, the Pro L1490U’s laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours. Plus, this elegant, white projector features a full range of inputs, Edge Blending and 10 optional powered lenses (one lens included - ELPLM15), making it an ideal solution for conference rooms, auditoriums and live events.
Features
- Brighter Colors with Epson — 9,000 lumens color/white brightness2
- Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement1 for presentations, videos, digital signage and more
- Worry-free operation — laser light source and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours3
- Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications

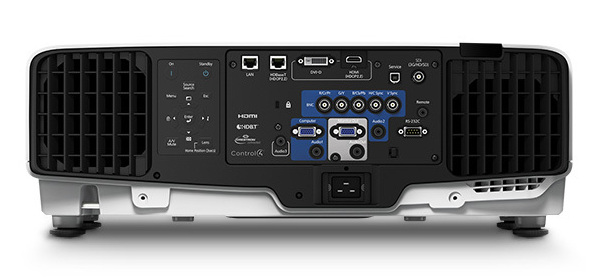

- Advanced connectivity — 3G-SDI, HDBaseT™, HDMI®, DVI-D, VGA, 5-BNC and Stereo Mini
- 10 optional interchangeable lenses — with powered lens shift and lens memory; standard lens included (ELPLM15)
- Flexible installation — 360-degree projection for added versatility; sleek, black design seamlessly blends into most environments
- Remote management and control tools — included software allows for easy web-based monitoring and multiple projector setup
- Image correction camera — automatically adjusts color and brightness to match other projectors in multiple-screen applications
- Brightness lock feature — allows users to securely set maximum brightness level
Eco Features
- RoHS compliant
- Recyclable product4
- Epson America, Inc. is a SmartWay™ Transport Partner5
Notes:
1 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution and surpass Full HD image quality.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Specifications
Specifications Projector:
| Projection System: | High-aperture Epson 3LCD, 3-chip technology |
| Projection Method: | Front / rear / ceiling mount |
| Driving Method: | Poly-silicon TFT Active Matrix |
| Pixel Number: | 2,304,000 pixels (1920 x 1200) x 3 chips |
| Color Brightness - Color Light Output: | 9,000 lumens2 |
| White Brightness - White Light Output: | 9,000 lumens2 |
| Aspect Ratio: | Supports 4:3, 16:9, 16:10 |
| Resolution: | WUXGA with 4K Enhancement1 (1920 x 1200 x 2) |
| Resize: | 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050 |
| Size - projected distance: | 50" – 300" |
| Keystone Correction: | Vertical: ±45 degrees Horizontal: ±30 degrees |
| Brightness Uniformity | 90% |
| Pixel Arrangement: | Cross stripe |
| Contrast Ratio: | 2,500,000:1 AbsoluteBlack™ (Full White 8,000 lm/Full Black 0 lm) |
| Color Processing: | 10 bit |
| Color Reproduction: | Up to 1 billion colors |
| Light Source Life: | 20,000 hours3 |
| Laser Type: | Laser Phosphor |
Effective Scanning Frequency Range:
| Pixel Clock: | 13.5 MHz – 162 MHz (up to UXGA 60 Hz) |
| Horizontal: | 15 kHz – 92 kHz |
| Vertical: | 50 Hz – 85 Hz |
General:
| Operating Temperature: | 32° to 113° F (0° to 45° C) |
| Power Supply Voltage: | 100–240 V ±10%, 50/60 Hz AC |
| Power Consumption: | 645 W (Normal Mode) 524 W (Extended Mode) 2.0 W Standby (Communication on) 0.5 W Standby (Communication off) |
| Dimensions (WxDxH): | 23.1" x 19.4" x 8.3" (including feet) |
| Weight: | 48.4 lb |
| Security: | Security cable hole, lens lock, Kensington lock provision |
Projection Lens:
| Type: | Powered shift/focus/zoom (for ELPLM15) |
| F-number: | 1.8 – 2.35 (for ELPLM15) |
| Focal Length: | 36.0 mm – 57.4 mm (for ELPLM15) |
| Zoom Ratio: | Optical zoom 1 – 1.6x (for ELPLM15) |
| Throw Ratio Range: | 1.57 – 2.56 (for ELPLM15) |
| Lens Shift: | Vertical: ±60%; Horizontal: ±18% (for ELPLM15) |
Projector Details:
| Display Performance: | NTSC: 480 line, PAL: 576 line (depends on observation of the multi-burst pattern) |
| Input Signal: | NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080p |
| Interfaces |
|
| Fan Noise: | 37 dB (Normal Mode); max. 30 dB (Quiet Mode) |
Remote Control:
| Features: | Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions |
| Operating Distance: | 49 ft |
| Operating Angle: | Right/left: Front: ± 60 degrees; rear: ± 30 degrees Upper/lower: Front: ± 20 degrees; rear: +10 to +50 degrees |
What's In The Box:
- Pro L1490U projector
- Lens
- Lens cover
- Power cable
- HDMI clamps
- Projector remote control with batteries
- Quick Setup Sheet
- Lens lock screw
Notes:
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.
Accessories
Optional Lenses
| Model: | ELPLX02 ELPLX02S |
ELPLU03 ELPLU03S |
ELPLU04 | ELPLW05 | ELPLW08 | ELPLW06 |
ELPLM09 |
ELPLM10 | ELPLM11 | ELPLL08 |
| Price: |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA 1.03" chip |
0.35:1 | 0.48–0.57:1 | 0.64–0.77:1 | 0.77–1.07:1 | 0.86–1.21:1 | 1.19–1.62:1 | 1.57–2.56:1 | 2.42–3.71:1 | 3.54–5.41:1 | 5.27–7.41:1 |
| F/stop | 1.9 | 2.0–2.26 | 2.0–2.1 | 2.0–2.2 | 2.0–2.2 | 1.8–2.3 | 1.8–2.35 | 1.8–2.4 | 1.8–2.4 | 1.8–2.5 |
| Max Lumens | 20,000 | U03 12,000 U03S 20,000 |
20,000 | 10,500 | 20,000 | 20,000 | M09 12,000 M15 20,000 |
20,000 | 20,000 | 20,000 |
| Notes | ELPLX02 is discontinued. ELPLX02S has a mounting point for the ELPEC01 external camera. |
ELPLU03 is discontinued. |
ELPLM09 is discontinued. |
Other accessories
 |
Ceiling mounts | |
 |
Replacement air filter (ELPAF51) |
$79.00
Add to Cart |
 |
HDBaseT transmitter (ELPHD01) |
|
