Epson PowerLite Pro L1495UNL

Laser LCD Projector, 1920x1200 WUXGA, 9000 Lumens, No Lens, Black, 3 year warranty
Part #: 0600-6144    Mfr #: V11HA16820

Epson PowerLite Pro L1495UNL

Overview

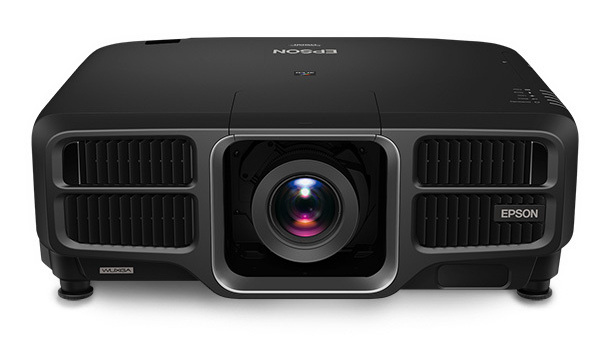

Epson L1495UNL

Premium large-venue WUXGA 3LCD laser projector with 4K enhancement

Experience the vibrancy of crystal-clear projection with the Epson® Pro L1495UNL. Equipped with powerful 3-chip, 3LCD and native WUXGA with 4K Enhancement Technology, this state-of-the-art, large-venue laser projector displays crisp, luminous images at 9,000 lumens of color and white brightness.

Designed with ease in mind, the Pro L1495UNL’s laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours. Plus, this sleek, black projector features a full range of inputs, Edge Blending and 10 optional powered lenses, making it an ideal solution for conference rooms, auditoriums and live events.

    Features

    • Brighter Colors with Epson — 9,000 lumens color/white brightness
    • Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement1 for presentations, videos, digital signage and more
    • Worry-free operation — laser light source and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours3
    • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
    • Advanced connectivity — 3G-SDI, HDBaseT™, HDMI®, DVI-D, VGA, 5-BNC and Stereo Mini
    • 10 optional interchangeable lenses — with powered lens shift and lens memory
    • Flexible installation — 360-degree projection for added versatility; sleek, black design seamlessly blends into most environments
    • Remote management and control tools — included software allows for easy web-based monitoring and multiple projector setup
    • Image correction camera — automatically adjusts color and brightness to match other projectors in multiple-screen applications
    • Brightness lock feature — allows users to securely set maximum brightness level

    Eco Features

    • RoHS compliant
    • Recyclable product4
    • Epson America, Inc. is a SmartWay™ Transport Partner5

    Notes:

    1 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution and surpass Full HD image quality.

    2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

    3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.

    4 For convenient and reasonable recycling options, visit www.epson.com/recycle

    5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.


    Specifications

    Specifications Projector:

    Projection System: High-aperture Epson 3LCD, 3-chip technology
    Projection Method: Front / rear / ceiling mount
    Driving Method: Poly-silicon TFT Active Matrix
    Pixel Number: 2,304,000 pixels (1920 x 1200) x 3 chips
    Color Brightness - Color Light Output: 9,000 lumens2
    White Brightness - White Light Output: 9,000 lumens2
    Aspect Ratio: Supports 4:3, 16:9, 16:10
    Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
    Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
    Size - projected distance: 50" – 300"
    Keystone Correction: Vertical:     ±45 degrees
    Horizontal: ±30 degrees
    Brightness Uniformity 90%
    Pixel Arrangement: Cross stripe
    Contrast Ratio: 2,500,000:1 AbsoluteBlack™ (Full White 8,000 lm/Full Black 0 lm)
    Color Processing: 10 bit
    Color Reproduction: Up to 1 billion colors
    Light Source Life: 20,000 hours3
    Laser Type: Laser Phosphor

    Effective Scanning Frequency Range:

    Pixel Clock: 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
    Horizontal: 15 kHz – 92 kHz
    Vertical: 50 Hz – 85 Hz

    General:

    Operating Temperature: 32° to 113° F (0° to 45° C)
    Power Supply Voltage: 100–240 V ±10%, 50/60 Hz AC
    Power Consumption: 645 W (Normal Mode)
    524 W (Extended Mode)
    2.0 W Standby (Communication on)
    0.5 W Standby (Communication off)
    Dimensions (WxDxH): 23.1" x 19.4" x 8.3" (including feet)
    Weight: 48.4 lb
    Security: Security cable hole, lens lock, Kensington lock provision

    Projection Lens (not included):

    Type: Powered shift/focus/zoom (with standard lens)
    F-number: 1.8 – 2.35 (with standard lens)
    Focal Length: 36.0 mm – 57.4 mm (with standard lens)
    Zoom Ratio: Optical zoom 1 – 1.6x (with standard lens)
    Throw Ratio Range: 1.57 – 2.56 (with standard lens)
    Lens Shift: Vertical: ±60%; Horizontal: ±18% (with standard lens)

    Projector Details:

    Display Performance: NTSC: 480 line, PAL: 576 line (depends on observation of the multi-burst pattern)
    Input Signal: NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080p

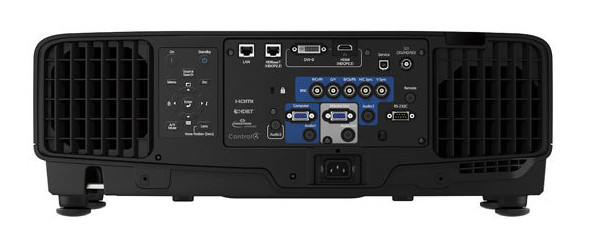

    Interfaces
    • 3G-SDI x 1
    • DVI-D x 1
    • HDMI x 1
    • HDBaseT x 1
    • 5-BNC, VGA x 1
    • Audio in: Mini Stereo x 3
    • Variable audio out: Mini Stereo x 1
    • USB connector Type B x 1: For service only
    • USB connector Type A x 1: For wireless only
    • Monitor out: Mini D-sub 15 pin x 1
    • Serial: RS-232c x 1
    Fan Noise: 37 dB (Normal Mode); max. 30 dB (Quiet Mode)

    Remote Control:

    Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
    Operating Distance: 49 ft
    Operating Angle: Right/left:     Front: ± 60 degrees; rear: ± 30 degrees
    Upper/lower: Front: ± 20 degrees; rear: +10 to +50 degrees



    What's In The Box:

    • Pro L1495UNL projector
    • Power cable
    • HDMI clamps
    • Projector remote control with batteries
    • Quick Setup Sheet
    • Lens lock screw

    Notes:

    2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

    3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.



    Accessories

    Ceiling mounts for L1495U Ceiling mounts

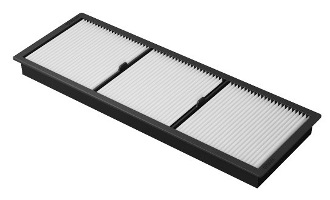

    ELPAF51 filter for L1495U Replacement air filter (ELPAF51) $69.00
    Add to Cart

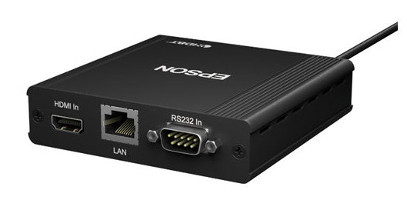

    ELPHD01 HDBaseT transmitter for L1495U HDBaseT transmitter (ELPHD01) $499.00
    Add to Cart



    Optional Lenses

    Model: ELPLX02 ELPLU03 ELPLU04 ELPLW05 ELPLW06

    ELPLM15
    Std Lens

    ELPLM10 ELPLM11 ELPLL08
    Price:
    Add to Cart

    Add to Cart
    $2,999.00
    Add to Cart
    $1,899.00
    Add to Cart
    $2,899.00
    Add to Cart
    $1,399.00
    Add to Cart
    $1,899.00
    Add to Cart
    $1,899.00
    Add to Cart
    $2,899.00
    Add to Cart
      ELPLX02 lens ELPLU03 lens ELPLU04 lens ELPLW05 lens ELPLW06 lens ELPLM15 ELPLM10 lens ELPLM11 lens ELPLL08 lens
    D:W (WUXGA)
    0.35:1 0.48 – 0.57:1 0.64 – 0.77:1 0.77 – 1.07:1 1.19 – 1.62:1 1.57 – 2.56:1 2.42 – 3.71:1 3.54 – 5.41:1 5.27 – 7.41:1
    f/stop 1.9 2.0 – 2.26 2.0 – 2.1 2.0 – 2.2 1.8 – 2.3 1.8 – 2.35 1.8 – 2.4 1.8 – 2.4 1.8 – 2.5



    Downloads
