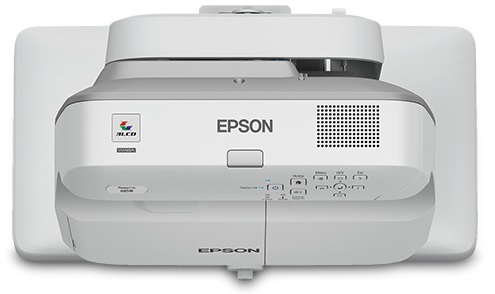

Epson BrightLink 685Wi

LCD Projector, 1280x800 WXGA, 3500 Lumens, Interactive, Ultra Short Throw, 2 Year Warranty
Part #: 0600-6228    Mfr #: V11H741522

Epson BrightLink 685Wi

Features

BrightLink 685Wi WXGA 3LCD Ultra Short-throw Interactive Display

Pen-based WXGA ultra short-throw interactive display for classrooms.

Transform your classroom into a collaborative learning space with the BrightLink 685Wi ultra short-throw WXGA interactive display. Featuring 3,500 lumens of color and white brightness, the 685Wi delivers a dynamic, easy-to-read display up to 100" — from as close as 11" away. Take interactive learning to new heights with dual pen-based interactivity that lets up to two users draw and write on almost any wall or existing whiteboard. Wirelessly display content from a variety of devices — including Chromebooks — using the Epson iProjection™ App with Moderator device management software. Plus, it includes a 1-year subscription to SMART Learning Suite.

Specifications

Specifications

Projection System Epson® 3LCD, 3-chip technology

Projection Method Front/rear/wall mount/table mount

Driving Method Epson Poly-silicon TFT Active Matrix

Pixel Number 1,024,000 dots (1280 x 800) x 3

Color Brightness1 Color Light Output: 3,500 lumens

White Brightness1 White Light Output: 3,500 lumens

Interactive Color Brightness1 Color Light Output: 3,500 lumens

Interactive White Brightness1 White Light Output: 3,500 lumens

Aspect Ratio 16:10

Native Resolution 1280 x 800 (WXGA)

Lamp Type 250 W UHE

Lamp Life4 ECO Mode: Up to10,000 hoursNormal Mode: Up to 5,000 hours

Size (Projected) (4:3) 53" – 88"; (16:10) 60" – 100"; (16:9) 59" – 97"

Keystone Correction (Manual) Horizontal: ±3 degrees; Vertical: ±3 degrees

USB Plug ’n Play Mac OS® 10.7/10.8/10.9/10.10/10.11/macOS10.12.x

USB Plug ’n Play for Windows® Windows Vista®/Windows 7/Windows 8/Windows 10

Contrast Ratio Up to 14,000:1

Color Reproduction Up to 1 billion colors

Projection Lens

Type Manual focus

F-number 1.6

Focal Length 3.7 mm

Throw Ratio Range (16:10) 0.28 – 0.37, (4:3) 0.33 – 0.45, (16:9) 0.28 – 0.37

Zoom Ratio Digital zoom: 1.0 – 1.35x

Other

Display Performance NTSC: 480 linesPAL: 576 lines (Depends on observation of the multi-burst pattern)

Input Signal NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM

Speaker 16 W monaural

Operating Temperature 41 ˚ to 104 ˚F (5 ˚ to 40 ˚C)

Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz

Power Consumption 373 W2.2 W Standby (Communication On)0.23 W Standby (Communication Off)

Fan Noise ECO Mode: 29 dBNormal Mode: 35 dB

Security Kensington lock provision, security anchor bar, Password Protection function

Interactivity

Interactive Technology Infrared, 850 nm

Interactive Area (Image Size) 60" – 100" diagonal (16:10, WXGA)

Interactive Modes Computer Interactivity/Input, PC-free with Whiteboard Annotation, Pen: Dual User

PC-free Annotation Dual user

Interactive Tools Epson Easy Interactive Tools, Dual User

PC Interactive Sources USB, HDMI, Computer 1, Computer 2, LAN

PC-free Annotation Devices Document Cameras, DVD/Blu-ray Disc® player, iPod®/iPad® devices, Chromebooks

Calibration Method Automatic or Manual

Interactive Connectivity USB cable for non-networked

Interactive Software Requirements Epson Easy Interactive Driver (Mac and PC — required for DuoLink); Windows and Linux: driver required

Mac: Mac OS X® 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x

Epson Easy Interactive Tools for Windows and Mac

System Compatibility Microsoft® Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter)Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x

SMART Learning Suite System Requirements

Supported Operating Systems Windows 7 SP1, Windows 8/8.1, Windows 10, Mac OS X 10.9, 10.10, 10.11, macOS 10.12

Minimum Processor Intel Core 2 Duo

Minimum RAM 2GB (4GB for UHD displays)

Minimum Hard Disk Space 3GB (Windows); 3GB (Mac)

Interactive Input Device

Type of Interactive Input Device Digital pen

Interactive Pen Functions Mouse Functions (left and right click), Electronic Pen, LED Battery Status Indicator

Interactive Pen Power AA battery, rechargeable

Compatible Pen Battery Types Eneloop® batteries (included), Manganese dry cell, alkaline dry cell

Interactive Pen Dimensions 6.3" x 0.94" (diameter)

Interactive Pen Weight 1.1 oz (without battery)

Dimensions (W x D x H)

14.5" x 15.8" x 5.9"

Weight 12.8 lb

Remote Control

Features Computer, Video/HDMI, USB, LAN, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Help, Auto, Enter, ESC, Pointer, Home, Split, Pen Mode, Link Menu

Operating Angle Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degreesFront: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees

Operating Distance 19.7 ft (6 m)

Eco Features

RoHS compliant

Recyclable product7

Epson America, Inc. is a SmartWay® Transport Partner8

Support

Epson ConnectionSM

Pre-sales support

U.S. and Canada: 800-463-7766www.epson.com

Service Programs 2-year projector limited warranty, Epson Road Service program, PrivateLine® dedicated toll-free support and 90-day limited lamp warranty

What’s in the Box

BrightLink 685Wi ultra short-throw interactive projector, Quick Start Guide, power cable, USB A/B cable, USB extender cable, electronic user manual, interactive driver for Mac and PC, Epson Easy Interactive Tools, Network Management software, projector remote control, two (2) interactive pens, pen tray, two (2) AA batteries (for interactive pens) plus battery charger, two (2) AA batteries (for remote), SMART Learning Suite redemption code

Ordering Information

BrightLink 685Wi V11H741522

Genuine Epson Lamp V13H010L91

Air Filter V13H134A49

PowerLite® Pilot2 (ELPCB02) V12H614020

Active Speakers (ELPSP02) V12H467020

Wireless 802.11b/g/n LAN Unit (ELPAP10) V12H731P02

100" Whiteboard V12H831000

Interactive Pen A (orange) V12H773010

Interactive Pen B (blue) V12H774010

Replacement Pen Tips (hard/Teflon®) V12H775010

Replacement Pen Tips (soft/felt) V12H776010

Ultra Short-throw Wall Mount (ELPMB46) V12H777020

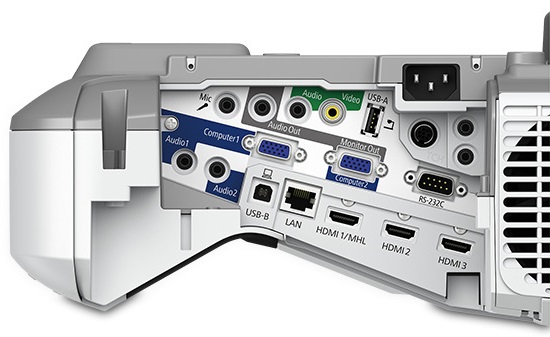

Interfaces

2x HDMI®

1x HDMI/MHL®

Computer/Component video: 1x D-sub 15 pin

Composite video: 1x RCA (Yellow)

Audio in: 3x Mini stereo

USB connector: 1x Type B (USB display, audio interactivityand mouse control)

USB connector: 1x Type A (USB memory/document camera)

1x RJ-45

Serial: 1x RS-232c

Monitor Out/Computer 2: 1x D-sub 15 pin

Audio Out: 1x Mini stereo

Microphone: 1x Mini stereo

Wireless LAN port: 802.11 b/g/n (optional – module sold separately)

Interactive Synchronization Mini stereo In

Interactive Synchronization Mini stereo Out

Options

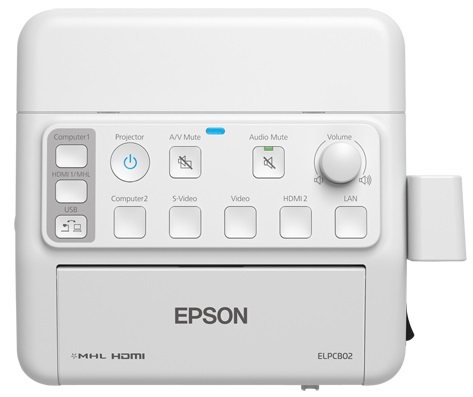

PowerLite Pilot 2

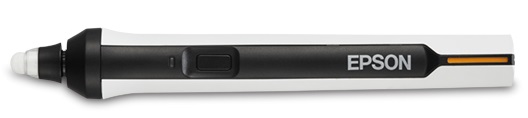

Interactive Pen (Orange)

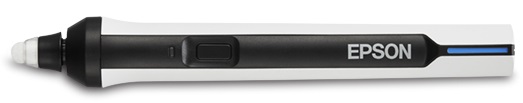

Interactive Pen (Blue)

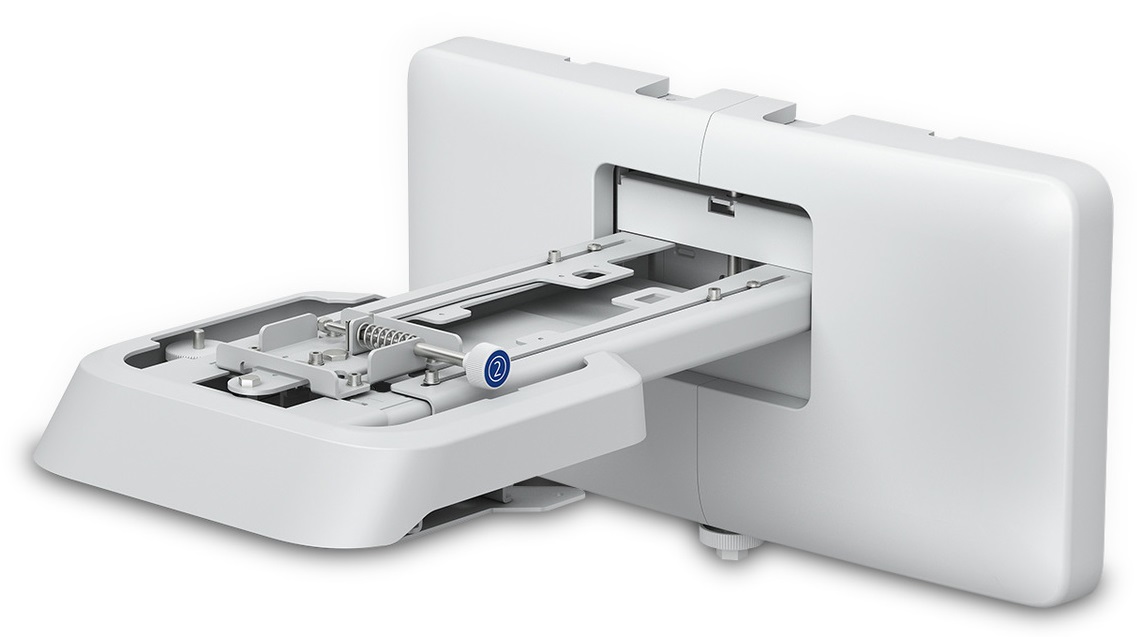

Wall Mount

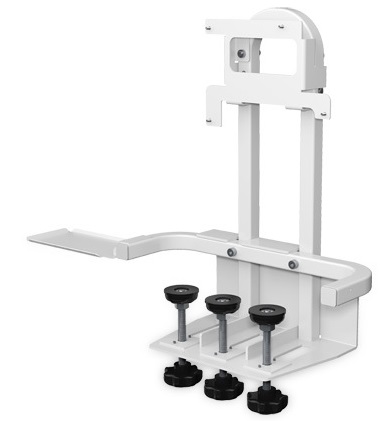

Table Mount

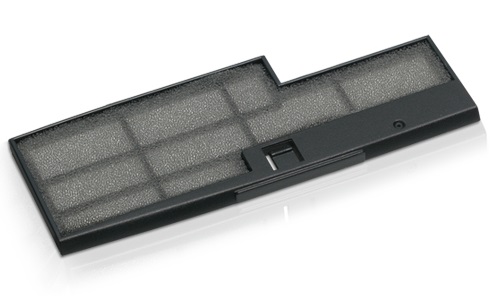

Air Filter

V12H614020
V12H773010
V12H774010
V12H777020
V12H516020
V13H134A49

Downloads

Warranty

Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty
