Epson PowerLite L400U

Laser Projector, 1920x1200 WUXGA, 4500 Lumens, 360-Degree, D:W 1.35-2.20:1, White, 3-Year Warranty
Item #0600-6252 Model #V11H907020


Epson L400U

Bright, compact WUXGA laser projector with 4,500 lumens

The compact, affordable PowerLite L400U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 4,500 lumens color/white brightness.

This robust projector also offers WUXGA resolution and Full HD support. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours. And, it is virtually maintenance-free with no lamps.

Plus, it features a Dynamic contrast ratio up to 2,500,000:1. It also comes with advanced installation features and enterprise-level wireless security support (module sold separately).

(Model: V11H907020)


  • Bright, vivid color: 4,500 lumens color/white brightness1.
  • Full HD, widescreen images up to 500": WUXGA resolution (1920 x 1200); Full HD 1080p support
  • Breakthrough laser technology: features a laser light source of up to 20,000 hours2, plus Instant ON/OFF
  • Extraordinary sharpness and detail: up to 2,500,000:1 Dynamic contrast ratio
  • Optional wireless networking with enterprise-level security: plus wireless content sharing with Epson iProjection™3. (Wireless module sold separately.)
  • Virtually maintenance-free operation: no lamps
  • Versatile connectivity: supports 2x HDMI®, VGA, RJ-45, stereo mini and more
  • Advanced installation features: 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more
  • Constant Brightness Mode4: fine-tune the brightness setting to help maximize run time
  • Remote management and control tools: compatible with Crestron®, AMX®, PJLink and more; offers easy access and maintenance


Eco Features

  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWay™ Transport Partner6


1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector comes with a 3-year limited warranty.

3 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See for details.

4 Color light output and white light output (lumens) in Constant Brightness Mode can be lower than the maximum output achievable when the Constant Brightness Mode is off. Actual run time may vary depending on environmental conditions, usage and settings.

5 For convenient and reasonable recycling options, visit

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.


Specifications Projector:

Projection System: RGB Liquid Crystal Shutter Projection System
Projection Method: Front, Front/Ceiling, Rear, Rear/Ceiling
LCD Screen: 0.67" (D10 with C2Fine™)
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 2,304,000 pixels (1920 x 1200) x 3
Color Brightness - Color Light Output: 4,500 lumens1
White Brightness - White Light Output: 4,500 lumens1
Aspect Ratio: 16:10
Resolution: 1920 x 1200 (WUXGA)
Throw Ratio Range: 1.35 – 2.20:1
Size - projected distance: 80" screen: 2.33–3.78 m
Keystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degrees
Contrast Ratio: Up to 2,500,000:1
Color Processing: 10 bit
Color Reproduction: Up to 1.07 billion colors
Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
Illumination Technology: Laser Diode

Effective Scanning Frequency Range:

Pixel Clock: Analog: 13.5–162 MHz (up to UXGA 60 Hz)
Digital: 13.5–162 MHz (up to UXGA 60 Hz)
Horizontal: Analog: 15–92 kHz
Digital: 15–75 kHz
Vertical: Analog: 50–85 Hz
Digital: 24/30/50/60 Hz

Projection Lens:

Type: Optical Zoom (Manual) / Focus (Manual)
F-number: 1.5–1.7
Screen Size: Zoom: Wide: 50"–500" (1.44–14.76 m)
Zoom: Tele: 50"–500" (2.35–23.84 m)
Focal Length: 20.0–31.8 mm
Zoom Ratio: 1–1.6
Lens Cover: Lens cap (without string)

Projector Details:

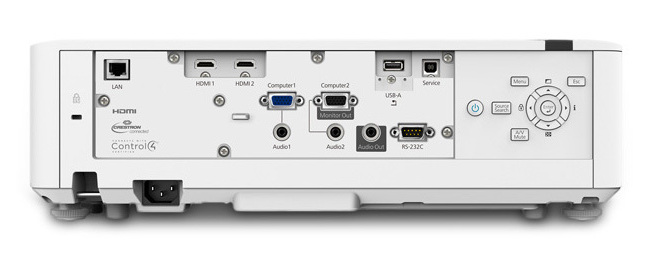

  • 2x HDMI (1x MHL)
  • Analog: D-sub 15 pin
  • 1x Control I/O: RS-232C D-sub 9 pin
  • USB-I/O: Type A 1x; Type B 1x
  • Wired LAN RJ45
  • Wireless LAN Optional Accessory
  • Audio in (stereo): 2x
  • Audio out (stereo): 1x
Fan Noise: 38 dB (Normal Mode), 28 dB (ECO Mode)


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
Power Consumption: Normal: 324 W
Quiet: 245 W
Networked Standby 2.0 W
Energy Saving: 0.3 W


Including feet: 17.32" x 11.97" x 5.35" (W x D x H)
Excluding feet: 17.32" x 11.97" x 4.73" (W x D x H)
Weight - with standard lens: Approx. 17.1 lb/7.8 kg

Remote Control:

Operating Distance: 8 m
Operating Angle: Front: Right/Left: ±60 degrees; Upper/Lower: +30 to -20 degrees
Rear: Right/Left: ±30 degrees; Upper/Lower: +50 to +10 degrees

What's in the box:

  • PowerLite L400U Projector
  • Power cord
  • Computer cable (VGA)
  • Remote control and batteries
  • Quick setup poster

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
