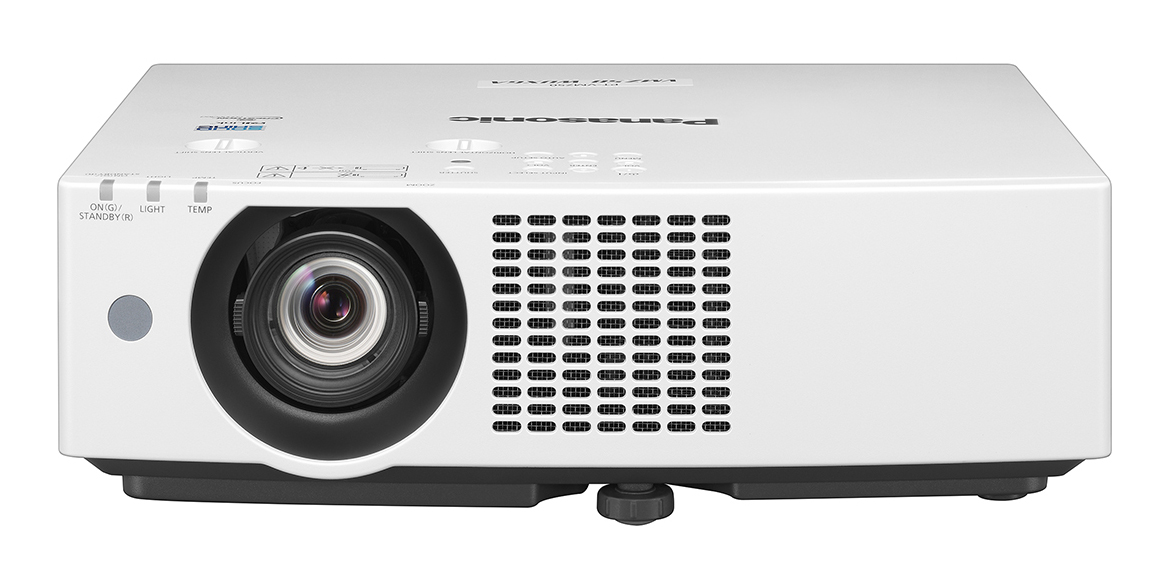

Panasonic PT-VMZ50U

LCD Projector, 1920x1200 WUXGA, 5000 Lumens, Laser Light Source, D:W 1.09-1.77:1, 4K down-scaling, 3 year warranty
Part #: 0600-7120    Mfr #: PTVMZ50U

Panasonic PT-VMZ50U

Features

Portable LCD Projector

PT-VMZ50U

The world's smallest and lightest*1 5,000 lm LCD laser projector.

Bright and Compact

5,000 lm at WUXGA from a compact, stylish 7.2 kg (15.87 lbs) body, bringing dynamic images to any space.

Supreme Efficiency

SOLID SHINE Laser light-source delivers 20,000 hours*2 of consistent brightness and color accuracy.

Flexible Installation

1.6x zoom, V/H lens shift, and short 1.09:1 throw-ratio provide installation flexibility.

Future-ready Connections

Supports 4K signal input*3 via HDMI® and DIGITAL LINK, separate LAN and DIGITAL LINK terminals.

Notes:

*1 For laser projectors in the 5,000-lumens-class or higher with WUXGA resolution as of February 2019.

*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and dust conditions of 0.15 mg/m3. Estimated time until light output declines to 50 % varies depending on usage environment.

*3 Supports signals up to 4K/30p. Images are converted to 1920 x 1080. Applicable terminals: DIGITAL LINK terminal/HDMI terminal.

Specifications

Projector type LCD
LCD panel
    Panel size 16 mm (0.64 in) diagonal (16:10 aspect ratio)
    Display method Transparent LCD panel (× 3, R/G/B)
    Drive method Active matrix method
    Pixels 2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels
Light source Laser Diode
Light output*1 5,000 lm
Time until light output declines to 50 %*2 20,000 hours (NORMAL)
Resolution 1920 × 1200 pixels
Contrast*1 3,000,000:1 (all white/all black)
(Input signals: PC, LIGHT POWER: NORMAL, PICTURE MODE: DYNAMIC, DAYLIGHT VIEW: OFF, DYNAMIC CONTRAST: 1, AUTO POWER SAVE: OFF)
Screen size (diagonal) 0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner uniformity*1 85 %
Lens 1.6 × Manual zoom (Throw ratio: 1.09–1.77:1)
Manual focus lens, F = 1.60–2.12, f = 15.30–24.64 mm
Lens shift
    Vertical
    (from center of screen)
+44 %, 0 % (Manual)
    Horizontal
    (from center of screen)
+20 %, -20 % (Manual)
Keystone correction range Vertical: ±25°, Horizontal: ±35°

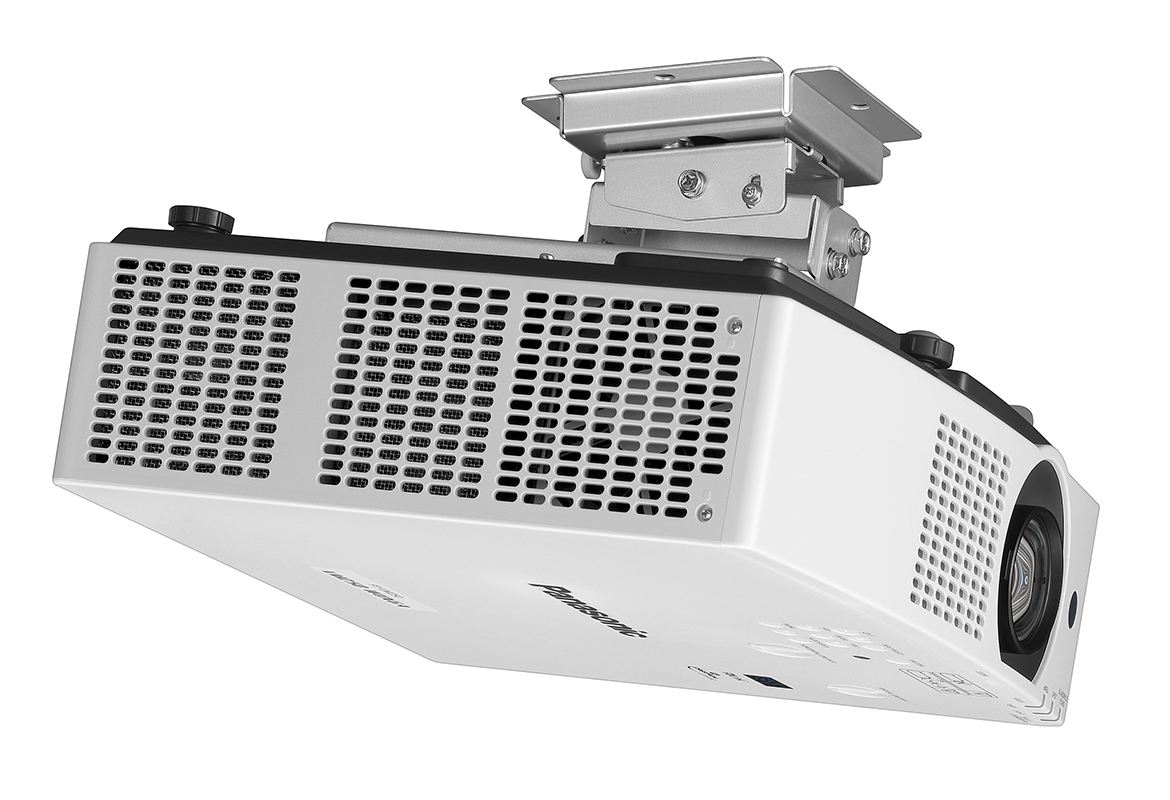

Installation Horizontal/vertical, free 360-degree installation

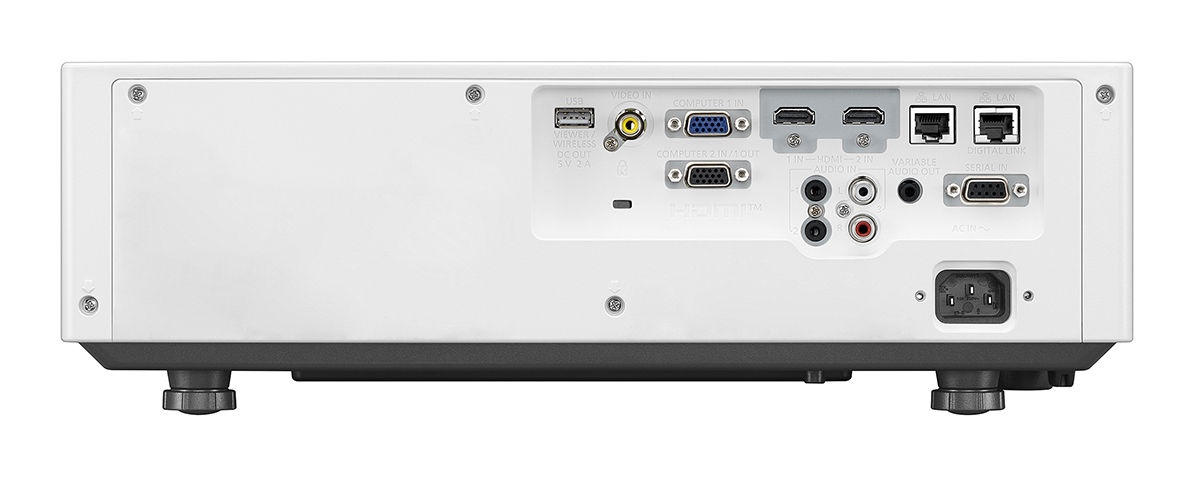

Terminals
    HDMI 1/2 IN HDMI 19-pin × 2 (Compatible with HDCP, Deep Color, 4K/30p signal input)
    COMPUTER 1 IN D-sub 15-pin (female) × 1 (RGB/YPP/YCC)
    COMPUTER 2 IN/
    MONITOR OUT
D-sub 15-pin (female) × 1 (RGB/YPP/YCC) (input/output switching)
    VIDEO IN Pin jack × 1
    AUDIO 1/2 IN M3 stereo mini-jack × 2
    AUDIO 3 IN Pin jack (L/R) × 1
    VARIABLE AUDIO OUT M3 stereo mini-jack × 1
    SERIAL IN D-sub 9-pin × 1 for computer control (RS-232C compliant)
    LAN RJ-45 × 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
    DIGITAL LINK/LAN RJ-45 × 1 for network and DIGITAL LINK connection HDBase-T™ compliant, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color, 4K/30p signal input
    USB CONNECTOR USB connector (Type A) × 1 for Memory Viewer function, power supply (DC 5 V, maximum 2 A*3), optional Wireless Module AJ-WM50P
Power supply AC 100 V–240 V, 50/60 Hz
Power consumption 370 W
Built-in speaker 10 W monaural
Cabinet materials Molded plastic

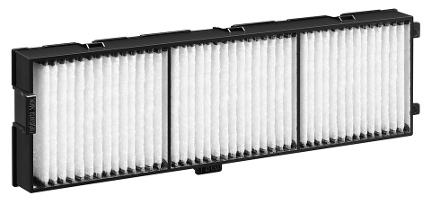

Filter*4 Included. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3)
Operation noise*1 NORMAL: 37 dB, QUIET: 27 dB
Dimensions
(W × H × D)
399 mm × 115 mm × 348 mm (15 23/32˝ × 4 17/32˝ × 13 11/16˝) (Not including protruding parts)
399 mm × 133 mm × 348 mm (15 23/32˝ × 5 1/4˝ × 13 11/16˝) (With feet at shortest position)
Weight*5 Less than 7.2 kg (15.87 lbs)
Operating environment Operating temperature: 0–45 °C (32–113 °F)
Operating humidity: 20–80 % (No condensation)
Applicable software Multi Monitoring & Control Software, Presenter Light for Windows®, Wireless Projector for iOS/Android™, Logo Transfer Software (See Downloads tab.)

Notes:

*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and dust conditions of 0.15 mg/m3. Estimated time until light output declines to 50 % varies depending on usage environment.

*3 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready.

*4 Usage environment affects filter duration. Filter can be washed twice.

*5 Average value. May differ depending on the actual unit.
