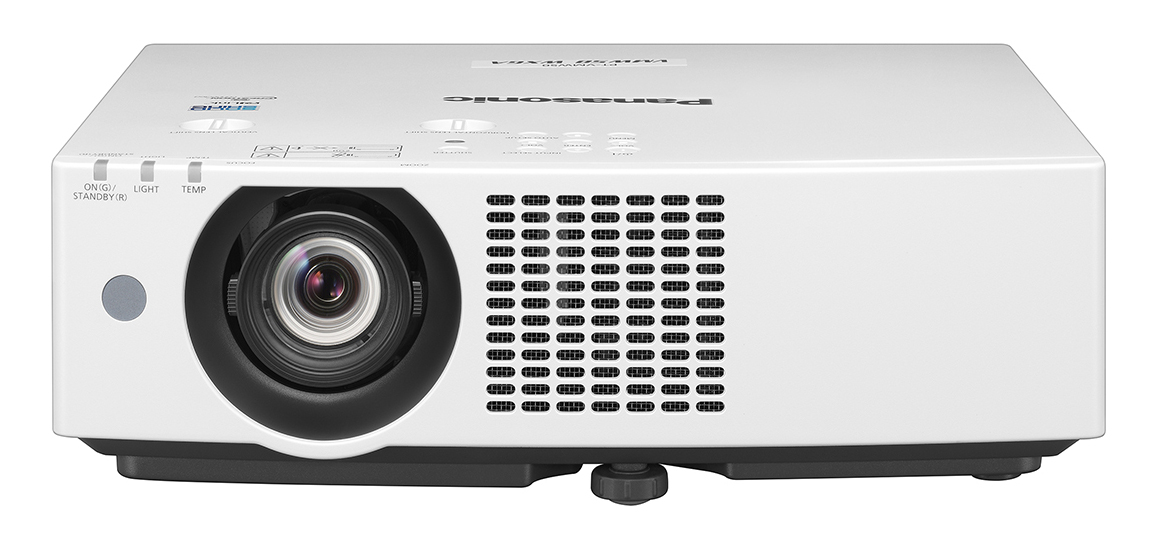

Panasonic PT-VMW50U

LCD Projector, 1280x800 WXGA, 5000 Lumens, Laser Light Source, 4K down-scaling, White, 3-year warranty
Item #0600-7121 Model #PTVMW50U

Overview

Panasonic PT-VMW50U

Portable LCD Projector

Flexibility defines the Panasonic PT-VMW50U and the rest of the PT-VMZ60 Series, the world’s lightest LCD laser projectors developing up to 6,000 lumens from a 7.2 kg (15.87 lb) body. Carry this LCD projector easily from room to room and let the 1.6x zoom and vertical/horizontal lens shift perfectly align large-format pictures on screen in spaces big or small.

Easy setup is invaluable for permanent installation, where DIGITAL LINK and 4K signal input simplify integration. As a SOLID SHINE Laser projector, light-source operation extends to 20,000 hours with bright color maintained for longer.

Key Features of the PT-VMW50U

  • Bright and Compact: 5,000 lumens at WXGA resolution from a compact, stylish 7.2 kg (15.87 lb) body, bringing dynamic images to any space.
  • Supreme Efficiency: SOLID SHINE Laser light-source delivers 20,000 hours of consistent brightness and color accuracy.
  • Flexible Installation: 1.6x zoom, vertical/horizontal lens shift, and short 1.09:1 throw ratio perfectly align large-format pictures on screen in spaces big or small.
  • Future-ready Connections: Supports 4K signal input via HDMI® or DIGITAL LINK terminals, which simplify integration.

The Panasonic PT-VMW50U, with its 3LCD laser projector technology, offers an optimal balance of brightness, resolution, and portability. Its lightweight design does not compromise on performance, rendering it a great choice for educational institutions, businesses, and event coordinators.

Features

Vivid Images in Bright Environments

SOLID SHINE Laser phosphor drive with advanced LCD optical engine projects bright, vivid, and detailed images regardless of artificial light levels in the room.

High Brightness from a Compact Body

Deploy 5,000 lm*1 of brightness from a projector weighing just 7.2 kg (15.87 lbs), currently the smallest and lightest LCD laser projector series in the world*2

No Light-Source Replacement for 20,000 Hours

Laser light-source operation extends up to 20,000 hours3, lowering maintenance cost, labor, and waste when compared to lamp-based alternatives.

High 3,000,000:1 Contrast

High-precision digital laser light output modulation achieves 3,000,000:14 dynamic contrast while minimizing power consumption. High-contrast performance adds depth, dimensionality, and realism to video, defining details in shadows even when bright and dark scenes frequently interchange.

A Clearer View with Daylight View Basic

Daylight Basic View enhances sharpness by optimizing detail reproduction in dark areas of the image, which can be difficult to see in bright light.

Reusable Air Filter Extends Maintenance

In areas with average levels of dust, such as classrooms and offices, the projector’s air filter doesn’t require maintenance for up to 20,000 hours5. The eco-friendly filter can be washed and reused up to two times, saving on replacement costs.

1.6x Zoom Lens and Lens Shift Function

The 1.6x zoom lens with flexible 1.09–1.77:1 throw-ratio enables large-format projection from close up or far away from the screen. Wide-range Vertical/Horizontal Lens-Shift aligns the image to fit the projection surface in moments. This is handy when the projection position is too high, too low, or off-center.

Supports 4K signal input

4K/30p signal input*6 via HDMI® or DIGITAL LINK terminals enable seamless integration into existing or planned 4K-ready system infrastructure.

Single-Cable DIGITAL LINK Solution

A dedicated DIGITAL LINK terminal transmits AV and control signals via LAN cable for up to 150 m (492 ft)*7 and 4K video for up to 50 m (164 ft)*8. Optional DIGITAL LINK Switcher*9 and Digital Interface Box*4 reduce complexity, acting as a hub for connected sources and routing signals to the projector via one cable. A separate LAN terminal offers dedicated control interface if preferred.

Screen Adjustment Function

Screen Adjustment fits the image to the screen when projecting from an unusual angle. Curved Screen Correction removes barrel or pincushion distortion for natural projection onto curved surfaces.

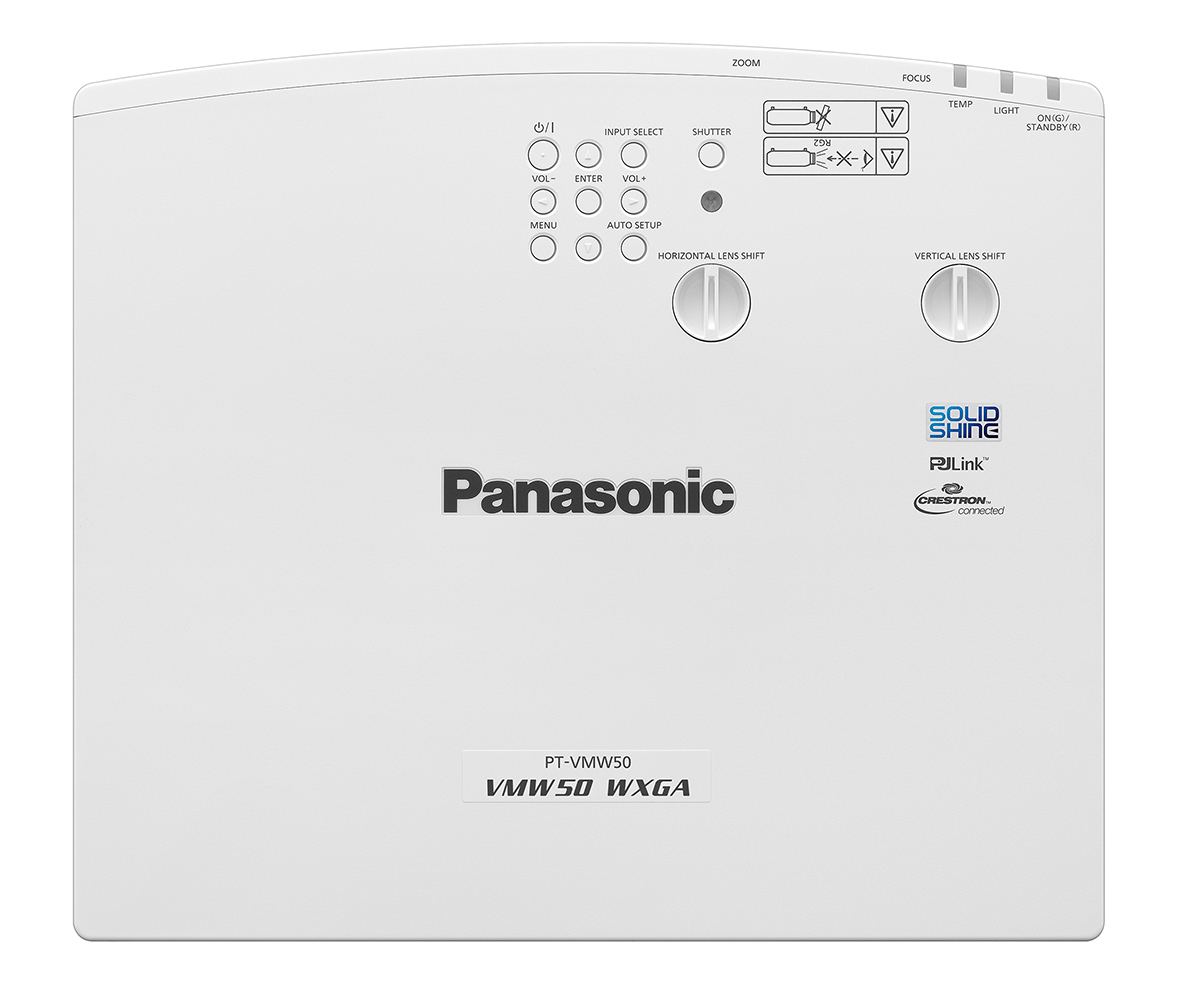

Convenient Shutter Function

A button on top of the unit or the remote blocks light output temporarily. It’s useful whenever you don’t require image display, but want the projector powered on, cued up, and ready to go again instantly.

Quick Start and Quick Off

The projector’s laser light-source doesn’t need time to warm up, so images appear almost instantaneously in Quick Start/Quick Off Standby Mode10. There’s no cool-down required—it’s safe to switch the unit off at any time.

Wireless Projection Function with Optional Module

Project wirelessly via PC using Presenter Light for Windows® or Panasonic Wireless Projector app*11 for iOS and Android™ devices by connecting the optional AJ-WM50P Wireless Module to the projector’s USB input.

Memory Viewer Light Function

You don't need to connect a computer to start presenting—just insert a USB memory stick containing your media and start projecting straight away.

Multi Monitoring & Control Software

Manage up to 2,048 devices via network with system map visualization and auto-search of unregistered devices. The free software is available with Early Warning functions (free 90-day trial12). These enable real-time monitoring, abnormality detection, and much more. (See Downloads tab.)

Additional Features

  • Direct Power Off
  • Low 0.4 W Power-Consumption on Standby
  • Auto Input Signal Search
  • Color-Board and Blackboard Modes
  • Easy Remote Monitoring and Control Over LAN
  • Crestron Connected™, AMX DD, and PJLink™ Compatible
  • Built-in 10 W Speaker

Notes:

*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

*2 For LCD Laser projectors in the 5,000–6,000-lumens-class or higher (PT-VMZ40 excluded) as of March 2019.

*3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.

*4 All white/all black. PICTURE MODE: DYNAMIC, DYNAMIC CONTRAST: [1].

*5 Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3).

*6 Supports signals up to 4K/30p. A signal with different resolution is converted to the number of display dots. PT-VMZ60/VMZ50/VMZ40: 1920 x 1200 dots, PT-VMW60/VMW50: 1280 x 800 dots. Applicable terminals: DIGITAL LINK terminal/HDMI terminal.

*7,150 m (492 ft) transmission available only with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080p in Long Reach Mode. Requires CAT 5e STP cable or higher.

*8 Requires CAT 5e STP cable or higher.

*9 ET-YFB200G DIGITAL LINK Switcher and ET-YFB100G Digital Interface Box do not support 4K signal transmission.

*10 When ECO MANAGEMENT > QUICK STARTUP is set to ON. Quick Start is unavailable after the Available Period setting has expired. When QUICK STARTUP is set to ON, the projector continues to warm up, increasing power consumption.

*11 Please check device and OS requirements before download and installation.

*12 Installation of Multi Monitoring & Control Software Version 2.0 or later is required to activate Early Warning Software functions. A free 90-day trial is offered upon installation of Multi Monitoring & Control Software. To continue using Early Warning Software functions, please purchase a license (one per PC) and activate at PASS.

Specifications

Projector type LCD
LCD panel
    Panel size 16 mm (0.64 in) diagonal (16:10 aspect ratio)
    Display method Transparent LCD panel (× 3, R/G/B)
    Drive method Active matrix method
    Pixels 1,024,000 (1280 × 800) × 3, total of 3,072,000 pixels
Light source Laser Diode
Light output*1 5,000 lm
Time until light output declines to 50 %*2 20,000 hours (NORMAL)
Resolution 1280 × 800 pixels
Contrast*1 3,000,000:1 (all white/all black)
(Input signals: PC, LIGHT POWER: NORMAL, PICTURE MODE: DYNAMIC, DAYLIGHT VIEW: OFF, DYNAMIC CONTRAST: 1, AUTO POWER SAVE: OFF)
Screen size (diagonal) 0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner uniformity*1 85 %
Lens 1.6 × Manual zoom (Throw ratio: 1.09–1.77:1)
Manual focus lens, F = 1.60–2.12, f = 15.30–24.64 mm
Lens shift
    Vertical
    (from center of screen)
+44 %, 0 % (Manual)
    Horizontal
    (from center of screen)
+20 %, -20 % (Manual)
Keystone correction range Vertical, Horizontal: ±35°
Installation Horizontal/vertical, free 360-degree installation
Terminals
    HDMI 1/2 IN HDMI 19-pin × 2 (Compatible with HDCP, Deep Color, 4K/30p signal input)
    COMPUTER 1 IN D-sub 15-pin (female) × 1 (RGB/YPbPr/YCbCr)
    COMPUTER 2 IN/
    MONITOR OUT
D-sub 15-pin (female) × 1 (RGB/YPbPr/YCbCr) (input/output switching)
    VIDEO IN Pin jack × 1
    AUDIO 1/2 IN M3 stereo mini-jack × 2
    AUDIO 3 IN Pin jack (L/R) × 1
    VARIABLE AUDIO OUT M3 stereo mini-jack × 1
    SERIAL IN D-sub 9-pin × 1 for computer control (RS-232C compliant)
    LAN RJ-45 × 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
    DIGITAL LINK/LAN RJ-45 × 1 for network and DIGITAL LINK connection HDBase-T™ compliant, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color, 4K/30p signal input
    USB CONNECTOR USB connector (Type A) × 1 for Memory Viewer function, power supply (DC 5 V, maximum 2 A*3), optional Wireless Module AJ-WM50P
Power supply AC 100 V–240 V, 50/60 Hz
Power consumption 360 W
Built-in speaker 10 W monaural
Cabinet materials Molded plastic
Filter*4 Included. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3)
Operation noise*1 NORMAL: 37 dB, QUIET: 27 dB
Dimensions
(W × H × D)
399 mm × 115 mm × 348 mm (15 23/32˝ × 4 17/32˝ × 13 11/16˝) (Not including protruding parts)
399 mm × 133 mm × 348 mm (15 23/32˝ × 5 1/4˝ × 13 11/16˝) (With feet at shortest position)
Weight*5 Less than 7.2 kg (15.87 lbs)
Operating environment Operating temperature: 0–45 °C (32–113 °F)
Operating humidity: 20–80 % (No condensation)
Applicable software Multi Monitoring & Control Software, Presenter Light for Windows®, Wireless Projector for iOS/Android™, Logo Transfer Software (See Downloads tab.)

Notes:

*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and dust conditions of 0.15 mg/m3. Estimated time until light output declines to 50 % varies depending on usage environment.

*3 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready.

*4 Usage environment affects filter duration. Filter can be washed twice.

*5 Average value. May differ depending on the actual unit.

Accessories

Optional Lenses

These lenses install by removing the top cover and 4 screws that hold the standard lens on and then installing a new lens mount.  Add $60 to have the lens mount pre-installed.

Model WD450 WE230 WB210
Zhen Optics WD450 lens Zhen Optics WE230 lens Zhen Optics WB210 lens
D:W
(0.64" WUXGA)
0:38:1 0.52–0.64:1 0.78:1
f/stop 2.1 2.12.2 2.2



Other Accessories

Chief mount RSMA Ceiling mounts
ET-RFV500 Filter Replacement filter (ET-RFV500)
ET-YFB100G Digital Interface Box Digital interface box (switcher)
Add to Cart
AJ-WM50P Wireless Module Wireless module Add to Cart
