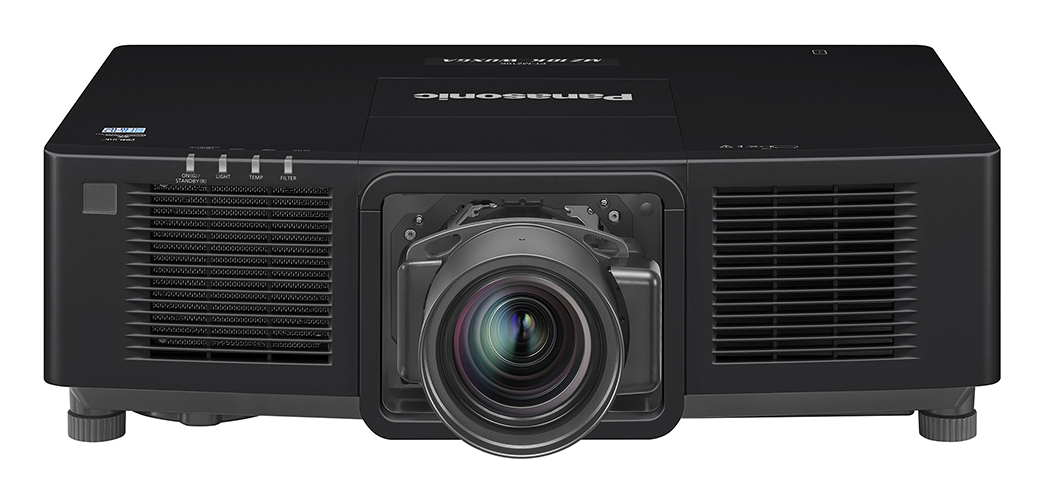

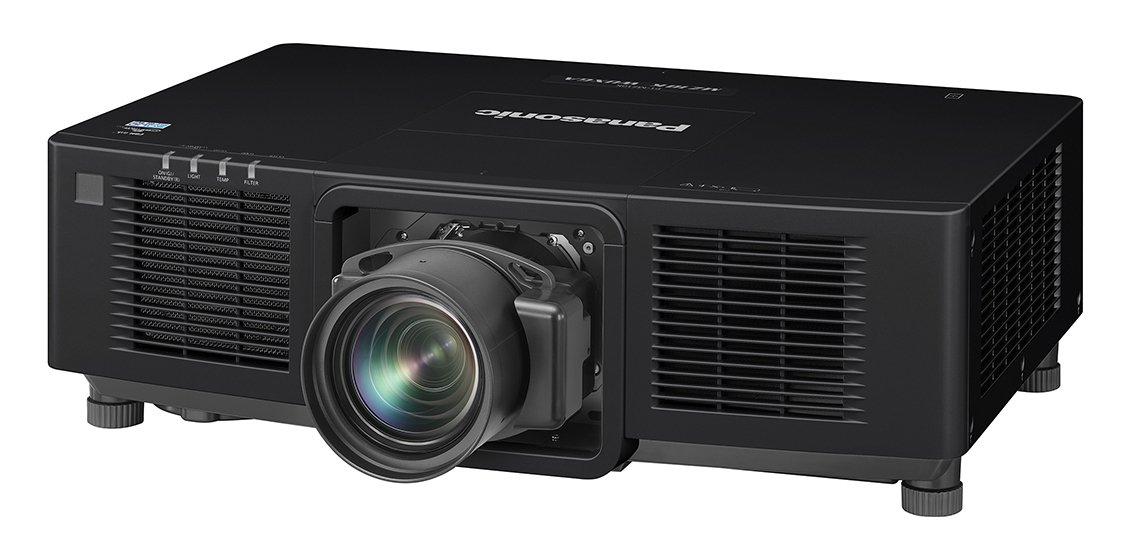

Harnessing 10,000 lumens at WUXGA resolution with new 15.4 mm (1-inch) LCD panels, Multi-Laser Drive Engine, and Pure White Generator technology, the PT-MZ10KLBU produces consistently sharp and vibrant picture quality.
It is among the first Panasonic LCD models with liquid-cooled lasers which also features dedicated, sealed phosphor-wheel cooling, laser failover circuitry, flexible backup input-switching, and Information Monitor for interruption-free long-life reliability.
This compact projector (weighs under 49.2 lbs with standard lens) supports Panasonic-original Smart Projector Control Ver. 2.0 app and Geo Pro software. Exclusive new lenses eliminate throw-ratio gaps and make integration seamless. It also supports 4K/60p signal input (converted to the projector's WUXGA resolution upon projection).
The SOLID SHINE LCD boosts imagine brightness while reducing your workload, delivering an effortless learning experience. It is ideally suited for house of worship, education and corporate use.
(Lens is sold separately.)
Clear, Long-Lasting Viewing for Efficiency and Comfort
Pure White Generator enriches colors with 10,000 lm brightness — improves color accuracy and create vibrant, natural, true-to-life colors that appear brighter and deeper on screen, regardless of the installation site and ambient light levels.
Reliable Operation Reduces Callouts in Real-World Conditions
Our First LCD Projectors with Liquid Cooling for Multi-Laser Drive (NEW) — allows high-brightness projection in elevated locations and hot environments as well as whisper-quiet 30–35 dB operation.
Panasonic’s original phosphor-wheel sealed cooling system (NEW) — protects against dust-particle intrusion for extended reliability and consistent brightness.
Multi-Laser Drive Engine with failover redundancy circuits — adds an invaluable layer of insurance when image presentation must not be interrupted.
Backup input switching maintains picture display — If signal transmission to the primary input fails, projection continues via the assigned backup input without screen blanking.
New Information Monitor on the rear panel — The monitor provides menu-based navigation for smooth setup of Projector ID and basic network configuration. It also shows projector status including temperature, runtime, and active signal data, as well as error codes should a problem be detected.
Simplified Installation Streamlines Your Workflow
Supports uncompressed 4K/60p video-signal input via HDMI® or DIGITAL LINK terminals
First LCD Projectors to Support Geometry Manager Pro Software (NEW)
Geometric Adjustment with Free Grid correction via remote control — Areas of the image can be reshaped or geometrically altered to compensate for screen distortions
Remote app with NFC (Near Field Communication) function and projector auto-focus via device’s camera (NEW)
New lineup of seven optional lenses with AFO sensor which optimizes focus as lens temperature fluctuates, keeping images pin-sharp and reducing need for manual calibration. (NEW)
Quiet operation for distraction-free viewing
Dynamic contrast of 3,000,000:1*1 for natural image expression
Detail Clarity Processor 4 Provides pin-sharp insight
Color Adjustment function
No light-source replacement for 20,000 hours*2
Reusable ECO filter replacement extended to 20,000 Hours*3
Single-cable DIGITAL LINK connection for AV and control signals
Separate LAN/DIGITAL LINK terminals
Free 360-degree installation
Multi Monitoring & Control Software and Early Warning Software
Quick Start and Quick Off
Fade In and Fade Out
*1 With image mode set to “Dynamic” and [Dynamic Contrast] set to .
*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast , under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.
*3 Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.
|Projector type||LCD projector|
|Panel size||25.4 mm (1.0 in) diagonal (16:10 aspect ratio)|
|Display method||Transparent LCD panel (x 3, R/G/B)|
|Drive method||Active matrix method|
|Pixels||2,304,000 (1920 x 1200) pixels x 3|
|Light source||Laser diodes|
|Light output*1||10,000 lm|
|Time until light output declines to 50 %*2||20,000 hours (NORMAL)|
|Resolution||1920 x 1200 pixels|
|Contrast ratio*1||3,000,000:1 (Full On/Full Off)
With [Dynamic Contrast] set to
|Screen size (diagonal)||2.03–12.7 m (80–500 in), 16:10 aspect ratio|
|Center-to-corner zone ratio*1||85 %|
|Lens||Optional powered zoom lenses|
| Vertical (from center
|±60 % with ET-EMS600 (±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)|
| Horizontal (from center
|±20 % with ET-EMS600 (±19 % with ET-EMW200) (powered)|
|Keystone correction range||Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500), Horizontal: ±15° (±8° with ET-EMW200/ET-EMW300)|
|Keystone correction range with optional ET-UK20 Upgrade Kit||Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500), Horizontal: ±40° (±8° with ET-EMW200/ET-EMW300, ±15° with ET-EMW400/ET-EMW500)
When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
|Installation||Ceiling/floor, front/rear, free 360-degree installation|
|SDI IN||BNC x 1: 3G/HD-SDI input|
|HDMI IN||HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*3)|
|DVI-D IN||DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)|
|RGB IN||D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)|
|SERIAL/MULTI PROJECTOR SYNC IN||D-sub 9-pin (female) x 1 for external control (RS-232C compliant)|
|SERIAL /MULTI PROJECTOR SYNC OUT||D-sub 9-pin (male) x 1 for link control (RS-232C compliant)|
|REMOTE 1 IN||D-sub 9-pin (female) × 1 for external control (parallel)|
|REMOTE 2 IN||M3 x 1 for wired remote control|
|REMOTE 2 OUT||M3 x 1 for link control (for wired remote control)|
|DIGITAL LINK||RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.2, Deep Color, 4K/60p signal input*3)|
|LAN||RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)|
|DC OUT||USB Connector (Type A) x 1 (Output 5 V/2 A)|
|Power supply||AC 100–240 V, 50/60 Hz|
|Power consumption||640 W|
|Cabinet materials||Molded plastic|
|Filter||Included (Estimated maintenance time: approx. 20,000 hours)|
|Operation noise*1||35 dB (NORMAL) / 30 dB (Quiet)|
|Dimensions (W×H×D)||650 x 185*4 x 440 mm (25 19/32" x 7 9/32"*4 x 17 5/16" ) (Without lens, not including protruding parts)|
|Weight*5||Approx. 22.3 kg (49.2 lbs)|
|Operating environment||Operating temperature: 0–45 °C (32–113 °F)*6; Operating humidity: 10–80 % (no condensation)|
|Applicable software||Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™|
*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast , under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.
*3 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®.
*4 With legs at shortest position.
*5 Average value. May differ depending on the actual unit.
*6 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 35 °C (95 °F) or higher, the light output may be reduced to protect the projector.
|0.480 – 0.550:1||0.550 – 0.690:1||0.690 – 0.950:1||0.950 – 1.36:1||1.35 – 2.10:1||2.10 – 4.14:1||4.14 – 7.40:1|
|f/stop||1.84 – 2.14||1.84 – 2.24||1.84 –2.24||1.80 – 2.35||1.75 – 2.17||1.82 – 2.53||1.85 – 2.39|
