NEC M380HL

Laser DLP Projector, 1080p, 3800 Lumens, V Lens Shift, 5-Year Warranty
Item #0601-0010 Model #M380HL

Overview

NEC M380HL

3,800 Lumen, 1080p, Laser, DLP Classroom Projector

M Series laser projectors using DLP technology provide all the essential features that you need to simply and reliably connect with your audience at an affordable price.

The 3800-lumen, 1080p (1920 x 1080) native resolution NEC M380HL is ideal for classrooms that need a clear image that can be seen all around the room. The M380HL NEC projector is an excellent laser projector option for education settings. Enjoy the convenience of vertical lens shift, direct power on and quick power off.

The M Series offers a long-term, maintenance-free solution and a low total cost of ownership, making the M380HL a great projector for classrooms.

Key Features:
  • Up to 30,000-hour laser light source eliminates maintenance requirements and lowers total cost of ownership
  • DLP technology provides engaging images in any environment
  • Vertical lens shift provides installers with flexibility when the ideal mounting location is not possible
  • Direct power on and quick power off help maximize presentation time
  • Tilt-free and portrait capability open new possibilities for non-typical projection applications
  • Classroom laser projector with reliable performance and image clarity

Features

  • Vertical Lens Shift: helps installers square the image when obstructions prevent placement in the ideal location
  • Portrait Mode: allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
  • Tilt-Free Installation: allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
  • Dual HDMI inputs (with HDCP): ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
  • Built-In Speakers: enhance the visual experience with superior sound
  • Quick Startup and Quick Power-Off: allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
  • Auto Power On: powers on the projector as soon as it is plugged into a power outlet.
  • 3D Ready: When combined with active shutter glasses (NP02GL), this projector uses DLP Link™ technology, developed by Texas Instruments, to create 3D images.
  • ECO Mode™: extends light source life, lowers audible noise and reduces total cost of ownership.
  • 4K Ready

Specifications

Display

Aspect Ratio 16x9
Native Resolution 1080p (1920x1080)
Maximum Resolution HDMI1 (3840x2160@60Hz), HDMI2 (3840x2160@30Hz), Analog (1920x1080@60Hz)
Contrast Ratio (typical) 1800:1

Synchronization Range

Horizontal (Analog/Digital) 15 KHz, 24-100 kHz (RGB: 24 kHz or over)
Vertical 48-100, 120 Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD
PC Signal Compatibility VGA, SVGA, XGA, SXGA, WUXGA
Macintosh Signal Compatibility Yes
External Control RS-232 (D-Sub 9pin), IR

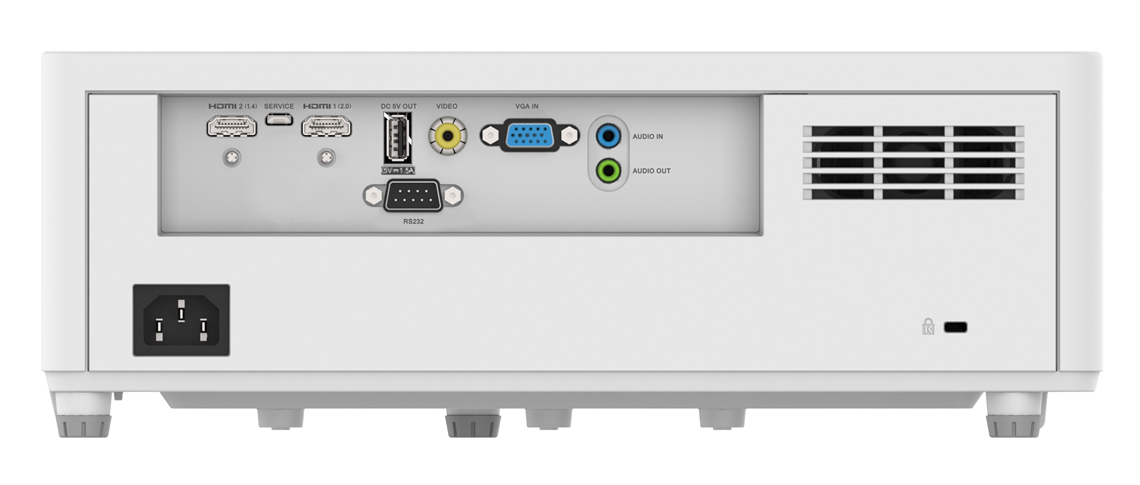

Input Terminals
  • RGB1(analog): VGA 15-pin D-sub
  • RGB1(digital): HDMI w/ HDCP (v2.2/1.4)
  • RGB2(digital): HDMI w/ HDCP (v2.2/1.4)
  • Video 1: RCA
  • Audio 1: Stereo Mini Jack
Output Terminals
  • Audio: Stereo Mini Jack
  • Audio Out: Stereo Mini Jack

Power Consumption (typical)

On 240 W
Input Current 3A
Power Requirements 100–240 V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)
13.3 x 4.7 x 10.4 in. (337 x 119.3 x 265 mm)
Weight
9.7 lb (4.4 kg)

Environmental Conditions

Operating Temperature 41–104°F / 5–40°C
Operating Humidity 20 to 85% Humidity (Non-Condensing)
Storage Temperature 14–140°F / -10–60°C
Storage Humidity 20 to 95% Humidity (Non-Condensing)

Optical

Display Technology 0.65" DLP
Light Output (Lumens) 3,800 Normal
Light Source Life 20,000 hours normal / 30,000 hours eco
Screen Size (diagonal) 30–300 in. / 0.76–7.62 m
Throw Ratio 1.4–2.24:1
Projection Distance 3–50 ft / 0.9–15.2 m
Projector Angle 7.7–9.8° tele / 12.1–15.4° wide (at 60")
Lens
Zoom: 1.6x
Focus: Manual
F/stop: 2.5~3.26
Focal length: 20.911~32.62 mm
Keystone Correction Horizontal (manual), Vertical (manual)

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 34 dB (ECO mode Off), 31 dB (ECO mode)
Regulations USA: UL (UL60825-1/UL62471-5) FCC Part15 Class B
Canada: CAN/CSA (62368-1-14) ICES-003 Issue 7

Accessories

Included
  • Remote Control, (2) AAA Batteries
  • Power Cord
  • RGB Signal Cable
Optional
  • Replacement Remote Control (RMT-PJ36)
  • Universal Ceiling Mount (NP01UCM)
  • Carry Case (NP402CASE)

Limited Warranty (parts & labor)

Registered owners receive a 5-year or 20,000-hour (whichever comes first) parts and labor warranty including InstaCare next business day exchange.



What's in the Box

  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • User manual CDROM
  • Quick Start Guide
  • Product Registration Card
