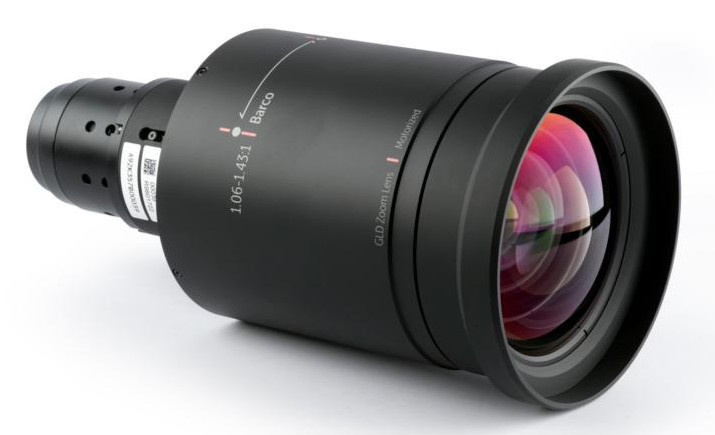

Barco R98017221

GLD Short-Throw Motorized Zoom Lens, 1.06-1.43:1
Item #0601-0771 Model #R98017221

Specifications

Barco R98017221

GLD Short-Throw Motorized Zoom Lens

The design of this model improves slightly on its predecessor, the R9801722, by preventing accidental damage to the spring-loaded pogo pins on the projector’s lens bayonet when the GLD lens is inserted into the projector mounted in a ceiling configuration.

Otherwise, all specifications are the same.

Throw ratio WUXGA (0.64" chip):    1.06 – 1.43:1

WUXGA+ (0.67" chip):  1.00 – 1.35:1

F/stop 2.1  2.3
Zoom Motorized



Please check the Compatibility tab to make sure that this lens is compatible with your projector.

Same Series Lenses

 P/N R9801724 R9801722 R9801719
Std Lens
R9801720 R9801721
  Barco R9801724 lens Barco R9801722 lens Barco R9801719 lens Barco R9801720 lens Barco R9801721 lens
D:W
WQXGA¹
0.85 – 1.06:1 1.06 – 1.43:1 1.43  2.12:1 1.43  2.12:1 2.12 – 3.18:1
D:W
WQXGA+²
0.8 – 1.0:1 1.0 – 1.35:1 1.35 – 2.0:1 1.35 – 2.0:1 2.0 – 3.0:1
f/stop 2.1 – 2.26 2.1 – 2.3 2.1 – 2.33 2.1 – 2.33 2.1 – 2.31
Notes Motorized Motorized Non-Motorized Motorized Motorized



¹ For old F80 Series

² For new F80 Series
