Barco EN76
Overview
Barco R9802003

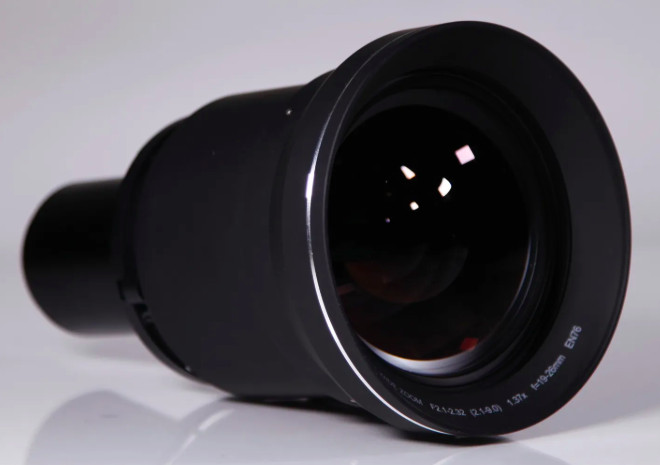

EN76 FLDX D:W 0.9–1.3:1 Short Throw Zoom Lens

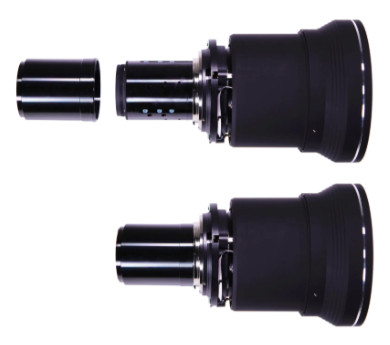

The Barco EN76 lens is designed specifically to maximize brightness, eliminate dust contamination, and to withstand motion and vibration through an improved barrel design. The lens consists of 20 glass elements with different coatings for the most demanding high-resolution performance, and is optimized for night vision and IR transmission. Additionally, a dust seal has been designed to prevent unwanted air flow through the grooves along the lens at the front of the projector.
For an unprecedented performance on motion platforms, you can lock the internal lens elements into position, using the cam follower pins/plastic bushings and screws supplied with the EN76 (standard) lens.
Or choose the EN76-M lens where the internal barrel elements have already been tightened to perfection, providing extreme stability in even the toughest dynamic conditions. This option does not allow for regular lens adjustments of zoom and focus as it would cause wear over time.
The EN76 lens is intended for the Fx400 (with lens adapter R9802623), as well as Fx40/Fx70/F90 series, and can also be used on the Barco F80-series (with lens adapter R98014421 and related software).
Please check the Compatibility tab to make sure that this lens is compatible with your projector.
Specifications
| Lens type |
Short throw zoom lens with indexing encoders |
|---|---|
| Throw Ratio | DMD chip
|
| Working F/# | F 2.1–2.32 Motorized iris F/2.1–9.0 |
| Zoom ratio | 1.37 Motorized zoom |
| Focal length | 19.04–26.02 mm |
| Focus Range | 3.0–23.0 ft (0.9–7.0 m) motorized focus |
| Dimensions (WxHxD) | 12.2" x 12.6" x 18.9" (310 x 320 x 480 mm) |
| Weight | 8.8 lb (4.0 kg) |
1 For Fx400 N4K (requires lens adapter R9802623)
2 For F40 WU, F70 W, F90 W
3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)
4 For legacy F80 Series (requires lens adapter R98014421)
5 For new F80 Series (requires lens adapter R98014421)
Same Series Lenses
FLDX Lenses
| P/N | R9801832 | R9802244 | R9802010 | R9802243 | R9802003/R9010091 | R9802242 | R9802241 | R9802473 | R9802237 |
| Model | 0.38:1 UST 90° | EN67 | EN62 | EN66 | EN76/EN76-M | EN63 | EN61 | EN64 | EN69 |
 |
 |
 |
 |
 |
|
|
 |
.jpg){kind=small} |
|
| D:W 4K1 | 0.36:1 |
0.53:1 |
0.70:1 |
0.71–1.06:1 |
0.83–1.14:1 |
1.06–1.50:1 |
1.48–2.18:1 |
2.19–4.05:1 |
— |
| D:W WUXGA2 | 0.38:1 |
0.61:1 |
0.75:1 |
0.75–1.13:1 |
0.89–1.21:1 |
1.12–1.58:1 |
1.58–2.33:1 |
2.33–4.30:1 |
6.50–9.01:1 |
| D:W WQXGA3 0.89" chip |
0.41:1 |
0.65:1 |
0.80:1 |
0.80–1.21:1 |
0.95–1.30:1 |
1.20–1.70:1 |
1.70–2.50:1 |
2.50–4.60:1 |
6.97–9.66:1 |
| D:W WQXGA4 0.64" chip |
0.57:1 |
0.91:1 |
1.12:1 |
1.12–1.70:1 |
1.33–1.82:1 |
1.68–2.38:1 |
2.38–3.51:1 |
3.50–6.45:1 |
9.75–13.50:1 |
| D:W WQXGA+5 0.67" chip |
0.54:1 |
0.85:1 |
1.06:1 |
1.06–1.60:1 |
1.25–1.72:1 |
1.59–2.24:1 |
2.25–3.30:1 |
3.30–6.08:1 |
9.19–12.73:1 |
| f/stop | 2.40 | 2.1 | 2.1 | 2.4–3.29 | 2.1–2.32 | 2.4-2.7 | 2.1–2.5 | 2.04–2.87 | 2.10–2.93 |
| Notes | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized |
1 For Fx400 N4K (requires lens adapter R9802623)
2 For F40 WU, F70 W, F90 W
3 For F40 4K, F70 4K, F90 4K, Fx400 4K (latter requires lens adapter R9802623)
4 For legacy F80 Series (requires lens adapter R98014421)
5 For new F80 Series (requires lens adapter R98014421)
