Barco RLM-W8
Introduction

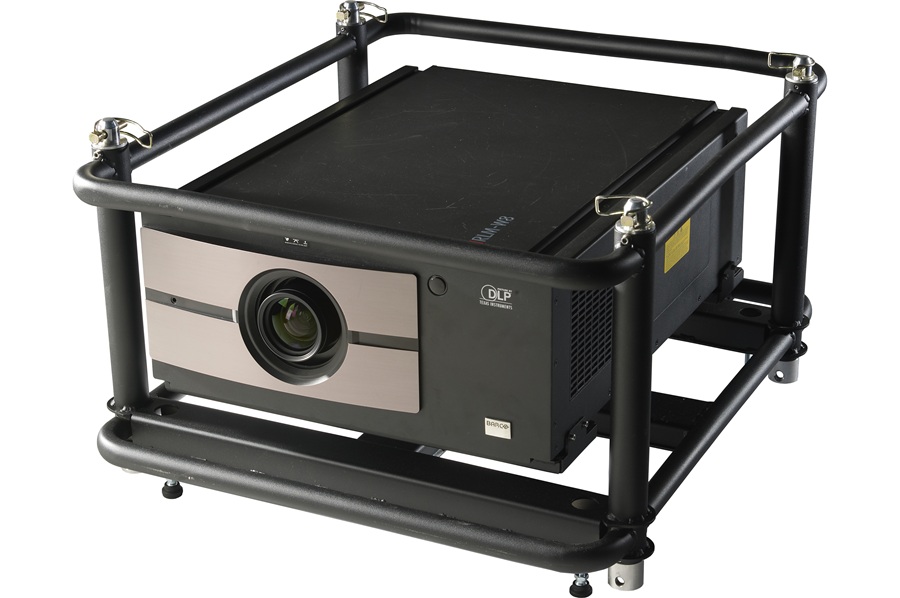

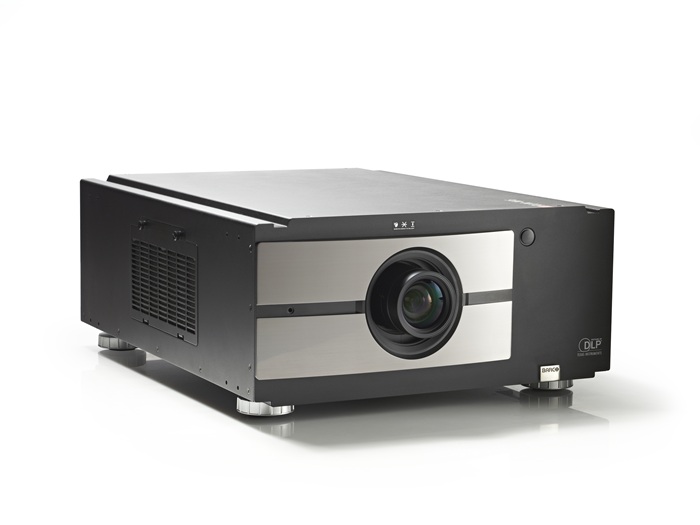

Barco RLM-W8
The Barco RLM-W8 brings WUXGA resolution and the saturated colors of 3-chip DLP™ projection to applications requiring the highest quality but at a mid-level brightness point. Featuring a sealed optical block for reduced maintenance, user-replaceable lamps, and flexible control options including an Android App, Barco Toolset, or wired/wireless remote.
Featuring blending and built-in warping
With enhanced contrast, quick and creative stacking options, as well as built-in warping capabilities for curved surfaces, the RLM-W8 is a versatile choice Barco projector for mid- to large-sized venues. In addition, it features blending technology to create seamless composite images across a canvas of any size. This large venue projector continues the RLM line's tradition of silent operation and low energy consumption.
Fast signal distribution
With this 3-chip DLP projector, our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.
Specifications
| Projector type | WUXGA 3-chip DLP digital projector |
| Technology | 3 x 0.67" DMD™ |
| Resolution | 1,920 x 1,200 |
| Brightness | 8,000 center lumens / 7,300 ANSI lumens |
| Contrast ratio | 2,200:1 (standard) / 3,000:1 (CE) |
| Brightness uniformity | 95% |
| Native Aspect Ratio | 16:10 |
| ScenergiX | Horizontal and vertical edge blending |
| Lens type | RLDW |
| Lenses | Fixed: 0.77:1, 1.16:1 Zoom: 1.45-1.74, 1.74-2.17, 2.17-2.9, 2.9-4.34, 4.34-6.76 |
| Optical lens shift | Vertical: -100% to +100% / Horizontal: -35% to +35% on zoom lenses |
| Color correction | P7 |
| Lamps | 2 x 330W |
| Lamp life | 1,500 hours (typical) / 2,000 hours (maximum) |
| Transport with lamp | Yes |
| Lamp house, quick replace | Yes |
| Lamp warranty (field replace / factory replace | 120 days / 500 hours |
| Sealed DLP™ core | Yes |
| Optical dowser | Yes |
| Picture-in-picture | Up to two sources simultaneously |
| Orientation | Table / Ceiling |
| WARP | Preset and customized values |
| Integrated web server | Yes |
| 3D | Passive circular polarized (optional) |
| Inputs | 2 x HDMI (HDCP 1,3); 5-BNC (RGBHV, RGBS/RGBsB;YUV); VGA (RGBHV, RGBS/RGBsB; YUV); cinch (RGBs, YUV); Composite video; S-Video; HSDI/ 3G HDSDI /SDI/BarcoLink |
| Optional Inputs | N/A |
| Input Resolutions | From NTSC up to UXGA (1600x1200), including WUXGA (1920x1200) |
| Software tools | Projector Toolset, Android app |
| Control | Minijack + IR, RS232, 12v trigger |
| Network connection | 10/100 base-T, RJ-45 connection |
| Power requirements | 90-240V / 50-60Hz |
| Max. power consumption | 850W, Standby <2W |
| Noise level (typical at 25°C/77°F) | 39dBA |
| Operational ambient temperature | 0-40°C / 32°-104°F |
| Operational humidity | 0-80% non condensing |
| Dissipation BTU | max 2900 BTU/h |
| Dimensions (WxLxH) | 500 x 670 x 247mm / 19.69 x 26.36 x 9.72 inches |
| Weight | 26kg (57.3lbs) |
| Shipping Dimensions (WxLxH) | 820 x 660 x 380mm / 32.28 x 25.98 x 14.96 inches |
| Shipping Weight | 30kg (66.1lbs) |
| Included accessories | Power cord, wireless remote control, HDMI to DVI converter |
| Certifications | Compliant with FCC rules and regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RoHS, WEEE |
| Warranty | 3 years standard, 4th or 5th year optional |
Accessories
Optional Lenses
RLD W Lens Series
| P/N | R9832740 | R9832741 | R9832742 | R9832743 | R9832744 | R9832745 | R9832746 |
| Price | $1,500.00 | $1,800.00 | $1,800.00 | $1,800.00 | $1,800.00 | $1,800.00 | |
 |
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.77:1 | 1.16:1 | 1.45 – 1.74:1 | 1.74 – 2.17:1 | 2.17 – 2.90:1 | 2.90 – 4.34:1 | 4.34 – 6.76:1 |
| f/stop | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Other Accessories
 |

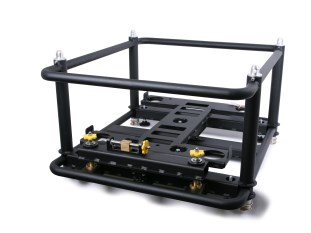

Ceiling mounts and stacking frame | |
 |
Spare Lamp 330W UHP (R9832752) | |
 |
Filters | |
 |
IR Remote Control (R9899706) |
|
