Panasonic ET-DLE035

Ultra Short Throw Lens
Part #: 0601-2263    Mfr #: ETDLE035

Panasonic ET-DLE035

Overview

ET-DLE035 Ultra short throw lens

The Lens with the World’s Shortest Throw for 1-Chip DLP™ Projectors

Panasonic's ET-DLE035 ultra-short-throw lens enables large-screen projection from a short distance. By mounting the ET-DLE035 lens onto a compatible Panasonic 1-Chip DLP™ projector, you can shorten the projection distance by approximately 60 % compared with the ET-DLE085 and ET-DLE080 short-throw lenses.

This huge saving in space lets you project images in spots where you previously could not, such as places where the ceiling is too high, or where there is not enough front or rear space for projecting. This greatly expand applications for digital signage in show windows, stores, train stations, and other locations.

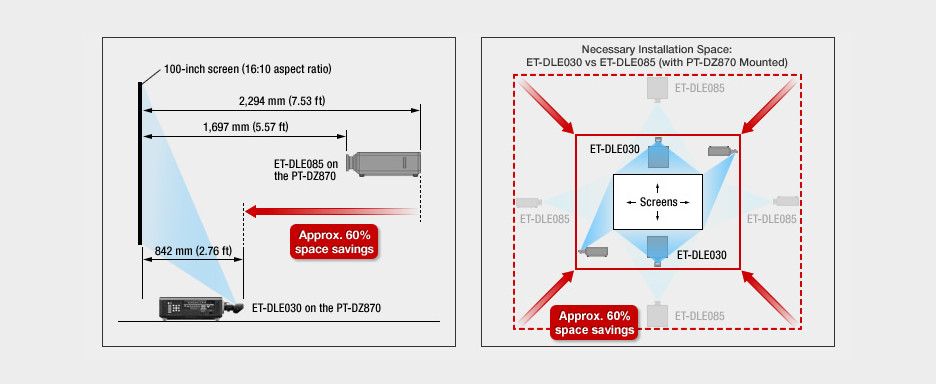

The Ultra-Short-Throw Lens Solves “Space” Issues and Adds High Brightness

small space high brightness feature of ET-DLE035

Applications

The ET-DLE035 ultra-short-throw lens makes it possible to install projectors in spaces that were never before possible. Thus applications greatly expand for digital signage in show windows, stores, train stations, and other locations.

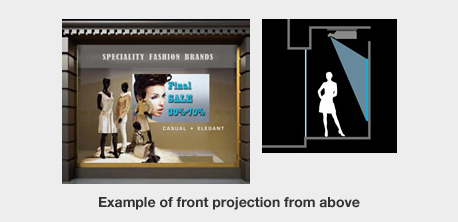

Digital Signage for Retail Store Display

Large images can be projected onto a screen at the back of a shallow show window without blocking the view of the products on display.

ET-DLE035 Application

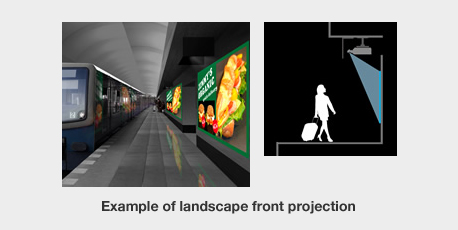

Digital Signage for Train Stations

Projection onto a large screen becomes possible even in places where there wasn't previously enough space for front projection.

ET-DLE035 Application

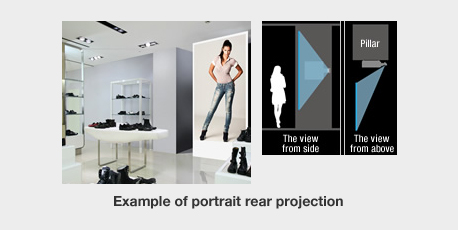

Digital Signage (Portrait Rear Projection)

Dead space, such as pillars, can be used to save space compared to conventional installations.

ET-DLE035 Application

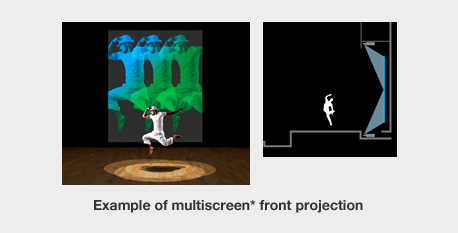

Staging

Large-screen projection becomes possible in places where the ceiling was previously too high, or the stage was too shallow.

ET-DLE035 Application

* Possible only with models equipped with the Edge Blending function.

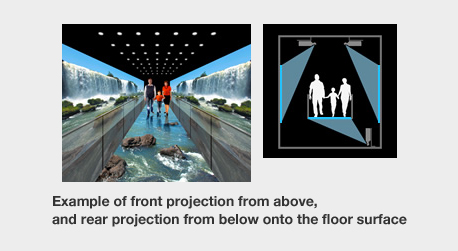

Amusement

Advanced image content can also be displayed in facilities where there previously wasn't enough space to install a projector, greatly increasing the power of the attraction.

Also, combined with projection from under the floor onto the floor surface, or projection onto the ceiling virtually wraps visitors in the image.

ET-DLE035 Application



NOTE: Due to lens characteristics, some screen types may be subject to focusing problems or strong hot spots where large differences in brightness occur between the hot spots and surrounding areas. If this should occur, please ask a qualified technician or your dealer for solutions.

Specifications

Aperture (f-stop) 2.0
Focal Distance (f) 5.3 mm
Throw Ratio (D:W) WUXGA 0.380:1  (0.67" DLP; 16:10)
WXGA   0.399:1  (0.65" DLP; 16:10)
XGA      0.394:1  (0.7" DLP; 4:3)
Dimensions (W x H x D) 132 x 102 x 311 mm (5-3/16˝ x 4-1/32˝ x 12-1/4˝)
Weight Approx. 1.3 kg (2.9 lbs)

Same Series Lenses

Model: ET-DLE020 ET-DLE035
ET-DLE0301
ET-DLE060 ET-DLE055 ET-DLE085
ET-DLE0802
ET-DLE105 ET-DLE150

ET-DLE170
Std Lens

ET-DLE250 ET-DLE350 ET-DLE450
Price:
Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
$500.00
Add to Cart

Add to Cart

Add to Cart

Add to Cart
  ET-DLE020 ET-DLE035 lens ET-DLE060 lens ET-DLE055 lens ET-DLE085 lens  ET-DLE105 lens ET-DLE150 lens ET-DLE170 lens ET-DLE250 lens ET-DLE350 lens ET-DLE450 lens
D:W WUXGA 0.28–0.30:1 0.38:1 0.60–0.80:1 0.79:1 0.78–0.98:1 0.98–1.32:1 1.30–1.89:1 1.71–2.41:1 2.27–3.62:1 3.58–5.45:1  5.36–8.58:1
D:W WXGA 0.29–0.31:1 0.39:1  0.62–0.82:1  0.81:1 0.81–1.01:1 1.01–1.36:1 1.34–1.95:1  1.762.48:1 2.34–3.73:1 3.69–5.61:1  5.52–8.83:1
D:W XGA 0.28–0.30:1 0.38:1  0.61–0.81:1 0.79:1 0.79–0.99:1 0.99–1.34:1 1.32–1.91:1 1.732.44:1 2.30–3.66:1 3.62–5.51:1 5.42–8.68:1
F/stop: 2.0 2.0 1.85–2.34 1.75 1.85–2.20 1.85–2.35 1.84–2.44 1.65–1.87 1.83–2.27 1.82–2.24 1.83–2.35



1ET-DLE030 is discontinued. Compatible with 1-Chip DLP projectors up to 10,000 lumens.

2ET-DLE080 is discontinued. Compatible with 1-Chip DLP projectors up to 8,500 lumens.
