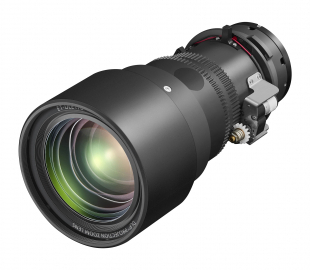

Panasonic ET-DLE178

Standard Zoom Lens
Item #0601-2270 Model #ETDLE178

Specifications

Panasonic ET-DLE178

Standard Zoom Lens

Zoom lens for 1-chip DLP projectors.

Please check the Compatibility tab to make sure that this lens is compatible with your projector.



Throw Ratio (D:W): 4K        1.60–2.58:1 (0.66" DLP; 16:9)
WUXGA 1.62–2.62:1 (0.67" DLP; 16:10)

WXGA   1.67–2.69:1 (0.65" DLP; 16:10)
XGA      1.64–2.65:1 (0.7" DLP; 4:3)

Aperture (F/stop):

1.85 – 2.04

Focal Distance (f): 24.0 – 38.3 mm (15/16–1-33/64 inch)
Dimensions (WxHxD):  3-3/4 x 3-3/4 x 7-1/2 inches
(95 x 95 x 191.1 mm)
Weight: Approx. 2 lb 10 oz (1.2 kg)

Same Series Lenses

Model ET-DLE020 ET-DLE060 ET-DLE088 ET-DLE158 ET-DLE178
Std Lens
ET-DLE258
Add to Cart Add to Cart
  Panasonic ET-DLE020 lens Panasonic ET-DLE060 lens Panasonic ET-DLE088 lens Panasonic ET-DLE158 lens Panasonic ET-DLE178 lens Panasonic ET-DLE258 lens
D:W
4K
0.277  0.296:1 0.594 – 0.793:1 0.782 – 1.10:1 1.08 – 1.62:1 1.60  2.58:1 2.55 – 3.82:1
D:W WUXGA 0.280  0.299:1 0.600  0.801:1 0.793  1.12:1 1.10  1.64:1 1.62  2.62:1 2.59  3.87:1
D:W WXGA 0.288  0.308:1 0.618  0.824:1 0.816  1.15:1 1.13  1.69:1 1.67  2.69:1 2.66  3.99:1
D:W XGA 0.283  0.302:1 0.607  0.810:1 0.802  1.13:1 1.11  1.66:1 1.64  2.65:1 2.62  3.92:1
f/stop 2.0 1.85 – 2.34 1.85  2.11 1.85  2.19 1.85  2.04 1.85  2.18
