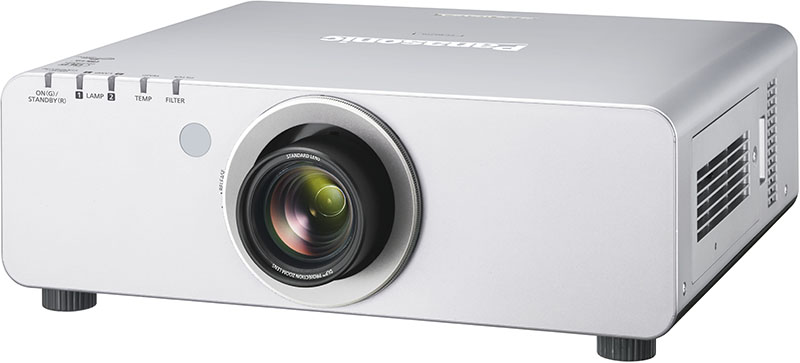

Panasonic PT-DX810US

1-DLP Projector, XGA, 8200L, 2000:1 contrast, lamp modulation, 1.8-2.4:1 zoom lens, H & V lens shift, multi-screen processor with edge blending, LAN, 3-year warranty
Item #0601-2290 Model #PTDX810US


The Panasonic PT-DX810US' innovative optical engine delivers brightness levels of 8,200 lumens, producing crisp, high-quality images that stand out in any setting. This performance is enhanced by a comprehensive range of terminals and advanced management functions, ensuring both high reliability and minimal maintenance effort. The versatility and ease of use make it an optimal solution for various applications, whether they're in educational settings, business environments, or stage performances.

The Panasonic PT-DX810US emerges as a premier choice for a large venue projector, employing DLP technology to ensure that every image showcased is of the highest quality. With bright visuals powered by an 8,200-lumen output, it caters to the needs of those requiring vivid presentations in well-lit rooms or outdoor settings where control of ambient light is not always possible. Combined with its XGA resolution, the projector renders sharp, detailed visuals that are crucial for conveying information or impressing an audience during performances.

Suitable for a wide range of purposes, the PT-DX810US sets a new standard for projectors intended for large venues, embodying Panasonic's commitment to high-quality projection technology, reliability, and user-friendly design.


Optional Lenses

Model: ET-DLE020 ET-DLE035
ET-DLE060 ET-DLE055 ET-DLE085

Std Lens

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
Add to Cart

Add to Cart

Add to Cart

Add to Cart
  ET-DLE020 ET-DLE035 lens ET-DLE060 lens ET-DLE055 lens ET-DLE085 lens  ET-DLE105 lens ET-DLE150 lens ET-DLE170 lens ET-DLE250 lens ET-DLE350 lens ET-DLE450 lens
D:W XGA 0.28–0.30:1 0.38:1  0.61–0.81:1 0.79:1 0.79–0.99:1 0.99–1.34:1 1.32–1.91:1 1.732.44:1 2.30–3.66:1 3.62–5.51:1 5.42–8.68:1
F/stop: 2.0 2.0 1.85–2.34 1.75 1.85–2.20 1.85–2.35 1.84–2.44 1.65–1.87 1.83–2.27 1.82–2.24 1.83–2.35


1ET-DLE030 is discontinued. Compatible with 1-Chip DLP projectors up to 10,000 lumens.

2ET-DLE080 is discontinued. Compatible with 1-Chip DLP projectors up to 8,500 lumens.


Model Z-DLE055C Z-DLE066A
Price $999.00
Add to Cart
Add to Cart
Z-DLE055C lens Z-DLE066A lens
0.42:1 0.76–0.79:1
F/stop 2.6 2.2


Other Accessories

Chief RPA-US mount Ceiling mounts
ET-EMF300 filter Replacement filter (ET-EMF300)
ET-LAD60A lamp Replacement lamp (ET-LAD60A)



3-Year PASS Limited Warranty; 90 Days Lamp
