Panasonic PT-RQ32KU

Give Your Business an Edge with 4K⁺ Projection

The PT-RQ32K gives resellers and staging professionals an opportunity to upgrade quality of service while reducing overheads and total cost of ownership. Panasonic’s 3-Chip DLP™ SOLID SHINE Laser 4K⁺ flagship maintains image consistency longer with huge output power and lower maintenance with fractional weight of competitive projectors.

Deliver total immersion in temporary and permanent installations for single or multi-projection layouts. Reimagine your business in 4K⁺ by Panasonic.

The SOLID SHINE Laser Advantage

• Solid-state laser light sources and specially engineered heat-resistant phosphor wheels work together with three discrete DLP™ modules (R/G/B) for high brightness, true color accuracy, and high contrast in large venues.
• 3-Chip DLP™ SOLID SHINE Laser projectors capture a more accurate color space than comparable laser projectors. Blue lasers ensure greater precision while an expanded color gamut improves white-balance accuracy.
• Projector delivers up to 20,000 hours^*1 maintenance-free service at full power with no filters to clean or replace^*2 thanks to a fully sealed optical block and redesigned air intake. Energy consumption has also been reduced.
• Dual-Laser Optical Engine assures failsafe reliability
• Dust-proof optics extend longevity
• Efficient cooling system enhances reliability

• Optional Long Life Filter for 20,000-hour service-free operation

Image Quality and Reliability

• Better-than-4K resolution is achieved by employing a high-speed 2560 x 1600-pixel (WQXGA) DMD chip that shifts each pixel vertically and horizontally, quadrupling the pixel-count and producing film-like 5120 x 3200-pixel (4K⁺/16:10) images.
• 240 Hz Real Motion Processor reduces motion blur
• Dynamic Contrast Function for high 20,000:1 contrast
• Emulation mode for BT.2020, a 4K color-space standard, reproduces a wider color gamut than conventional Rec.709 standard. Additionally, the projectors support HDR (High Dynamic Range).
• SOLID SHINE Laser delivers superior screen brightness uniformity (> 90%) thanks to highly accurate white balance control.

Installation Flexibility and Powerful Functionality

• SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion.
• Panasonic 3-Chip DLP™ projectors share a range of optional lenses, including ultra-short-throw lens and zoom lens for long throw distances.
• Single-cable 4K DIGITAL LINK connection
• Eyebolt-ready for crane installations

Additional Features

• Quick Start and Quick Off
• Laser safety guaranteed
• Built-in Geometric Adjustment
• Multi-screen support system
• Multi-Unit Brightness and Color Control
• Multi Monitoring & Control Software
• Free Geometry Manager Pro software expands geometric and multi-screen setup and calibration capabilities via PC
• Optional Early Warning Software ET-SWA100 Series
• Art-Net DMX, Crestron Connected™, and PJLink™
• DICOM Simulation Mode
• Power management reduces downtime
• Contrast Sync function allows dynamic contrast control to be synchronized for consistent picture quality across screens.
• Backup input setting assures picture display

Notes:

*1 At this time the brightness will have decreased to approximately half of its original level. Please refer specification for detail condition.

*2 Filter Replacement Period:
     Supplied Filter: 2,000 hours (High Mode), 4,000 hours (Normal Mode)
     Long Life Filter: 4,000 hours (High Mode), 20,000 hours (Normal Mode)

Usage environment may affect filter maintenance cycle.

Power supply	AC 100–120 V (12 A) / AC 200–240 V (16 A), 50/60 Hz (Brightness restricted with voltage lower than 200 V)
Power consumption*1	2,950 W (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal) [2,950 VA, AC 200 V]; Average Power Consumption: 2,400 W (High Mode), 2,000 W (Normal Mode) [Operating temperature: 25 °C (77 °F), altitude: 700 m (2,297 ft), IEC62087: 2008 Broadcast content, Image Mode: Standard, Dynamic Contrast Mode: 2]
DLP™ CHIP
Panel size	22.9 mm (0.9") diagonal (16:10 aspect ratio)
Display method	DLP™ chip x 3, DLP™ projection system
Pixels	49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON, 4,096,000 (2560 x 1600) x 3, total of 12,288,000 pixels when Quad Pixel Drive set to OFF
Refresh rate	240 Hz*3
Lens	Optional (no lens included with this model)
Light source	Laser diodes (Class 1),  Light-source life: 8,000 hours (High Mode, brightness decreases to approx. 70 %), 18,000 hours (High Mode, brightness decreases to approx. 50 %), 20,000 hours (Normal Mode, brightness decreases to approx. 50 %), 43,800 hours (Long Life 1 Mode, consistent brightness), 61,320 hours (Long Life 2 Mode, consistent brightness), 87,600 hours (Long Life 3 Mode, consistent brightness) [IEC62087: 2008 Broadcast content, Dynamic Contrast Mode: 3]
Filter	With supplied filter: 4,000 hours (Normal Mode),  2,000 hours (High Mode), 20,000 hours (Long Life 1/2/3 Mode); With Long Life Filter: 20,000 hours (Normal Mode), 4,000 hours (High Mode), 40,000 hours (Long Life 1/2/3 Mode)
Screen size (diagonal)	1.78–25.4 m (70–1,000") with 16:10 aspect ratio;  1.78–15.24 m (70–600") with the ET-D75LE8, 16:10 aspect ratio; 3.05–15.24 m (120–600") with the ET-D75LE95, 16:10 aspect ratio
Brightness*4	27,000 lm (Center)*5 / 26,000 lm*6 [High Mode],  22,500 lm (Center)*5 / 21,600 lm*6 [Normal Mode],  12,000 lm [Long Life 1 Mode],  10,000 lm [Long Life 2 Mode],  8,000 lm [Long Life 3 Mode]
Contrast*6	20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Resolution	4K+ (5120 x 3200) (Quad Pixel Drive: ON)
Supported video signal	NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i, 4K
OPTICAL AXIS SHIFT*7 (from center of screen)
Vertical	±59 % (±56 % with the ET-D75LE6, +69 – +84 % with the ET-D75LE95) (powered)
Horizontal	±29 % (±19 % with the ET-D75LE6, ±21 % with the ET-D75LE95) (powered)
Keystone correction range*8	Vertical: ±40 ° (± 22 ° with ET-D75LE50, ±28 ° with ET-D75LE6, 0 ° to +5 ° with ET-D75LE95), Horizontal: ±15 °(0 ° with ET-D75LE95)
Keystone correction range with optional Upgrade Kit*8	Vertical: ±45 ° (± 40 ° with ET-D75LE10/D75LE20, ±22 ° with ET-D75LE50, ±28 ° with ET-D75LE6, 0 ° to +5 ° with ET-D75LE95), Horizontal: ±40 ° (±15 ° with ET-D75LE50/D75LE6/D75LE10, ±20 ° with ET-D75LE20, ±25 ° with ET-D75LE30, ±30 ° with ET-D75LE40, 0 ° with ET-D75LE95), up to a total of ±30 ° during simultaneous horizontal and vertical correction.
Installation	Horizontal/vertical, free 360-degree installation
Cabinet materials	Metal (Partly Plastic Mold)
Dimensions (W x H x D)	700 x 418*9 x 1,250 mm (27 9/16" x 16 15/32"*9 x 49 7/32") (including protruding parts);  700 x 373*10 x 1,070 mm (27 9/16" x 14 11/16"*10 x 42 1/8") (not including protruding parts)
Weight*11	Approx. 83 kg (183.0 lbs)
Operation noise*6	49 dB
Operating environment	Operating temperature: 0–45 °C (32–113 °F) [altitude: up to 1,400 m (4,593 ft),  High/Normal Mode]; 0–40 °C (32–104 °F)*12 [altitude: up to 4,200 m (13,780 ft),  High/Normal Mode]; 0–40 °C (32–104 °F)*12 [altitude: up to 2,700 m (8,858 ft),  Long Life1/2/3 Mode]; 0–40 °C (32–104 °F) [altitude: up to 1,400 m (4,593 ft) with Smoke Cut Filter];  Operating humidity: 10–80 % (no condensation)
Applicable software	Logo Transfer Software,  Multi Monitoring & Control Software,  Early Warning Software,  Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)

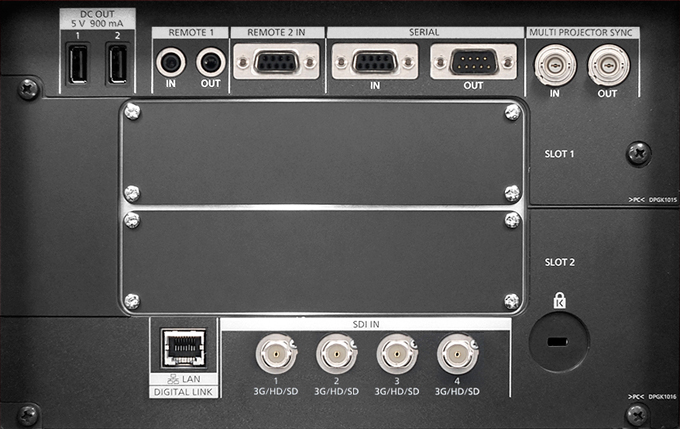

Terminals

Notes:

*1 Operating temperature: 25 °C (77 °F), altitude: 700 m (2,297 ft), IEC62087: 2008 Broadcast Content, Image Mode: Standard, Dynamic Contrast Mode: 2.

*2 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Additionally, only certain commands can be received for external control using the serial terminal.

*3 Refresh-rate varies depending on vertical scanning frequency.

*4 With lens other than ET-D75LE95 and power supply of AC 200 V

*5 Measured at center area of projector screen. Measurement method is in compliance with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

*6 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

*7 Optical axis shift function cannot be operated when used with the ET-D75LE50.

*8 Range varies depending on mounted lens.

*9 With legs at shortest position.

*10 Excluding legs.

*11 Average value. May differ depending on the actual unit.

*12 If ambient temperature exceeds 35 °C (95 °F) when used in locations from 0 m to 2,700 m (0 ft to 8,858 ft) above sea level, or if it exceeds 25 °C (77 °F) when used in locations from 2,700 m to 4,200 m (8,858 ft to 13,780 ft) above sea level, light output may be reduced to protect the projector.

Optional Lenses

D75 Series

Model	ET-D75LE95	ET-D75LE6	ET-D75LE10	ET-D75LE20	ET-D75LE30	ET-D75LE40	ET-D75LE8
D:W 4K+/WQXGA	0.388:1	0.986–1.17:1	1.39–1.78:1	1.78–2.57:1	2.56–4.97:1	4.97–7.87:1	7.83–14.7:1
f/stop	2.5	2.5	2.5	2.5	2.5	2.5	2.5–2.7

D3 Series

This series supports lens memory when used with a projector that also supports this feature. Lens identification is also supported, so that the projector can read the model lens that is installed on it.

Model:	ET-D3LEF70*	ET-D3LEU100	ET-D3LEW200	ET-D3LEW50	ET-D3LEW300	ET-D3LEW60	ET-D3LEW10	ET-D3LES20	ET-D3LET30	ET-D3LET40	ET-D3LET80
D:W 4K+/WQXGA	—	0.395:1	0.688–0.907:1	0.740:1	0.825–1.00:1	0.986–1.17:1	1.34–1.83:1	1.78–2.57:1	2.56–4.97:1	4.92–7.90:1	7.83–14.7:1
f/stop:	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5–2.7

^* Fish-eye lens
