Panasonic PT-RQ22KU
Overview
PT-RQ22KU
3-Chip DLP™ 4K+ Large Venue Laser Projector
Explore New Possibilities with the World’s Smallest and Lightest 20,000-lumen-class 4K+ Projector*1
The PT-RQ22KU gives staging innovators an edge where the limits of projection are routinely tested. As the world’s smallest and lightest 20,000-lumen-class 4K+ projector*1, the PT-RQ22K brings unassailable image-quality to body dimensions comparable to our 10,000-lumen-class projectors.
Easily handled by fewer people and supporting free 360° installation, novel projection ideas become reality in 4K+. Hermetically sealed optics and filterless heat-pipe-based cooling underline reliability in dusty conditions, while solid-state lasers consistently control the brightness ramp over 20,000 hours*2 of maintenance-free operation.
With shared assets across Panasonic’s large-venue lineup enhancing ROI, your transition to 4K+ projection is smooth and cost-effective.
Key Features
- Laser 3-chip DLP, 21,000 center lumens, 4K+
- Lamp-free laser projection with dust resistant liquid cooling system and 20,000 hours of free maintenance
- 5K pixel performance with a quad pixel drive system on a WQXGA chipset
- 240 Hz high-frame rate for superb and sharp motion pictures and a 20,000:1 contrast ratio
- Geometric Manager Pro, colour matching and multiple screens edge blending, exchangeable lens, 24/7 operation, geometric adjustment, 360° flexible installation
Notes:
*1 As of August, 2018. Among 20,000-lumen-class projectors with 4K resolution or higher.
*2 Around this time, light output will have decreased by approximately 50 %. IEC62087:2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Panasonic recommends cleaning or checkup at point of purchase after every 20,000-hour period (approximately). Estimated maintenance time varies depending on environment.
Features
SOLID SHINE Laser Technology
- Bright and Vivid Picture Quality from 3-Chip DLP™ SOLID SHINE Laser
- Precision Color Reproduction
- Dual-Laser Optical Engine Assures Failsafe Reliability
- Filterless Laser Design Delivers 20,000-hour*1 Maintenance-free Operation
Image Quality and Reliability
- Quad Pixel Drive Goes Beyond 4K
- Delivering Film-like 4K+ Projection at Higher Brightness
- Supports BT.2020 Emulation and HDR
- Auto Gamma and Color Space Select Functions
- New Noise-Reduction Function Enhances HDR Content
- Real Motion Processor Reduces Motion Blur
- Detail Clarity Processor 5+
- Dynamic Contrast Function for High 20,000:1 Contrast
- System Daylight View 3
- Selectable Operational Modes
- 90 % Brightness Uniformity
Installation Flexibility and Powerful Functionality
- Free 360-degree Installation
- Contrast Sync and Shutter Sync Function
- Single-Cable 4K DIGITAL LINK Connection
- Backup Input Guarantees Picture Display
- Electrical Convergence Adjustment Function
- Geometry Manager Pro Software and Upgrade Kits
- Frame Delay Adjustment for Multi-projection
- Smart Projector Control
- Multi Monitoring & Control Software
- Common Lenses for Panasonic 3-Chip DLP™ Projectors
Additional Features
- Quick Start and Quick Off
- Laser Safety Guaranteed
- Built-in Geometric Adjustment
- Multi-screen Support System
- Multi-Unit Brightness and Color Control
- Art-Net DMX, Crestron Connected™, and PJLink™
- DICOM Simulation Mode
- Waveform Monitor Function
- Power Management Reduces Downtime
Specifications
| Projector type | 3-Chip DLP™ projector | |
|---|---|---|
| DLP™ chip | ||
| Panel size | 22.9 mm (0.9 in) diagonal (16:10 aspect ratio) | |
| Display method | DLP™ chip x 3 | |
| Pixels | 4,096,000 (2560 × 1600) × 3, total of 12,288,000 pixels, 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON | |
| Refresh rate | 240 Hz*1 | |
| Light source | Laser diode | |
| Light output | 20,000 lm*2 / 21,000 lm (Center)*3 | |
| Time until light output declines to 50 %*4 | 20,000 hours (NORMAL) /24,000 hours (ECO) | |
| Resolution | 4K+ (5120 x 3200 pixels) (Quad Pixel Drive: ON) | |
| Contrast*2 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) | |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000 in) with 16:10 aspect ratio 1.78–15.24 m (70–600 in) with the ET-D75LE8 / ET-D3LET80, 16:10 aspect ratio 3.05–15.24 m (120–600 in) with the ET-D75LE95, 16:10 aspect ratio |
|
| Center-to-corner uniformity*2 | 90 % | |
| Lens | Optional (no lens included with this model) | |
| Lens shift*5 | ||
| Vertical (from center of screen) |
±59 % (±56 % with ET-D75LE6 / ET-D3LEW60, +69 % – +84 % with ET-D75LE95) (powered) | |
| Horizontal (from center of screen) |
±29 % (±19 % with ET-D75LE6 / ET-D3LEW60, ±21 % with ET-D75LE95) (powered) | |
| Keystone correction range | Vertical: ±40° (± 22° with ET-D3LEW50, ±28° with ET-D75LE6 / ET-D3LEW60, +5° with ET-D75LE95), Horizontal: ±15° (0° with ET-D75LE95) |
|
| Keystone correction range with optional ET-UK20 Upgrade Kit |
Vertical: ±45° (± 40° with ET-D75LE10 / ET-D3LEW10, ET-D75LE20 / ET-D3LES20, ±22° with ET-D3LEW50, ±28° with ET-D75LE6 / ET-D3LEW60, +5° with ET-D75LE95) Horizontal: ±40° (±15° with ET-D3LEW50, ET-D75LE6 / ET-D3LEW60, 0° with ET-D75LE95), When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55°. |
|

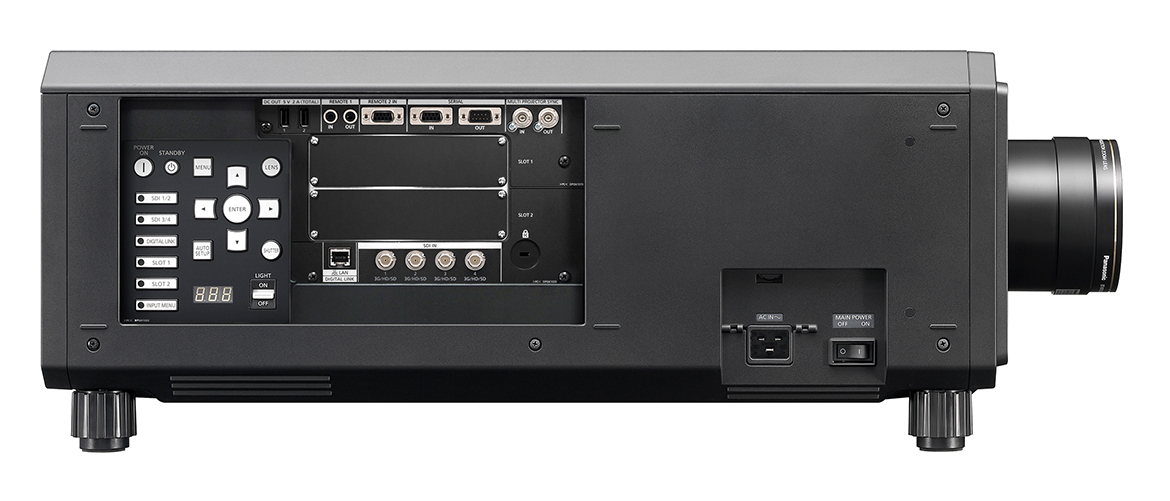

| Installation | Horizontal/vertical, free 360-degree installation | |
| Terminals | ||
| SDI 1 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link A), Dual-link 3G-SDI (Link 1), Quad-link HD-SDI (Link 1), Quad-link 3G-SDI (Link 1) | |
| SDI 2 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link A), Dual-link 3G-SDI (Link 1), Quad-link HD-SDI (Link 1), Quad-link 3G-SDI (Link 1) | |
| SDI 3 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link A), Dual-link 3G-SDI (Link 1), Quad-link HD-SDI (Link 3), Quad-link 3G-SDI (Link 3) | |
| SDI 4 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link B), Dual-link 3G-SDI (Link 2), Quad-link HD-SDI (Link 4), Quad-link 3G-SDI (Link 4) | |
| MULTI PROJECTOR SYNC IN |
BNC x 1 | |
| MULTI PROJECTOR SYNC OUT |
BNC x 1 | |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) | |
| REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control | |
| REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control | |
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | |
| DIGITAL LINK/LAN | RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2 |
|
| DC OUT | USB Type A x 2 (for power supply DC 5 V total of 2 A) | |
| Expansion Slot | SLOT 1 / SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible | |
| Power supply | AC 200 V–240 V, 8.5 A, 50/60 Hz (Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.8A]) |
|
| Power consumption | 1,650 W (0.3 W with Standby Mode set to ECO*6, 4 W with Standby Mode set to NORMAL) | |
| Cabinet materials | Molded plastic | |
| Operation noise*2 | 46 dB | |
| Dimensions (W × H × D) |
600 mm x 307 mm*7 x 745 mm ( 23 5/8˝ x 12 3/32˝ x 29 11/32˝ ) (including protruding parts); 598 mm x 270 mm*8 x 725 mm ( 23 17/32˝ x 10 5/8˝ x 28 17/32˝ ) (not including protruding parts) |
|
| Weight*9 | 54.0 kg (119 lbs) | |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*10, operating humidity: 10–80 % (no condensation) | |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™ (See Downloads tab.) | |
Notes:
*1 Refresh rate varies depending on scanning frequency.
*2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*3 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.
*4 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depends on environment.
*5 Lens shift is not supported on the ET-D3LEW50.
*6 When Standby Mode is set to ECO, network functions such as power on over LAN will not operate. Additionally, only certain commands can be received for external control using the serial terminal.
*7 With legs at shortest position.
*8 Excluding legs.
*9 Average value. May differ depending on the actual unit.
*10 Operating temperature is 0–40 °C (32–104 °F) when used in locations from 1,400 m to 4,200 m (4,593 ft to 13,779 ft) above sea level. When operating in ECO or NORMAL mode at elevations between 0–2,700 m (0–8,858 ft) in ambient temperatures exceeding 40 °C (104 °F), or at elevations between 2,700–4,200 m (8,858–13,780 ft) in ambient temperatures exceeding 25 °C (77 °F), light output may be reduced to protect the projector.
Lenses
Optional Lenses
D75 Series
| Model | ET-D75LE95 | ET-D75LE6 | ET-D75LE10 | ET-D75LE20 | ET-D75LE30 | ET-D75LE40 | ET-D75LE8 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W 4K+/WQXGA |
0.388:1 | 0.986–1.17:1 | 1.39–1.78:1 | 1.78–2.57:1 | 2.56–4.97:1 | 4.97–7.87:1 | 7.83–14.7:1 |
| f/stop | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5–2.7 |
D3 Series
This series supports lens memory when used with a projector that also supports this feature. Lens identification is also supported, so that the projector can read the model lens that is installed on it.
| Model: | ET-D3LEF70* | ET-D3LEU100 | ET-D3LEW200 | ET-D3LEW50 | ET-D3LEW300 | ET-D3LEW60 | ET-D3LEW10 | ET-D3LES20 | ET-D3LET30 | ET-D3LET40 | ET-D3LET80 |
|
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W 4K+/WQXGA |
— | 0.395:1 | 0.688–0.907:1 | 0.740:1 | 0.825–1.00:1 | 0.986–1.17:1 | 1.34–1.83:1 | 1.78–2.57:1 | 2.56–4.97:1 | 4.92–7.90:1 | 7.83–14.7:1 |
| f/stop: | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5–2.7 |

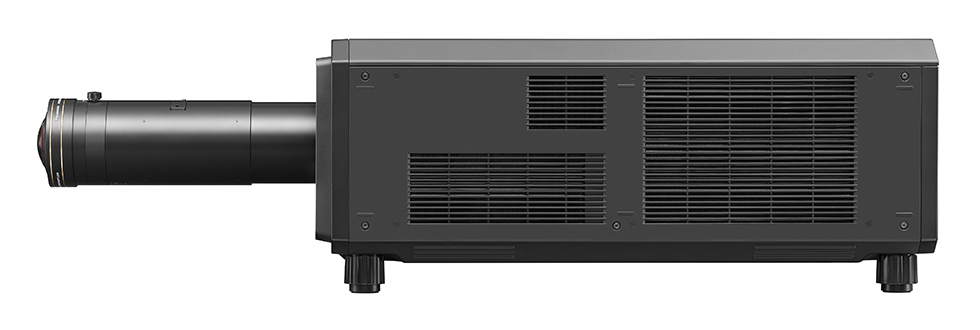

* Fish-eye lens
Discontinued Lenses
| Model | ET-D75LE90 | ET-D75LE5 ET-D75LE50 |
ET-D75LE1 | ET-D75LE2 | ET-D75LE3 | ET-D75LE4 |
| D:W 4K+/WQXGA |
0.38:1 | 0.74:1 | 1.5 – 1.9:1 | 1.9 – 2.9:1 | 3.0 – 4.9:1 | 4.9 – 7.9:1 |
| f/stop: | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
