Epson 992F

LCD Projector, 1080p, 4000 Lumens, D:W 1.32-2.14:1, Wireless

Item #0601-3107 Model #V11H988020

Overview

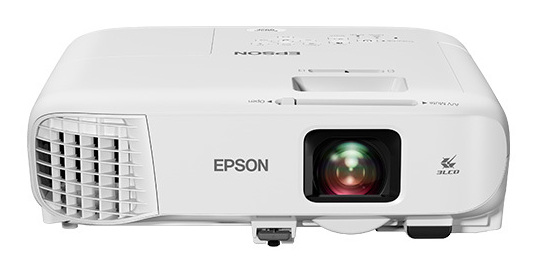

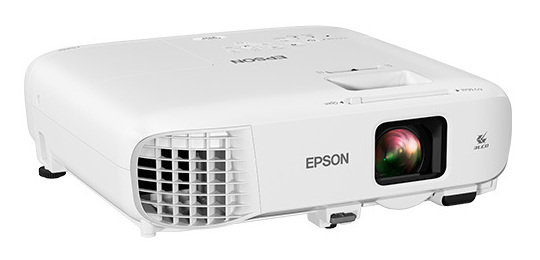

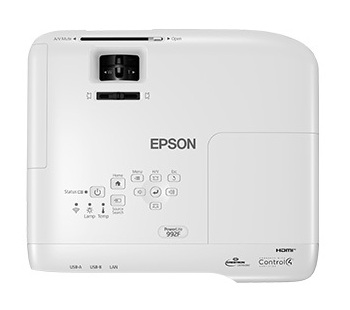

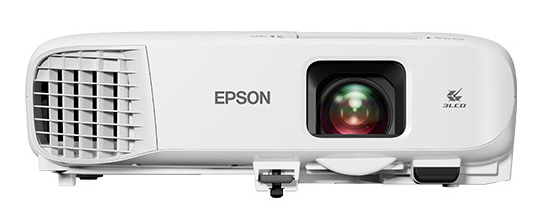

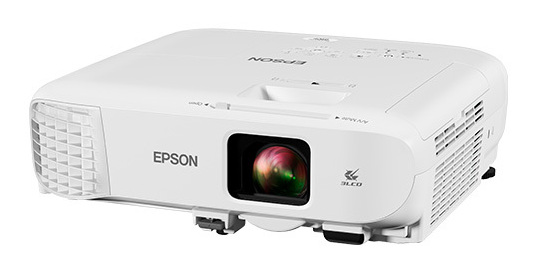

Epson PowerLite 992F

Full HD 1080p Classroom Projector with Built-in Wireless

Bring lesson plans to the big screen with the dynamic PowerLite 992F projector. Featuring state-of-the-art 3LCD technology, this 4,000-lumen Full HD 1080p projector easily creates vibrant and engaging classroom displays with uncompromising image quality.

The perfect choice for any classroom environment, the PowerLite 992F maximizes collaboration and engagement with a variety of unique features, including screen mirroring, which wirelessly projects images from laptops and mobile devices.

Designed with convenience and durability in mind, this projector provides built-in wireless with enterprise-level security, a long 17,000-hour lamp life, and 1.0–1.6x optical zoom for flexible installation.

(Model: V11H988020)

Features

Screen Mirroring: Project device photos, videos and apps using Miracast®²

3-chip 3LCD technology for Best-in-Class Color Brightness⁴: 4,000 lumens of color and white brightness¹

Full HD 1080p Resolution: Delivers bright, colorful images

Low-priced, long-lasting lamp: Up to 17,000 hours in ECO Mode³

1.0 - 1.6x optical zoom: Expand your projector placement or installation flexibility; get sharp, clear images with no digital distortion

Integrated Wireless Networking: With enterprise-level security

Moderator function⁵: allows up to 50 users to connect to the display simultaneously; perfect for displaying a variety of content or comparing students' work side-by-side

Advanced network connectivity: RJ-45 and built-in wireless allow remote network projector management, presentations over the network, and more

Two HDMI® connectors: support multiple high-definition AV devices

Built-in 16 W speaker and microphone input: for engaging projector displays

Eco Features

RoHS compliant
Recyclable product⁶
Epson America, Inc. is a SmartWay® Transport Partner⁷

Notes:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² For wireless functionality, including via the Epson iProjection™ App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

³ Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

⁴ Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.

⁵ Moderator control, Connecting via QR code and Projector Remote are not available on Epson iProjection for Chromebooks.

⁶ For convenient and reasonable recycling options, visit www.epson.com/recycle

⁷ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System:	3LCD, 3-chip technology
Projection Method:	Front/rear/ceiling mount
Driving Method:	Poly-silicon TFT Active Matrix
Pixel Number:	2,073,600 dots (1920 x 1080) x 3
Native Resolution:	1920 x 1080 Full HD 1080p
Resize:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA60-3), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 900 (WXGA++), 1600 x 1200 (UXGA60)
Aspect Ratio:	16:9
Color Brightness¹ - Color Light Output:	4,000 lumens
White Brightness¹ - White Light Output:	4,000 lumens
Contrast Ratio:	Up to 16,000:1
Color Reproduction:	Over 1.07 billion colors
Size (projected distance):	30" – 300" (0.87 – 8.88 m) (Zoom:Wide) 30" – 300" (1.42 – 14.41 m) (Zoom:Tele)
Keystone Correction	Vertical: ± 30 degrees (Automatic) Horizontal: ± 30 degrees (Slider)
USB Plug 'n Play:	Projector is compatible with PC and Mac® computers
Lamp Type:	230 W UHE
Lamp Life²:	ECO Mode: Up to 17,000 hours Medium Mode: Up to 10,000 hours Normal Mode: Up to 6,500 hours

Projection Lens:

Type:	Manual focus
F-number:	1.51 – 1.99
Focal Length:	18.2 – 29.2 mm
Zoom Ratio:	Optical zoom 1.0 – 1.6
Throw Ratio Range:	1.32 (Zoom:Wide) to 2.14 (Zoom:Tele)

Other Features

Display Performance:	NTSC: 480 lines; PAL: 576 lines (Depends on observation of the multi-burst pattern)
Input Signal:	NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/ SECAM
Operating Temperature:	41° to 95°F (5° to 35°C)
Fan Noise:	ECO Mode: 28 dB Normal/Medium Mode: 37 dB
Security:	Kensington-style lock provision, padlock and security anchor bar
Speaker	16 W (mono)

Power:

Power Supply Voltage:	100 – 240 V AC ±10%, 50/60 Hz
Power Consumption:	ECO Mode: 235 W Medium Mode: 303 W Normal Mode: 345 W Standby (Communication On): 2.0 W Standby (Communication Off): 0.3 W

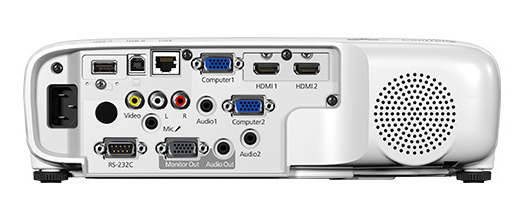

Interfaces:

1x USB-A
1x USB-B
1x LAN
2x HDMI
2x Computer/Component
1x Video
1x RS-232c
1x Stereo Mini-jack (Mic)
1x Monitor Out
Audio 1 & 2
Audio L & R
1x Audio Out

Dimensions (W x D x H):

Including feet:	12.1" x 11.5" x 4.1" (307 x 292 x 104 mm)
Excluding feet:	12.1" x 11.1" x 3.5" (307 x 282 x 89 mm)
Weight:	6.83 lb (3.1 kg)

Remote Control:

Features:	A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, Volume
Operating Distance:	19.7 ft (6 m)
Operating Angle:	Right/left: ±30 degrees Upper/lower: ±15 degrees
