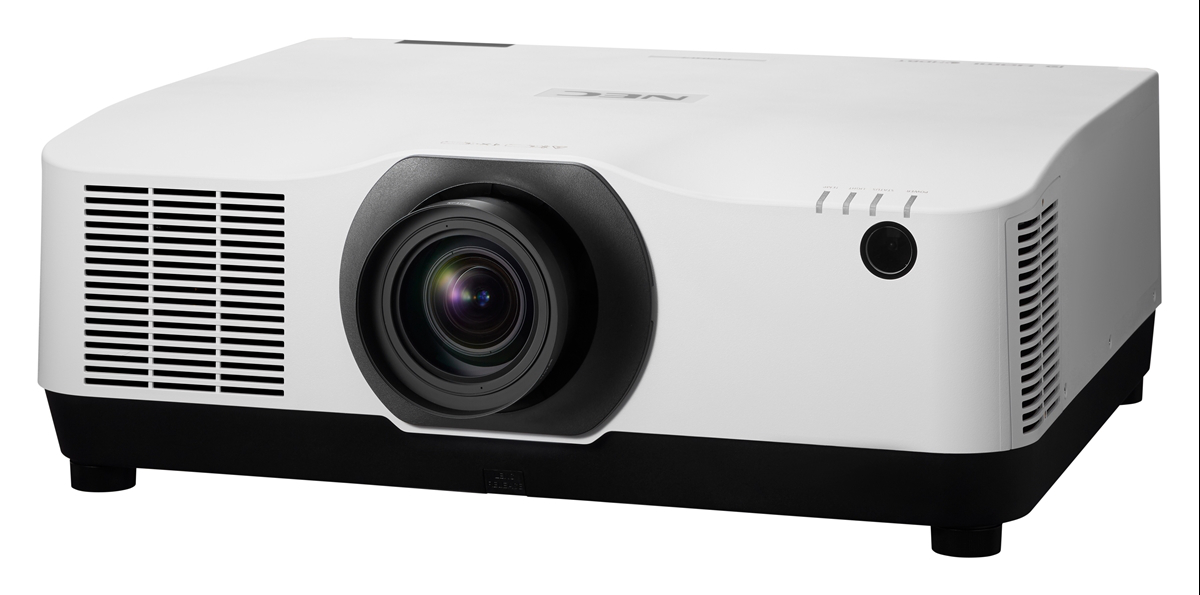

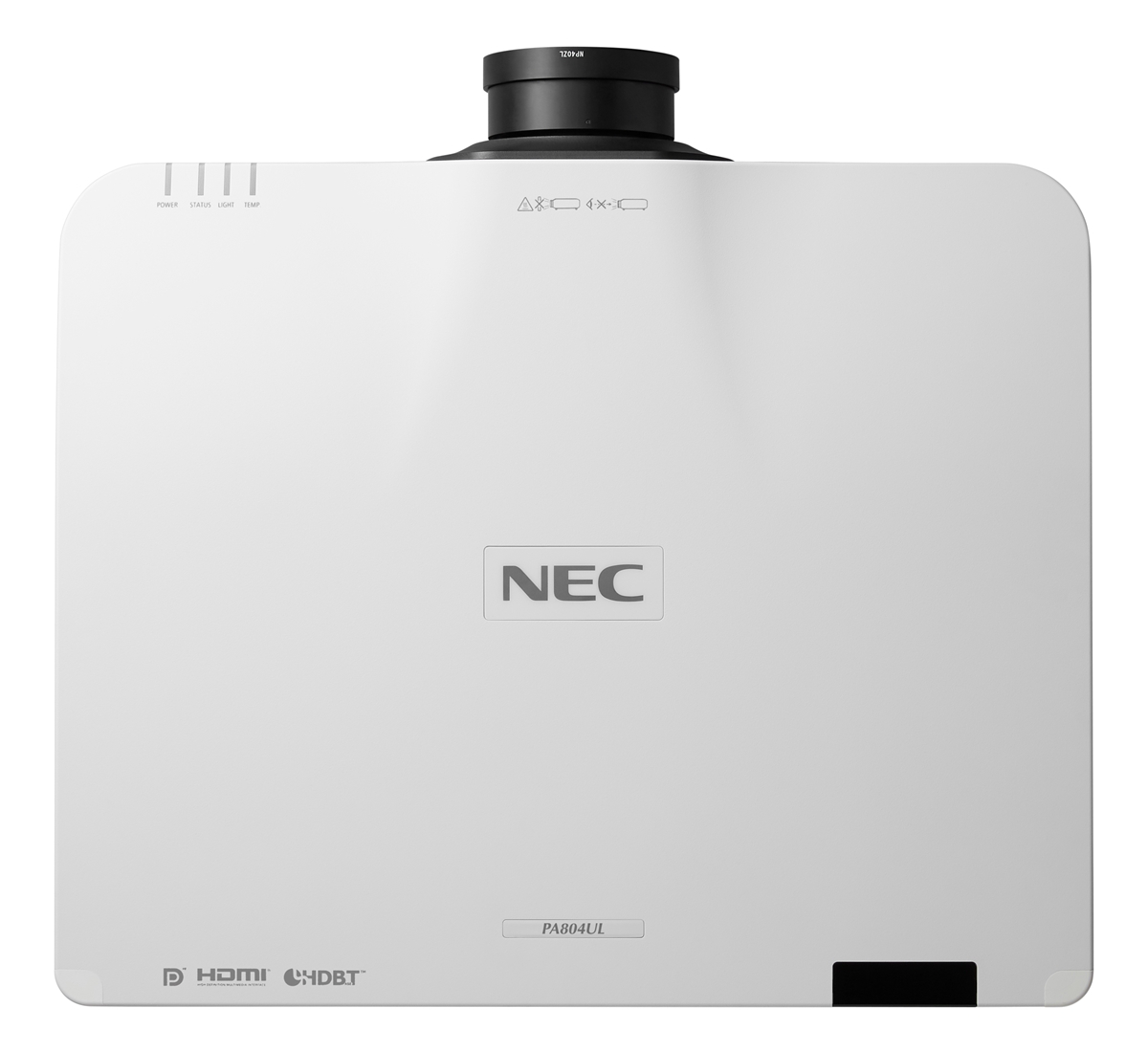

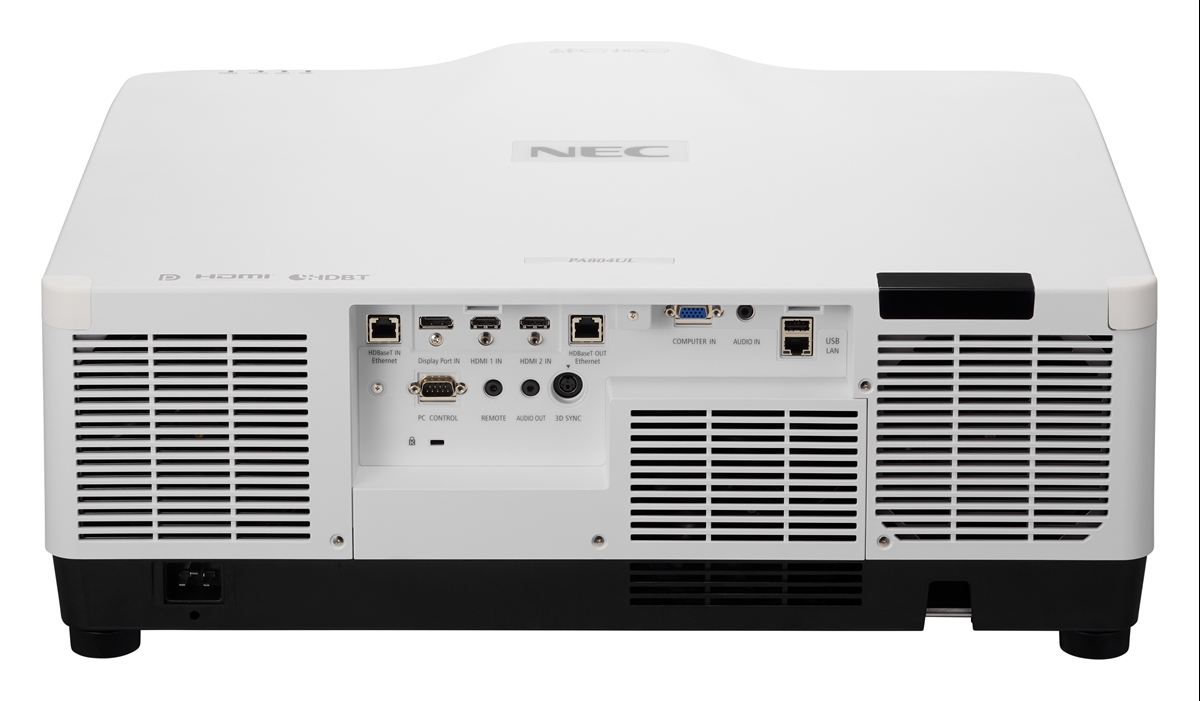

NEC PA804UL-W-41
Laser LCD Projector, 4K/WUXGA, 7500 Lumens, V&H Lens Shift, White, with NP41ZL Lens, 5-Year Warranty
Item #0601-3289
Model #PA804ULW41
Overview
NEC PA804UL-W-41
7500 ANSI Lumens Professional Installation Projector with 4K support
The PA804UL-W-41 (white cabinet, NP41ZL lens included) is a 7500 ANSI lumen (8200 center lumen) LCD laser projector with advanced professional installation features for higher education and corporate users. Cinema Quality video processing/scaling creates life-like images.
A new sealed LCD cooling system developed for the PA Series of installation projectors delivers a filter/maintenance-free projector while delivering almost whisper quiet operation. With its multitude of digital inputs, connection to any computer or high definition device is possible.
Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll-free installation capabilities, along with built-in edge blending and stacking. The HDBaseT input and separate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.
Features
- 7500 ANSI lumen (8200 center lumen) brightness: enhances images for most applications
- AutoSense™: Intuitively syncs the projector with most computer signals and features one-touch image optimization.
- Geometric Correction: Allows you to project on spheres, cylinders, corner angles and more.
- Landscape/Portrait Capable: Allows for distortion-free display of content in various orientations, creating new application opportunities.
- Portrait Mode: Ability to install a projector on its side to create a 10:16 portrait image
- Virtual Remote: Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
- 4K Ready: Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.
- Built-in Wall Color Correction: Presets provide for adaptive color tone correction to display properly on non-white surfaces.
- Dual HDMI inputs (with HDCP): Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers. HDR10 and BT.2020 signals from "Ultra HD Blu-ray" and "4K TV broadcasting" are supported on all digital inputs
- Lens Shift: Vertical and horizontal lens shift enables flexible projector placement.
- Power Management: Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
- Crestron Roomview: Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network. Other integrated software applications such as DisplayNote(R), AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control.
- Direct Power Off: Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
- Dual Computer Inputs: Ensures quick switching between presentations.
- Edge Blending: Blend multiple projectors together to create non-standard images
- PIP/POP/Side-by-Side: Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.
- Motorized Zoom and Focus: Simplifies installation and operation by easily adjusting the lens through the remote control.
- Quick Startup and Quick Power-Off: Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
- TileMatrix™: Allows users to customize a video wall configuration using advanced On Screen Display controls.
- VORTEX Technology Plus: Improves white level, color accuracy, dynamic range and varying levels of black in an image.
- Cornerstone Correction: Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
- Stacking Capabilities: Allows the projectors to boost an image's brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
- Tilt-Free Installation: Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
- Variable Audio Out: Adjusts the volume of an external speaker system using the projector's remote control.
- Advanced AccuBlend™: Ensures detailed images when non-native resolution sources are connected to the projector.
- ProAssist™ software: controls the projector and adjusts the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project to a large screen in a classroom, meeting room, auditorium or other large space.
Specifications
Display
| Aspect Ratio | 16x10 |
| Native Resolution | WUXGA 1920x1200 (4K with pixel shifting) |
| Maximum Resolution | 4K 4096 x 2160 |
| Contrast Ratio (typical) | 3,000,000:1 (with Dynamic Contrast) |
| DMD Specifications | 0.76" LCD w/ MLA |
Synchronization Range
| Horizontal | Analog: 15–100 kHz, Digital: 15–153 kHz |
| Vertical | Analog: 48–120 Hz, Digital: 24–120 Hz |
Signal Compatibility/Connectivity
| Supported Video Standards | NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| SD/HD Video Signal Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K |
| PC Signal Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD |
| Macintosh Signal Compatibility | Yes |
| Sync Compatibility | Separate Sync / Composite Sync / Sync on G |
| External Control | RS-232, IR, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0) |
| Input Terminals |
|
| Output Terminals |
|
Power Consumption (typical)
| On | 635 W / 515 W / 0.8 W / 0.22 W |
| Input Current | 10.5 A–4.6 A |
| Power Requirements | 100–240 V AC, 50/60 Hz |
| Power Supply Voltage | 100–240 V AC, 50/60 Hz |
Physical Specifications
| Dimensions (WxHxD) |
Product: 23.6 x 8.5 x 19.3 in. (599 x 216 x 490 mm)
Shipping: 28.9 x 14.1 x 24.8 in. (735 x 359 x 631 mm)
|
| Weight |
Net Weight: 53.1 lb (24.1 kg)
Shipping: 63.3 lb (28.7 kg)
|
Environmental Conditions
| Operating Temperature | 41–104°F / 5–40°C |
| Operating Humidity | 20 to 85% Humidity (Non-Condensing) |
| Operating Altitude | 0 to 12,000 ft / 0 to 3650 m |
| Storage Temperature | 14–122°F / -10–50°C |
| Storage Humidity | 20 to 80% Humidity (Non-Condensing) |
| Storage Altitude | 0–39,370 ft / 0–12,000 m (above sea level) |
Optical
| Light Output (Lumens) | 10,000 Lumens |
| Light Source Life | 20,000 hours |
| Lens |
NP41ZL lens included.
See Accessories tab for range of optional lenses. |
| Throw Ratio |
1.30–3.02:1 |
| Projection Distance | 2.5 to 68.5 ft. / 0.74 to 20.9 m |
| Projector Angle | 10.3 to 10.8° tele / 13.7 to 14.5° wide |
| Lens Adjustment Functions | Motorized focus, zoom, horizontal/vertical shift, light shutter (dowser) / Lens memory stores lens setting (shift/zoom/focus) / Range of shift is dependent on lens |
| Keystone Correction | ±40° horizontal ±40° vertical |
Mechanical
| Installation Orientation | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Fan Noise | 35 dB normal / 32 dB eco |
| Regulations | USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014) |
Additional Features
- 4K Ready
- Motorized Lenses
- Manual Keystone Correction
- 3D Stereo
- Geometric Correction
- Quick power on
- ECO Mode Technology
- DiCom Simulation
- Edge Blending
- Stacking
- Virtual Remote
- DisplayNote
- NaViSet Administrator 2
- Quick power-off
- Picture-in-Picture
- Advanced AccuBlend
- AutoSense
- ProAssist Software
Limited Warranty (parts & labor)
Registered owners receive a 5-year or 20,000-hour parts and labor warranty including InstaCare next business day exchange.
What's in the Box:
- PA804UL-W-41 projector
- NP41ZL zoom lens
- Remote control
- Batteries
- Power cord
- Cable cover
- Lens hole cap
- User manual
- Quick Start Guide
- Product registration card
- Lens anti-theft screw
- Security Sticker
Accessories
Optional Lenses
Motorized zoom lenses
| Model | NP50ZL | NP40ZL | NP41ZL Std Lens |
NP43ZL |
|
|
Add to Cart |
Add to Cart |
Add to Cart |
|
 |
 |
 |
 |
|
| D:W WUXGA |
0.6–0.76:1 | 0.79–1.11:1 | 1.30–3.02:1 | 2.88–5.93:1 |
| f/stop | 1.9–2.1 | 2.0–2.5 | 1.7–2.0 | 2.2–2.6 |
Manual lenses
| Model | NP44ML-02LK | NP30ZL | NP11FL | NP12ZL | NP13ZL Std Lens |
NP14ZL |
|
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
||
 |
 |
 |
 |
 |
 |
|
| D:W WUXGA |
0.32:1 | 0.79–1.04:1 | 0.8:1 | 1.16–1.52:1 | 1.46–2.95:1 | 2.90–4.68:1 |
| f/stop | 2.0 | 1.9–2.1 | 2.3 | 2.2–2.69 | 1.7–2.37 | 2.2–2.64 |
Other Accessories
 |
Ceiling mounts | |
