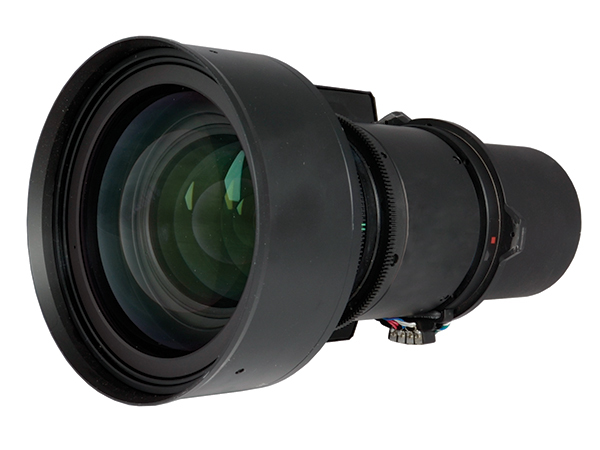

Optoma BX-CTA20

BX-CTA20 Semi-Wide Zoom Lens, D:W 1.2-1.5:1

Motorized Semi-Wide Zoom Lens, D:W 1.2-1.5:1, 3 year warranty

Item #0601-3722 Model #BXCTA20

Specifications

BX-CTA20

Motorized bayonet-style semi-wide zoom lens

Please check the Compatibility tab to make sure that this lens is compatible with your projector.

TECHNICAL SPECIFICATIONS

Throw Ratio (distance/width)	WUXGA: 1.2 – 1.5:1 4K UHD: 1.70 – 2:12:1
Zoom	1.25x
Zoom Adjustment	Motorized
Focus Adjustment	Motorized
Focal Length (mm)	25.50 – 31.80
Aperture (f/stop)	2.18 – 2.56

PHYSICAL SPECIFICATIONS

Dimensions	4.8" x 4.8" x 9.3" (122.0 x 122.0 x 235.8 mm)
Weight	3.68 lb (1.67 kg)

OTHER

Warranty	3 years
UPC	796435071172

Same Series Lenses

Model	BX-CTA18	BX-CTA19	BX-CTA20	BX-CTA21	BX-CTA22	BX-CTA23

D:W	0.84 – 1.02:1	1.02 – 1.36:1	1.2 – 1.5:1	1.5 – 2.0:1	2.0 – 4.0:1	4.0 – 7.2:1
f/stop	2.0	2.0	2.2	2.0	2.2	2.2

Compatibility

To check whether this item is compatible with your equipment, use the form below.
