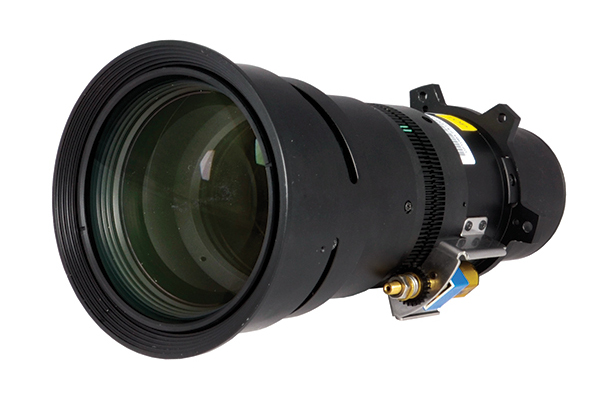

Optoma BX-CTA23

Motorized Extra Long Zoom Lens, D:W 4.0-7.2:1, 3 year warranty
Item #0601-3725 Model #BXCTA23

Specifications

BX-CTA23

Motorized bayonet-style extra long zoom lens

Please check the Compatibility tab to make sure that this lens is compatible with your projector.



TECHNICAL SPECIFICATIONS
Throw Ratio
(distance/width)		 WUXGA:  4.0 – 7.2:1
4K UHD:  5.66 – 10.18:1
Zoom  1.8x
Zoom Adjustment Motorized
Focus Adjustment Motorized
Focal Length (mm) 84.10 – 149.80
Aperture (f/stop) 2.3 – 2.6
PHYSICAL SPECIFICATIONS
Dimensions 3.8" x 3.8" x 10.3" (97.0 x 97.0 x 261.5 mm)
Weight 3.68 lb (1.67 kg)
OTHER
Warranty 3 years
UPC 796435071202

Same Series Lenses

Model BX-CTA18 BX-CTA19 BX-CTA20 BX-CTA21 BX-CTA22 BX-CTA23
  BX-CTA18 BX-CTA19 BX-CTA20 BX-CTA21 BX-CTA22 BX-CTA23
D:W 0.84 – 1.02:1 1.02 – 1.36:1 1.2 – 1.5:1 1.5 – 2.0:1 2.0 – 4.0:1 4.0 – 7.2:1
f/stop 2.0 2.0 2.2 2.0 2.2 2.2
