Optoma ZU1050

Laser DLP Projector, 1920x1200 WUXGA, 10,000 Lumens, 360 Degree, H&V Shift, No Lens, 3 Yr Warranty
Part #: 0601-3788    Mfr #: ZU1050

Optoma ZU1050

Overview

WUXGA Professional Installation Laser Projector

ZU1050

  • Sharp and luminous image with 10,000 lumens
  • DuraCore: maintenance-free laser light source at full brightness up to 20,000 hours
  • MultiColor Laser technology provides a wider color gamut with high brightness
  • Integrated edge-blending and image warping with portrait and 360° operation mode
  • Robust connectivity options, including HDMI, HDBaseT, 3G-SDI and wireless mirroring and streaming via USB dongle
  • Multiple interchangeable optical lens options with 24/7, 360° and portrait mode operation

Spectacular image quality and brightness with low maintenance laser technology

The Optoma ZU1050 is a professional installation WUXGA projector designed for large meeting rooms, boardrooms, auditoriums, museums, houses of worship and broadcast environment installations that demand vibrant colors, consistent brightness and stunning quality images. The latest laser phosphor technology delivers a powerful 10,000 lumens of brightness and up to 20,000 hours of operation without lamp or filter replacements.

Every aspect of the Optoma ZU1050 was carefully designed and built to suit the requirements of even the most complex professional installation for the ultimate in professional image projection. It’s part of the DuraCore family, which features a dust-sealed and filter-free design with IP6X certification that prevents dust and dirt from affecting the optical system for optimal image quality with minimal maintenance.

Motorized lens shift, zoom and focus combined with 360° and portrait operation mode provide flexibility for simple, trouble-free installations. A variety of premium quality lenses ranging from 0.36:1 to 5.5:1 throw ratio ensures the Optoma ZU1050 can be used with a variety of projection distances. Robust input options include HDMI, DVI-D, VGA and component, HDBaseT and 3G-SDI for connectivity to a wide range of advanced devices.

Features

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Dynamic Black Technology

This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

CMS

The Color Management System (CMS) displays accurate, life-like colors and gives you the flexibility to fine-tune the color settings to the Rec. 709 standard for optimal precision.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

24/7 Operation

Optoma projectors are engineered to operate 24 hours a day in standard orientation and perfect for applications that require prolonged periods of use (subject to 24-hour terms and conditions).

Large Zoom Range

Interchangeable lens with a large zoom range can enable various placement possibilities, especially in space constrained environments.

Full Lens Shift

Optoma projectors with full lens shift provide off-axis vertical and horizontal adjustments for complete installation flexibility without image distortion or pixelation.

Wired Remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Lan control

Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.

Image Stacking

Image stacking enables flexible installations for greater redundancy or double the image brightness without significantly increasing the installation cost. An image is displayable without interruption while swapping lamps or servicing one of the projectors or any brightness is achievable using geometry adjustment. Alternatively, images can be realigned to be perfectly square if the alignment is beyond the lens shift range.

HDBaseT

Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100m).

Specifications

TECHNICAL SPECIFICATIONS

360 Operation Yes
Aspect Ratio 16:10
Audio NA
Brightness 10000 ANSI lumens, 10000 center lumens
Compatible Aspect Ratio 16:10 Native, 16:9 and 4:3 Compatible
Contrast Ratio 2,000,000:1 (Extreme black enabled) 2000:1 (full on/full off) (Dynamic Black)
Display Technology Single DMD, 0.67” WUXGA DMD, Type A, DC3 DLP® Technology by Texas Instruments™
Displayable Colors 1.07 billion
Image Size 50” – 300”
Light Source Life Up to 20,000 hrs
Light Source Type Laser phosphor
Light Source Life Up to 20,000 hrs
Lens Shift Vertical:±50% , Horizontal: ±15% when A16 lens selected, None lens shift
Maximum Resolution WUXGA (1920×1200)
Native Resolution WUXGA (1920 x 1200)
Noise Level 35dB/37dB (typical/max)
On-Screen Display Complete on-screen menu adjustment in 12 languages
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Portrait Mode Yes
Power Consumption 945W+/-15% Max (Bright), 480W+/-15% Max (ECO) @ 110V AC
Power Supply AC input 100 – 240V, 50–60 Hz
Projection Distance 2’6” – 116’4” (0.81 – 35.5m)
Projection Lens Interchangeable lenses (lens not included)
Projection Method Front, rear, ceiling mount, table top, 360˚ and portrait mode operation capable
Projection Screen Size 50" ~ 300"

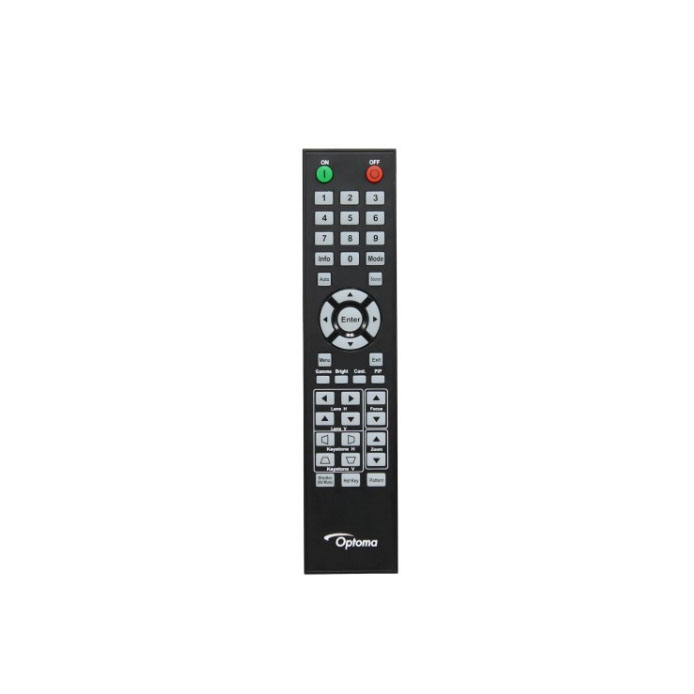

Remote Control Full function wired remote
Throw Ratio 0.36 – 5.50 (dependent on installed lens)
Uniformity 0.9
Zoom Type 1.25x-1.9x optical (dependent on installed lens), 0.8 – 2.0x digital

COMPATIBILITY SPECIFICATIONS

3D Compatibility Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye).
Computer Compatibility WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac compatible
Horizontal Scan Rate 15.375–91.146KHz
Optional Wireless Yes
RoHS Compliant
Vertical Scan Rate 24–85Hz, 120Hz
Video Compatiblity NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)

PHYSICAL SPECIFICATIONS

Dimensions (W x H x D) 19” x 7.7” x 20.7” (with elevators)
Security Kensington® Lock port, security bar and keypad lock
Weight 50.7 lbs. (w/out lens)

OTHER

Optional Accessories Universal ceiling mount, DLP®Link™ 3D glasses, Wi-Fi dongle, Wireless HDMI system, remote
Standard Accessories AC power cord, VGA cable, remote control, carrying case, batteries for remote, multilingual CD-ROM user’s manual, quick start card, and warranty card
UPC 796435 44 147 0
Warranty Info 3 years or 20,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector

Accessories

Chief VCM-U mount Ceiling mounts
DLP link 3D glasses DLP link 3D glasses (ZD302) $49.00
Add to Cart
WUSB-PRO Wireless USB adapter (WUSB-Pro) $29.00
Add to Cart
360 dome lens (BX-CTADOME) 360-degree Dome Projection Lens
Add to Cart

Same Series Lenses

Model BX-CTA16 BX-CTA15 BX-CAA01 BX-CAA06 BX-CAA03 BX-CTA13
Price
Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
  BX-CTA16 BX-CTA15 BX-CAA01 BX-CAA06 BX-CAA03 BX-CTA13
D:W WUXGA

0.36:1

0.75  0.95:1

0.95  1.22:1

1.22  1.53:1

1.52  2.92:1

2.9  5.5:1

D:W WXGA

N/A

N/A

1.0 – 1.28:1

N/A

1.6  3.07:1

N/A

f/stop 2.4 2.3 – 2.53 2.3  2.57 2.0  2.3 2.3  3.4 2.3  2.74
