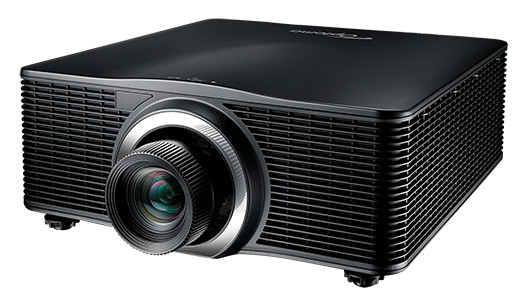

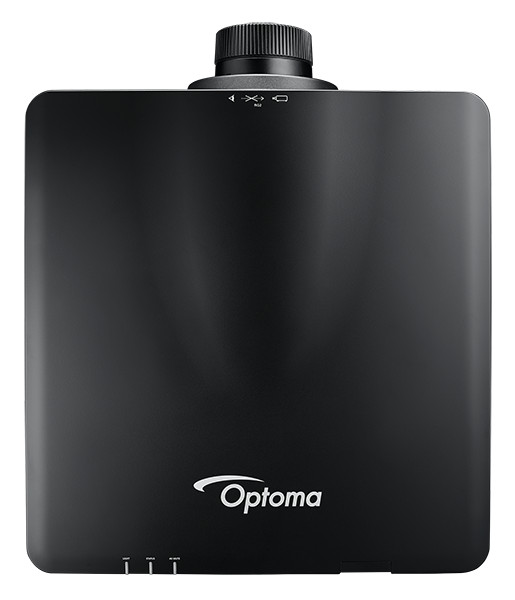

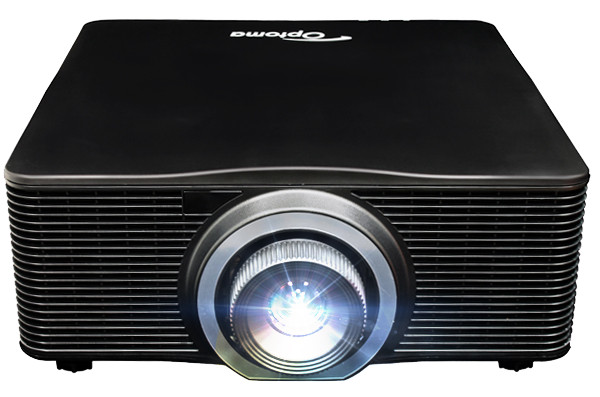

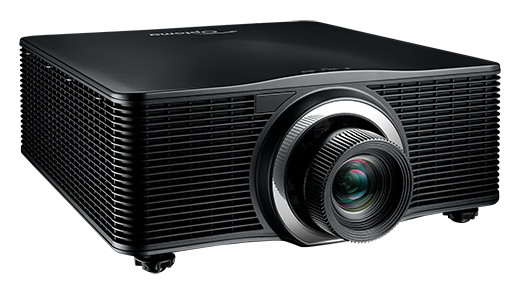

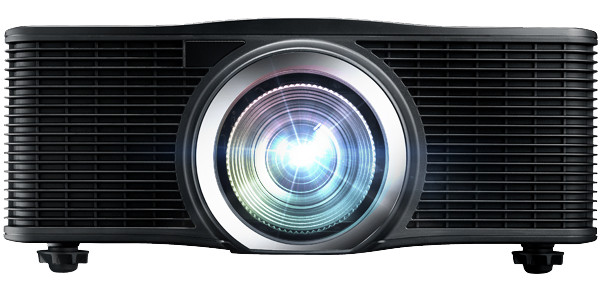

Optoma ZU860

Blue/Red Laser 1-DLP Projector, 1920x1200 WUXGA, 8500 Lumens, 4K input, 3G-SDI, No Lens, 3-Year Projector/5-Year/12,000-Hour Light Source Warranty
Part #: 0601-3884    Mfr #: ZU860

Optoma ZU860

Overview

Optoma ZU860

WUXGA Professional Installation Laser Phosphor Projector

  • Sharp and bright 8,500 lumens image
  • WUXGA native resolution
  • 4K UHD HDR (HDMI 2.0) input compatible
  • Integrated edge-blending and image warping
  • Interchangeable lens options with 24/7, 360° and portrait mode operation
  • Robust connectivity, including HDMI, DVI-D, HDBaseT, 3G-SDI
  • DuraCore: maintenance-free laser light source up to 30,000 hours (Eco)
HDR-compatible, high brightness interchangeable lens with 4K input for large venues

Outfit complex installations with the WUXGA, 8,500 lumens Optoma ProScene ZU860 professional installation projector engineered for large meeting rooms, auditoriums, museums, houses of worship and broadcast environments. Its DuraCore laser light source features an IP5X-certified optical engine for up to 30,000 hours (Eco) of maintenance-free light source life.

Integrated image warping, blending, four-corner adjustment and lens position memory simplify complex installations. A variety of premium lens options, motorized lens-shift, zoom and focus with 360° and portrait operation ensure installation flexibility for virtually all needs.

Compatibility with 4K HDR sources enable incredible colors and image details. HDMI 2.0, HDBaseT and 3G-SDI inputs provide connectivity to digital video sources while LAN and RS232 enable control via Crestron, Extron, AMX or Telnet.

Features

Amazing Color: reproduces the Rec.709 color gamut, the international HDTV standard, to guarantee accurate reproduction of cinematic color exactly as the director intended.

24/7 Operation: operates 24 hours a day in standard orientation, and perfect for applications that require prolonged periods of use (subject to 24-hour terms and conditions).

Full Lens Shift: provides off-axis vertical and horizontal adjustments for complete installation flexibility without image distortion or pixelation.

HDBaseT: simplifies installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100 m).

WUXGA Resolution: where detail really matter, the full WUXGA (1920×1200) resolution offers 15-percent more pixels than 1080p and 60-percent more than SXGA+. This enables unscaled Full HD video and extra detail.

DLP Technology®: DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

RS-232 Control: take control of the projector using HEX or ASCII commands via RS-232 cable.

Eco Friendly: incorporates energy saving technology and features, such as 24-hour automated power scheduling to ensure that projectors power off when not in use to help conserve power and extend the life of the light source.

Dynamic Black Technology: gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

Four Corner Geometric Correction: enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

Installation Flexibility: multiple lens options provide a variety of motorized zoom, focus, vertical and horizontal lens shift adjustments to ensure you get the desired image size to help meet the seemingly limitless challenges of ProAV installations.

Specifications

TECHNICAL SPECIFICATIONS
360 Operation Yes
Aspect Ratio 16:10 native
Brightness 8,500 ANSI lumens
Compatible Aspect Ratio 16:10 (native), 16:9, 4:3, Auto
Contrast Ratio 2,000,000:1 (Extreme black enabled) 2000:1 (full on/ full off)
Control Unit 1x RS-232c, 1x wired remote in (3.5mm phone jack), 1x USB (for Wi-Fi adapter), 1x mini USB (service), 1x RJ45 (LAN)
Display Technology Texas Instruments 0.67” WUXGA DMD

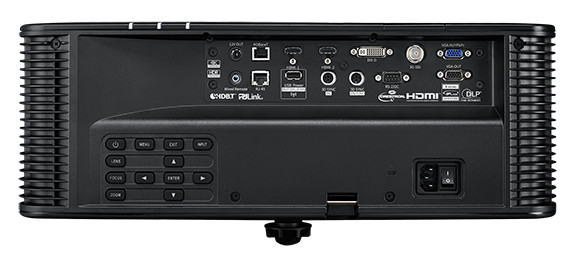

Inputs 2x HDMI 2.0b, 1x DVI-D, 1x VGA (VGA or component), 1x HDBaseT, 1x 3G-SDI, 1x 3D sync, 1x VGA out, 1x 3D sync out, 1x 12V trigger
Keystone Correction Vertical ±20°, Horizontal ±20°
Light Source Type DuraCore laser
Light Source Life Up to 30,000 hrs (Eco)
Lens Options BX-CTA16: 0.36:1
BX-CTA15: 0.75–0.95:1
BX-CAA01: 0.95–1.22:1
BX-CAA06: 1.22–1.53:1
BX-CAA03: 1.52–2.92:1
BX-CTA13: 2.90–5.50:1
BX-CTADOME: Dome projection
Lens Shift Dependent on installed lens (lens not included)
Maximum Resolution 4K (4096 x 2160, 30 Hz)
Native Resolution WUXGA (1920 x 1200)
Noise Level 32 dB
Portrait Mode Yes
Power Consumption 655 W (Bright), 310 W (Eco), standby < 0.5 W
Power Supply AC input 100240 V, 5060 Hz, auto-switching
Projection Distance 2.6' – 115' (0.835 m)
Projection Lens Interchangeable lenses (lens not included)
Projection Method Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable
Projection Screen Size 50" – 300"
Remote Control BR-3074W
Throw Ratio 0.36:1 ~ 5.5:1 dependent on installed lens. (Lens not included.)
Uniformity 90%
Zoom Type 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
Computer Compatibility VGA, SVGA , WXGA 1280×768, WXGA 1280×800, WXGA 1280×960, WXGA 1360×678, WXGA, SXGA, SXGA 1400×1050, SXGA 1600×900, SXGA 1600×1024, UXGA 1600×1200, WUXGA 1920×1200, WUXGA 1920×1440, 4K UHD 2160p
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 5085 Hz (120 Hz for 3D feature projector)
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 19" x 7.7" x 20.7" (482 x 195 x 525 mm) with elevators)
Security Kensington® lock port, password (OSD)
Weight 38.8 lbs (17.6 kg) without lens
OTHER
Optional Accessories Universal ceiling mount, remote, interchangeable lenses, QuickCast Pro-4K
UPC 796435443795
Warranty Info 3-year parts and labor limited warranty on the projector with first year express advance replacement, 5-year or 12,000-hour light source warranty (whichever comes first)

Accessories

VCM mount Ceiling mounts
QuickCast Pro-4K QuickCast Pro-4K Starter Kit
Add to Cart
BX-CTADOME lens 360-degree Dome Projection Lens
Add to Cart

Other Lenses

Model BX-CTA16 BX-CTA15 BX-CAA01 BX-CAA06
Std lens
BX-CAA03 BX-CTA13

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
  BX-CTA16 BX-CTA15 BX-CAA01 BX-CAA06 BX-CAA03 BX-CTA13
D:W WUXGA

0.36:1

0.75  0.95:1

0.95  1.22:1

1.22  1.53:1

1.52  2.92:1

2.9  5.5:1

f/stop 2.4 2.3 – 2.53 2.3  2.57 2.0  2.3 2.3  3.4 2.3  2.74
