Optoma CINEMAX-PRO

Laser DLP Projector, 4K UHD, 3500 Lumens, D:W 0.25:1, 4K Media Player, 2-year projector and 5-yr/12,000-hr light source warranty
Part #: 0601-3886    Mfr #: CINEMAXPRO

Optoma CINEMAX-PRO

Overview

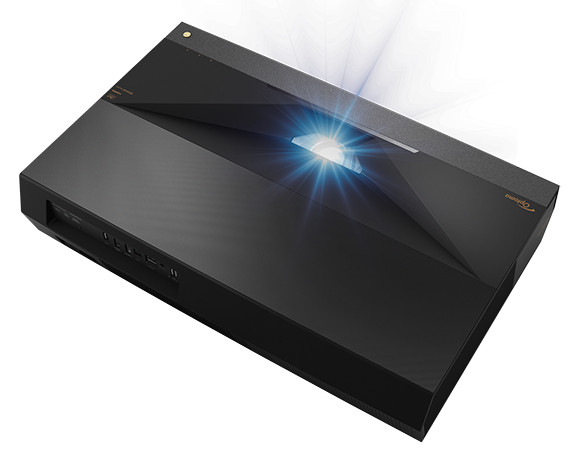

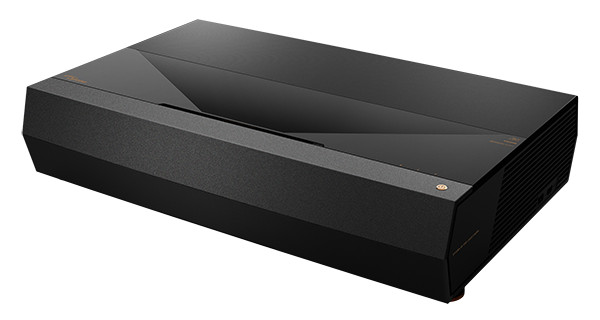

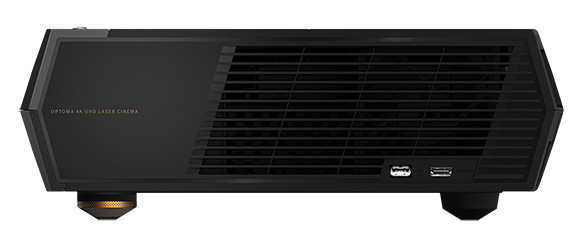

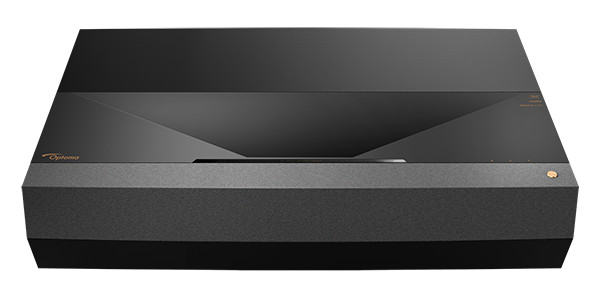

Optoma CinemaX Pro

Smart 4K UHD Laser Cinema

Pure glass optics, a laser light source, HDR compatibility, PureMotion image processing and NuForce premium sound come together in a sleek form factor to produce an instant cinematic experience anywhere.

  • 3,500 lumens laser light source with 2,000,000:1 contrast ratio
  • 4K UHD HDR with high-performance glass lens
  • NuForce Dolby Digital 2.0 audio with 2 full range aluminum drivers and 2 woofers
  • Image warping with 81 points provide easy distortion and alignment correction
  • Smart+ technology with Alexa, Google Actions and IFTTT integration, and InfoWall
  • Dolby Digital and Dolby Digital Plus passthrough via HDMI ARC or optical S/PDIF
All-in-one entertainment system for professional installation

Easily outfit home theaters with the cinematic, 4K UHD, 3,500 lumens, ultra short throw, Optoma CinemaX Pro. The space-saving design, high-performance glass lens and 81-point image warping adjustments ensure a huge screen experience that easily adapts to any installation environment.

Wide color gamut and HDR support with a 2,500,000:1 contrast ratio provide stunning color accuracy, brighter whites and deeper black levels. An integrated Dolby Digital 2.0 sound bar (separate from the projection unit) with two full-range aluminum drivers, two woofers, ported, isolated chambers and 40 watts of power, engineered by NuForce, delivers crisp details with superior dialogue clarity.

Smart+ technology enable Amazon Alexa, Google Assistant and IFTTT support for easy integration into your smart home while InfoWall provides a personalized, configurable information display. An Android OS with smart TV apps and Optoma Marketplace deliver USB media playback compatibility, Internet streaming services and downloadable apps.

Features

  • Alexa Smart Home and Custom Skills: enable projector control via Amazon Alexa. Supported control functions include power on/off, volume level, input selection, USB media player playback and image mode changes.
  • Google Voice Action Compatibility: provides projector control via Google Assistant. Supported control functions include power on/off, volume level, input selection, USB media player playback and more.
  • DLP (Digital Light Processing) Technology®: proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.
  • Full 3D: displays true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144 Hz rapid-refresh rate provides ultra-smooth flicker-free images. DLP Link 3D glasses are required.
  • Dynamic Black Technology: gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.
  • PureMotion: using sophisticated frame-interpolation technology, advanced motion control processing eliminates motion blurring or image judder, even in high-speed action sequences. PureMotion works in 2D and is optimized for 1080p24.
  • UltraDetail Technology: ensures all the information contained in an image is accurately reproduced on the screen to give a stunning crystal clear, pin-sharp picture. Complex algorithms detect each frame and improve image sharpness before the frame is projected.
  • PureColor Mode: allows the projector to reproduce more detailed shades of color for vibrant, natural-looking images. Colors are more saturated and more accurate.
  • HDR (High dynamic range) Technology: delivers brighter whites and deeper black levels. Optoma HDR accepts HDR10 signals with four selectable picture modes: Normal, Bright, Detail, and Film.
  • DCI-P3: rich, colorful and cinematic pictures and games via DCI-P3 wide color gamut coverage.
  • BT.2020: HDR signals are mapped using REC.2020 tone mapping and provides coverage for REC.709, DCI-P3 and a wide coverage color gamut.
  • Integrated PC-Free 4K UHD HDR USB Media Player: provides playback of 1080p and 4K UHD HDR video, audio files and images along with support for Office Documents and PDF Files.

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:9 (native), 4:3 and LBX compatible
Audio NuForce 40 W Dolby Digital 2.0 sound bar with 2 full range aluminum drivers, 2 woofers and ported chambers. Sound effects: Movie, Music, Sport, Game, Night. Bluetooth speaker mode support
Brightness 3,500 ANSI lumens
Color Wheel RGBYRGBY 8 segment color wheel

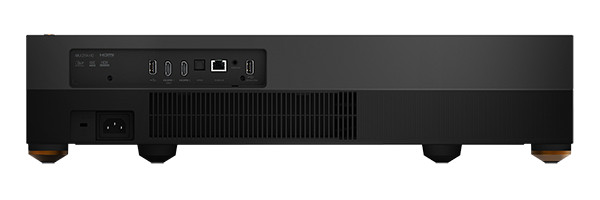

Connections 1x HDMI 2.0 (HDCP 2.2), 1x HDMI 2.0 (HDCP 2.2, HDMI-ARC), 1x HDMI 2.0 (HDCP 2.2, side), 1x USB 2.0 (4K media player), USB 2.0 power (side), USB, optical S/PDIF out, audio out, RJ45
Contrast Ratio Up to 2,500,000:1 with Dynamic Black
Display Technology Single 0.47" 4K UHD ECD DMD by Texas Instruments™
Image Size 85" – 120"
Light Source Life Up to 30,000/20,000 hours (Eco/Normal)
Maximum Resolution 4K (4096 x 2160) @ 30Hz
Native Resolution 4K UHD (3840 x 2160) @ 60Hz with XPR Technology
Offset 124% +6%/-2.5%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption 410 W max (Bright), 360 W typical (Bright), 255 W max (Eco), 225 W typical (Eco)
Power Supply AC input 100–240 V, 50–60 Hz, auto-switching
Projection Distance 8" – 16.5" (from back of projector to projection surface)
Projection Lens F=2.04, f=525 mm
Projection Method Tabletop
Throw Ratio 0.25:1 (distance/width) – 5% variance
Zoom Type 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz (i.e. 60 or 72 frames per eye). 3D glasses are needed and sold separately.
Computer Compatibility 4K UHD 2160p, 4K DC, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1280 x 800), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
PHYSICAL SPECIFICATIONS
Dimensions 22.1" x 5.1" x 15" (561 x 130 x 381 mm)
Security Kensington® lock port, password (OSD)
Weight 24.25 lbs (11.0 kg)
OTHER
Standard Accessories Bluetooth smart home remote with air mouse: BR-3074R, CinemaX Pro distance cards: BD-25120
Optional Accessories Bluetooth smart home remote with air mouse (replacement), CinemaX Pro distance cards
UPC 796435813697
Warranty Info 5-year or 12,000-hour light source warranty (whichever comes first), 2-year parts and labor limited warranty on the projector
