Optoma ZU720T

Laser 1-DLP Projector, WUXGA 1920 x 1200, 7500 Lumens, 3 Year Projector, 5 year or 12,000 Hour Light Source Warranty
Item #0601-3894 Model #ZU720T


Optoma ZU720T

World’s First Fixed Lens, 7,500 Lumens Laser WUXGA Projector

  • Bright 7,500 lumens and WUXGA native resolution
  • Full motorized lens-shift with 1.8x manual zoom and focus
  • Compact, lightweight chassis & quiet operation
  • 4K UHD (HDMI 2.0) input with HDR compatibility
  • Integrated edge-blending and image warping
  • Embedded Android OS with OTA updates and USB content playback
  • Integrated HDBaseT and HDMI, robust digital and analog connectivity
  • DuraCore technology source up to 30,000 hours (Eco), 24/7, 360° and portrait mode operation
7,500 Lumens Professional Installation Projector with Compact Design

Project incredible 7,500 lumens, WUXGA images with the next-generation Optoma ProScene ZU720T, the world’s first high brightness laser fixed lens projector. The fixed lens design with 1.8x zoom, full lens shift, integrated warping and blending combined with a compact, lightweight chassis provide extreme installation flexibility in auditoriums, large conference rooms, lecture halls, houses of worship and blended multi-projector installs.

The next-generation projector features DuraCore technology, an IP5X-certified optical engine and advanced thermal design for quiet operation with up to 30,000 hours (Eco) of virtually maintenance-free, 24/7, 360° and portrait mode operation. An embedded Android OS ensures quick and easy over-the-air software updates with a modern and user-friendly interface.


  • DLP® (Digital Light Processing): a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.
  • Edge Blending Tools: ProScene projectors incorporate color matching, constant power, constant luminance, warping and blending features to ensure high-quality and consistent results. These features aid simple and complex edge-blended projects using multiple projectors to achieve excellent results.
  • WUXGA Resolution: Where details really matter, the full WUXGA (1920×1200) resolution offers 15-percent more pixels than 1080p and 60-percent more than SXGA+. This enables unscaled Full HD video and extra detail.
  • PC-free USB Image and Document Viewer: Integrated PC-free image and document viewer provide direct viewing of office documents, PDFs, images and presentations from any USB storage device.
  • Color Matching System (CMS): The full HSG color matching system enables hue, saturation and gain adjustments for each primary color to match user preferences. This creates seamless blends every time when combined with accurate measurements.
  • Signal Power On: The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.
  • Full Lens Shift: Optoma projectors with full lens shift provide off-axis vertical and horizontal adjustments for complete installation flexibility without image distortion or pixelation.
  • AMX Compatibility: Easily communicate with AMX control systems for simple integration.
  • HDBaseT: Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100 m).
  • Four Corner Adjustment: Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.
  • 24/7 Operation: Optoma projectors are engineered to operate 24 hours a day in standard orientation and perfect for applications that require prolonged periods of use (subject to 24-hour terms and conditions – please refer to user manual under Downloads tab).
  • Brightness Matching: The brightness of a projector varies throughout its life. ProScene projectors provide power adjustments with variable steps between 80-100-percent of the full brightness to correctly match multiple units.
  • +12v Trigger: Easily trigger a motorized screen to lower or raise when the projector is powered on or off.
  • PJ-Link Compatibility: Enable the projector to power on, off and change basic functions using the PJ-Link port.
  • 4K UHD HDR input: Compatibility with 4K sources enables easy future-proof installations that are compatible with the latest video sources. HDR support enables the projector to take advantage of superior color data for more vibrant images.
  • LAN & RS-232 Control: Take control of the projector using HEX or ASCII commands via LAN connection or RS-232 cable.
  • Full 3D: Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144 Hz rapid-refresh rate provides ultra-smooth flicker-free images. 3D glasses are needed and are sold separately. Refer to user manual for details.
  • Direct Power On/Off: Turn the projector on or off directly from the power source. This feature aids installations that rely on power-on timers. The sleeper timer can be used to turn the projector off after a set time.


360 Operation Yes
Aspect Ratio 16:10
Audio 2x10 W (stereo)
Brightness 7,500 ANSI lumens
Compatible Aspect Ratio 16:10 (native), 16:9, 4:3, Auto
Contrast Ratio 2,000:1 (full on/full off), Up to 1,000,000:1 with Dynamic Black
Control Unit 1x wired IR, 1x RJ-45, 1x RS-232C
Display Technology Texas Instruments™ 0.67" WUXGA DMD
Displayable Colors 1.07 billion
Keystone Correction ±30° vertical and horizontal
Light Source Type Laser phosphor
Light Source Life Up to 30,000 hours (Eco), 20,000 hours (Normal)
Lens Shift ±25% horizontal, ±55% vertical
Maximum Resolution HDMI 1.4a: WUXGA (1920 x 1200), HDMI 2.0: 4K UHD (3840 x 2160)
Native Resolution WUXGA (1920 x 1200)
Noise Level 31 dB (Normal), 27 dB (Eco)
Operating Temperature 41–104°F (540°C), 85% max humidity
Portrait Mode Yes
Power Consumption Normal mode: 530 W ±15%, Eco mode: 330 W ±15% @ 110 Vac, Standby mode: < 0.5 W
Power Supply AC input 100–240 V, 50–60 Hz, auto-switching
Projection Distance 3.9' – 54.1' (without zoom)
Projection Lens F = 2.0 – 2.95 mm
f = 20.6 – 37.2
Projection Method 360°, portrait, front, rear, ceiling mount, table top
Projection Screen Size 40" – 300"

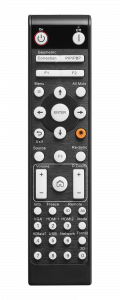

Remote Control IR and wired remote
Throw Ratio 1.40 – 2.5:1
Uniformity 80% (±5%)
Zoom Type 1.8x optical (manual)
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K UHD (24/30/50/60 Hz)
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 24 – 85 Hz (120 Hz for 3D)
Video Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD (24/30/50/60 Hz)
Dimensions (W x H x D) 19.0" x 6.9" x 15.2" (483 x 175 x 386 mm)
Security Kensington™ lock port
Weight 28 lbs (12.7 kg)
What's in the Box? ZU720T projector, AC power cord, remote control, batteries for remote, quick start user manual
Accessories Part Numbers 4K UHD Casting and Mirror Dongle: UHDCast Pro,
QuickCast Pro 4K HDMI starter kit: QCP-4K-KIT (2 TX, 1 RX, 1 Cradle),
QuickCast Pro 4K HDMI starter kit: QCP-SK-4K-HDMI (1 TX and 1 RX),
Remote (replacement): BR-3004A,

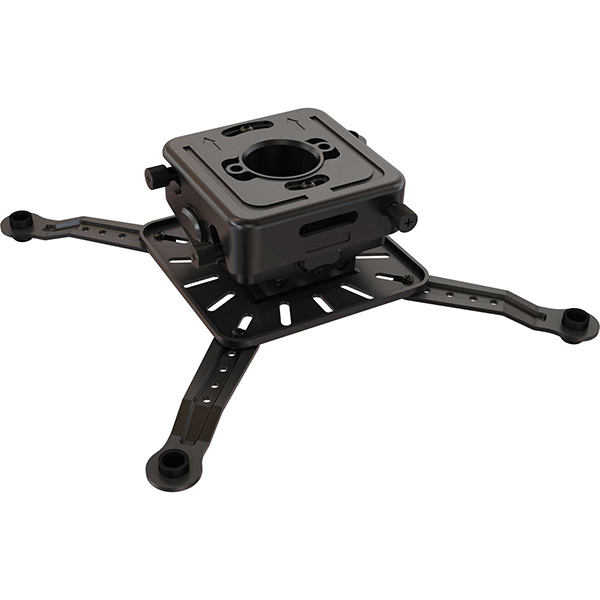

Universal ceiling mount: BM-9004U
UPC 796435444310
Warranty Info 3-year parts and labor limited warranty on the projector with first year advance replacement, 5-year or 12,000-hour light source warranty (whichever comes first)

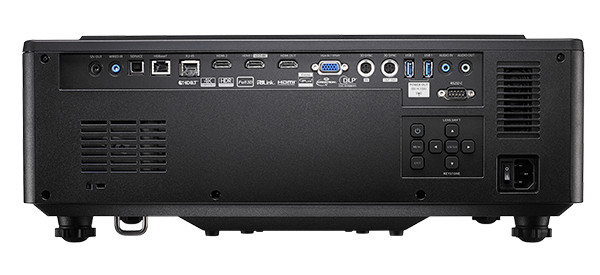

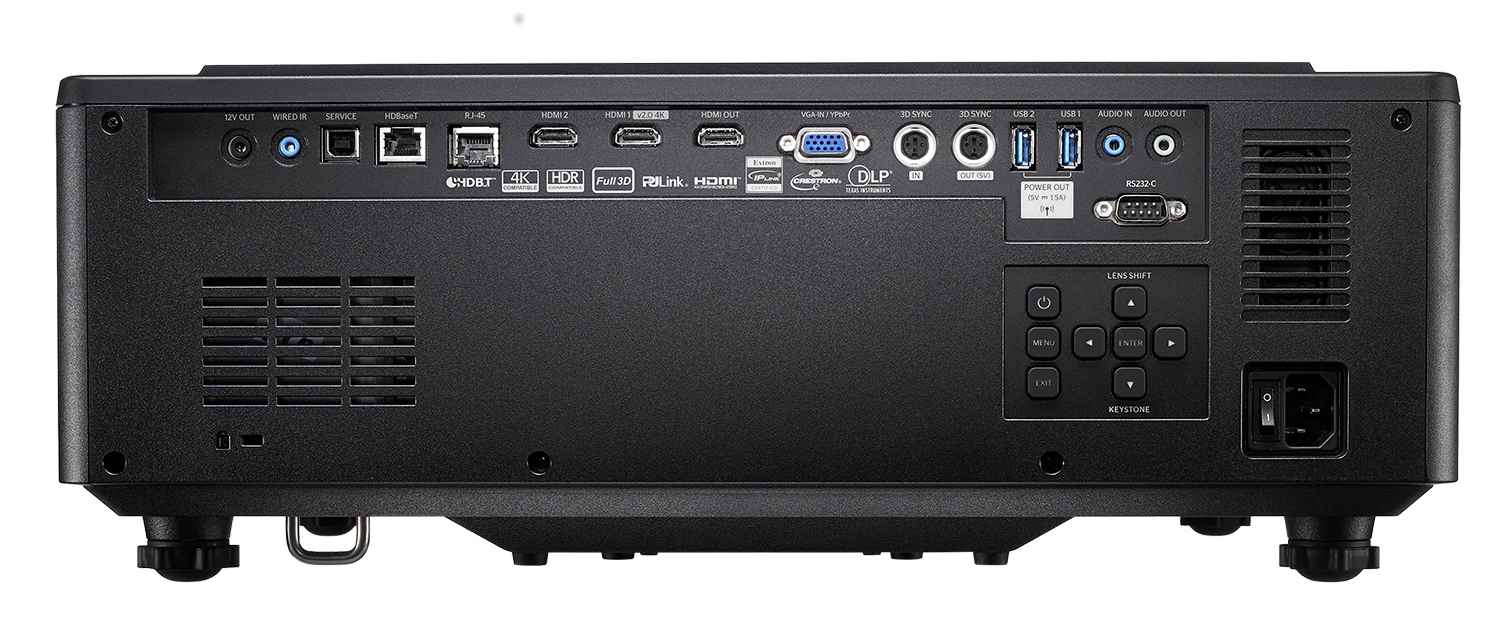

Inputs 1x HDMI 2.0 (HDCP 2.2), 1x HDMI 1.4a, 1x HDBaseT, 1x VGA (YPbPr), 1x 3D sync, 1x audio (3.5 mm), 2x USB power (1.5 A), 1x USB Type B (service)
Outputs 1x HDMI out, 1x 3D sync out, 1x audio (3.5 mm) out, 2x USB power (1.5 A), 1x 12 V trigger
