Overview

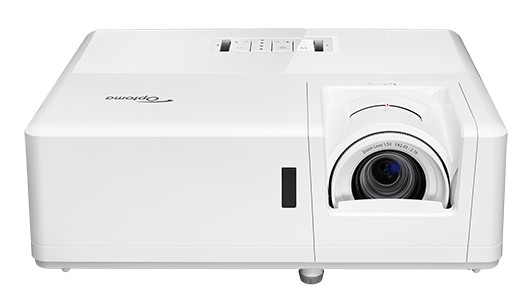

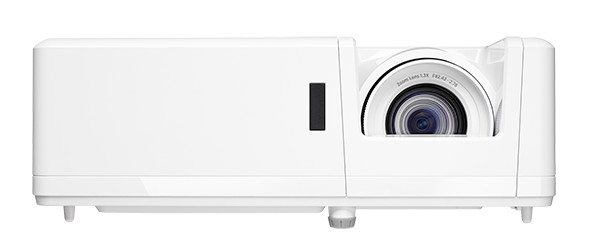

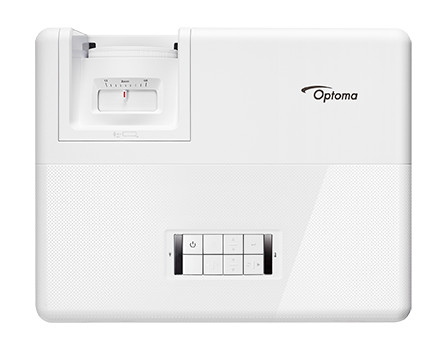

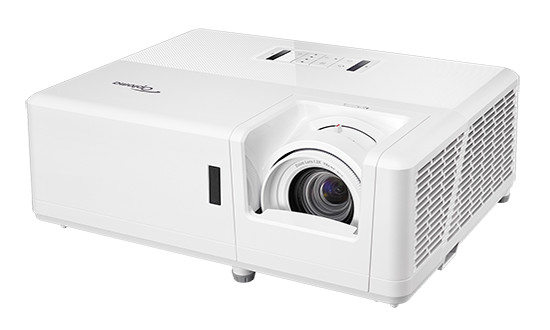

Optoma ZW400
WXGA Laser Projector
- 4,000 ANSI lumens with 250,000:1 contrast ratio
- 4K UHD input with HDMI 2.0 (HDCP 2.2)
- HDR10 and HLG compatible
- DuraCore technology source up to 30,000 hours
- 1.3x optical zoom and vertical keystone
- 24/7, 360° and portrait mode operation
Compact, lightweight and virtually maintenance free
Brighten any room with razor-sharp, 4,000 lumen, WXGA projection with the remarkable Optoma ZW400. A laser light source eliminates lamp and filter replacements for up to 30,000 hours of low-cost and virtually maintenance-free operation.
Compact size, low weight and quiet operation make it perfect for classrooms, meeting rooms, board rooms and digital signage. Vertical keystone, 360° and portrait mode operation enable flexible installations.
HDMI and VGA inputs provide connectivity to high-quality 4K HDR digital video or legacy analog video sources while LAN and RS-232 enable control via Crestron, Extron, AMX or Telnet. A 10W speaker provides rich audio for all-in-one applications.
Features
- DLP® (Digital Light Processing): a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.
- RS-232 Control: Take control of the projector using HEX or ASCII commands via RS-232 cable.
- Direct Power On: Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.
- Signal Power On: The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.
- Full 3D: Display true 3D content from almost any 3D source, including 3D Blu-ray Disc™ players, 3D broadcasting, and the latest-generation game consoles. Support for 144 Hz rapid-refresh rate provides ultra-smooth flicker-free images. 3D glasses are needed and are sold separately. Refer to user manual for details.
- AV Mute: When enabled via remote control or network management, the projector suspends (dims) video output to conserve energy.
Specifications
| TECHNICAL SPECIFICATIONS |
| 360 Operation |
Yes |
| Aspect Ratio |
16:10 (native), 16:9, 4:3, LBX and auto compatible |
| Audio |
10 Watt Stereo Speaker |
| Brightness |
4,000 ANSI lumens |

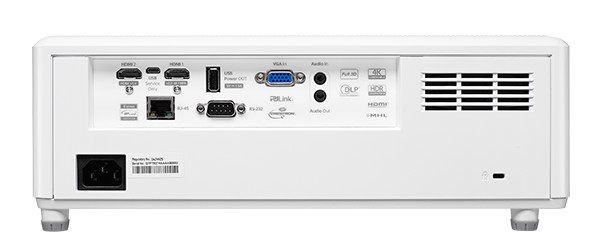

| Connections |
1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x audio in (3.5 mm), 1x USB-A (power, 5 V, 1.5 A), 1x micro USB (service) |
| Contrast Ratio |
250,000:1 (Extreme Black enabled) 1,800:1 full on/full off |
| Display Technology |
Texas Instruments™ 0.65" WXGA DMD |
| Displayable Colors |
1.07 billion |
| Keystone Correction |
±30° Vertical |
| Light Source Type |
DuraCore laser |
| Light Source Life |
Up to 30,000 hours (Eco), 20,000 hours (Normal) |
| Maximum Resolution |
HDMI 2.0: 4K UHD (3840 x 2160 @ 60Hz), 4K (4096 x 2160, 60Hz), HDMI 1.4: WUXGA (1920 x 1200) |
| Native Resolution |
WXGA (1280 x 800) |
| Noise Level |
32 dB |
| Offset |
113% |
| Operating Temperature |
41–104°F (5–40°C), 85% max humidity |
| Power Consumption |
Bright: 219 W typical, 252 W max, Eco: 162 W typical, 186 W max |
| Power Supply |
AC input 100–240 V, 50–60 Hz, auto-switching |
| Projection Distance |
3' – 32.6' (without zoom) |
| Projection Lens |
f = 16.90 – 21.60 mm
F = 2.43 – 2.78 mm |
| Projection Method |
360°, front, rear, ceiling mount, table top
360°: auto dims to 60% ±5% in 195° – 345° orientation
Portrait: auto dims to 90% ±5% |
| Projection Screen Size |
19.7" – 315.8" |
| Remote Control |
Full size remote with laser pointer |
| Throw Ratio |
1.19 – 1.54:1 ±5% |
| Uniformity |
75% |
| Zoom Type |
1.3x optical, 0.8 – 2.0x digital |
|
| COMPATIBILITY SPECIFICATIONS |
| 3D Compatibility |
3D glasses are needed and sold separately. Refer to user manual for details., Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz (i.e. 60 or 72 frames per eye). |
| Computer Compatibility |
VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K, 4K UHD |
| Horizontal Scan Rate |
15.375 – 91.146 KHz |
| Vertical Scan Rate |
(120 Hz for 1080p 3D feature), 24 – 85 Hz |
| Video Compatibility |
PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz), 4K |
|
| PHYSICAL SPECIFICATIONS |
| Dimensions (W x H x D) |
13.26" x 4.8" x 10.5" (337 x 122 x 267 mm) |
| Security |
Kensington® lock port, password (OSD) |
| Weight |
9.4 lbs (4.3 kg) |
|
| OTHER |
| What's in the Box? |
ZW400, AC power cable, remote control, batteries, quick start user manual |
| Accessories Part Numbers |
4K UHD Casting and Mirror Dongle: UHDCast Pro
QuickCast Pro 4K HDMI starter kit: QCP-4K-KIT (2 TX, 1 RX, 1 Cradle)
QuickCast Pro 4K HDMI starter kit: QCP-SK-4K-HDMI (1 TX and 1 RX)
Remote (replacement): BR-5080C
Universal ceiling mount: BM-5001U
Universal Ceiling mount: OCM815W
Universal Ceiling mount: OCM818W-RU |
| UPC |
796435444945 |
| Warranty Info |
1-year Parts and Labor Limited Warranty on the projector, 5-year or 12,000-hour Light Source Warranty (whichever comes first) |
|
