Optoma Cinemax-P2B

Laser DLP Projector, 4K UHD, 3000 Lumens, Sound Bar, Full Color Brightness, 0.25:1, Android 8.0, Wi-Fi, Bluetooth, Black, 2-year projector and 5-yr/12,000-hr light source warranty
Item #0601-3918 Model #CINEMAXP2B

Overview

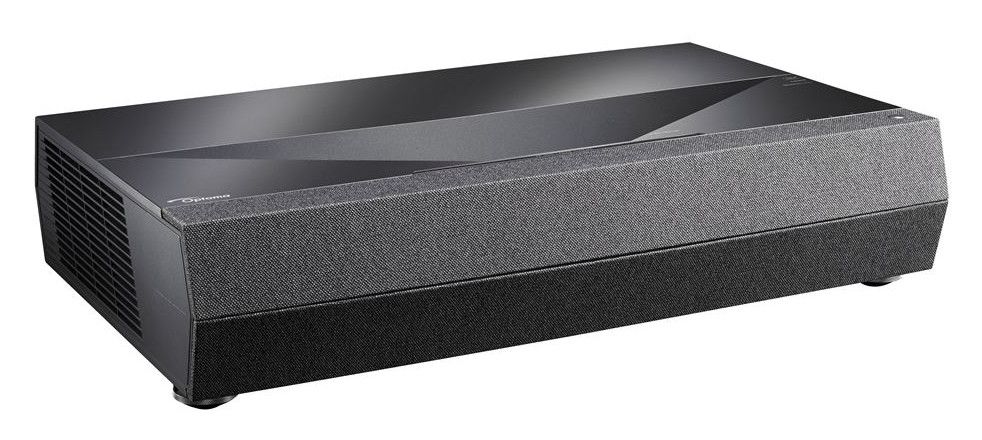

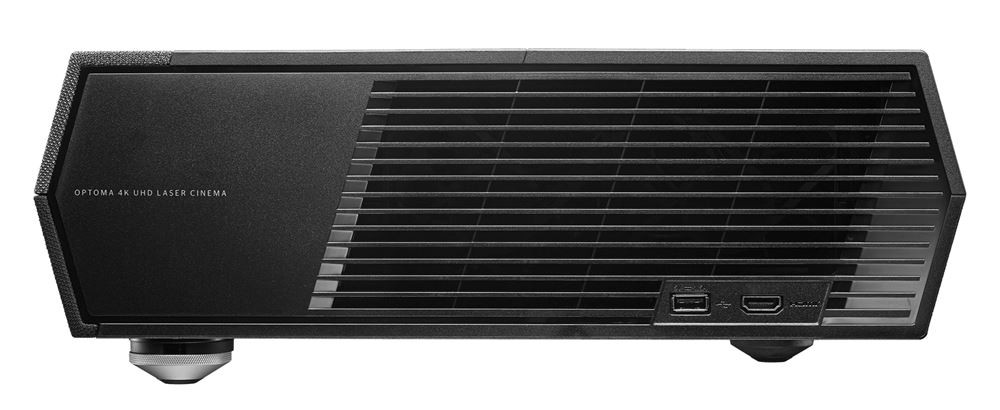

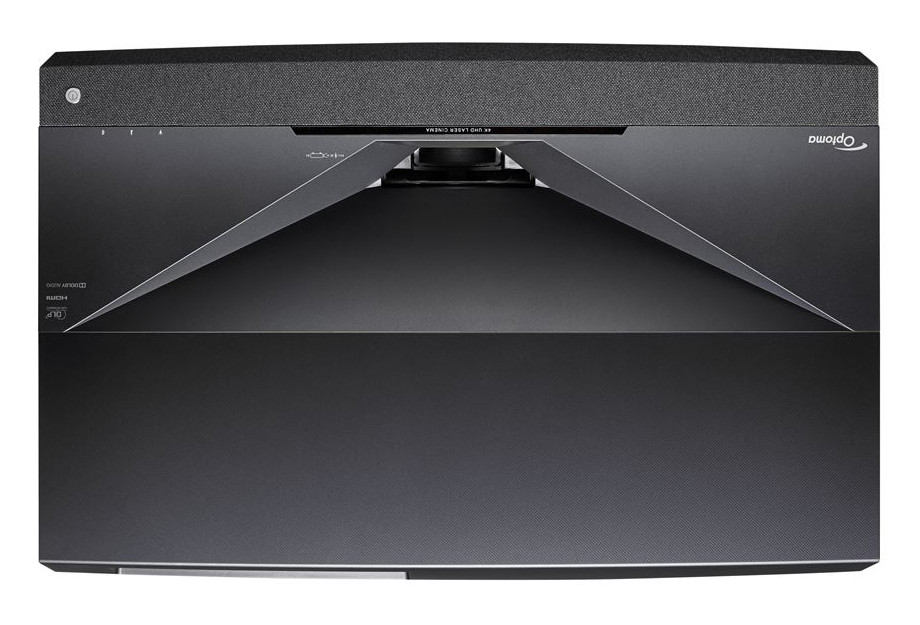

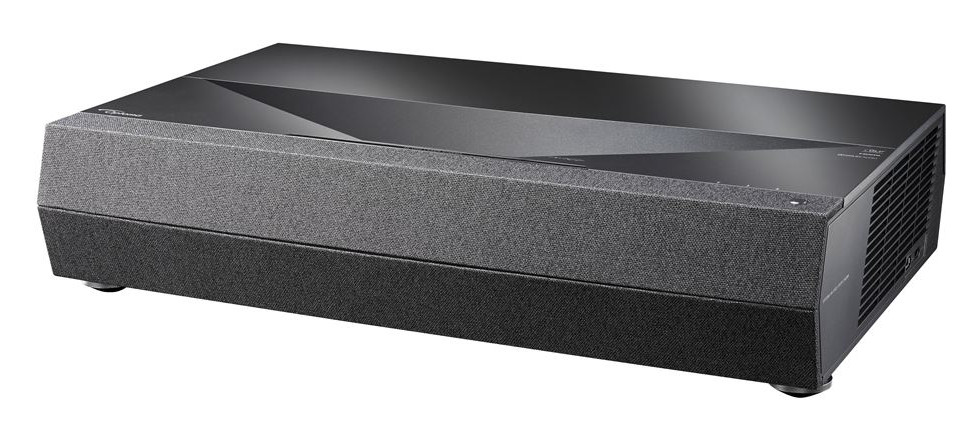

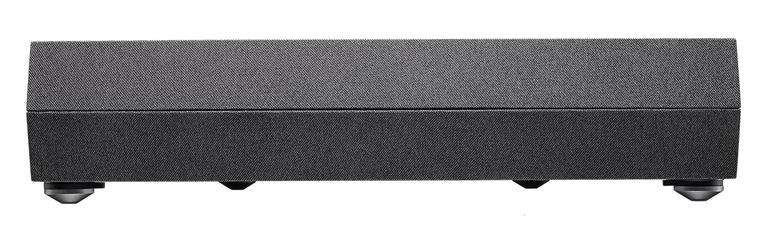

Optoma CinemaX-P2B

Smart True 4K UHD Laser Home Theater Projector

Transform your living room into an incredible home cinema with the 3,000 lumens, ultra-short throw Optoma CinemaX P2 Smart True 4K UHD laser home theater projector. The laser light source, auto focus, high-performance glass lens and SmartFIT auto geometry correction system ensure hassle-free image alignment and easily produces stunning 120-inch projection with rich HDR color.

An integrated Dolby Digital 2.0 sound bar with two full-range speakers, two woofers, ported chambers and 40 watts of power delivers crisp details with superior dialogue clarity. Smart+ technology enable Amazon Alexa, Google Assistant and IFTTT support for easy integration into your smart home while the Android OS with smart TV apps and Optoma Marketplace deliver USB media playback compatibility, internet streaming services and downloadable apps.



Key Features:
  • Bright 3,000 lumens laser light source with 2,000,000:1 contrast ratio
  • Stunning 4K UHD resolution
  • RGBRGB Color Wheel for Rich Cinematic Color and Stunning HDR
  • 40W Dolby Digital 2.0 sound bar with 2 full-range speakers and 2 woofers
  • SmartFIT companion app with auto geometry correction system
  • Smart+ technology with Alexa, Google Action & IFTTT integration

 Note: This is a black model. See CinemaX-P2 for a white model.



Features

  • Bring the Cinematic Experience Home: True 4K UHD resolution, HDR10 compatibility, pure glass optics, a laser light source, PureMotion image processing and premium sound come together in a sleek form factor to produce an instant cinematic experience anywhere.
  • Cinematic Color: Experience richer colors and enhanced brightness with the six-segment color wheel. The RGBRGB color wheel brings accurate cinematic color to your home, reproducing movies, TV and games the way the director intended.
  • Wide Color Gamut Support: Delivers extensive DCI-P3 coverage via REC. 2020 tone mapping.
  • Durable & Reliable Laser Light Source: Laser technology delivers outstanding brightness up to 30,000 hours of light source life that maintains stunning image quality throughout its lifespan. 3,000 lumens of brightness enable lights-on viewing for entertainment in a variety of lighting environments.
  • Ultra-Short Throw – Up to 120" Image: The CinemaX P2’s space-saving, ultra-short throw design provides convenient placement for a huge screen experience – up to 120 inches from only inches away.
  • Easy Image Alignment: Using Optoma’s SmartFIT app, ensure easy place-and-play using your smartphone. The auto geometry correction system allows hassle-free image alignment.
  • Work Out at Home: Can't make it to the gym? Stay fit and energized with immersive at-home workouts via streaming services or YouTube app. The CinemaX P2’s large image size gives you that at-the-gym feeling for the ultimate motivation.
  • Premium Sound Bar Built In: An integrated 40W sound bar produces detailed sound with superior dialogue clarity. The combination of two full-range drivers and two woofers delivers smooth mid-range frequencies, crystal-clear vocals and deep bass.
  • Gaming Mode: Reduce input lag with the CinemaX P2’s Gaming Mode. By bypassing the image processing and motion compensation engine, the CinemaX P2 provides a pure, direct path from the video source to the projection screen for more responsive gameplay.
  • Optoma Smart+: With the Alexa smart home and custom skills or Google Action, control your CinemaX P2 projector with intuitive voice control using Amazon Echo and Google Home devices. IFTTT support enables seamless connectivity with thousands of other smart devices so your CinemaX P2 can easily integrate into your smart home.
  • Digital Art Exhibit by FRAMED: Bring creative expression to your home. Transform the CinemaX P2 into a digital art canvas that’s brought to life by projecting curated artworks from renowned digital artists by FRAMED, a digital art canvas showcasing platform.
  • Peace of Mind: The CinemaX P2 includes a 2-year parts and labor limited protection on the projector and a 5-year or 12,000-hour light source protection (whichever comes first).

Specifications

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:9 (native), 4:3, auto compatible
Audio Premium Dolby Digital 2.0 sound bar (40W, 2 full range drivers, 2 woofers with ported chambers). 4 Sound Effects (Movie, Music, Sport, Game, Night)
Brightness 3,000 ANSI lumens
Color Depth 3840 x 2160, 30 Hz YUV 4:4:4 / 4:2:2 / 4:2:0 (8 /10 / 12 bit), 3840 x 2160, 60 Hz YUV 4:4:4 / YUV 4:2:2 (8bit), YUV 4:2:0 (8 / 10 / 12bit)
Color Gamut Support REC.709, DCI-P3, REC.2020
Color Wheel 6 segment RGBRGB
Contrast Ratio 2,000,000:1 (Dynamic Black enabled)
Digital Zoom 0.8 – 2.0x
Display Technology Texas Instruments™ 0.47” 4K UHD ECD DMD
Displayable Colors 1.07 billion
Geometry SmartFIT companion app (Android and iOS) with auto geometry correction system
HDR (High Dynamic Range) HDR SIM (simulate HDR effect with non-HDR content), HDR10 compatible (REC.2020), Picture Modes: Normal, Bright, Detail, Film
High Altitude Operating temperature at sea level up to 10,000 feet = 104° F (40° C) max. Must manually switch to high altitude mode from 5,000 feet and above (using OSD menu) to maintain optimal functionality.
Image Size 85" – 120"
Input Response 67.6 ms (4K UHD, 60 Hz) / 67.1 ms (1080p, 60 Hz) SmartFIT and PureMotion must be disabled for PC and console gaming.
Keystone Correction +5/-10 vertical, ±5° horizontal
Light Source Life Up to 30,000 hrs (Eco), 20,000 hrs (Normal)
Light Source Type Laser
Maximum Input Resolution 4K (4096 x 2160, 30 Hz), 4K UHD (3840 x 2160, 60 Hz)
Native Resolution 4K UHD (3840 x 2160)
Noise Level 24 dB
Offset 124% +6%/-2.5%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption Bright: 410 W max, 360 W typical, Eco: 255 W max, 225 W typical
Power Supply AC input 100–240 V, 50–60 Hz, auto-switching
Projection Distance 8" – 16.5" (back of projector to projection surface)
Projection Method Table top
Remote Control Bluetooth smart home remote and air mouse
Throw Ratio 0.25:1
Uniformity 90%
Video Processing Upscales WXGA, 720p, 1080p, WUXGA, 1440p up to 4K UHD (3840 x 2160, 60 Hz), PureMotion technology
Wireless Security WEP, TKIP, AES, WPA, WPA2
COMPATIBILITY SPECIFICATIONS
3D Compatibility 3D glasses are needed and sold separately. Refer to user manual for details. Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60 Hz to 120 Hz or 24 Hz to 144 Hz (i.e. 60 or 72 frames per eye).
Computer Compatibility VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV (1080p), WUXGA, 4K UHD (24/30/50/60 Hz), 4K DCI
Horizontal Scan Rate 15.375 ~ 91.146 KHz

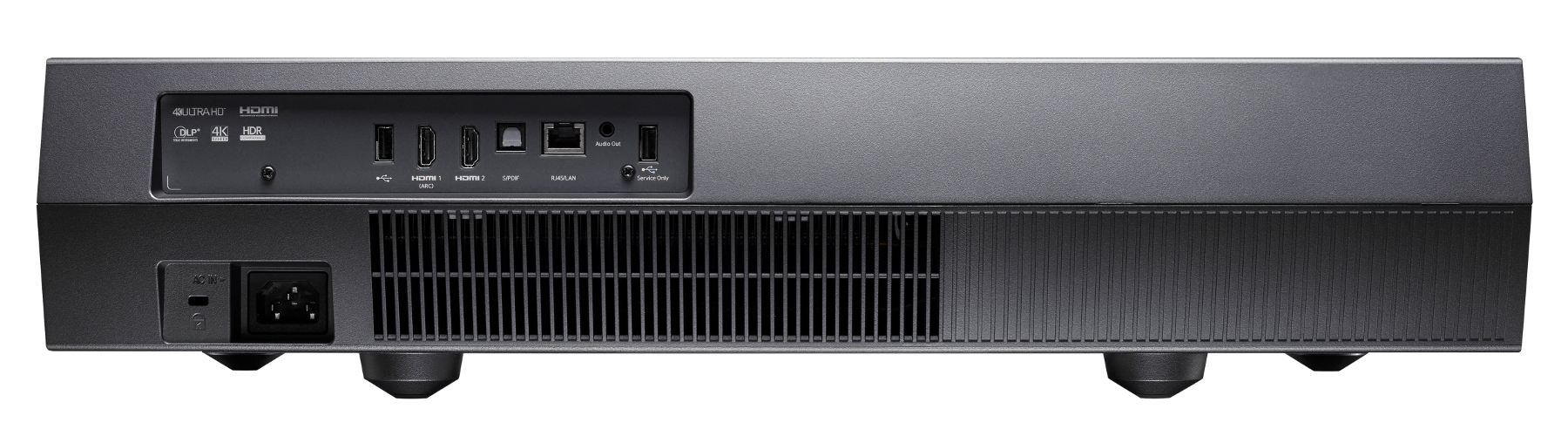

I/O Connection Ports 2x HDMI 2.0 (HDCP 2.2, 18Gbps) (HDMI CEC & ARC compatible), 1x HDMI 1.4a (HDCP 1.4) (side), 2x USB 2.0 (rear, for 4K USB media player), USB power (service)
USB Media Player Compatibility Audio: MP3, AAC, WAV, FLAC 16/24-bit, Files: MKV, MP4, M4V, AVI, H.264, HEVC, MOV, TS, Images: JPEG, BMP, GIF, Videos: 480p, 720p, 1080p, 1440p, 4K UHD, HDR10, HLG
User Controls Graphic user interface and on-screen menu in 27 languages
Vertical Scan Rate 50 ~ 85 Hz (120 Hz for 1080p 3D feature)
Video Input Compatibility PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD (24/30/50/60Hz)
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 22.1" x 5.1" x 15" (561 x 130 x 381 mm)
Recommended furniture height 13" – 18" (124% offset)
Security Kensington® lock port, password (OSD)
Weight 24.25 lbs (11.00 kg)
OTHER
What's in the Box? CinemaX P2 projector
Distance cards
Quick start user manual
Bluetooth smart home remote with Airmouse (rechargeable)
Power cable
Accessories Part Numbers 4K UHD Casting and mirroring adapter: UHDCast Pro
Bluetooth smart home remote with Airmouse (replacement): BR-3074R
CinemaX P2 distance cards (replacement): BD-25120
Warranty Info 2-Year parts and labor limited warranty on the projector, 5-year or 12,000 hour light source warranty (whichever comes first)
EMBEDDED SYSTEM
Bluetooth Bluetooth 4.0
Firmware OTA updates via Wi-Fi or ethernet
Wi-Fi 802.11ac (dual-band, 2×2)
SMART FEATURES
Alexa AV Gear Region Support United States – English, Canada
Amazon Alexa Custom Skill Commands: change display mode, HDR picture mode, PureMotion setting
Amazon Alexa Smart Home Skill Commands: power on/off, volume control (1-10), change input source, media player controls (play, stop, pause, next, previous, FF, REW, start over)
Google Assistant Actions change display mode, HDR picture mode, PureMotion setting, Commands: power on/off, volume control (1-10), change input source, media player controls (play, stop, pause, next, previous, FF, REW, start over),
Google Assistant Region Support All regions – English only
Operating System Android 8.0 with customizable launcher
Smart Home Features Amazon Alexa, Google Assistant & IFTTT
SmartFIT iOS (App Store) & Android (Play Store & Amazon Appstore)
USB Image & Document Viewer Autoplay PDF/PPT: 3, 5, 10, 15 & 20s intervals, Office documents (Word, Excel & PowerPoint), PDFs and images
Video streaming Available Optoma Marketplace with access to YouTube 4K, Netflix (480p), CNBC, TED TV, NBA TV, CNBC, BBC & more
CONNECTIVITY
Control HDMI-CEC, Smart+ (Amazon Alexa, Google Actions, IFTTT compatible)
