Zhen Optics LU60ST

Laser 0.8" HEP DLP Projector, WUXGA, 6000 Lumens, No Lens, 3-Year Warranty, $200 Instant Rebate applies
Item #0601-5893 Model #LU60ST
$2,199.00
Price (after Jun 28)
$1,999.00
SALE (ends Jun 28)

Overview

Zhen Optics LU60ST

WUXGA, 6000-Lumen Laser Projector with new 0.8" HEP DMD

The Zhen Optics LU60ST is a high-performance, laser WUXGA projector designed for commercial, educational, and exhibition use, offering 6000 ANSI lumens of brightness. It features a 0.8-inch DLP chip, and is recognized for its durability in large-scale mapping and engineering projects

The 0.8" HEP (High Efficiency Pixel) DMD Chip is optimized for high brightness, offering higher, more efficient, and more reliable pixel mirror handling for the laser light source. It delivers 6,000 ANSI lumens, allowing for clear image projection in bright environments.

The WUXGA (1920 x 1200) resolution provides a 16:10 aspect ratio, which is ideal for displaying widescreen presentations and high-definition video. In addition, a high dynamic contrast ratio improves immersion by making blacks deeper and brights more vivid.

Designed for professional, large-venue installations, the LU60ST is compatible with a series of seven optional lenses, ranging from a 0.4 ultra-short-throw fixed lens to a long-throw zoom lens. Lens shift and keystone adjustment provide additional placement options. (Lens not included.)

Common applications for this high-performance projector include museum and art galleries exhibitions, large corporate boardrooms and auditoriums, higher education classrooms, as well as digital signage and simulation environments.

Features

  • 0.8" HEP DMD: The LU60ST is one of the world's first projectors equipped with the Texas Instruments HEP800 0.8" large chip, featuring telecentric intelligent color engineering and HEP packaging to improve image contrast and color performance. This large Digital Micromirror Device (DMD) chip features an increased tilt angle that improves light efficiency, allowing for higher brightness and superior native contrast compared to older chip designs.
  • 6000 ANSI Lumens of Brightness: This high brightness level ensures clear, vibrant images even in environments with ambient light, such as golf simulators, boardrooms or lecture halls.
  • WUXGA Resolution: The 1920 x 1200 native resolution provides a 16:10 aspect ratio, offering more vertical space than standard 1080p, which is ideal for detailed business presentations and educational content.
  • Operational Longevity: The LU60ST offers an extremely long operating life of up to 20,000 hours in Normal Mode, and 25,000 hours in Eco Mode, reducing maintenance requirements compared to traditional lamp-based systems.
  • Flexibility: supports multiple quickly replaceable lenses and a large lens shift range, allowing for versatile installation in various space sizes.
  • Lens Shift & Keystone: wide-range horizontal and vertical lens shift (±20% horizontal, ±40% vertical) and keystone correction simplify installation in challenging spaces.
  • Optional Lenses: Seven interchangeable lenses (four fixed and three zoom) cover the range from ultra-short to long throw ratio. (See Lenses tab.)

Specifications

Chip Size

DLP 0.8 inch, 16:10
Display Tech

DLP chip x 1
Resolution

WUXGA (1920 x 1200)
Aspect Ratio

16:10
Brightness 6,000 ANSI lumens
Dynamic Contrast

5,000,000:1
Static Contrast

1500:1
JBMA Uniformity

> 90%
Light Source

Laser/phosphor
Light Source Lifespan

Normal mode: 20,000 hours
Eco mode: 25,000 hours
Screen Size

60"~300"

LENS (not included)

 Interchangeable Lenses

7 optional lenses (see Lenses tab.)
F-stop

Depends on lens
Focal Length

Depends on lens
Zoom Ratio

Depends on lens
Throw Ratio

Depends on lens
Lens Adjustment

Manual focus and zoom (if applicable)
Keystone Adjustment

±15°
Lens Shift

Vertical: ±40% (Horizontal Center)
Horizontal: ±20% (Vertical Center)
Maximum Supported Resolution

up to 4K (3840 x 2160)

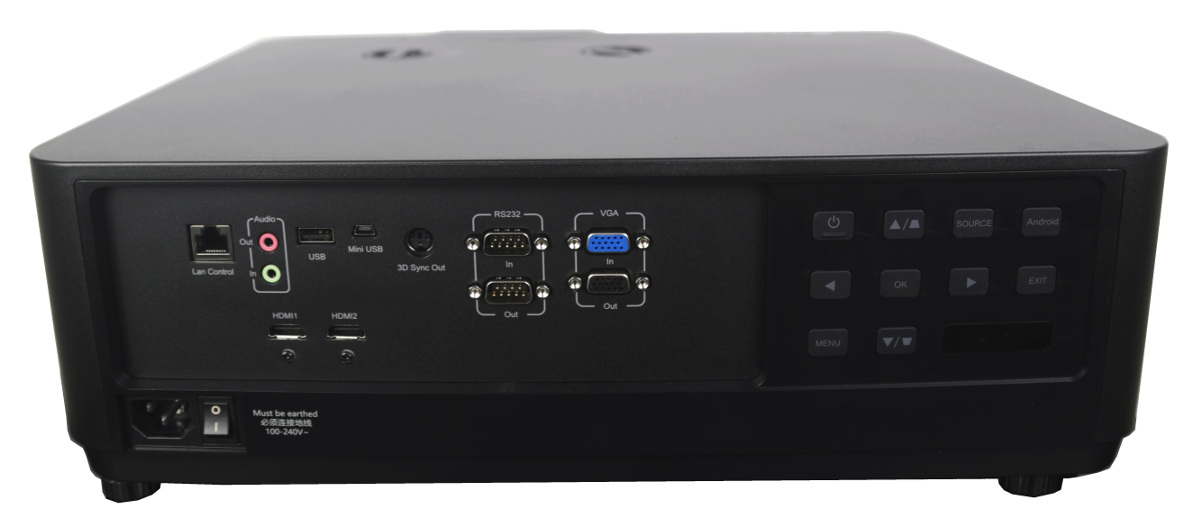

TERMINALS
Input Interface
  • VGA IN x1
  • AUDIO IN x1
  • HDMI x2
  • HD-BaseT x1 (optional)
  • USB-A x2
Output Interface
  • VGA OUT x1
  • AUDIO OUT (mini-jack 3.5 mm) x1
  • 3D SYNC OUT x1
  • USB-A (5V) x1
Control Interface
  • RS232 input x1
  • LAN network interface (RJ45) x1
  • USB (Type mini for firmware burning) x1
Dimensions (W x D x H)

16.5 x 13.4 x 5.4 in (420 x 340 x 137.5 mm) without adjustment foot
Weight

< 22.0 lb (10.0 kg)
Color

Black
Power Consumption

380 W ±10%
Standby Power Consumption

< 0.5 W

Warranty

3-year warranty

Lenses

Optional Lenses

Model LNS040 LNS058 LNS065 LNS075 LNS098 LNS120 LNS132
  LNS040 LNS058 LNS065 LNS075 LNS098 LNS120 LNS132
D:W WUXGA

0.4:1

0.58:1

0.65:1

0.75:1

0.98–1.56:1

1.2–1.56:1

1.32–2.16:1
f/stop 2.1 2.1 2.2 2.2 1.5–2.0 1.8–2.0 2.3
