BenQ SU922

DLP Proj, 1920x1200 5000L, V Shift, 3 Yr Warr
Part #: 0601-6804    Mfr #: SU922

BenQ SU922

Overview

Installation Projector with 5000 lumens, WUXGA

SU922

The BenQ SU922 is the perfect projector solution for medium to large-size conference rooms, training rooms, higher education, and houses of worship. It delivers 5000 lumens bright, large-screen presentations with incredible image detail and rich, vibrant, true-to-life color.

To integrate seamlessly into the IT infrastructure of enterprise-class corporations, BenQ’s SU922 is purpose-built to deliver crisp, high-brightness projection and maximum system flexibility to minimize renovation costs. Equipped with comprehensive features to assist installation, the SU922 is designed for efficient projector mounting and optimization with minimal labor time and resources.

Compare to Similar Projectors ]

Features

Designed for today’s conference rooms, the BenQ SU922 provides the perfect combination of brightness and features necessary to deliver world-class, winning presentations.

Key Features:

  • Native WUXGA (1920X1200) resolution for crisp clarity and increased content density
  • 5000 ANSI lumens for vivid clarity in ambient environments
  • 3000:1 high contrast ratio for clear text and images
  • Vertical lens shift for precise installations
  • Big 1.6x zoom for efficient upgrades using existing ceiling mounts
  • Easy installation and control

Additional Features:

  • 2D Keystone Correction and Corner Fit Control for ideal projection alignment
  • Symmetrically centered lens for precise and easy installation alignment
  • Upper lamp door for simplified lamp maintenance (without need to remove projector from ceiling mount)
  • Microphone input and 20W audio to ensure your message is clearly heard
  • LAN network control with Crestron RoomView, AMX and PJ-Link for remote projector management
  • RS-232 support for reliable long-distance installations (up to 15 meters) for situations without LAN infrastructure
  • Dual HDMI inputs with MHL connectivity to present from mobile devices
  • Long-lasting DLP prevents color decay and conserves energy
  • Sleek and minimalist silver-white industrial design
  • Whisper-quiet fan

Specifications

Display

Projection System‎ DLP Single 0.67" WUXGA
DMD type DC3
Native Resolution‎ 1920 x 1200 pixels
Brightness 5000 ANSI lumens
Contrast Ratio‎ 3,000:1
Display Color‎ 1.07 Billion Colors
Aspect Ratio Native 16:10 (5 aspect ratio selectable)
Light Source Lamp, 370 W‎
Light Source Life‎* 2000/2500 hours (Normal/Eco mode)

Optical

Throw Ratio 1.07~1.71‎
Zoom Ratio 1.6X
Lens Control F=2.45~3.07, f=15.75~25.1‎
Lens Shift V (0% ~ +2.5%), Standard Lens
Keystone Correction 2D, Vertical & Horizontal ± 30 degrees
Projection Offset** 102.5%
Projection Size 30’’~300’’

Audio

Built-in Speaker 20 W (10 W x 2)

Security

Security Lock Kensington Lock, Security Bar

Connectivity

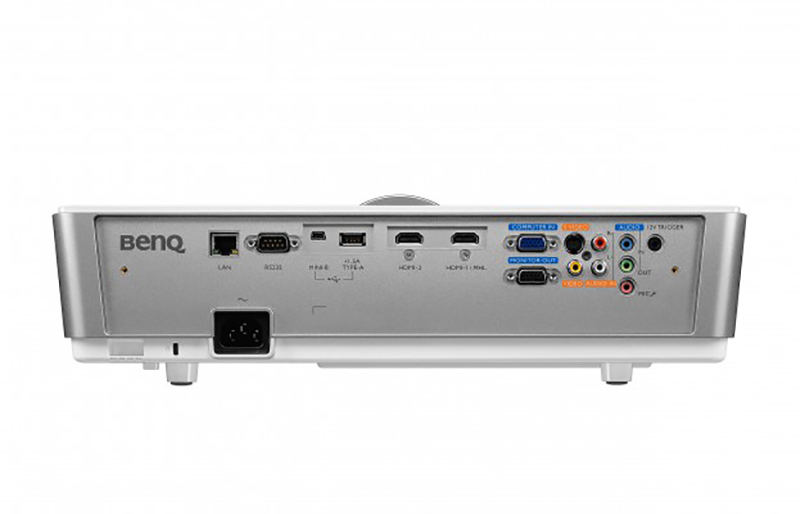

I/O Port HDMI x 2/MHL x 1
Computer In-1 (D-sub 15pin, Female)(Share with component) x 1
Monitor out (D-sub 15pin, Female) x 1
Composite Video In (RCA) x 1
S-Video in (Mini Din 4 pin) x 1
Audio in (mini jack) x 1
RCA Audio in- L/R x 1
Microphone in (Mini Jack) x 1
Audio out (mini jack) x 1
LAN Port (RJ45 for Network control) x 1
RS232 In x 1
DC 12V Trigger (3.5mm Jack) x 1
USB TypeA (1.5A power) x 1
IR Receiver x 2 (front+rear)‎

Compatibility

Resolution Support VGA (640 x 480) to WUXGA (1920 x 1200)
Horizontal Frequency 15K – 102 kHz
Vertical Scan Rate 23  120 Hz
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM

Power

Power Consumption (Max/Normal/Eco) Max 594 W. Normal 500 W. Eco 400 W
Standby Power Consumption Normal < 0.5 W. Network < 3 W.
Power Supply 100 ~ 240 V AC

Dimension and Weight

Product Dimensions (WxHxD) 411.4 x 118.4 x 267.5 mm‎ (16.2" x 4.7" x 10.5")
Product Weight 4.85 kg (10.67 lb)

Operation Condition

Noise Level (Normal/Eco) 36/33 dBA
Operating Temperature 0o ~ 40o C (32o ~ 104o F )

Accessories

Accessories (Standard) Lens Cover x 1
Remote Control w/ Battery RCA022 black x 1
Power Cord (by region) x 1
User Manual CD x 1
Quick Start Guide x 1
Warranty Card (by region) x 1
VGA (D-sub 15pin) Cable x 1
Accessories (Optional) Spare Lamp Kit P/N: 5J.JDP05.001

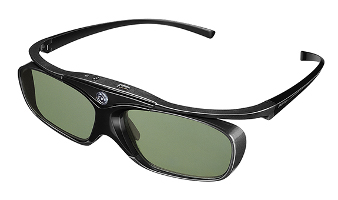

3D Glasses P/N: 5J.J9H25.001‎

OSD

On Screen Display Language Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)‎

Warranty

3-Yr Limited Warranty; 90 Days Lamp.



Environmental Notice

Lamp in this product contains mercury. To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.‎


Notes:

* Lamp life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
** Offset is calculated by full screen height.
