Kommander T1
Overview

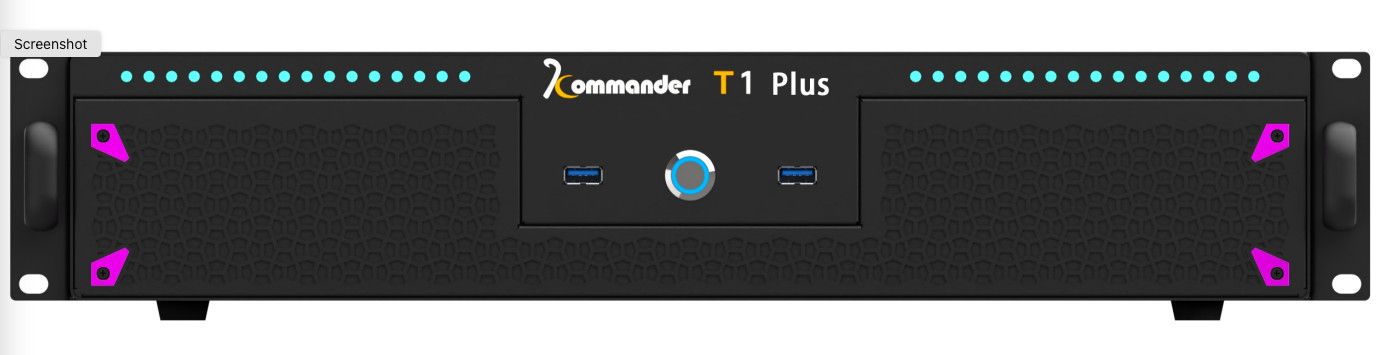

Kommander T1 Plus
Dual 4K Multimedia Broadcast Control Server (Video Editor)
Kommander T1 Plus is a multimedia broadcast control server device that includes application software. It is mainly used for splicing and synchronous broadcast control of large screens, ultra-multiple screens, and specially-shaped screen scenes.

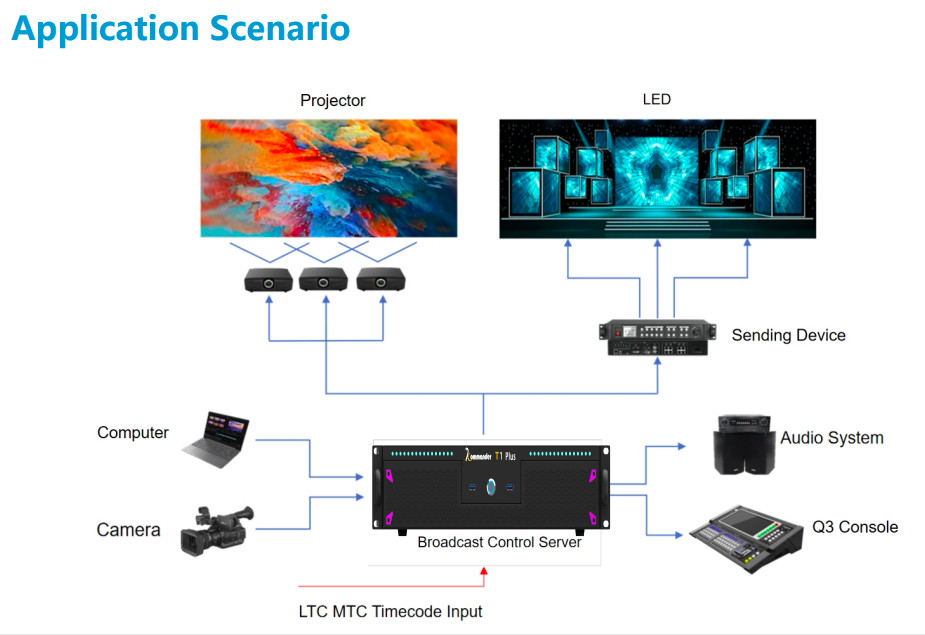

With innovative technologies such as 8K hardware decoding, scene pre-editing, virtual screen management, and pre-planned split-screen broadcast control, the T1 can easily be applied to scenes in medium and small-scale stage performances and conference activities.
Engineered for small events, the Kommander T1 Plus media server excels at pixel-perfect LED tiling and multi-layer display. Its lightweight, portable design combined with excellent performance simplifies event setup and execution, delivering a controlled experience far superior to that of a laptop.
Features
Content Composition
- Display PowerPoint with embedded animations, video, and audio, supports next slide and presenter view mode.
- Playlist functionality with automatic content looping.
- 32 real-time effects including masks, chroma key, rolling, etc.
- Built-in utilities: Subtitle, timer, countdown, clock, weather displays.
Output Management
- Dedicated GUI for operator control.
- Custom output resolution and EDID lock support.
- Unlimited outputs, screens, and layers (hardware-dependent).
- Adjust color parameters per individual LED screen or per content source.
Editing & Workflow

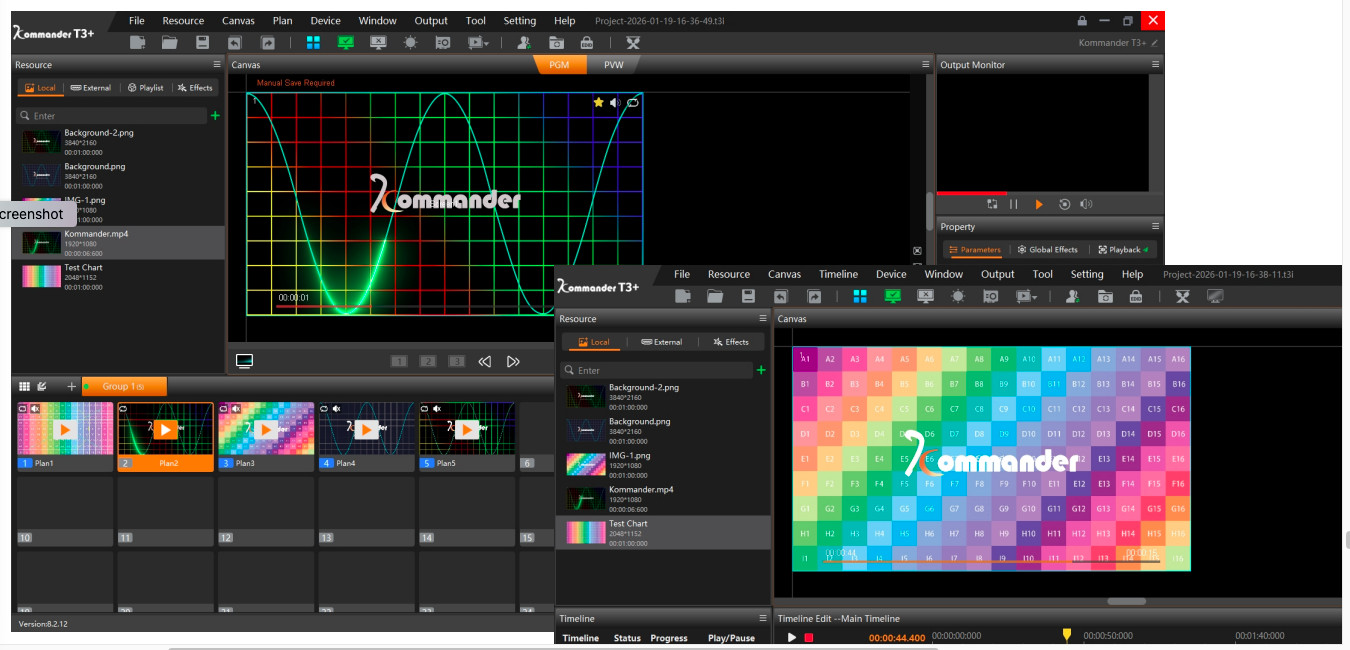

- Plan Mode: Drag-and-drop content organization for conference event editing.
- Preview mode enables on-site editing without affecting real-time output.
- Timeline Mode: Frame-accurate control with keyframing for creative effects.
- Time/date-based event scheduling.
Protocols & Control
- Stream Deck & Companion integration.
- Control protocols supported: MIDI, OSC, DMX, Timecode, TCP/IP, UDP.
- Remote control via iPad/Phone using the Kommander Cloud Control App.
Streaming & Live
- NDI (Version 6) & Spout network video input and output.
- Dante audio integration and multi-channel audio mapping.
- Browser and RTMP output, RTSP, RTMP, RTP, SRT, HLS live streaming input.
Projection & Blending
- Vioso camera-based projection surface calibration.
- Multi-user collaboration for projection fusion setup.
- Geometry correction and edge blending for multi-projector setups.
Convenient tools
- Built-in converter to transcode and encrypt video.
- Optimize image resolution automatically to reduce CPU load.
Multi-Server Sync
- Automatic main/backup server switching when signal abnormality.
- Project sync via local network with centralized control from the main server.
Specifications
Hardware Specifications
| Processor/CPU | AMD Ryzen™ 7 7735HS (Custom high-frequency processor) |
| Motherboard | AMD custom motherboard |
| Network | 1x 1Gb/s |
| Memory | DDR5 32G high-speed memory |
| Hard disk storage | 1TB M.2 high-speed solid-state drive |
| Graphics card | AMD Radeon ™ 680M |
| Capture Card | Professional video capture card |
| Power supply | 120 W |
| Audio | XLR interface, built-in audio isolation |
| Chassis | Kommander Custom Case |
| Flight case | Kommander Custom Flight Case |
Physical Specifications
| Size (Rack Units) | 2U |
| Dimensions (DxWxH) | 16.7" x 19" x 3.7" (425 x 482.6 x 95 mm) |
| Weight | 14.3 lb (6.5 kg) |
| Input Power | 100–240 V AC ~ 50/60 Hz 8–15 A |
| Operating Humidity | 5%-95% |
| Operating Temp | 32–113°F (0–45°C) |
| Maximum power consumption | 120 W |

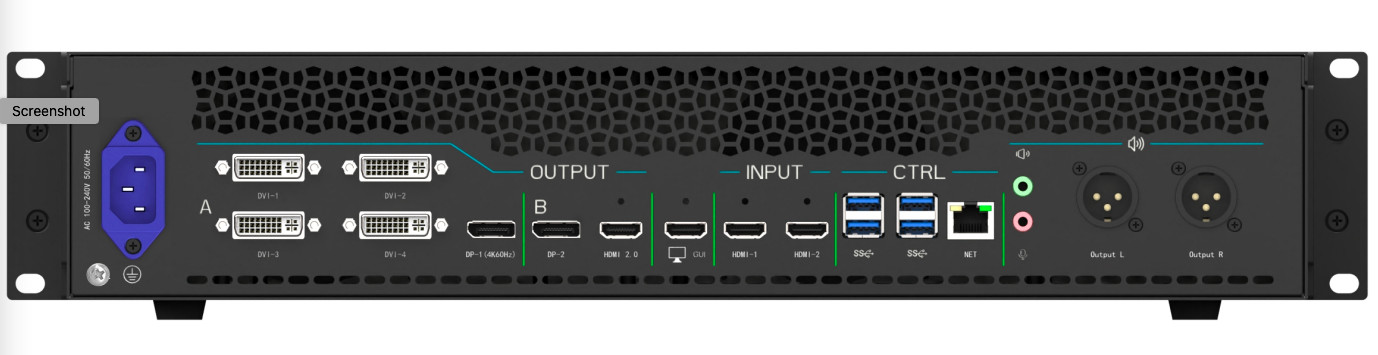

Terminals (Back Panel)
| Video Outputs | Output-A (5) | 4x DVI duplicate 1x DP 4x DVI, individual resolution up to 1920x1200 @ 60 Hz 1x DP1.2, resolution up to 3840x2400 @ 60 Hz |
| Output-B (2) | 1x HDMI duplicate 1x DP 1x HDMI 2.0, resolution up to 3840x2400 @ 60 Hz 1x DP1.2, resolution up to 3840x2400 @ 60 Hz |
|
| GUI-HDMI (1) | Resolution up to FHD @ 60 Hz, for operating | |
| Video Inputs | HDMI (2) | Resolution up to FHD @ 60 Hz |
| Audio | XLR (2) | 2x output |
| TRS Jack (2) | 1x output, 1x input | |
| Network | RJ-45 (1) | 1x 1Gb/s |
| Others | USB 3.0 (6) | Side: 2x USB-A Rear: 4x USB-A |
Warranty
2 years
