Barco R9802040
Barco PDS-4K Audio & DP 1.2 Input Card
Item #0602-2992 Model #R9802040
Overview

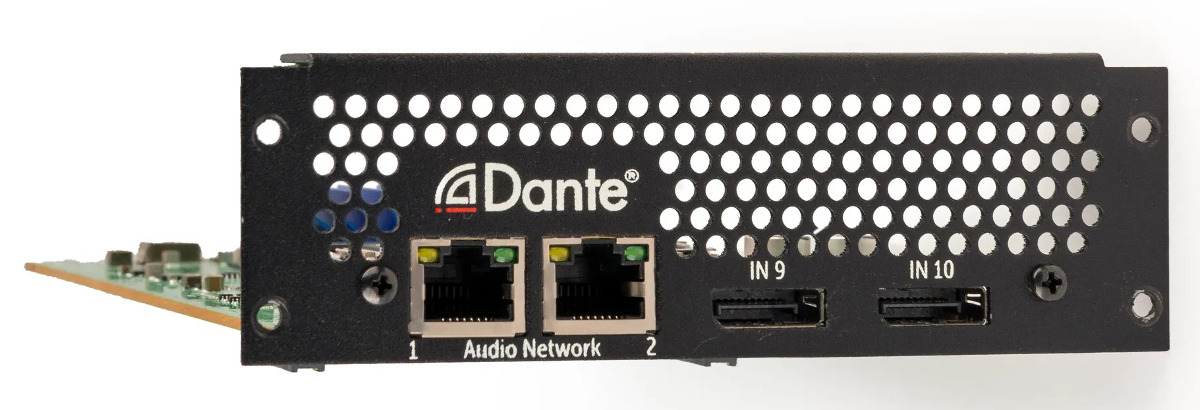

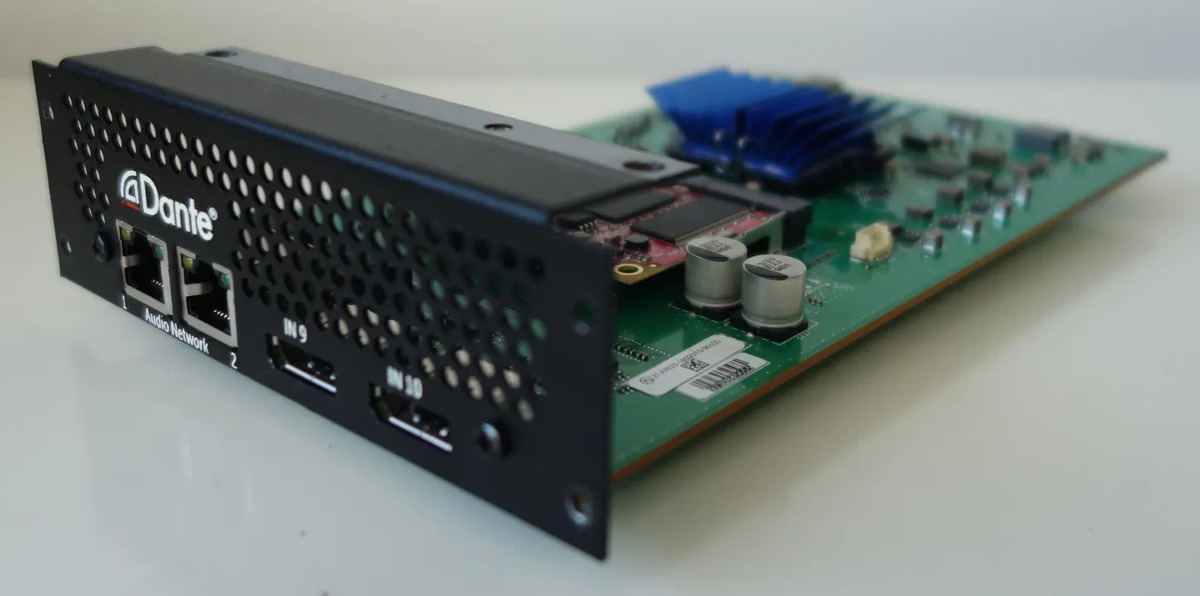

PDS-4K Audio and DisplayPort 1.2 Input Card
The PDS-4K Audio and DisplayPort 1.2 Input Card can be installed into the option slot on the rear of the PDS-4K for added functionality, as long as firmware version 9.0.4876 (or higher) is installed on the unit.
This card adds the ability for the PDS-4K presentation switchers to pass embedded audio from HDMI™/DisplayPort/SDI input to Program outputs and embed/disembed to Dante network audio.
It also adds two DisplayPort 1.2 input connectors.
Key Features:
- Adds Audio pass-through and Dante capability to the system
- Adds two more input connectors
Note: Some PDS-4K models ship with this card already included.
Specifications
| Connectors | 2x DisplayPort 1.2 Inputs 2x RJ-45 (Dante) |
| Resolution | 3840x2400p @60 |
| Color depth | 10-bit |
| Color sampling | 4:4:4 |
| HDCP | 1.x |
| Signal capacity | 660 MHz |
| Audio channels | 2 per input or output |
| Audio sample rate | 48 KHz |
| Audio bit depth | 16-bit or 24-bit |
| Audio format | PCM |
| AES 67 support | Yes |
| Number of Dante channels | 64 inputs x 64 outputs (2 channels per input or output) |
| Features | Outputs selectable between specific input, Dante Audio, or Audio follows video PGM audio return to Dante All inputs transmit to Dante |
Downloads
PDS-4K User Guide (see section 3.3)
