The PDS series is designed to meet today’s requirements for a high-quality, easy-to-use and fast seamless switcher with more digital inputs at an affordable price. It is the perfect fit for mid-sized live events, breakout sessions, seminar rooms and boardrooms.

4K for you

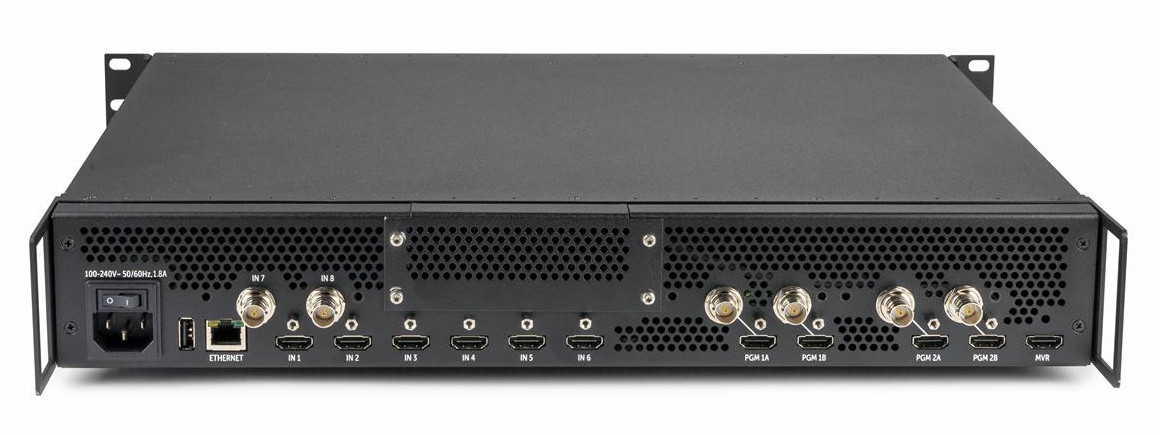

The PDS-4K SDI enables single screen, dual screen switching and quad screen switching with high-quality 4K processing, and it can also support Dante^® audio with the addition of an optional interface card. It includes six HDMI 2.0 and two 12G-SDI inputs, as well as four fully seamless mixing program outputs at up to 4K resolution on HDMI 2.0 and four 12G-SDI output connectors.

This switcher benefits from the ultra-low latency processing (≤ 2 frames delay @60Hz), smooth video display and seamless transitions between inputs to maximize audience engagement. Additionally, you can increase interactivity by showing up to two live inputs simultaneously with the available PiP layers. And the Event Master Athena^TM scaling technology guarantees superior signal clarity and minimum scaling artifacts.

PDS: pretty darn simple

The PDS-4K SDI switcher guarantees unsurpassed performances and outstanding visual experience while also being exceptionally easy to operate. With just one simple press on the buttons of the intuitive front panel interface, you can switch easily between the input sources and preconfigured layouts.

What’s more, the PDS-4K SDI is compatible with all the familiar Barco visualization solutions and presentation devices (e.g. ClickShare) without compromising on video quality. It can be controlled with Event Master Toolset, but thanks to the API, it can also be combined with other third-party control panels

The PDS-4K SDI is built for applications requiring the highest availability and uptime. This switcher will also prove to be a smart investment well into the future with option cards to ensure expandability and future-proof upgradability.
