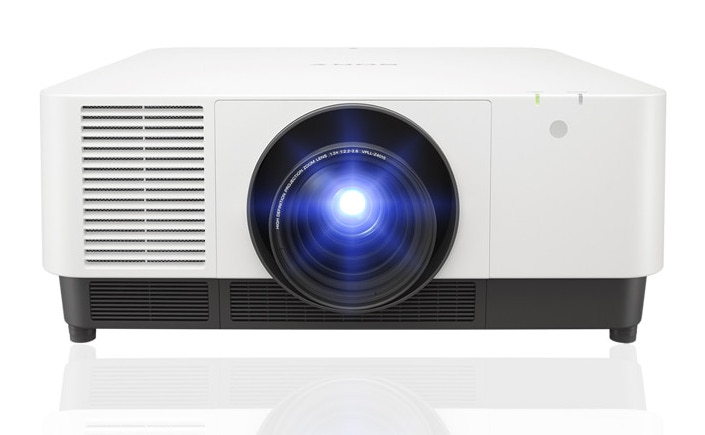

Sony VPL-FHZ91LW

Laser LCD Projector, WUXGA, 9000 Lumens, H&V Lens Shift, No Lens, White, 5 year warranty
Item #0602-6032 Model #VPLFHZ91LW

Overview

Sony VPL-FHZ91LW

9,000 lumens (9,800 center lumens) laser light source projector

Combining spectacular image quality with easy setup and minimal maintenance needs, this high-brightness 3LCD laser projector is ideal for installation in larger spaces.

Captivate your audience in conference halls, lecture theaters, galleries, museums, visitor attractions and other large spaces. A high light output of 9,000 lumens ensures big-screen presentations with extra presence, even in brightly lit rooms.

Impressive picture quality is boosted by Sony's unique super resolution Reality Creation technology. This uses a powerful pattern-matching database to optimize lower resolution images, enhancing clarity without increasing digital picture noise.

Save time with Sony's Intelligent Setting function that simplifies installation with presets to optimize brightness, cooling, color and other projector settings. You'll be rewarded with great pictures in every environment, including meeting/classrooms, museums, entertainment venues and multi-screen setups.

You'll appreciate an industry-leading lens shift adjustment range and a wide choice of interchangeable lenses, giving more options to install the projector in any space, including classrooms and halls with high ceilings. For extra flexibility, the VPLL-Z4107 short-throw lens is ideal when positioning the projector close to the screen to avoid ceiling-mounted obstructions.

Note: The VPL-FHZ91LW is a white projector. For the black model, see VPL-FHZ91LB.

Features

  • Reduced maintenance: The laser light source offers up to 20,000 hours* of operation without lamp exchange, reducing maintenance needs compared with traditional projectors. (* Depending on usage environment.)
  • Consistent brightness: Experience consistent image brightness throughout the laser light source's 20,000 hours recommended lifespan.
  • Networked control and monitoring: Ideal for integration in AV environments with leading control, monitoring, and management systems such as Crestron Connected™ and Extron® XTP™ Systems. (Extron and XTP Systems are trademarks of RGB Systems Inc.)
  • Easy edge blending: Seamlessly join color-matched images from multiple projectors for stunning super-size displays in corporate and education environments.
  • Versatile lens options: There's a wide range of lens options to suit virtually any size of room and throw requirements. Quick-release bayonet mount simplifies lens exchange.
  • Generous lens shift range: Enjoy greater flexibility to position the projector in restricted spaces, ensuring that audience and presenters aren't distracted by the light source.
  • Lens position memory: Memorize and recall up to six settings for projected image size, position and aspect ratio, saving time in different environments. (Requires optional VPLL-Z4111 lens.)
  • Stylish blend-in design: The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.
  • Protocol Emulation: Sony’s Protocol Emulation feature allows you to control Sony projectors using other manufacturers' RS232C control protocols. This feature allows integrators to replace other manufacturers' projectors with Sony's, without re-programming the AV system.

Specifications

Display System 3 LCD system

Display Device

Size of effective display area

1" x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of pixels
6,912,000 (1920 x 1200 x 3) pixels
Aspect ratio

16:10

Resolution
WUXGA (1920 x 1200 pixels)

Projection Lens

(see Accessories tab)
Focus Powered/Manual (depends on lens)
Zoom Powered/Manual (depends on lens)
Zoom Ratio
Depends on lens
Throw Ratio Depends on lens
Lens Shift Powered
Horizontal Lens Shift Depends on lens
Vertical Lens Shift Depends on lens
Light Source Laser diode
Filter replacement cycle (Max.) 10,000 H (service maintenance)
Screen size Depends on lens
Light output*1 Mode: Standard    9,000 lm*2 / 9,800 lm (Center)*3
Mode: Middle        8,000 lm
Mode: Low            7,000 lm
Color Light Output*1
Mode: Standard   9,000 lm
Mode: Middle       8,000 lm
Mode: Low           7,000 lm
Contrast Ratio (full white/full black)*1 ∞:1
Displayable scanning frequency
Horizontal: 15 kHz to 92 kHz
Vertical:     48 Hz to 92 Hz
Computer signal input Maximum signal resolution: 1920 x 1200
Video signal input 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal only: 1080/60p, 1080/50p, 1080/24p, 1080/30p*4
Keystone Correction (Max.) Horizontal:  ±30º
Vertical:      ±30º

Inputs & Outputs (Computer/Video/Control)

Input A RGB / Y PB PR input connector: 5 BNC (female)
Input B RGB input connector: Mini D-sub 15-pin (female)
Input C DVI input connector: DVI-D 24-pin (single link), HDCP support
HDCP: v1.4
Input D HDMI input connector: HDMI 19-pin, HDCP support
HDCP: v1.4
Input E HDBaseT interface connector: RJ45, 3 play
Input F Optional adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20)
Input G HTML Viewer
Output 1 Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female)
USB-1 Type-A x 1
USB-2 Type-B x 1 (for service)
Remote D-sub9pin male/RS232C
LAN
RJ45, 10BASE-T/100BASE-TX/1000BASE-T
Acoustic Noise*1
Light output mode: standard: 39 dB
Light output mode: middle: 39 dB
Operating Temperature & Humidity 32°F to 109°F (0°C to 45°C) / 20% to 80% (no condensation)
Storage Temperature & Humidity 14°F to +140°F (-10°C to +60°C) / 20% to 80% (no condensation)
Power Requirements AC 100 V to 240 V, 8.4 A to 3.4 A, 50 Hz/60 Hz
Power Consumption
AC 100 V to 120 V: 840 W
AC 220 V to 240 V: 814 W
Power Consumption (Standby Mode)
AC 100 V to 120 V:  0.50 W (when "Standby mode" is set to "Low")
AC 220 V to 240 V:  0.50 W (when "Standby mode" is set to "Low")
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V:
21.6 W (LAN)
26.5 W (HDBT)
26.6 W (ALL terminals and networks connected) (when "Standby Mode" is set to "Standard")
AC 220 V to 240 V:
21.3 W (LAN)
26.5 W (HDBT)
26.6 W (ALL terminals and networks connected) (when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated Approx. 2 Minutes
Heat Dissipation
AC 100 V to 120 V:  2,866 BTU/h
AC 220 V to 240 V:  2,777 BTU/h
Dimensions (W x H x D) (without protrusions) Approx. 21 13/32 x 8 1/16 x 22 7/32 inches
(544 x 205 x 564 mm)
Weight Approx. 58 lb (26 kg)
Supplied Accessories
Remote command RM-PJ30
Optional Projection Lenses (see Accessories tab)
VPLL-Z4107, 4008, Z4111, Z4015, Z4019, Z4025, Z4045

Notes:

*1 The figures are approximate. They vary depending on the environment or how the projector is used.

*2 The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.

*3 The value is light output measured at center area of screen in Standard mode, and is an average of all products shipped.

*4 When using BKM-PJ20

Accessories

Optional Lenses

Model VPLL-Z4107 VPLL-4008 VPLL-Z4111
Std Lens
VPLL-Z4015 VPLL-Z4019 VPLL-Z4025 VPLL-Z4045
Price
Add to Cart
$3,585.00
Add to Cart

Add to Cart
$2,616.00
Add to Cart

Add to Cart

Add to Cart

Add to Cart
VPLL-Z4107 Sony VPLL-4008 lens VPLL-Z4111 VPLL-Z4015 lens Sony VPLL-Z4019 lens Sony VPLL-Z4025 lens Sony VPLL-Z4045
D:W 0.750.94:1 1.00:1 1.30–1.96:1 1.85–2.44:1 2.41–3.07:1 3.02–5.58:1 5.56–7.5:1
F-Stop 1.8–2.0 2.00 1.75–2.34 2.202.60 1.70–2.10 2.20–3.10 2.20–3.60



Other Accessories

Chief mount VCT-UW Ceiling mounts
