Roland V-800HD MKII

Multi-Format Video Switcher, 8 Ch
Part #: 0615-0117    Mfr #: V800HDMKII

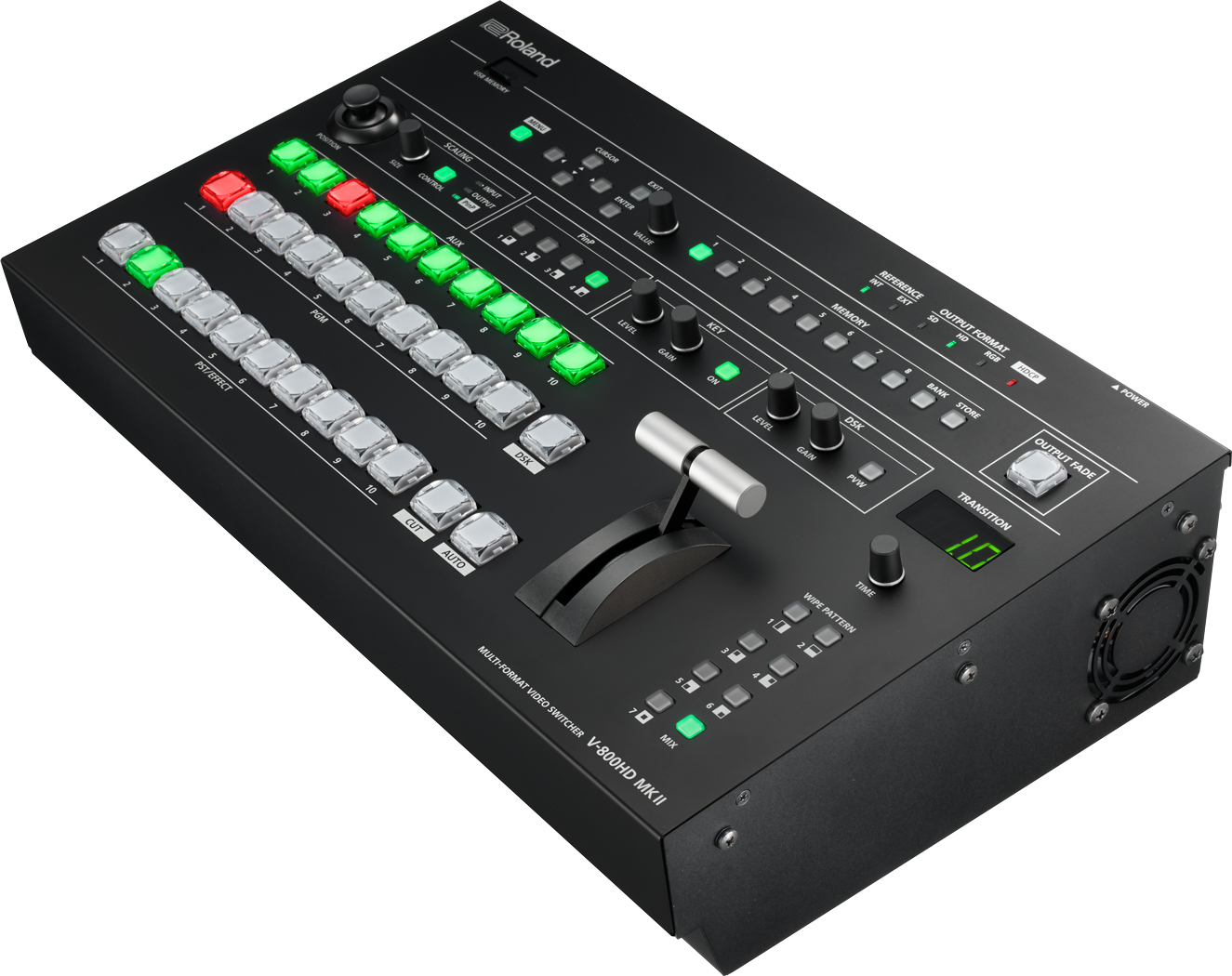

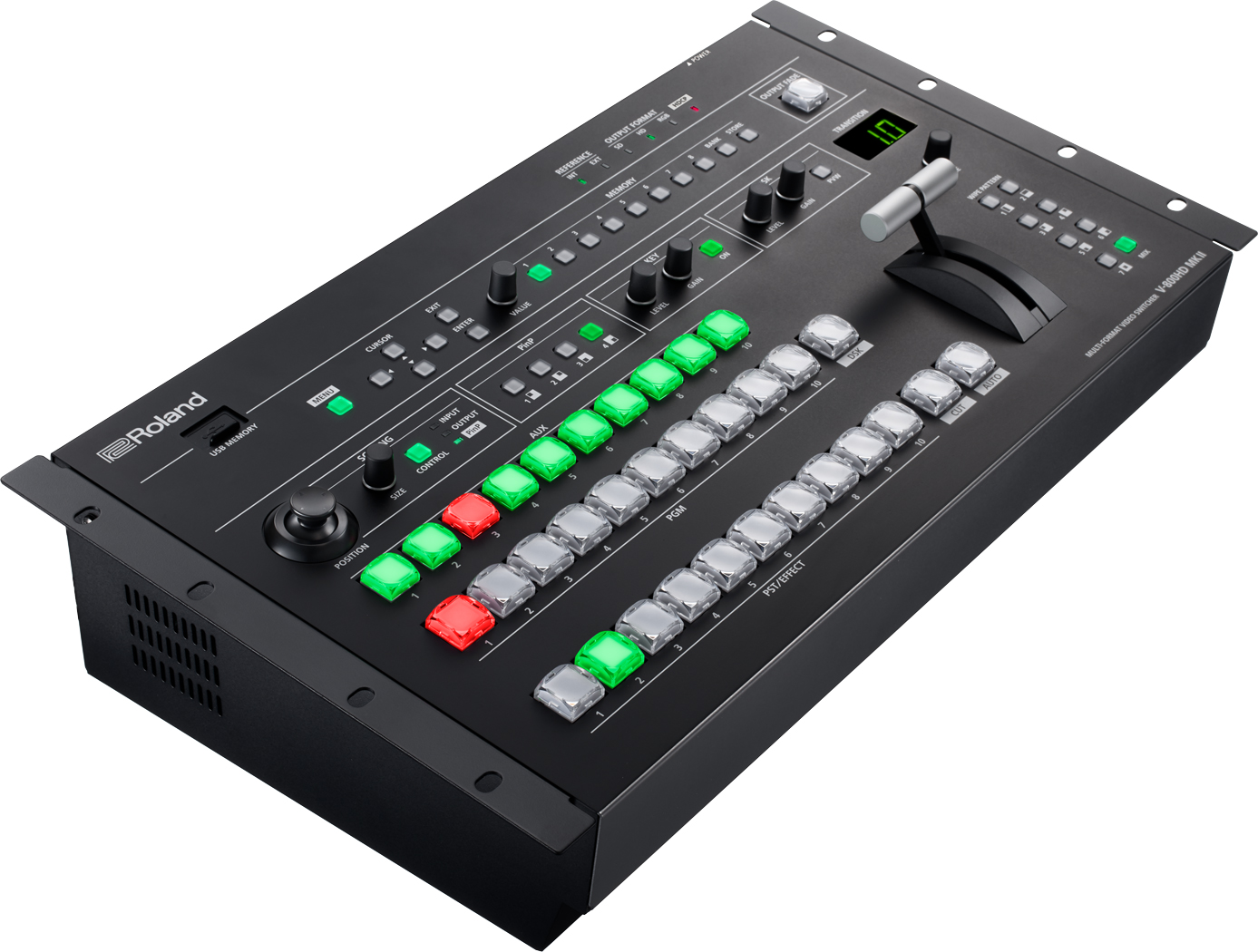

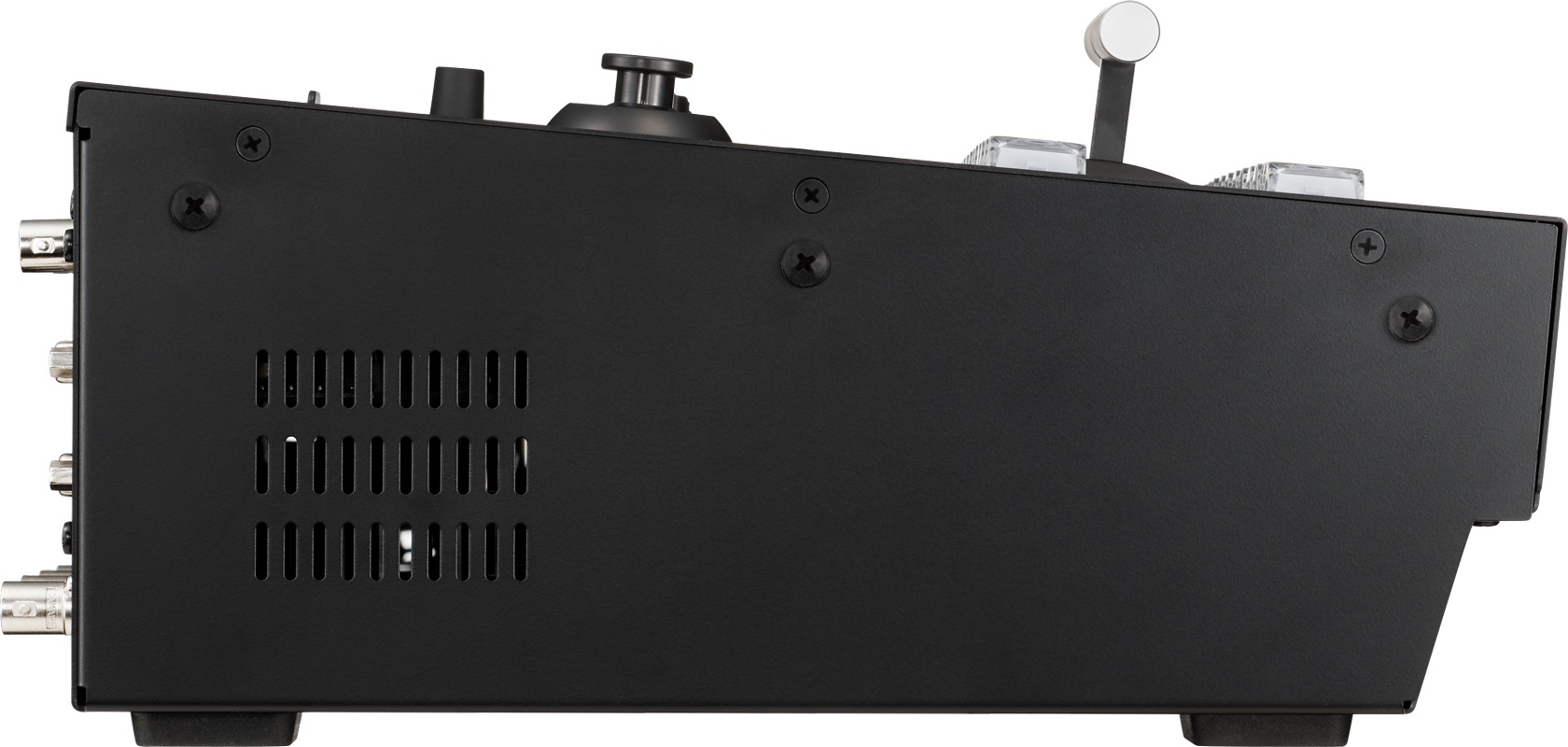

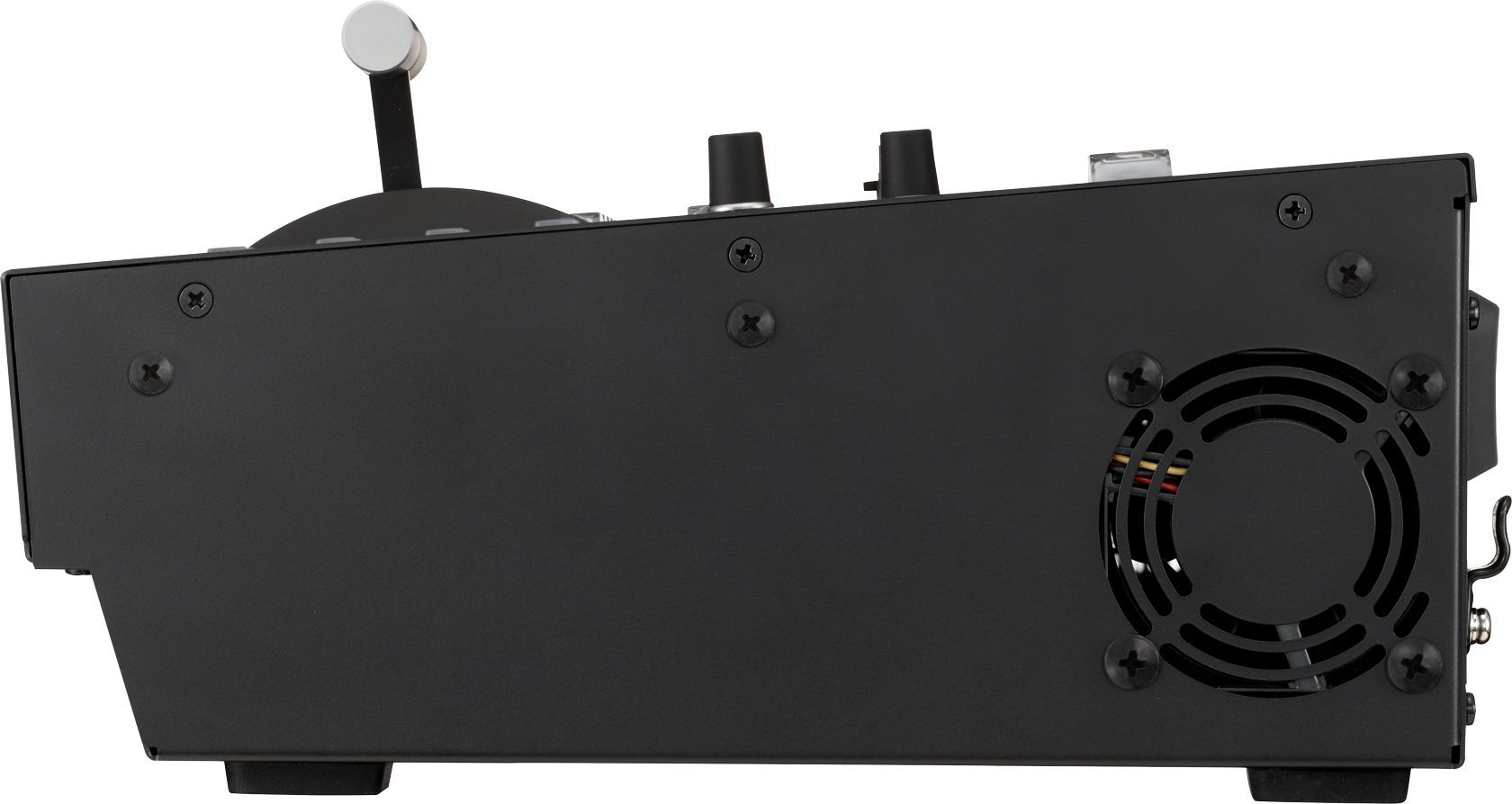

Roland V-800HD MKII

Overview

UPDATED VERSION OF THE INDUSTRY STANDARD MULTI-FORMAT VIDEO SWITCHER

A refreshed interface for improved workflow with the versatile multi-format V-800HD video switcher. Newly added AUX bus delegation layer switches enhance both visibility and operability.

Key Features:
  • 16 inputs, 10 Cross points(4 SDI/Composite/RGB + 4 DVI-I/HDMI)
  • 6 outputs (2 SDI + 2 DVI + RGB + Composite) Simultaneous output
  • Dedicated multi-view monitor output
  • High quality 4:4:4/10 bit processing
  • 1080p/i, WUXGA processing
  • 1 M/E (KEY, PinP) + AUX or DSK
  • Frame Sync & Scaler on all inputs and outputs
  • 3G, HD, SD 3-mode SDI(3G-SDI Level A/B compatible)
  • DVI-D/RGB/HDMI compatible
  • Input signal status confirmation LEDs
  • HDCP Compatible
  • Two active still images from sixteen still memories
  • Ten assignable cross points
  • AUX bus switch

Applications include:
  • Live event production (lectures, meetings, and presentations in halls, theaters, and churches)
  • Live streaming production, such as webcasts

Features

Stellar image quality at 1080P (3G-SDI): supports 1080p video signals at bit rates as high as 3 Gbps — twice the rate of conventional HD. Asserts all the vividness of high-realism, high-detail camera and computer sources.

True multi-format performance: built-in scalers up-convert and down-convert any video source to the optimal resolution. There's no need to convert the input source to match the video output format.

Full range of connectivity: supports a large number of input formats, from analog to digital, with all the necessary connectors. The SDI connectors accommodate 3G, HD, and SD. The DVI-I connectors pull full duty for DVI-D, DVI-A and even HDMI using a simple HDMI/DVI adapter. The Mini D-Sub 15 pin type connector accommodates SD/HD component as well as computer input via RGB.

Equipped with AUX bus switch: Easily switches sources connected to the assignable AUX outputs with the dedicated AUX layer switches. This is ideal for selecting which source is sent to a confidence monitor or secondary destination.

4:4:4/10-bit internal processing: uses 4:4:4/10-bit internal signal processing, letting you achieve compositing and output with no reduction in high-detail RGB signals driven from a computer. The result is a sharp, unblurred display of video and text, even on large screens and LED displays. The V-800HD MK II delivers high image quality for all uses, from live broadcasts to event displays.

Newly developed key-compositing engine: Chroma Key lets you adjust phase range, amount of chroma, and other parameters based on HSV color space that is closely related to human chromatic sensation. This allows you to achieve high quality and tight chroma key compositing even when using 1080p video sources. What’s more, the V-800HD MK II can accept an External Key. This attractively composites colorful CG titles and gradation/transparency clips, enabling you to achieve visual effects that are even more impressive.

Multiviewer output for source monitoring: allows you to monitor the status of all input sources plus the Program and Preview outputs. The convenient HDMI connector enables the use of a readily available and affordable monitor.

  • Use an HDMI monitor that supports HDCP and 60p signals.
  • SDI and composite inputs are displayed at the original source frame rate.
  • DVI-I/HDMI and RGB/Component inputs are displayed using a reduced frame rate.
  • Changing the channel cross-point assignments changes the order of displayed sources.
  • Still images imported from USB memory are not displayed on the source monitor.

Built-in HDCP mode: When playing back a Blu-ray disc that contains commercial content or digital broadcast programming, the digital output is encoded using HDCP (High-bandwidth Digital Content Protection), which is a mean of copyright protection. Switchers that are not HDCP-compatible will not display or pass-through such video content, even in cases where permission for use in a live event was obtained from the copyright holder. To resolve this problem, the V-800HD MK II features a dedicated mode that officially supports HDCP. A panel indicator lets you check the operating state when the unit is in the HDCP mode.

  • In HDCP mode, no video signals are output from the analog or SDI connectors.
  • The display or projector connected to a digital output must be HDCP-compatible as well.

Specifications

Video Processing
Processing 4:4:4 (Y/Pb/Pr, RGB), 10-bit
Supported Formats
Video 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p,1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* SDI and Composite input can input the same frame rate as a setup menu setting.
PC 640 x 480/60 Hz (*1), 800 x 600/60 Hz (*1) (*3), 1024 x 768/60 Hz (*1),1280 x 768/60 Hz (*1), 1280 x 1024/60 Hz (*1), 1366 x 768/60 Hz (*1),1400 x 1050/60 Hz (*1), 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz (*2)
* Conforms to VESA DMT Version 1.0 Revision 10
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
*2 Reduced blanking
*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation.
Still Image Windows Bitmap File (.bmp)
* Maximum 1900 x 1200 pixels, 24-bit per pixel, uncompressed
Input/Output Level and Impedance
Composite 1.0 Vp-p, 75 ohms
Analog HD/RGB 0.7 Vp-p, 75 ohms (H, V : 5 VTTL)
Input Connectors
3G/HD/SD-SDI BNC type x 4
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C
DVI-I/HDMI DVI-I type x 4
* Select DVI-A or DVI-D/HDMI using switch per channel
Analog Video (HD) Component (Mini D-sub 15-pin type) x 4
* Combined use with Analog RGB
Analog Video (SD) Composite (BNC type) x 4
* Select Composite or SDI using menu per channel
Analog RGB Mini D-sub 15-pin type x 4
* Combined use with Analog Video (HD)
* Select DVI-D/HDMI or Analog RGB using menu per channel
Output Connectors
3G/HD/SD-SDI BNC type x 2
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C
DVI-D/HDMI DVI-I type x 2, HDMI x 1 (for multi-view monitor)
Analog Video (HD) Component (Mini D-sub 15-pin type) x 1
* Combined use with Analog RGB
Analog Video (SD) Composite (BNC type) x 1
* Combined use with Analog Video (HD)
* Does not synchronize with Reference Input.
Analog RGB Mini d-sub 15-pin type x 1
* Combined use with Analog Video (HD)
Other Connectors
Tally Mini D-sub 15-pin type x 2
* Input (max) : 12 V, 200 mA Open collector Type
Reference BNC type (IN, THRU)
* Black Burst (Sync to frames), Bi-Level, Tri-Level
MIDI 5 pin DIN type (IN, OUT/THRU)
RS-232 D-sub 9 pin type x 1
USB port (host) A type x 1 (for USB memory)
Effects
Transition Mix, Cut, Wipe (9 patterns)
Composition PinP, DSK, Chrominance Key, Luminance Key, External Key
Others Output Fade, Output Freeze
Others
Power Supply AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption 75 W/0.7 A (115 V, 117 V)
75 W/0.4 A (220 V, 230 V, 240 V)
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Accessories Owner's Manual, Power cord, Rack-mount angle x 2
Size and Weight
Dimensions 482 (W) x 275 (D) x 116 (H) mm
19 (W) x 10-7/8 (D) x 4-5/8 (H) inches
* When rack mount angles are fitted.
Weight 5.5 kg
12 lbs 3 oz

* This product is a Class A digital device under FCC part 15.

Applications

APPLICATIONS AND EXAMPLE CONNECTIONS

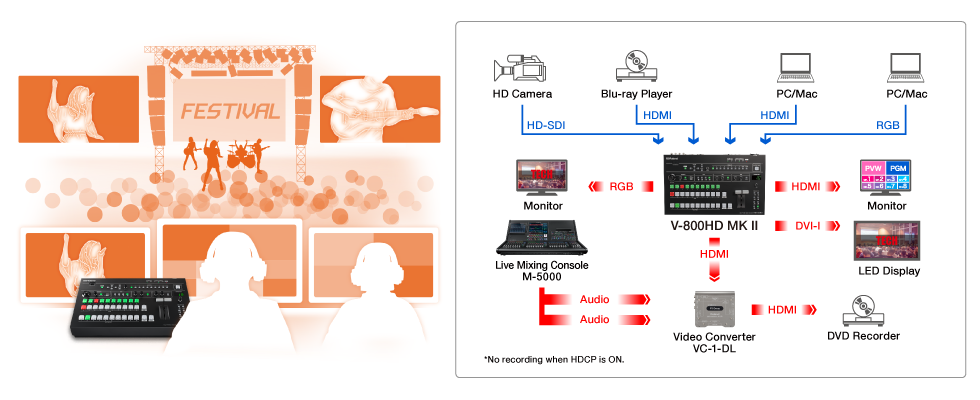

1. Live Event Production (lectures, meetings, presentations)

Supporting live events requires being ready for an ever-changing variety of input sources. The V-800HD MK II is equipped with scaling for every input and a wide range of common video connectors allowing camera, data and smart device sources of different resolutions and frame rates to be automatically detected, scaled and then adjusted as needed. Fine position adjustment for each input can be set in real-time using the joystick positioner control or from the menu displayed on the multi-viewer.

Live event production

The V-800HD MK II’s 4:4:4/10 bit processing ensures pixel accurate color making it the ideal switcher for large screens over 300 inches and ensures the crisp detail of hi-resolution data sources are sharply output to today’s low dot pitch LED displays. The new AUX bus selection layer makes it easier than ever to send a source to a second output destination such as a confidence monitor, presenter notes display, second display or overflow rooms.

The V-800HD MK II is also a powerful solution for installation in facilities that have both professional and in-experienced operators, such as halls, theaters, and churches. Complex settings can be recalled with a one-touch memory recall and a straight forward interface makes it easy to step-up and operate without training. Two still images are assignable to the cross points from a choice of 16 internal stored images. This is useful for displaying corporate or institution logos and safety slides. The V-800HD MK II also makes it easy to create up to 3 "angles" from a single camera source with the high-resolution scaling of the multi-zoom function.

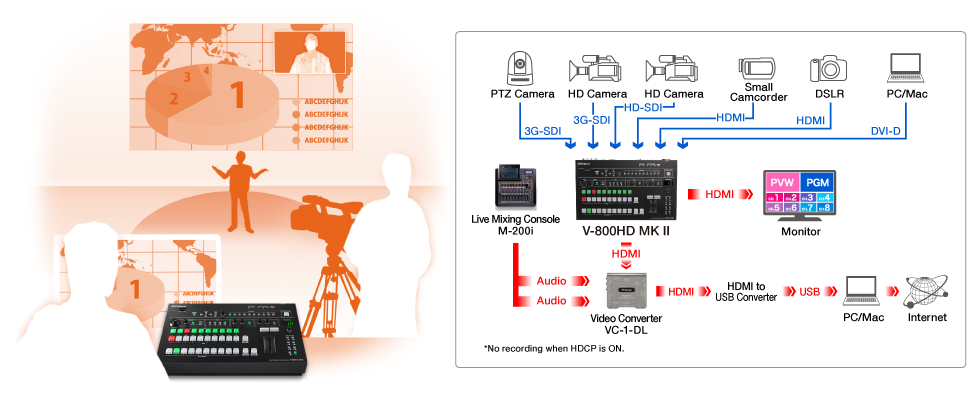

2. Live Streaming Production - Webcast Switching

Modern webcasts require a variety of camera and computer sources of a variety of formats. The V-800HDMKII simultaneously supports video resolutions of 1080i, 1080p, 720p, 480i/p and computer data resolutions of up to WUXGA allowing for high quality webcast requirements. The built-in PnP and Key Compositing features are ideal for creating informative training instruction and news webcasts.

Live streaming production
