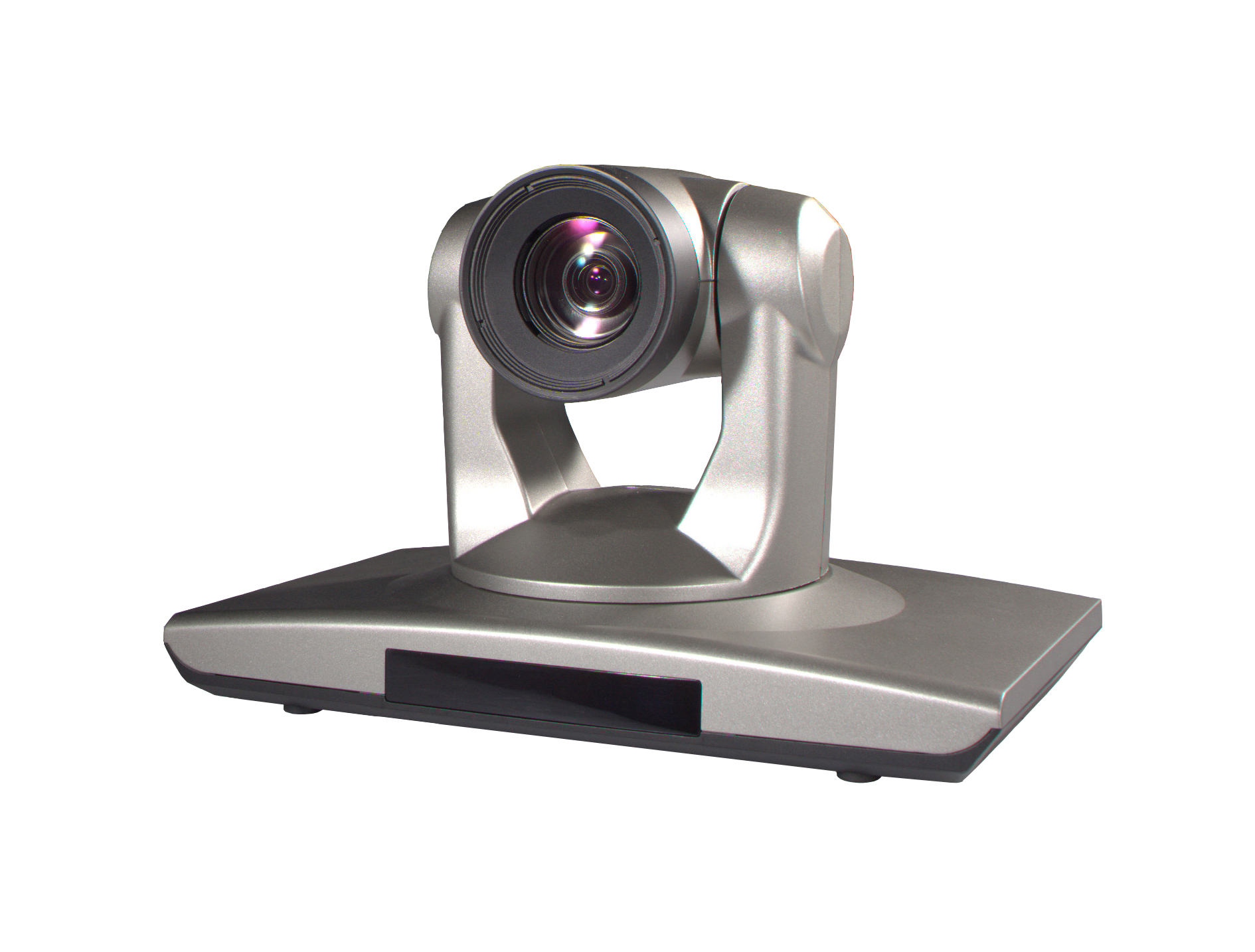

Minrray UV820S

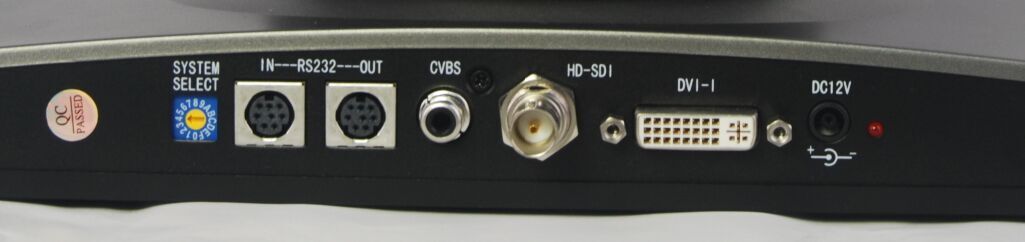

.jpg "UV820S Input/Output Panel")
HD VTC PTZ Camera, 1080p, 18X Zoom, 3G-SDI/DVI-I, Silver
Item #0615-0500 Model #UV820S
Features
UV820S VIDEO CONFERENCE CAMERA
- 1/2.8" HD CMOS Sensor, 1920x1080, 50/60 Hz refresh rate
- DVI-I and 3G-SDI Outputs
- Supported Output Formats: 1080p60/50/30/25,1080i60/50, 720p60/50/30/25
- 18× optical zoom
- 128 Non-Volatile Presets
- Field of View: 3.8° (far) - 62° (near)
- RS232 Control Protocols: VISCA, Pelco-D, Pelco-P, 2400/4800/9600 baud
- Multiple camera addressing
Specifications
| Camera/Lens Parameters | |
| Sensor: | 1/2.8" high quality HD CMOS |
| Pixels: | Dynamic image: 16:9, 2,070,000 effective pixels Static image: 16:9, 2,100,000 effective pixels |
| Output Video Formats: | 1080p60/50/30/25,1080i60/50, 720p60/50/30/25 |
| Zoom: | 18x optical zoom, f＝4.7---84.6mm |
| Field of View: | 3.8° (far) - 62° (near) |
| Minimum Illumination: | 1.8 Lux |
| White balance: | Auto/Manual |
| Focus: | Auto/Manual |
| Iris: | Auto/Manual |
| Electronic shutter: | Auto/Manual |
| BLC (Backlighting): | Open/Close |
| S/N: | >50dB |
| Inputs/Outputs | |
| Video Output: | DVI-I, 3G-SDI |
| Control interfaces | 8 pin mini DIN |
| RS232 Format | Start bit: 1; Data bit: 8; Stop bit: 1; Baud Rate: 9600/4800/2400 |
| Power | HEC3800 power jack |
| General Specifications | |
| Rotation: | Tilt rotation: -30°～+90° Pan rotation: ±120° |
| Manual Control Speed: | Pan: 1-80°/sec Tilt: 1-50°/sec |
| Preset Control Speed: | Pan: 40°/sec Tilt: 30°/sec |
| Color: | Silver |
| Power Supply Adapter: | 110V-220V 50/60 Hz to 12VDC, 2.5A |
| Input voltage: | 11.5-12.5 VDC |
| Power Consumption: | 18W Max |
| Storage Temperature: | -10°C to +60°C |
| Working Temperature: | 0°C to +45°C |
| Dimensions (W x H x W): | 10.4 x 5.7 x 6.7 inches, 265 x 144 x 171 mm |
| Weight: | 4.19 lbs, 1.9 KG |
| Environment: | Indoor |
