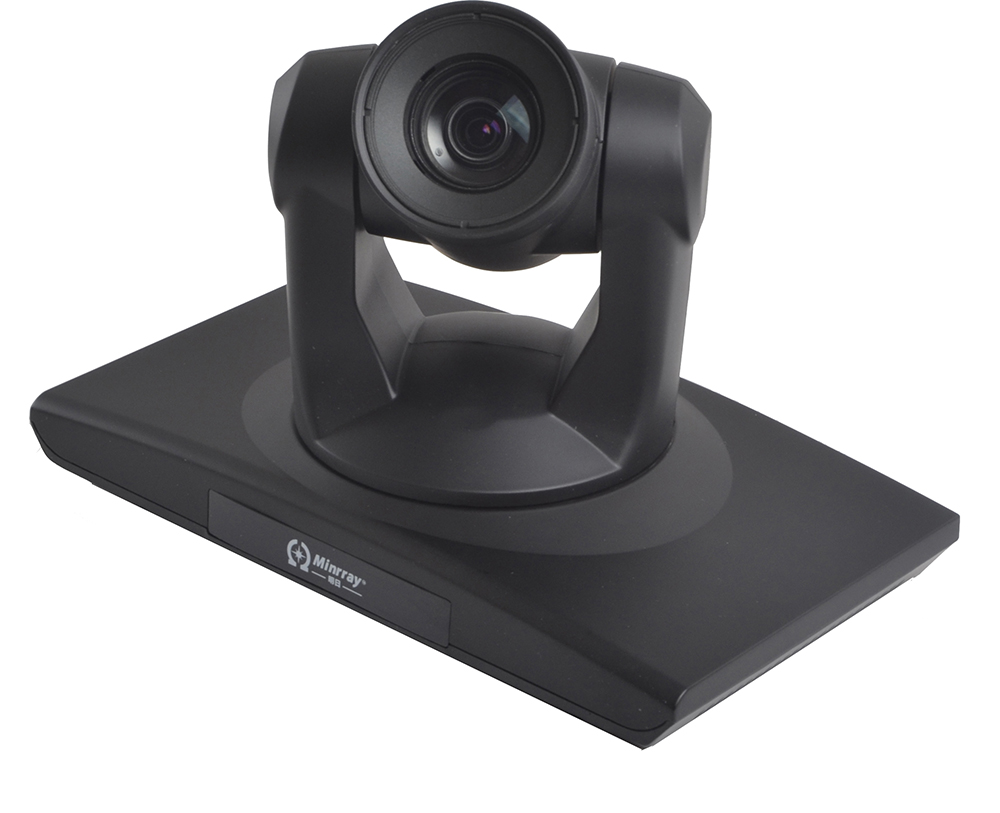

Minrray UV820S-B

HD VTC PTZ Camera, 1080p, 18X Zoom, 3G-SDI/DVI-I, Black
Item #0615-0501 Model #UV820SB
$1,299.00
Price

Features

UV820S-B VIDEO CONFERENCE CAMERA

  • 1/2.8" HD CMOS Sensor, 1920x1080, 50/60 Hz refresh rate
  • DVI-I and 3G-SDI Outputs
  • Supported Output Formats:  1080p60/50/30/25,1080i60/50, 720p60/50/30/25
  • 18× optical zoom
  • 128 Non-Volatile Presets
  • Field of View:  3.8° (far) - 62° (near)
  • RS232 Control Protocols:  VISCA, Pelco-D, Pelco-P, 2400/4800/9600 baud
  • Multiple camera addressing



Specifications

Camera/Lens Parameters
Sensor:  1/2.8" high quality HD CMOS
Pixels: Dynamic image: 16:9, 2,070,000 effective pixels
Static image: 16:9, 2,100,000 effective pixels
Output Video Formats: 1080p60/50/30/25,1080i60/50, 720p60/50/30/25
Zoom: 18x optical zoom, f=4.7---84.6mm
Field of View: 3.8° (far) - 62° (near)
Minimum Illumination: 1.8 Lux
White balance: Auto/Manual
Focus: Auto/Manual
Iris: Auto/Manual
Electronic shutter: Auto/Manual
BLC (Backlighting): Open/Close
S/N: >50dB
Inputs/Outputs
Video Output: DVI-I, 3G-SDI
Control interfaces 8 pin mini DIN
RS232 Format Start bit: 1; Data bit: 8; Stop bit: 1; Baud Rate: 9600/4800/2400
Power HEC3800 power jack
 General Specifications
Rotation: Tilt rotation: -30°~+90°
Pan rotation: ±120°
Manual Control Speed: Pan: 1-80°/sec
Tilt: 1-50°/sec
Preset Control Speed: Pan: 40°/sec
Tilt: 30°/sec
Color: Black
Power Supply Adapter: 110V-220V 50/60 Hz to 12VDC, 2.5A
Input voltage: 11.5-12.5 VDC
Power Consumption: 18W Max
Storage Temperature: -10°C to +60°C
Working Temperature: 0°C to +45°C
Dimensions (W x H x W): 10.4 x 5.7 x 6.7 inches, 265 x 144 x 171 mm
Weight: 4.19 lbs, 1.9 KG
Environment: Indoor
