Panasonic PT-VMZ72BU7

Laser LCD Projector, WUXGA, 7300 Lumens, D:W 1.09-1.77:1, H & V Lens Shift, Black, 3-Year Warranty
Item #0600-1137 Model #PTVMZ72BU7
$3,675.00
Price

Overview

Panasonic PT-VMZ72BU7

WUXGA 3LCD 7,300-Lumen Portable Laser Projector

Introducing the VMZ72BU7, the world's smallest and lightest 7300-lumen projector in its class, delivering crisp, vibrant visuals in well-lit spaces. Part of the PT-VMZ82 series, its high dynamic contrast of 5,000,000:1 defines light and dark areas, enhancing depth and realism.

Weighing just 16.3 lb (7.4 kg), this compact 3LCD projector integrates seamlessly into any space, projecting a 100-inch image from 7.71 ft (2.35 m). Its 1.6x optical zoom, V/H lens shift, and Digital Zoom Extender enhance flexibility and simplify installation. Angle Monitor, Grid function, and Curved Screen Correction streamline setup further.

With a stylish body containing recycled plastic, and engineered for energy-efficient, low-maintenance operation, the VMZ72BU7 is Panasonic's most eco-friendly portable projector yet. Revitalize communication quality in offices, classrooms, and beyond with this 3LCD laser projector.

Features

Clear Projection Tailored to Your Space

  • 7,300 Lumens for Stunning Visuals Under Lights: The VMZ72BU7’s high-efficiency optical engine delivers up to 7,300 lumens1 brightness, ensuring clear, sharp, and vibrant visuals in well-lit spaces. Enhance viewer comfort and communication quality in meetings and classes without dimming the lights or pulling the blinds.

  • High 5,000,000:1 Dynamic Contrast(NEW): Input signals are analyzed frame by frame to regulate light output for best contrast performance in every scene. As well as accurately reproducing pictures that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than other technologies and can be optimized to suit the content or the room’s lighting. The projector’s high 5,000,000:12 contrast ratio provides better detail definition in shadows with deeper blacks, brighter whites, and more natural skin tones for a better sense of depth and definition.

  • Optimized Visuals for Bright Spaces: Daylight View Basic uses a sensor to measure ambient light levels in your room and adjusts sharpness, halftone color, contrast, and brightness to optimize image visibility regardless of room illumination. The result is a clearer, more detailed image, even in challenging conditions.

  • Smooth, Crisp Details at WUXGA Resolution: WUXGA (1920 x 1200) LCD panels improve detail definition for a more comfortable and insightful experience. Text edges are smooth, sharp, and easy to read, even for those seated furthest from the screen.

  • Vivid Green Mode for Lifelike Sports Simulation (NEW): The VMZ82 Series introduces a new Vivid Green Mode that enhances green tones for brighter, more natural-looking images—ideal for golf and other sports simulations. By adjusting signal gain and optimizing color balance, this mode delivers deeper greens and brighter midtones for a more vivid and engaging viewing experience.
  • Supports Widescreen Video Content (NEW): Display widescreen content, such as 21:9 video conferencing layouts, at its original aspect ratio. Remote participants' faces can be aligned at eye level with in-room attendees, improving communication and engagement during meetings or classes. (Note: Resolution may be reduced when projecting widescreen content at its native aspect ratio.)
  • Quiet Operation for Hybrid Lessons and Meetings: The projector’s heat-resistant light source reduces operating noise, enhancing the clarity of conversations during in-person or hybrid lessons and meetings. In Quiet 2 Mode, operating noise is as low as 27 dB—about as soft as the sound of rustling leaves.
  • Stylish Design Blends Into Your Room: The PT-VMZ72BU7 is a black projector that features a compact form that harmonizes unobtrusively into any environment. Whether installed in an office, classroom, or museum, the projector minimizes distractions, keeping the focus on your presentation.

Stress-Free Installation Flexibility

  • Installation Streamlined with 1.6x Zoom and Lens Shift: Maximize your screen area in rooms of any shape or size. The VMZ82 Series can project a 100-inch image from 2.35 m (7.71 ft) and delivers bright, vibrant visuals on screens up to 300 inches. Its 1.6x optical zoom (throw ratio: 1.09–1.77:1) offers flexibility in mounting, making it easier to work around ceiling obstructions or adjust the image to fit the screen from an existing mount. Combined with lens shift (V: +44%, H: ±20%), it supports off-axis and high mounting positions while maintaining accurate image geometry.
  • Digital Zoom Extender and Digital Image Shift3: Digital Zoom Extender increases the projector’s throw distance beyond its optical zoom range, making it possible to reuse your existing ceiling mount or install the projector farther from the screen, saving construction work. Digital Image Shift allows the image to move up to 10% in any direction for off-axis or high-ceiling installations.
  • Quickly Find the Projection Angle with Angle Monitor (NEW): Aligning the projection angle with the design simulation can be challenging and usually requires two people. The VMZ82 Series features a built-in gyro sensor that detects changes in the projector’s pitch and roll angles, which are graphically displayed in the OSD menu4. Installers can adjust the projection angle without needing assistance.
  • Upgraded Screen Adjustment with New GUI (NEW): The VMZ82 Series introduces an upgraded Screen Adjustment suite with an intuitive new Graphical User Interface (GUI). Designed to simplify setup in various spaces—including curved screens—the GUI streamlines adjustments via remote control without the need for a connected PC, making installation faster, easier, and more flexible than ever.
  • Precise Line Adjustment via Grid Function (NEW): Grid function enables correction of minor distortion by adjusting horizontal or vertical lines on a fixed 11 x 17 grid. Correction is easily performed via remote control.
  • Enhanced Curved Screen Correction (NEW): Curved Correction now allows each side of the image to be adjusted independently—unlike previous models, where opposite sides moved in tandem. This added flexibility supports more accurate correction on curved surfaces, ideal for sports simulators, museum exhibits, and corporate displays.

  • 6-Point Screen Adjustment System for Corner Projection: For corner-based or column projections, the 6-Point Screen Adjustment system enables fine-tuned control over image geometry. It’s ideal for maximizing screen use in compact meeting spaces or creating striking visual installations in galleries and showrooms.

  • Independent 4-Corner Adjustment: Correct trapezoidal distortion from off-center or angled projector placement. 4-Corner Adjustment lets users independently control each image corner via remote control. Settings can be saved and reapplied, streamlining setup across multiple rooms or sessions.

  • Maintain Aspect Ratio for Natural Scaling: Maintain Aspect Ratio preserves the image’s proportions during adjustment, preventing warping or stretching. It ensures content looks natural while still allowing for edge-to-edge alignment, providing a clean, professional finish in any space.

  • Single-Cable 4K DIGITAL LINK Solution: 4K DIGITAL LINK is a connection based on HDBaseT™ that supports long-distance video, audio, and control-signal transmission via a single CAT 5e LAN cable, reducing installation complexity in schools, offices, and entertainment spaces.5

  • Accepts 4K Signals via HDMI™ and DIGITAL LINK: The VMZ82 Series accepts 4K5 video signals via DIGITAL LINK and HDMI™ terminals, simplifying projector integration into your existing infrastructure. This capability enables 4K5 signal transmission to display endpoints with varying screen resolutions, eliminating the need for external converters or content re-encoding.

  • Supports Next-Generation Control Protocols (NEW): Dedicated LAN terminal and DIGITAL LINK connections support the latest protocols, including IPv6, Art-Net DMX, PJLink™ (Class 2), Crestron Connected® V2, Crestron® XiO Cloud, and Extron XTP®. The projector also includes an emulation function to ensure compatibility with legacy management software. (Note: The optional AJ-WM50 Series Wireless Module does not support IPv6.)

  • Data Cloning Function via LAN or USB Memory Devices (NEW): It can be time-consuming to adjust the same settings on each projector in your fleet. To expedite this task, the VMZ82 Series features a data cloning function6 that allows main projector settings, including saved adjustment data, to be copied to sub-projectors via LAN or USB device.

  • CEC Command-Compatible HDMI™ Makes Life Easy: Both the projector’s HDMI™ inputs are compatible with CEC commands7, enabling use with fewer remote controllers. The projector will automatically switch on, play your content, and switch off when it detects these commands from a compatible source device.

  • Project Wirelessly from Your Smartphone or Laptop: Share content wirelessly8 from your laptop or smartphone. Just scan the QR code shown in the on-screen display menu using your smartphone’s camera, and your device will connect to the projector automatically over wireless LAN, with no SSID or passwords required. Use free Panasonic wireless apps9 to beam your media to the big screen.

  • Share Seamlessly with PressIT: Share your device screen wirelessly and switch presenters freely. PressIT10, Panasonic’s optional Wireless Presentation System, supports screen-sharing at the press of a button. PressIT comprises transmitters connected to your devices11 and a receiver connected to the projector. For neat installation, power is supplied via the projector’s DC 5 V/2 A USB port.

Efficient and Eco-Conscious Design

  • Our Most Efficient Portable Projector (NEW): The PT-VMZ82 Series is 27%12 more energy efficient than the current VMZ71 Series, generating an impressive 21.2 lumens of light per watt of energy consumed in NORMAL mode. Enjoy significant energy savings and reduce the carbon footprint of every unit in your fleet.
  • Features Eco-Friendly Recycled Materials (NEW): The VMZ82 Series is designed with sustainability in mind. The plastic used in the projector’s main body contains approximately 59%13 recycled resin to reduce reliance on virgin plastics. Recyclable cardboard insulation replaces foam in the shipping carton, and unnecessary packaging has been eliminated to cut waste. These efforts support eco-conscious manufacturing and help your organization reduce its footprint throughout the projector’s lifecycle.
  • No Light-Source Maintenance for 20,000 Hours: The VMZ82 Series offers more than consistent, long-lasting picture quality. Its laser light source operates for about 20,000 hours14 without maintenance, outperforming lamp projectors that may require several lamp replacements over the same period. This reduces operating costs and eliminates mercury lamp disposal.
  • Long-Life ECO Filter Reduces Downtime: ECO Filter includes a Micro-Cut Filter that collects minute dust particles with an electrostatic effect. With the dust-resistant projector cabinet design, ECO Filter enables low maintenance and long-term use with less downtime. Filter replacement is recommended at about 20,000 hours15 when used in typical commercial environments. If it’s necessary to maintain the filter before then, it can be washed and reused16, reducing cost and waste.
  • Auto Power On: Save Power, Streamline Operation (NEW): The VMZ82 Series features an Auto Power On function17 that automatically turns the projector on from standby and begins projection when an input signal is detected. This allows presenters to turn off the projector between sessions without worrying about delays, streamlining daily use and reducing unnecessary energy consumption.
  • Image Detection: Smart Power Savings (NEW): A new Image Detection function18  helps reduce power consumption during inactivity. If no change is detected in the projected image for a set time, the projector can automatically dim the light output by 50% or turn off the light source. The timer is adjustable, and brightness returns seamlessly when activity resumes1, reducing energy waste without interrupting the experience.
  • Start Work Faster with Quick On: The VMZ82 Series includes a Quick Startup mode. When enabled, the projector displays your content at full brightness in about one second19 when started from standby—no fade-in delay as with lamp-based models. This helps you resume presentations quickly, minimizing distractions. Additionally, Direct Power Off20 lets you shut down the projector using the room breaker or by unplugging the power cord—no cooldown required.
  • Effortless Automation with Built-In Scheduling (NEW): The VMZ82 Series introduces a new scheduling feature accessed via the OSD settings menu. You can program the projector to perform automated actions, including power on/off, shutter activation, and input selection, at specific times throughout the week. This functionality streamlines operations, reduces manual labor, and optimizes resource management.
  • Works with Multi Monitoring & Control Software: The VMZ82 Series is compatible with Multi Monitoring & Control Software, which enables management of up to 2,048 display devices from a remote PC over LAN. The software facilitates status monitoring, device control, playlist delivery, playback scheduling, and system map visualization.

Additional Features

  • Shutter function and Auto Image Rotation function
  • Audible remote control feedback for projector on/off
  • Security slot and customizable startup logo
  • USB port for DC 5 V/2 A power supply, data transfer, firmware updates, and optional wireless module
  • Lens Block detection reduces light output when lens is obstructed to prevent damage
  • Compatible with the Multiple PJ Firmware Batch Update Tool
  • Presentation Support System
  • Multi-Screen Support System
  • Multi-Unit Brightness and Color Control
  • DICOM Simulation Mode
  • ECO Management System

Notes

Measured when [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and notation method comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

Resolution decreases when using Digital Zoom Extender and Digital Image Shift. When using Digital Zoom Extender, the image reduction rate can be adjusted up to 80%. If set below 100%, the image position can be shifted vertically or horizontally using Digital Image Shift. Some screen correction functions are unavailable when using this function, and the range of corner adjustment is limited. Using the same projector mount may not be possible in every situation.

The displayed values are based on the results of angle sensor detection and may differ from the actual projection angle. They are for reference only, and accuracy is not guaranteed.

4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/30p input via DIGITAL LINK.

Supported on identical models only. Excludes passwords, projector name/ID, time, date, time zone, and network settings. Data can be copied to a maximum of 99 sub-projectors via LAN.

Depending on the connected CEC command-compatible device, the link control may not operate normally.

QR Code connection to wireless LAN requires the optional AJ-WM50 Series Wireless Module (sold separately). Product availability may vary by country or region.

Free software is available for Windows® PC. Wireless Projector app is available from the App Store or the Google Play store. Please check the compatibility of your device before installation.

10 Wireless Presentation System PressIT is sold separately. Availability may vary by country or region.

11 USB Type-C terminal of the video output device requires support for DisplayPort™ ALT Mode (video output function) and power supply function (5 V/0.9 A). PressIT app (available free from the App Store or the Google Play store) is required when using Android™ or iOS/iPadOS devices. For more details, please refer to the operating manual.

12 PT-VMZ72 (21.2 lm/W) compared to the PT-VMZ71 (16.7 lm/W) in [NORMAL] mode, according to Panasonic research.

13 By total weight of plastic parts in the projector main unit. Excludes projection lenses, printed circuit boards, labels, cables, connectors, electronic components, optical components, ESD components, EMI component adhesives, and coatings.

 14 Around this time, the light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C [86 °F], elevation 700 m [2,297 ft] with 0.15 mg/m3 of particulate matter). The estimated time until light output declines to 50 % varies depending on the environment. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3). The filter cleaning cycle varies depending on the environment.

 15 Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3).

 16 Filter can be washed and reused up to two times. When washing the filter with water, please follow the procedures listed in the operating instructions.

 17 Settings cannot be made when [STANDBY MODE] is set to [ECO] or when [IN STANDBY MODE] is set to [ON] in the [AUDIO SETTINGS] menu. Auto Power On is supported when the input signal is transmitted via HDMI™ or COMPUTER IN terminals.

 18 If the projector enters standby while in Image Detection power-saving mode, resumption time may vary depending on standby settings and input source. Settings cannot be made when [DYNAMIC CONTRAST] is set to anything other than [OFF], [ECO MANAGEMENT] → [AUTO POWER SAVE] is set to [OFF], [ECO MANAGEMENT] → [LIGHT POWER] is set to anything other than [NORMAL], a [TEST PATTERN] is displayed, or there is no signal. Image Detection function is supported when the input signal is transmitted via HDMI™ or COMPUTER IN terminals.

 19 When [ECO MANAGEMENT] > [QUICK STARTUP] is set to [ON]. [QUICK STARTUP] is unavailable after the [AVAILABLE PERIOD] setting has expired. When [QUICK STARTUP] is set to [ON], the projector continues to warm up, increasing power consumption. When [QUICK STARTUP] is set to [ON], the standby period when the [QUICK STARTUP] function is valid will be added as the projector runtime. [QUICK STARTUP] cannot be set when [STANDBY MODE] is set to [ECO]. Time varies depending on connection terminals, signals, and other conditions.

 20 Settings made just before power is disconnected may not be retained on the next startup.

Specifications

Projector type LCD projector
LCD panel
    Panel size 0.64 in (16.3 mm) diagonal (16:10 aspect ratio)
    Display system Transparent LCD panel (× 3, R/G/B)
    Pixels 2,304,000 (1920 × 1200) pixels x 3
Light source Laser diodes
Light output1 7,300 lm2 / 7,300 lm (ANSI)3
Time until light output declines to 50%4 20,000 hours (NORMAL/QUIET) / 24,000 hours (ECO)
Resolution WUXGA (1920 × 1200 pixels)
Contrast ratio2 5,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal) 0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio2 85%
Lens 1.6x manual zoom (throw ratio: 1.09–1.77:1)
Manual focus lens, F=1.58–1.91, f=15.30‒24.60 mm
Digital Zoom Extender5 Throw Ratio 1.09–2.21:16 (Corresponding value. When used together with optical zoom.)
Lens shift (from the origin point of the lens mounter) Vertical +44%, Horizontal ±20%
Keystone correction range Vertical: ±25°, Horizontal: ±35°

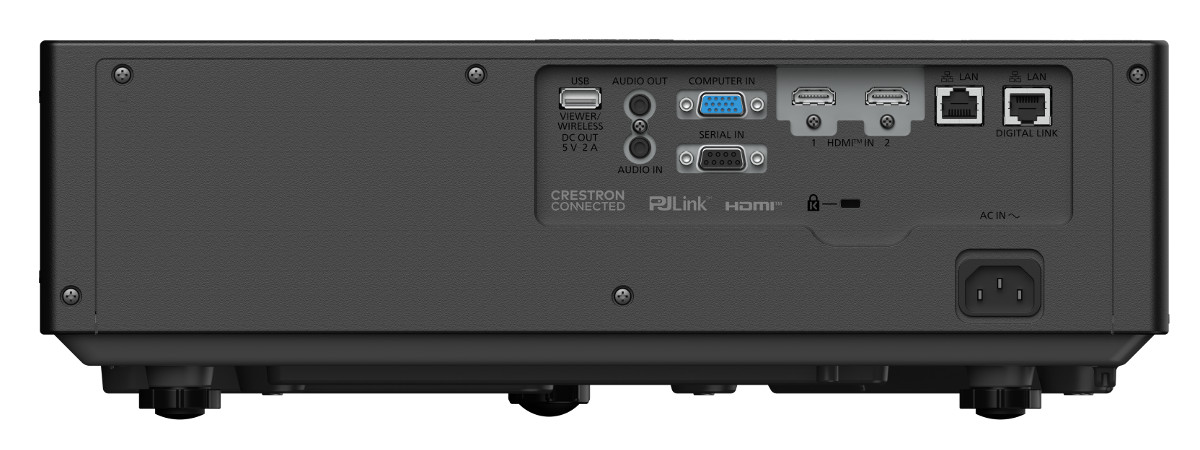

Terminals
    HDMI™ 1/2 IN HDMI™ 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p7 signal input), CEC supported8
    COMPUTER IN D-sub 15-pin (female) (RGB/YPBPR/YCBCR)
    AUDIO IN M3 stereo mini-jack x 1
    AUDIO OUT M3 stereo mini-jack × 1
    SERIAL IN D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
    LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]
    DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/30p7 signal input)
    USB (VIEWER/WIRELESS/
DC OUT)
USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A9)
Protocol versions IPv4, IPv610
Power supply AC 100–240 V, 50/60 Hz
Power consumption11
   Maximum power consumption 345 W (3.6 A) (350 VA)
(Power consumption is 335 W at 200–240 V)
   On-mode power consumption (Operating mode)
[NORMAL] 310 W (100–240 V), 295 W (200–240 V)
[ECO]       235 W (100–240 V), 225 W (200–240 V)
[QUIET 1] 270 W (100–240 V), 260 W (200–240 V)
[QUIET 2] 230 W (100–240 V), 220 W (200–240 V)
Built-in speaker 10 W monaural
Cabinet materials Molded plastic
Filter12 Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise2 37 dB (NORMAL/ECO), 32 dB (QUIET 1), 27 dB (QUIET 2)
Dimensions
(W × H × D)
15 23/32" × 4 17/32" × 13 11/16" (399 mm × 115 mm × 348 mm ) not including protruding parts
15 23/32" × 5 1/4" × 13 11/16" (399 mm × 133 mm × 348 mm) with feet at shortest position
Weight13 Approx. 15.4 lb (7.0 kg)
Operating environment Operating temperature: 32–113 °F (0–45 °C)14, 15
Operating humidity: 20–80% (no condensation)
Applicable software Multi Monitoring & Control Software, Projector Network Setup Software, Presenter Light Software for Windows®16Wireless Projector App for iOS/Android™17

Notes:

1 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL].

2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

3 Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.

4 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2]). Estimated time until light output declines to 50 % varies depending on environment.

5 Resolution decreases when using Digital Zoom Extender. Grid Adjustment, 6-Point Screen Correction, V/H Keystone Correction, and curved-screen correction are not available when using this function. The range of corner adjustment is limited.

6 When Digital Zoom Extender is set to 80 %.

7 4K signals are converted to the projector's resolution upon projection.

8 Depending on the connected CEC command compatible device, the link control may not operate normally.

9 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready.

10 The optional AJ-WM50 Series Wireless Module does not support IPv6.

11 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).

12 Filter cleaning cycle varies depending on the environment. The filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3),
10,000 hours (under dust conditions of 0.15 mg/m3).

13 Average value. May differ depending on the actual unit.

14 Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level.

15 When the optional AJ-WM50 Series Wireless Module is attached, the operating temperature range becomes 0–40 °C (32–104 °F).

16 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy while images and sound are being transmitted.

17 When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800).

Accessories

Optional Lenses

These lenses install by removing the top cover and 4 screws that hold the standard lens on and then installing a new lens mount.  Add $60 to have the lens mount pre-installed.

Model WD450 WE230 WB210
Zhen Optics WD450 lens Zhen Optics WE230 lens Zhen Optics WB210 lens
D:W
(0.64" WUXGA)
0:38:1 0.52–0.64:1 0.78:1
f/stop 2.1 2.12.2 2.2



Other Accessories

RSMA-U Chief mount Ceiling mounts
ET-RFV500 Filter Replacement filter (ET-RFV500)
AJ-WM50P Wireless Module Wireless module (AJ-WM50P)  $245.00
