Epson L520W

Laser LCD Projector, WXGA, 5200 Lumens, 3-Year Warranty
Part #: 0600-4280    Mfr #: V11HA31020

Epson L520W

Overview

Epson PowerLite L520W

WXGA Laser Projector

Bring bright, easy-to-read displays to meeting rooms, lecture halls and more

Share bright, easy-to-read displays for meetings, lectures and more with the PowerLite L520W long-throw laser projector. Offering an incredible 5,200 lumens of brightness, the PowerLite L520W delivers large, colorful, widescreen images using advanced 3LCD technology.

Ideal for business, education and beyond, this versatile projector displays up to 280" and provides an array of features for engaging, impactful presentations, including split screen capability for side-by-side viewing, and easy wireless sharing from laptops and smart devices.

A convenient, easy-to-use solution, the PowerLite L520W features a virtually maintenance-free 20,000-hour laser light source, plus 360-degree flexibility and HDBaseT™ for fast, simple installation.

Key Features:

  • Up to 5,200 lumens of equal Color and White Brightness
  • Native WXGA resolution and 16:10 performance
  • Virtually maintenance-free 20,000-hour laser light source
  • Up to 280" screen size with split screen capability
  • Built-in tools for simplified installation

(Model: V11HA31020)

Features

  • 3-chip 3LCD image quality: With up to 5,200 lumens of equal Color and White Brightness1 for vibrant, rich color
  • Bright widescreen images: With native WXGA resolution and 16:10 performance
  • Breakthrough laser technology: Features a virtually maintenance-free 20,000-hour laser light source4
  • Flexible projection: Up to 280" screen size with split screen capability2 for side-by-side viewing
  • Simplified installation: 360-degree flexibility, 1.6x optical zoom, e-zoom, horizontal and vertical keystone, Quick Corner® and more
  • Optional wireless networking: Display from PC, Mac®, Chromebook™, iPhone®, iPad® and Android™ mobile devices3
  • Variety of connectivity options: HDBaseT, HDMI®, VGA, RJ-45, RS-232 and control management tools
  • Remarkable sharpness and detail: with up to 2,500,000:1 dynamic contrast ratio
  • Custom brightness and constant brightness modes: to maximize light source life and provide a consistent brightness level
  • Remote management and control tools: for easy installation and operation



Eco Features

  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWay® Transport Partner6

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 Split Screen feature requires remote control. Consult your user manual for input combinations.
3 For wireless functionality, including via the Epson iProjection™ App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
4 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment.
5 For convenient and reasonable recycling options, visit www.epson.com/recycle.
6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: RGB Liquid Crystal Shutter Projection System
Projection Method: Front/rear/ceiling mount
LCD Screen: 0.59-inch (C2fine)
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 1,024,000 dots (1280 x 800) x 3
Native Resolution: 1280 x 800 (WXGA)
Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Aspect Ratio: Supports 16:10
Pixel Arrangement: Cross stripe
Color Brightness1 - Color Light Output: 5,200 lumens
White Brightness1 - White Light Output: 5,200 lumens
Contrast Ratio: 2,500,000:1
Brightness Uniformity (typical): 86%
Color Reproduction: Up to 1.07 billion colors
Size (projected distance): 29"  280"
Projected Distance 60" screen 1.79 - 2.92 m
Keystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degrees
Illumination Technology: Laser Diode
Light Source Life2: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours

Projection Lens:

Type: Optical Zoom (Manual) / Focus (Manual)
F-number: 1.5 – 2.0
Focal Length: 18.2 – 29.2 mm
Zoom Ratio: Optical zoom 1 – 1.6x
Throw Ratio Range: 1.38 – 2.24
Lens Cover: Lens cap (without string)

Wireless Specifications (Optional):

Module sold separately.

Frequency Type (Modulations): 802.11b/g/n (2.4 GHz)
Supported Security Type: Quick Mode: OPEN, WPA2-PSK
Advanced Mode: WPA/WPA2-PSK, WPA/WPA2-EAP

Other Features

Operating Temperature: 32° to 113°F (0° to 45°C)
Fan Noise: 31 dB (Normal Mode); max. 23 dB (ECO Mode)
Security: Security cable hole, lens lock, Kensington lock provision
A/V Mute: Yes
Speaker(s): 10 W (mono)
Screen Mirroring: No
Split Screen: Yes
Content Playback: No
Quick Corner: No
Arc Correction: No

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
Power Consumption: 301 W (Normal Mode)
232 W (Quiet and Extended)
2.0 W Standby (Communication on)
0.4 W Standby (Communication off)

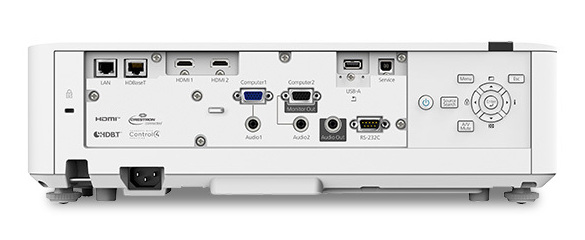

Interfaces:

  • HDMI x 2
  • VGA x 2
  • Monitor Out: Mini D-Sub 15 pin x 1
  • HDBaseT x 1
  • Audio in: Mini Stereo x 2
  • Variable audio out: Mini Stereo x 1
  • USB connector Type-B x 1
  • USB connector Type-A x 1
  • Serial: RS-232c x 1
  • Wired LAN RJ-45 x 1
  • Wireless LAN  Optional Accessory

Effective Scanning Frequency Range:

Pixel Clock: Analog: 13.5–162 MHz (up to UXGA 60 Hz)
Digital: 13.5162 MHz (up to UXGA 60 Hz)
Horizontal: Analog: 15–92 kHz
Digital: 15–75 kHz
Vertical: Analog: 50–85 Hz
Digital: 24/30/50/60 Hz

Dimensions (W x D x H):

Including feet: 17.32" x 12.59" x 5.35" (440 x 320 x 136 mm)
Excluding feet: 17.32" x 11.97" x 4.80" (440 x 304 x 122 mm)
Weight: 16.1 lb (7.3 kg)

Remote Control:

Features: Power, source search selection, test pattern selection, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
Operating Distance: 26 ft (7.9 m)
Operating Angle: Front: Right/Left: ±60 degrees; Upper/Lower: +30 to -20 degrees
Rear: Right/Left: ±30 degrees; Upper/Lower: +50 to +10 degrees



What's in the box

  • PowerLite L520W Projector
  • Power Cable
  • Computer Cable (HDMI)
  • Projector Remote Control with Batteries
  • Quick Setup Sheet
  • Cable Cover

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment.
