Epson PowerLite U50

LCD Projector, WUXGA, 3700 Lumens, 10K-Hour Lamp, 2 year warranty
Item #0600-4296 Model #V11H952020

Overview

Epson PowerLite U50

WUXGA 3LCD Wireless Projector

Bring brilliant widescreen images and easy collaboration to any classroom with the ultra bright PowerLite U50 wireless projector. Featuring Epson® 3LCD technology, 3,700 lumens of color/white brightness, plus WUXGA resolution, the U50 shines bright, even in well-lit rooms.

Its long-life lamp lasts up to 10,000 hours in Normal Mode. Combined with its up-to-10,000-hour filter cycle, this means it’s virtually maintenance free. And, it offers integrated wireless networking with enterprise-level security. Teachers can wirelessly share content simultaneously from multiple devices, including Chromebooks, iOS® and Android™ devices.

(Model: V11H952020)

Features

  • Ultra bright, vivid color: 3,700 lumens color/white brightness2; advanced 3-chip, 3CLD technology
  • Amazing, widescreen images: native WUXGA resolution (1920 x 1200)
  • Ultra-long-life lamp: up to a 10,000-hour lamp life in Normal Mode; up to 17,000 hours in ECO Mode1
  • Easy maintenance and remarkable dust resistance: up to 10,000-hour filter cycle (20,000 hours in ECO Mode)3
  • Easy classroom collaboration: integrated wireless networking with enterprise-level security
  • Wireless sharing with Epson iProjection™4: connect up to 50 devices, including Chromebook™, iOS, Android, Mac® and PC screens; simultaneously display content from up to four devices4
  • Remote management and control tools: compatible with Crestron®, AMX®, PJLink and more
  • Simple setup and positioning flexibility: 1.2x optical zoom, ±30 degrees horizontal and vertical keystone correction
  • Versatile connectivity: 2x HDMI® supports multiple high-definition A/V devices
  • Powerful sound to engage every student: built-in 5 W speaker

Eco Features

  • RoHS compliant
  • Recyclable product5
  • Epson America, Inc. is a SmartWaySM Transport Partner6
Notes:

1 10,000 hours is the estimated lamp life when used in Normal Mode. 16,000 hours is the estimated lamp life when used in ECO Mode. Actual lamp life will vary depending on mode selected, environment conditions and usage. Lamp brightness decreases over time. The lamp comes with a 90-day limited warranty.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 10,000 hours is the estimated life of the air filter when the projector is used in Normal Mode in an ordinary environment. Actual hours may vary depending on mode and usage environment.

4 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

5 For convenient and reasonable recycling options, visit www.epson.com/recycle

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: 3LCD, 3-chip technology
Projection Method: Front/rear/wall mount
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 2,304,000 dots (1920 x 1200) x 3
Native Resolution: 1920 x 1200 (WUXGA)
Aspect Ratio: 16:10
Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Color Brightness1 - Color Light Output: 3,700 lumens
White Brightness1 - White Light Output: 3,700 lumens
Contrast Ratio: Up to 16,000:1 (Auto Iris on)
Color Reproduction: Up to 1.07 billion colors
Size (projected distance): 30" – 300" (0.87 – 9.02 m) (Zoom: Wide)
Keystone Correction Horizontal: ± 30 degrees
Vertical: ± 30 degrees
Lamp Type 200 W UHE
Lamp Life: Up to 10,000 hours (Normal Mode)
Up to 17,000 hours (ECO Mode)1
USB Plug 'n Play: Projector is compatible with PC and Mac computers

Projection Lens:

Type: Type Optical Zoom (Manual)/Focus (Manual)
F-number: 1.50 – 1.71
Focal Length: 20.42 – 24.50 mm
Zoom Ratio: 1 – 1.2
Throw Ratio Range: 1.38 (Zoom: Wide) – 1.68 (Zoom: Tele)

Wireless Specifications:

Supported Security Mode: Quick Mode: OPEN, WPA2-PSK Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Supported Speeds: IEEE 802.11g (2.4 GHz): 54 Mbps*
IEEE 802.11n (2.4 GHz): 130 Mbps*
IEEE 802.11b (2.4 GHz): 11 Mbps*
*These modes and actual data throughputs depend on the supported wireless mode of the source devices and/or environment.

Other Features

Operating Temperature: 0 – 7,500 ft elevation: 41 °F to 104 °F (5 °C to 40 °C)
Over – 7,500 ft elevation: 41 °F to 95 °F (5 °C to 35 °C)
Input Signal: Auto, RGB and Component
Security: Kensington-style lock provision
Speaker: 5 W (mono)

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz
Power Consumption: 298 W (Normal Mode)
226 W (ECO Mode)
2.0 W Standby (Communication On)
0.3 W Standby (Communication Off)

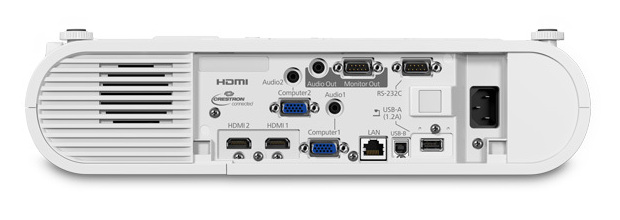

Interfaces:

  • 2x HDMI (1x MHL)
  • Computer: 2x D-sub 15-pin
  • Audio-in: 2x Mini Stereo
  • Network: 1x RJ-45
  • Mbps Serial: 1x RS-232c
  • Monitor Out: 1x D-sub 15-pin
  • USB (Type A)
  • USB (Type B)
  • Audio-out: 1x Mini Stereo

Dimensions (W x D x H):

Including feet: 14.3" x 9.7" x 3.7"
Excluding feet: 14.3" x 9.7" x 3.4"
Weight: 6.83 lb (3.1 kg)

Remote Control:

Features: Brightness, Contrast, Tint, Saturation, Sharpness, Input Signal, Sync, Tracking, Position, Color Temperature, Volume, Split Screen2
Operating Distance: Front/rear: 22.96 ft (7 m)
Operating Angle: Right/left: ± 30 degrees
Upper/lower: ± 30 degrees



Warranty:

2-year projector limited warranty and 90-day lamp limited warranty



What's In The Box:

  • PowerLite U50 projector
  • remote control
  • batteries
  • power cable
  • computer cable (VGA)
  • warranty card
  • Quick Setup Sheet
Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Split Screen feature requires remote control. Consult your user manual for input combinations.
