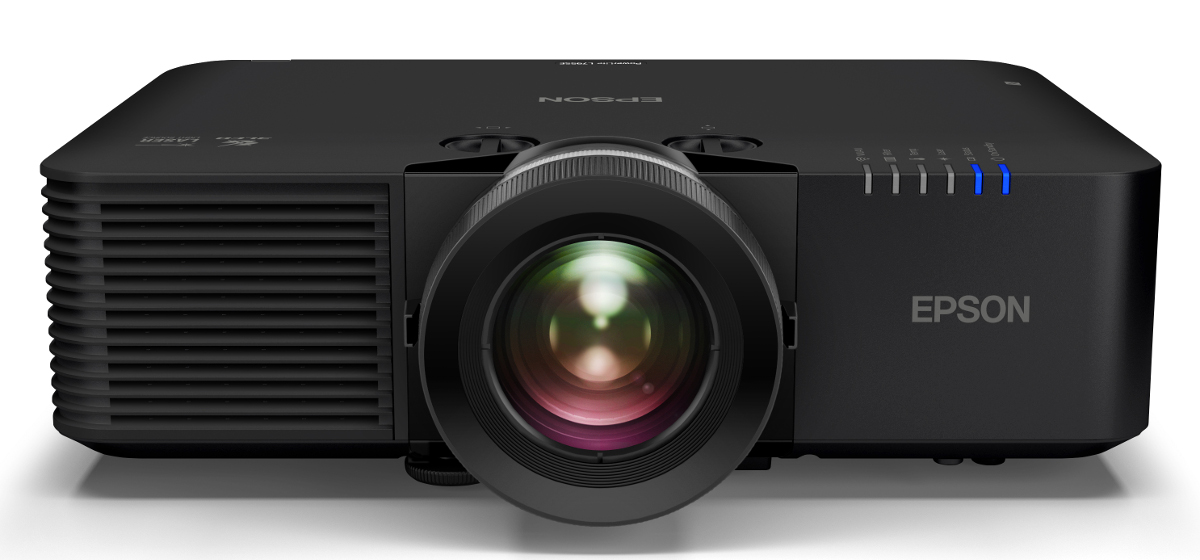

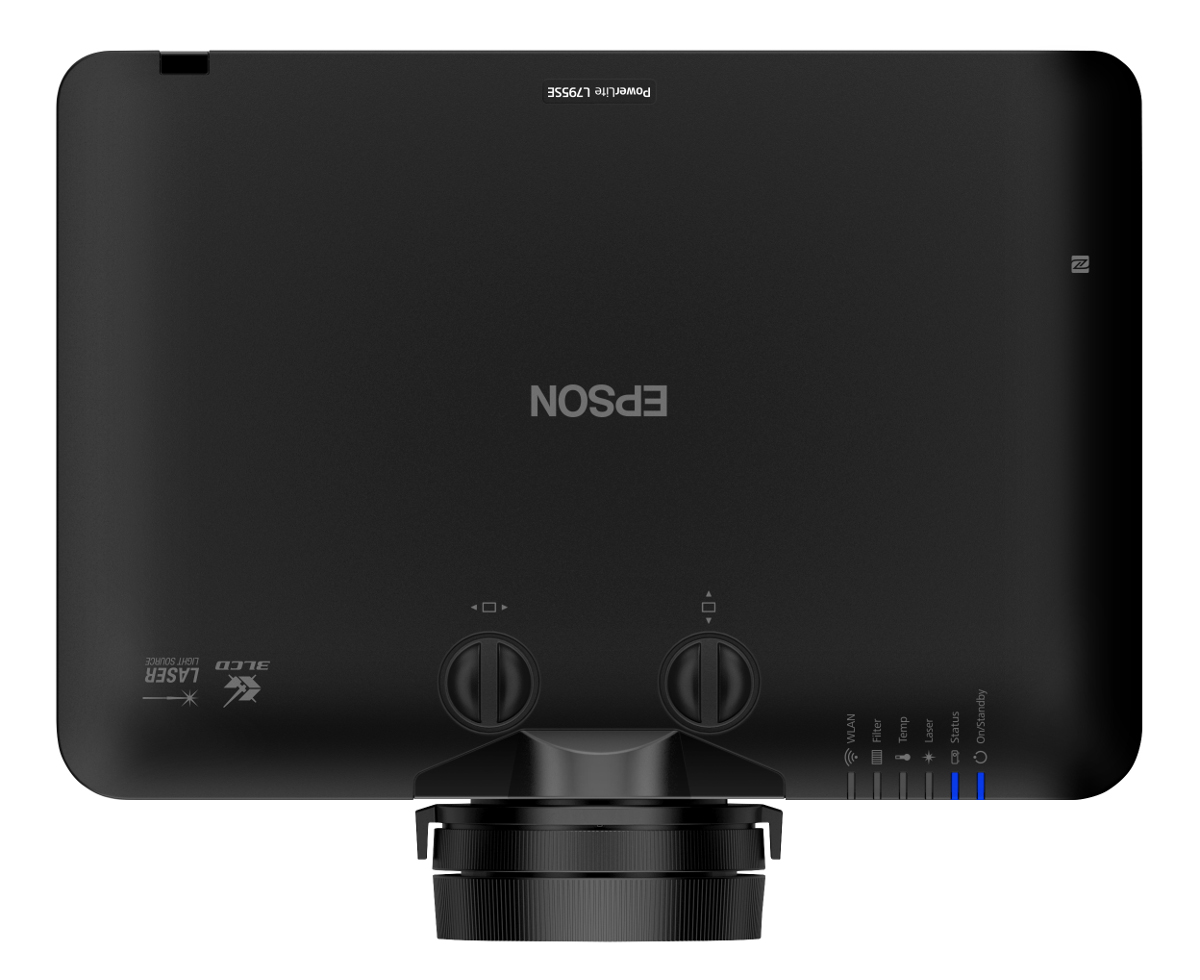

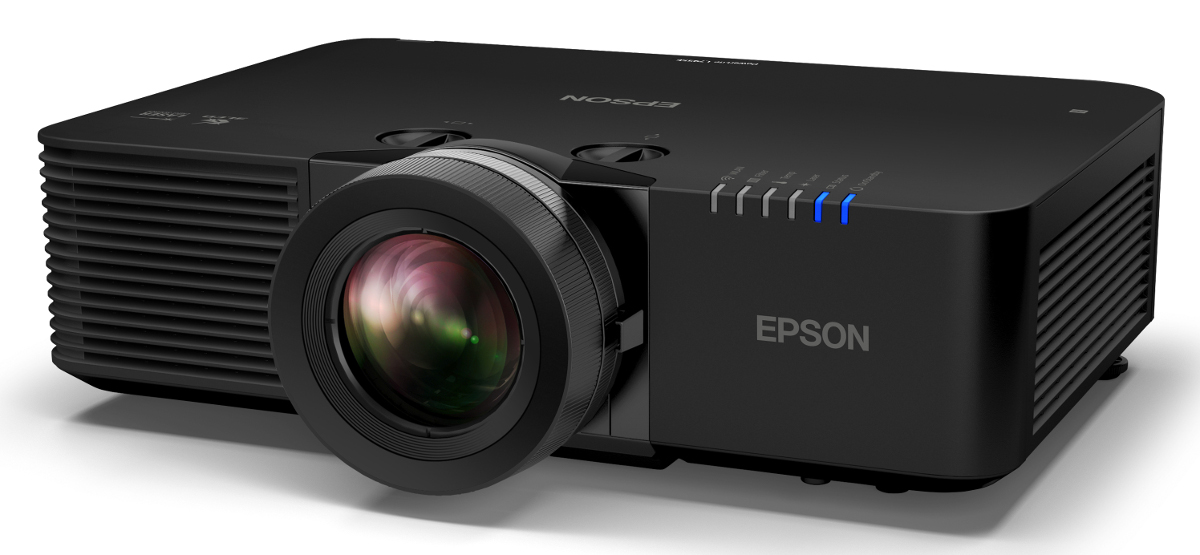

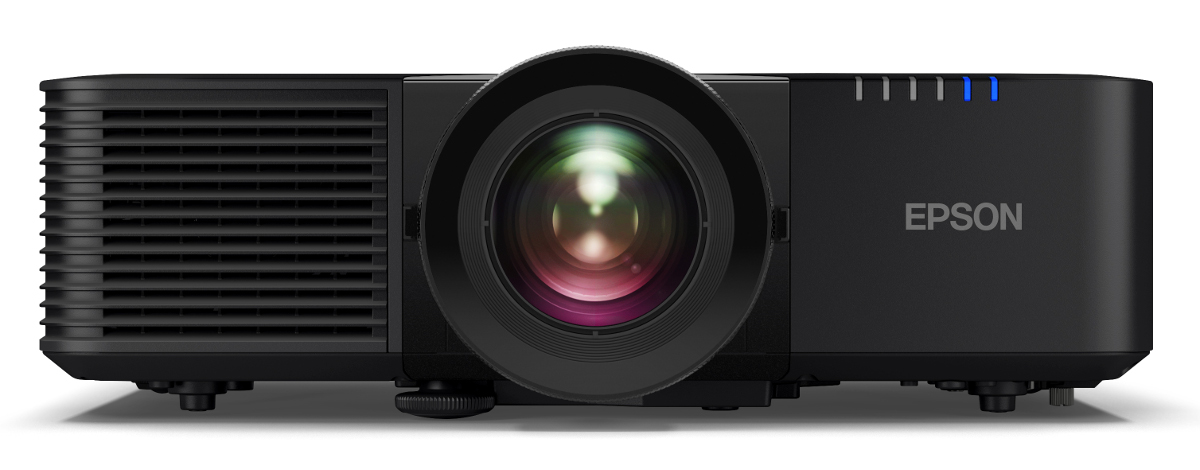

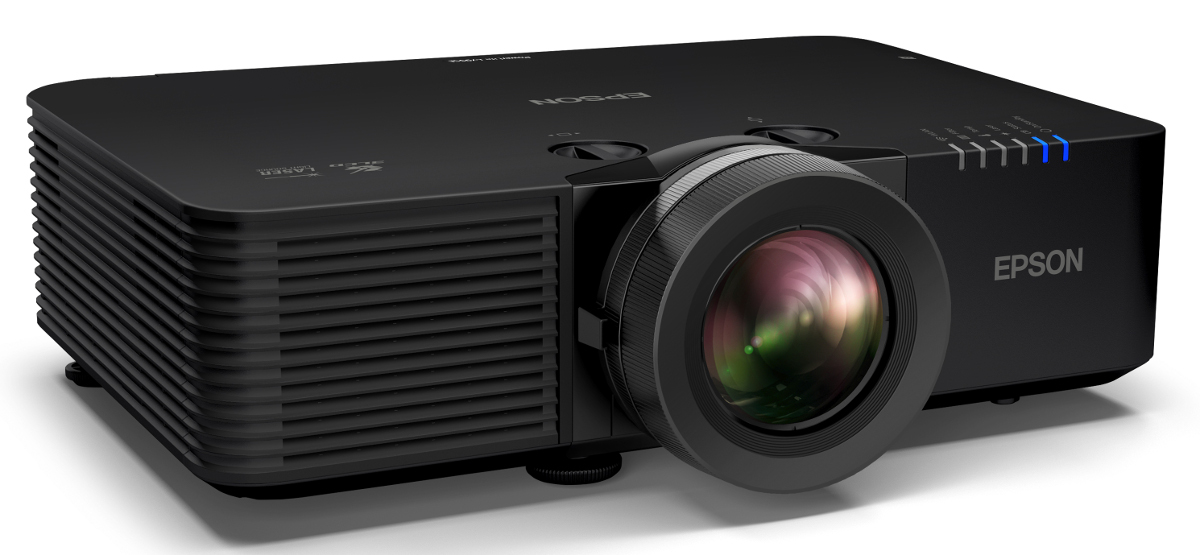

Epson L795SE

Laser LCD Projector, WUXGA with 4K Enhancement, 7000 Lumens, D:W 0.8-1.36, Black, 3-Year Warranty
Item #0600-4318 Model #V11HB26120

Overview

Epson L795SE

Ultra Bright 7,000-Lumen Short-Throw 3LCD Laser Projector with 4K Enhancement

Experience the extraordinary versatility and performance of our bright and compact PowerLite® L-Series.

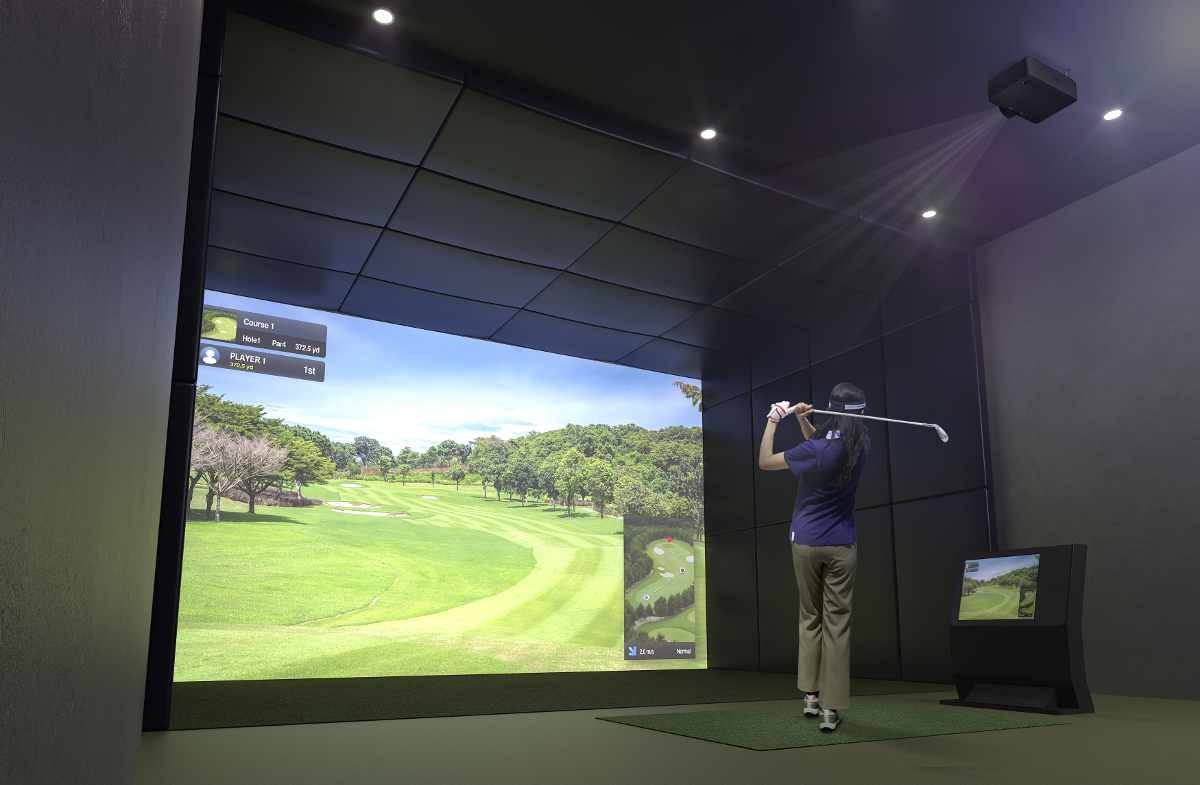

Expanding on the possibilities of this powerful projector lineup, the high-lumen Epson PowerLite L795SE features an expansive 0.8–1.36 throw ratio and a large display up to 400''. With wide vertical and horizontal lens shifts and 1.7x optical zoom, this projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more.

Deliver ultra bright images in rooms with high-ambient light with 7,000 lumens of equal color and white brightness. The L795SE also features 4K Enhancement Technology, which displays double HD resolution on-screen for a visibly sharper, more detailed picture.

The PowerLite L795SE is simple to install and easy to operate. Built-in NFC functionality, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, this 3LCD laser projector comes in a sleek black case and features an up-to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode.

The compact L795SE is built for modern connectivity with fast wireless functionality for screen casting and PC-less remote management and control via the Epson Projector Management Connected app. In addition, the optional attachable PixAlign™ camera simplifies complex multi-projector applications.

Note: The L795SE is a black model. See the L790SE for the white version.

Features

  • Ultra bright, true-to-life images: 3-chip 3LCD technology and 7,000 lumens of equal color and white brightness.1
  • WUXGA with 4K Enhancement Technology2: accepts 4K content and displays double HD resolution on-screen. Enjoy a visibly sharper, more detailed picture even at close viewing distances.

  • Short throw lens with powerful optical zoom: with a 0.8–1.36 throw ratio and 1.7x optical zoom, achieve large images from a close distance, perfect for filling walls while avoiding shadows.

  • Large, versatile display options: easily create a display up to 400" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility.

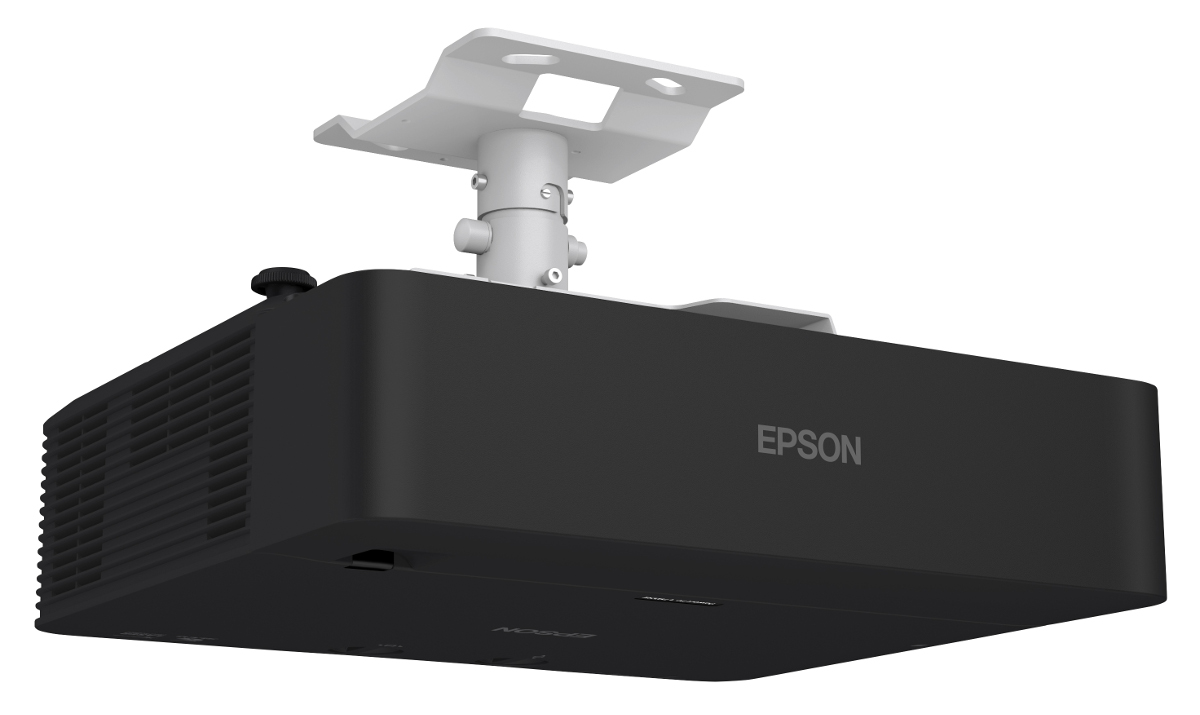

  • Simplified installation: compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.7x optical zoom, 360-degree mounting, built-in geometric correction tools, and a universal VESA mounting pattern.

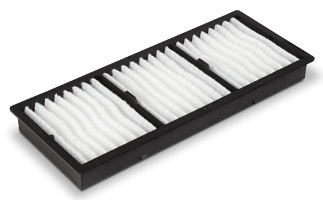

  • Low maintenance: up to 30,000-hour laser light source and air filter3 in Extended Mode

  • Wireless networking and content sharing4: Wi-Fi® 6/6E allows for fast, reliable wireless connectivity for screen casting4, along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA3-Enterprise security.

  • Built-in NFC5: reduces installation time of multiple projectors. Apply common settings to a large group of projectors before powering them on, with the Epson Projector Configuration Tool App.
  • Optional attachable PixAlign camera: adds powerful multi-projector tools including screen matching6, auto color calibration6, blending assist7 for super wide displays, and simple stacking7 without an external PC.
  • Over-the-air updates8: allows user to optionally be alerted when a Firmware update is available, and apply remotely.

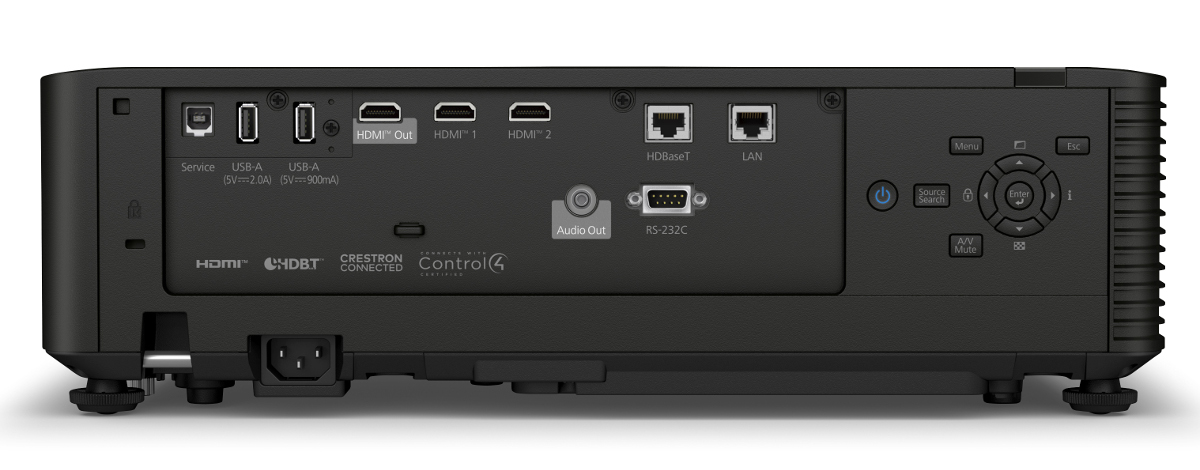

  • Enhanced connectivity: HDBaseT® and HDMI® two in and one out for daisy-chaining and signal monitoring

  • Eco Features:
    • RoHS compliant
    • End-of-life options available10
    • Epson America, Inc. is a SmartWay® Transport Partner11
    • Design and Manufacturing centers utilize 100% renewable electricity
    • Dynamic Contrast (ECO) Mode reduces power consumption by 36%
Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.

3 No required maintenance for the light source and filter for up to 30,000 hours (Extended Mode) or 20,000 hours (Normal Mode). Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

4 The projector supports direct peer-to-peer wireless casting of local content from Miracast-enabled devices or via the Epson iProjection app. For best performance when using Epson iProjection, it is recommended that the projector and connecting devices be configured on a network, either through the Ethernet port on the projector or via a wireless connection. The Epson iProjection App does not support all files and formats. See www.epson.com/iprojection for details.

5 NFC requires use of a device that includes NFC and may require additional software.

6 Using separate camera for each projector.

7 Requires Epson external camera for each projector and may require Epson Projector Professional Tool app.

8 Requires an active Internet connection for alerts and Firmware download.

9 Split Screen feature requires remote control. Consult your user manual for input combinations.

10 For convenient and reasonable recycling options, visit epson.com/recycle

11 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications – Projector

Projection System

RGB liquid crystal shutter projection system
Projection Method

Front/rear/ceiling mount

LCD Size

0.67" (C2fine)
Driving Method

Poly-Silicon TFT Active Matrix
Native Resolution

WUXGA with 4K Enhancement2 (1920 x 1200 x 2)
Resolution On-Screen

WUXGA with 4K Enhancement2/4.6 million pixels
Pixel Number

2,304,000 dots (1920 x 1200) x 3
Aspect Ratio Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
* With vertical image shift control within letterbox area.

Pixel Arrangement

Cross stripe
Color Brightness (Color Light Output)1 7000 lumens
White Brightness (White Light Output)1 7000 lumens
Resize

640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050

Contrast Ratio

Up to 5,000,000:1

Brightness Uniformity (Typical)

 88%

Color Reproduction

Up to 1.07 billion colors
Screen Size

60" – 400"

Lens Shift

Vertical: ±50%; Horizontal: ±20%
Keystone Correction

Vertical: ±30 degrees; Horizontal: ±30 degrees
Light Source

Laser Diode
Light Source Life3 Normal:    20,000 hours
Quiet:       20,000 hours
Extended: 30,000 hours

Projection Lens

Type

Optical Zoom (manual); Focus (manual); Corner focus (manual)
F-Number

1.7 – 2.1
Focal Length

11.6 – 19.9 mm
Throw Ratio Range

0.8 – 1.36 (optical)
Zoom Ratio

1.0 – 1.7x (optical)
Lens Cover

Lens cap (without string)

Wireless Specifications

Frequency Type (Modulations)

802.11 b/g/n/ac/ax (2.4 GHz)

Supported Security Type

Quick Mode: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Advanced Mode: WPA2/WPA3-PSK, WPA2/WPA3-EAP

Other Features

Operating Temperature

32°F to 113°F (0°C to 45°C)
Power Supply Voltage

100 V – 240 V ± 10%, 50/60 Hz AC

Auto Power On

Signal Detection on HDMI/Plug-In Detection (HDMI, USB, VGA 15-Pin, BNC)

Sleep Mode

Yes (with timer)

HDMI CEC Control

Yes
Power Consumption 470 W (Normal Mode)
341 W (Quiet Mode)
321 W (Extended Mode)
2.4 W (Standby comm on)
0.3 W (Standby comm off)
Fan Noise

36 dB (Normal Mode); max. 26 dB (ECO Mode)
Security

Security cable hole, Kensington® lock provision
A/V Mute Yes

Speaker(s)

10 W (mono)

Miracast®4

Yes

Epson iProjection™4

Yes (V4)

Split Screen9

Yes (up to 2 screens)

Other Features

Corner Wall, Curved Surface, Camera, Content Playback, Quick Corner, Arc Correction, Edge Blending, Screen Sharing

Effective Scanning Frequency Range (Digital)

Pixel Clock

25.1 MHz to 594 MHz

Horizontal

26 kHz to 135 kHz

Vertical

23.98/24/25/29.97/30/50/59.94/60 Hz

Dimensions

Projector (W x D x H) 17.32" x 11.97" x 4.80" (440 x 304 x 122 mm) Excluding Feet
17.32" x 14.25" x 5.94" (440 x 362 x 151 mm) Including Feet
Weight 20.5 lb (9.3 kg)

Network and Remote Control

Features

Power, source search selection, A/V Mute, number input, menu, esc, select, Freeze, ID, Customize, E-Zoom, mute, volume, playback control and pointer functions
Operating Distance

26 ft (8 m)
Operating Angle Rear:  Right/Left: -55 to +55 degrees
          Upper/Lower: +75 to +15 degrees
Front: Right/Left: -30 to +30 degrees
          Upper/Lower: 0 to +60 degrees

Network Control

PJLink, Creston Integrated partner, Crestron Connected V2 with XiO Cloud, Extron IP link, Extron XTP, AMX, Control4

Warranty:

  • Three-year limited in the U.S. and Canada



What's In The Box:

  • L795SE Projector
  • Power cable
  • Cable cover
  • Remote control with batteries
  • Quick Setup sheet
  • Quick Setup poster
Notes

See Features tab.
