Epson BrightLink Pro 1450Ui

Features

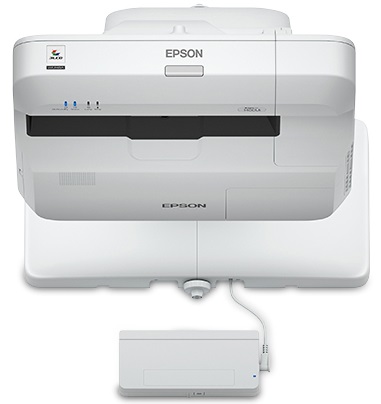

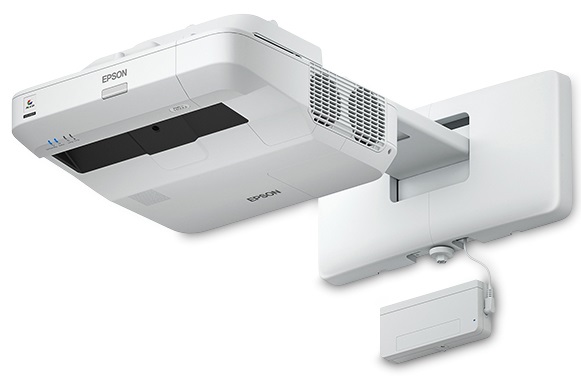

BrightLink Pro 1450Ui Full HD Interactive Display
The all-in-one HD interactive display for efficient, productive meetings.
The BrightLink Pro 1450Ui interactive display connects people, technology and ideas into a seamless digital experience, facilitating better communication by turning any whiteboard or flat surface into an interactive area. Featuring Full HD WUXGA resolution, a clearly readable display up to 100", plus 3,800 lumens of color brightness and 3,800 lumens of white brightness1, this touch-enabled solution enables impactful presentations. Just turn it on and write your ideas or agenda. Display and annotate content using a finger touch or gesture. Easily collaborate with local or remote participants. Then capture, save, print or email — all without a PC.
Specifications
Projection System:
- Epson® 3LCD, 3-chip technology
Projection Method:
- Front / wall mount / table
Driving Method:
- Epson Poly-silicon TFT Active Matrix
Pixel Number:
- 2,304,000 dots (1920 x 1200) x 3
Color Brightness - Color Light Output:
- 3800 lumens
White Brightness - White Light Output:
- 3800 lumens
Aspect Ratio:
- 16:10
Native Resolution:
- 1920 x 1200 (WUXGA)
Lamp Type:
- 267 W UHE
Lamp Life:
- ECO mode: Up to 5000 hours6
- Normal mode: Up to 10000 hours6
Throw Ratio:
- 0.27:1
Size - projected distance:
- Area: 16:10 70" – 100"
Keystone Correction:
- Manual:
- Vertical: ±3 degrees
- Horizontal: ±3 degrees
USB Plug 'n Play:
- Mac®10.7 or later
- Windows Vista® or later
Contrast Ratio:
- Up to 16,000:1
Color Reproduction:
- Up to 1.07 billion colors
Weight:
- 5 lb without slide plate
- 8 lb with slide plate
Operating Temperature:
- 41° to 104° F (5° to 40° C)
Projections Lens Type:
- Manual focus
- F-number: 1.60
- Focal Length: 4.2 mm
Zoom Ratio:
- Digital zoom 1.0 – 1.35x
Interactive Modes:
- Whiteboard mode: 2 x pens or 6 x fingers
- PC-free annotation mode: 2 x pens or 2 x fingers
- Computer interactivity mode: 2 x pens or 6 x fingers
Interactive Area:
- 70" to 100" diagonal (16:10, WUXGA)
System Compatibility:
- Connection to the computer: USB or wired/Wireless LAN connection
- Software system compatibility: Epson Easy Interactive Driver for Mac only; Windows® driver for Multi Projection
- Windows and Linux: No driver required
- Mac: Mac OS® X 10.7.x or later (Included in the box. Also available for unlimited download at Epson.com support page)
PC-Free Annotation Tools:
- Yes
Interactive Software:
- Easy Interactive Tools Compatibility:
- Epson Easy Interactive Tools for Windows/Mac (available for free unlimited download at Epson.com support page)
System compatibility:
- Windows 10, Windows 8/8.1* (all editions except for Starter)
- Windows 7*, Windows 7 SP1*,Windows Vista SP2** (all editions except for Starter)
- Windows Vista SP1**, Windows Vista**
- Mac OS X® 10.7.x, 10.8.x, 10.10.x, 10.11.x, macOS™ 10.12.x
- *32-bit and 64-bit version **32-bit versions only
Type of Interactive Input Device:
- Digital pen (two included) or finger
- Interactive Pen Functions:
- Mouse functions (left and right click), Electronic pen, LED battery status indicator
Interactive Pen Power:
- AA Battery
Interactive Pen Weight:
- oz (without battery)
Interactive Pen Dimensions:
- 3" (L) x .95" (W)
Compatible Pen Battery Types:
- AA x 1. Manganese dry cell, Alkaline dry cell, Panasonic eneloop® BK-3MCCx (The suffix "x" can be blank or A-Z.)

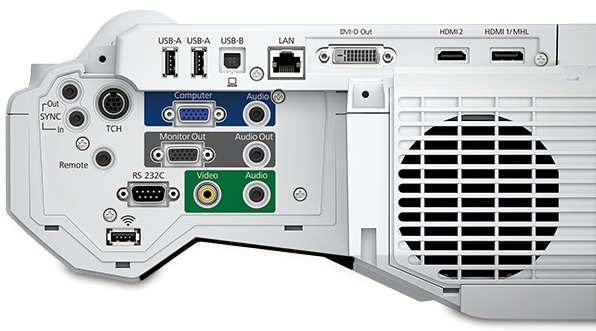

Interfaces:
- Sync In, Sync Out, Remote, TCH, RS-232C, Wireless, Computer, Audio, Monitor Out, Audio Out, Video, Audio, USB-A x2, USB-B, LAN, DVI-D Out, HDMI 2, HDMI 1/MHL®
Speaker:
- 16 W monaural
Fan Noise:
- ECO mode: 30 dB
- Normal mode: 38 dB
Remote Control Features:
- Source search, HDMI®, Computer, LAN, Whiteboard, Power, Aspect, Color mode, Volume, E-zoom, A/V Mute, Freeze, Menu, Home, Auto, Enter, Esc, Pointer, User, Pen mode, Split, Home, ID, Link menu, Page-up, Page-down
Operating Distance:
- 7 ft (6 m)
Operating Angle:
- Front
- Right / Left: ±30 degrees
- Upper / Lower: 0 to +60 degrees
Projector Dimensions Excluding feet:
- 7" x 17.6" x 6.3" (W x D x H)
Power Supply Voltage:
- 100 – 240 V ±10%, 50/60 Hz
Power Consumption:
- ECO mode: 351 W
- Normal mode: 425 W
Options
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

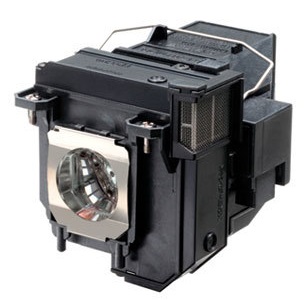

Lamp |

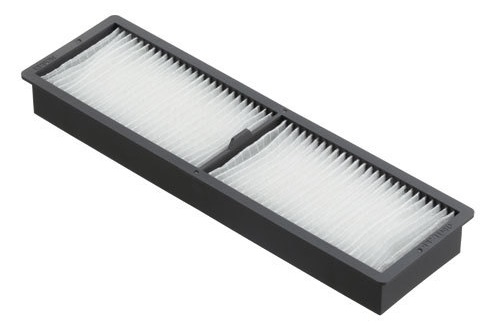

Air Filter |

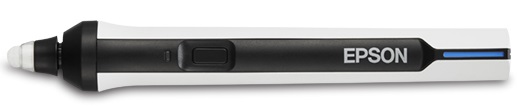

Interactive Pen (Blue) |

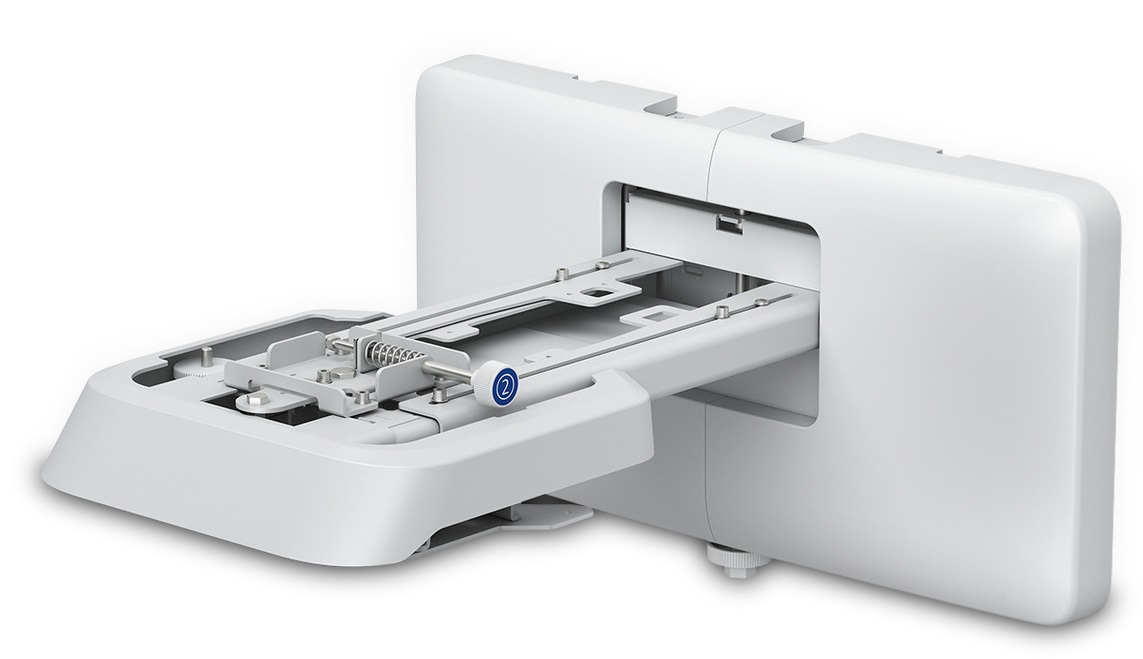

Mount |

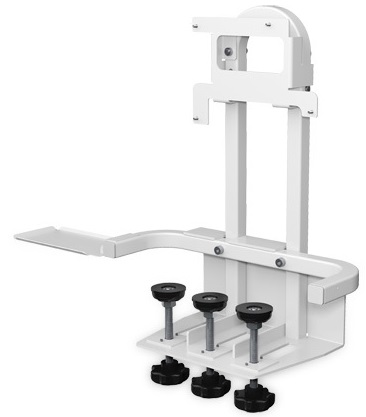

Table Mount |
Interactive Table |
V13H010L92 |
V13H134A45 |
V12H774010 |
V12H777020 |
V12H516020 |
V12H893020 |
Downloads
Epson BrightLink Pro 1450Ui - Users Guide
Epson BrightLink Pro 1450Ui - Specifications
Epson BrightLink Pro 1450Ui - DuoLink Setup Guide
Epson BrightLink Pro 1450Ui - Easy Interactive Tool Tips
Epson BrightLink Pro 1450Ui - Get Started with BrightLink Pro
Epson BrightLink Pro 1450Ui - Installation Guide - Control Pad and Touch Unit
Epson BrightLink Pro 1450Ui - Installation Guide - Ultra-Short Throw Wall Mount (ELPMB46)
Epson BrightLink Pro 1450Ui - Mounting Templates (ELPMB46)
Epson BrightLink Pro 1450Ui - Operation Guide - Easy Interactive Tools v4.20
Epson BrightLink Pro 1450Ui - Operation Guide - EasyMP Multi PC Projection v2.10
Epson BrightLink Pro 1450Ui - Operation Guide - EasyMP Network Updater v1.20
Epson BrightLink Pro 1450Ui - Operation Guide - Epson iProjection v2.20 (Windows-Mac)
Epson BrightLink Pro 1450Ui - Operation Guide - Epson Projector Management v5.10
Warranty
Two-Year Projector Limited Warranty and 90-Day Lamp Limited Warranty
