Epson BrightLink 1485Fi

Laser Interactive LCD Projector, 1366x768 WXGA, 5000 Lumens, UST, supports up to 8 users at multiple locations, PC free whiteboard, printing, emailing, 3 year warranty
Item #0600-6255 Model #V11H919520

Overview

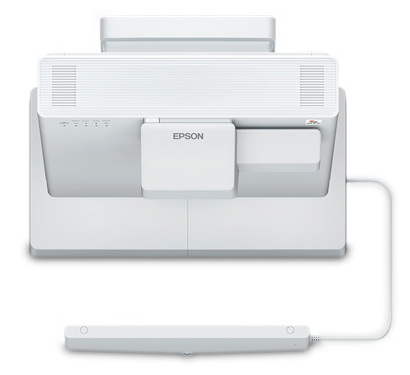

Epson BrightLink 1485Fi

3-LCD Interactive Laser Ultra-Short Projector

Create engaging and collaborative learning environments with the BrightLink 1485Fi 3LCD interactive laser display. A native resolution of 1366x768 pixels can be increased to 1080 vertical resolution with pixel shifting. Providing 5,000 lumens of color and white brightness and a virtually maintenance-free 20,000-hour laser light source with no lamps, this reliable, ultra bright interactive display supports easy reading, instruction and communication.

Designed for easy collaboration, the 1485Fi supports PC-free white-boarding, printing, emailing and more.

Plus, it easily hosts other network-connected BrightLink projectors, allowing up to eight users to work on a single interactive canvas from multiple locations. Now with automatic image adjustment, simplified calibration and a single-cable, HDBaseT control pad, installation has never been easier.

Designed to maximize student productivity, the BrightLink 1480 Series transforms nearly any surface into an easy-to-read, touch-enabled display that enriches lesson plans with captivating, immersive visuals.

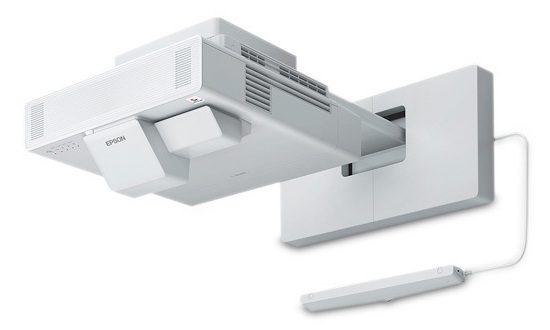

Note: Wall mount is not included. (See Accessories tab.)

Features

Key Features:

  • Super bright: 5,000 lumens color/white brightness2up to 1366 x 1080 resolution (with pixel shifting).
  • Flexible image sizes: the flexible 1485Fi projects large, 100" diagonal images, offering up to 75 percent more interactive space versus a 75" flat panel.
  • Solid-state laser light source: virtually maintenance-free 20,000-hour laser light source with no lamps3
  • Easy installation: automatic image adjustment and simplified calibration makes installation easier than ever before
  • Digital whiteboard: draw, save, print and email without a PC; share whiteboard content to other network-connected BrightLink projectors4
  • Easy operation: touch and pen-enabled interactivity5 allows up to eight users to collaborate at once

Other Features:

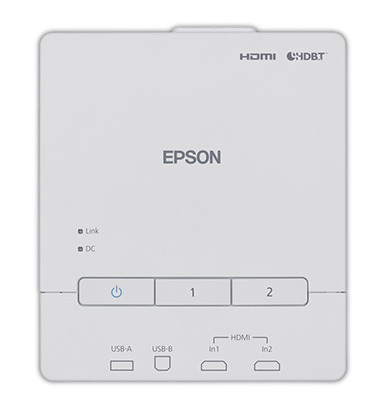

  • Improved cable management: HDBaseT control pad supports video, audio and interactive functions, reducing the number of cables and making installation a snap6
  • Built-in wireless: use free Epson iProjection software to connect, display and share content simultaneously to/from up to 50 connected devices7
  • Connect with Miracast®: supports software-free, peer-to-peer wireless connectivity
  • SMART Learning Suite: includes 1-year subscription and support for SMART Notebook®, SMART amp, SMART lab, SMART Learning Suite Online and more

Eco Features

  • RoHS compliant
  • Recyclable product8
  • Epson America, Inc. is a SmartWay™ Transport Partner9

Notes
Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 BL1485Fi and 1480Fi projectors only. Cannot share to earlier models.
5 Requires Windows® 7, Windows 8 or Mac® OS X® or later to recognize finger gestures.
6Supports maximum distance up to 225 feet (Cat6A/7; 1080p) and up to 130 feet (Cat6A/7; 4K content)
For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
For convenient and reasonable recycling options, visit www.epson.com/recycle
SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications and terms are subject to change without notice.

Specifications

Specifications Projector:

Projection System: Epson 3LCD, 3-chip technology
Projection Method: Ceiling/wall mount/table mount
Driving Method: Epson Poly-silicon TFT Active Matrix
Color Brightness - Color Light Output: 5,000 lumens2
White Brightness - White Light Output: 5,000 lumens2
Aspect Ratio: 16:9 (native), supports 4:3, 16:10, 16:6, 21:9
Resolution: 1366 x 768 native, 1080 vertical resolution with pixel shifting
Size - projected distance: (16:9) 65" – 100"
Keystone Correction: Vertical:     ±3 degrees
Horizontal: ±3 degrees
USB Plug 'n Play: Mac®10.7 or later
Windows Vista® or later
Contrast Ratio: Up to 2,500,000:1
Color Reproduction: Up to 1.07 billion colors
Light Source Life: 20,000 hours (Normal); 30,000 hours (Extended)3
Illumination Technology: Laser Diode

General:

Operating Temperature: 32° to 104° F (0° to 40° C)
Security: Kensington lock provision, security anchor bar, password-protect function
Power Supply Voltage: 100 – 240 V ± 10%, 50/60 Hz
Power Consumption: ECO Mode: 270 W
Normal Mode: 381 W
Standby (Communication On): 2.0 W
Standby (Communication Off): 0.5 W
Dimensions (WxDxH): 18.1" x 14.3" x 8.3"(including feet)
Weight: 21.4 lbs with cable cover (9.7 kg)

Projection Lens:

Type: Manual focus
F-number: 1.50
Focal Length: 3.9 mm
Zoom Ratio: Digital zoom 1.0 – 1.35x
Throw Ratio Range: (16:9) 0.27 – 0.37, (4:3) 0.37 – 0.50, (16:10) 0.30 – 0.42

Projector Details:

Interfaces: HDMI®: 3
HDBaseT HDMI out: DS 1
Computer/Component Video: 2x D-sub 15 pin
Composite Video: 1x RCA (Yellow)
Audio In: 3x Mini stereo
Audio Out: 1x Mini stereo
Microphone in: 1
USB Connector: 2x Type B (USB display, audio and mouse, k/b control interactivity)
USB Connector: 2x Type A (USB memory/document camera)
1x RJ-45
Serial: 1x RS-232c
Monitor Out/Computer: 1x D-sub 15 pin
Integrated Wireless LAN: 802.11 b/g/n/ac
Interactive Synchronization Mini stereo In
Interactive Synchronization Mini stereo Out
Touch Unit Connection Port
Speaker: 8 W x 2 stereo
Fan Noise: Quiet mode:     27 dB
Normal mode:  36 dB

Remote Control:

Features: Source search, HDMI, Computer, LAN, USB, Power, Aspect, Color mode, Volume, E-zoom, A/V Mute, Freeze, Menu, Home, Auto, Enter, Esc, Pointer, User, Pen Mode, Split, Home, ID
Operating Distance: 19.7 ft (6 m)
Operating Angle: Rear:  Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees
Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees

Interactive Specifications:

Interactive Connectivity: Connection to the Computer: Via USB cable or wired/wireless LAN
Software System Compatibility: Epson Easy Interactive Driver for Mac® only; Windows® driver for Multi Projection; Windows (single projector) and Linux: No driver required
Mac: Mac OS X® 10.7.x or later
Interactive Technology: Infrared, 850 nm
Interactive Modes: Whiteboard Mode: 2x pens and 6x fingers, PC-free Annotation
Mode: 2x pens and 6x fingers, Computer Interactivity Mode, Easy
Interactive Tools: 2x pens and 6x fingers
Calibration Method: Automatic or Manual
Interactive Area: 65" – 100" diagonal (16:9)
System Compatibility: Microsoft® Windows Vista® SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) macOS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x, UBUNTU 15.10, 16.04 LTX, 16.04, 18.04, 19.04

Interactive Input Device:

Type of Interactive Input Device: Digital pen or finger
Interactive Pen Functions: Mouse functions (left and right click), Electronic pen, LED battery status indicator
Interactive Pen Power: AA battery, Compatible Battery Types: AA x 1, Manganese dry cell, Alkaline dry cell, Panasonic eneloop® BK- 3MCCx (The suffix “x” can be blank or A-Z)
Interactive Pen Weight: 1.1 oz (without battery)
Interactive Pen Dimensions: 6.3" (L) x 0.95" (W)

Interactive Software

Other Software: Requirements: Epson Easy Interactive Driver (Mac and PC — required for DuoLink); Windows and Linux: driver not required Mac: Mac OS X 10.7/10.8/10.9/10.10/10.11/ macOS 10.12.x Epson Easy Interactive Tools for Windows and Mac

Warranty

3-Year Projector Limited Warranty



What's In The Box:

  • BrightLink Pro 1485Fi
  • Lens cover
  • Rear cable cover
  • Interactive touch module and cable (mounting bracket not included)
  • Quick Setup Guide
  • 6' power cable
  • USB A/B cable (x1)
  • Projector remote control with two AA alkaline batteries
  • HDBaseT control pad with power supply and AC adapter holder
  • Pen holder
  • Four (4) markers for auto screen adjustment
  • IR reflectors
  • Two (2) interactive pens
  • Replacement pen tips (4 soft tips, 2 hard tips)
  • Battery charger and two (2) AA rechargeable batteries (for interactive pens)
  • Warranty statement
  • SMART SLS redemption code

Notes:
Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

Accessories

Support Videos

#1 Touch Unit Installation Requirements



#2 What's in the Box



#3 Assemble the Wall Plate



#4 Mount the Wall Plate



#5 Attach the Projector



#6 Attach the Cables



#7 Adjust the Image



#8 Set Up the Touch Unit



#9 Calibrate the Projector



#10 Complete Installation



#11 Configure a 16:6 Image
