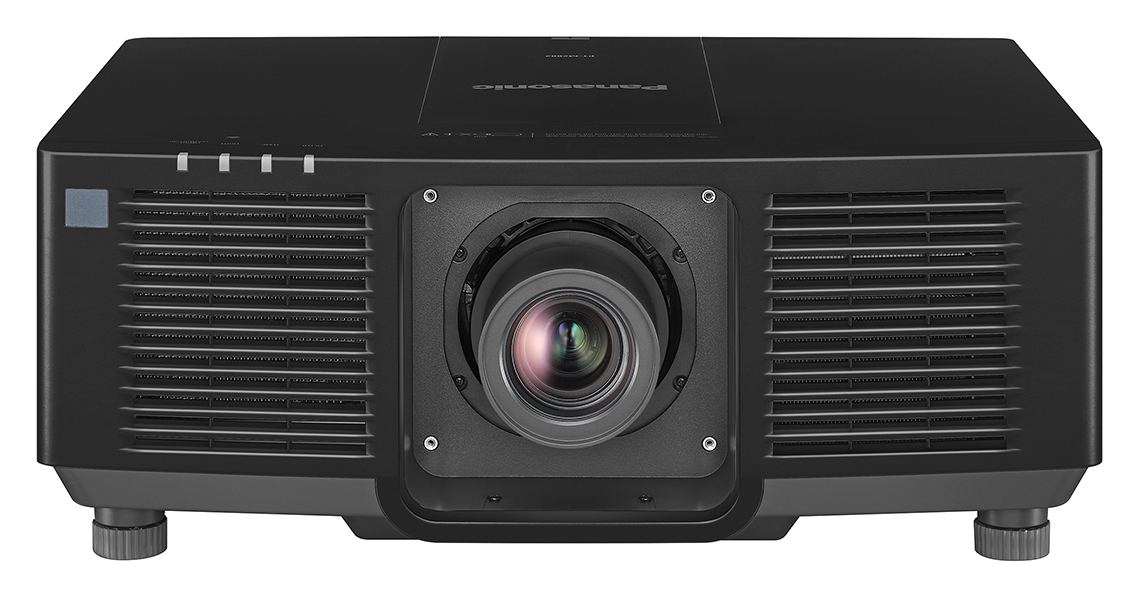

Panasonic PT-MZ882BU7

Laser LCD Projector, WUXGA, 8200 Lumens, Std Lens, Black, 3-Year Warranty
Item #0600-7333 Model #PTMZ882BU7
$7,854.00
Price

Overview

Panasonic PT-MZ882BU7

8200 lumens of well-balanced brightness and exceptional color

The Panasonic PT-MZ882BU7 is a WUXGA projector with 8200 lumens of brightness for revitalized sustainability and image quality in classrooms and the workplace.

The 8200-lumen PT-MZ882BU7 is part of the light, compact, and eco-friendly PT-MZ882 Series, which offers remarkable efficiency improvements over the previous series and is holistically engineered to reduce environmental impact, including using 10% recycled resins for the main projector unit.

Enjoy optimally balanced brightness and color for clear, well-saturated images in brightly lit rooms. With Dynamic Contrast, Daylight View Basic, and Detail Clarity Processor 4, the PT-MZ882 Series elevates communication in offices, classrooms, and hybrid spaces.

Support for widescreen 21:9 aspect ratios suits conferencing layouts. A new posture detection function and optional powered lenses streamline installation, while three 4K signal and CEC command-compatible HDMI™ inputs conveniently expand connectivity.

Note: The PT-MZ882BU7 is a black model. See PT-MZ882WU7 for a white model.

Features

Eco-Conscious Design Includes Recycled Materials

  • PT-MZ882 Series for Advancing Eco-friendly Innovation: Sustainability is a big consideration for businesses and schools. Acquisition managers want to invest in systems that contribute to the organization's sustainability goals by choosing efficient AV tech that minimizes waste. The PT-MZ882 Series reduces impact throughout the projector's lifecycle, from procurement and manufacturing to transport, installation, usage, and disposal. It represents a significant step towards sustainability without sacrificing performance. In fact, the picture is brighter, operating noise is reduced, and usability is enhanced.
  • Projector Body Utilizes Recycled Materials (NEW): The PT-MZ882 Series’s sustainability story begins before you take delivery. In addition to using responsibly procured materials, the main projector body contains about 10%1 recycled resins, reducing the utilization of virgin materials. By supporting eco-friendly manufacturing processes and pursuing recycling-based programs at end-of-life, your organization helps minimize environmental impact during operation and throughout the product’s lifecycle.
  • Enhanced Brightness with Lower Consumption (NEW): Refinements to the optical engine yield higher brightness over every model in the previous series while significantly enhancing energy efficiency. The PT-MZ882, for example, produces 8,200 lm2 with a max. consumption of 465 W compared to 8,000 lm2 at 490 W for the previous PT-MZ880 model, achieving a rating of 17.6 lm/W and an 8% efficiency improvement. Save on energy costs and reduce the carbon footprint of every unit in your fleet. (Note: Maximum consumption value in NORMAL Mode on AC 100–120 V power.)

  • Auto Power On Function Saves Energy (NEW): Like your PC, Panasonic projectors "sleep" after a certain idle period and shut down when this Quick Startup period expires to save energy. If playback resumes after the Quick Startup period elapses, you must manually power on the projector again. To avoid this, some users disable the Quick Startup timer or keep the projector running with the shutter on, wasting energy. PT-MZ882 Series solves the issue with Auto Power On3. This new function powers the projector on and resumes playback automatically when an input signal is detected, even if the unit is shut down. Presenters can pause and resume their program without significant interruption, and administrators reap energy savings across their schools or businesses.
  • Lamp-free Laser Saves Resources and Avoids Waste: PT-MZ882 Series features a SOLID SHINE Laser light source that does not require maintenance until 20,000 hours4. By contrast, comparable lamp projectors need several lamp changes in an equivalent period, adding to maintenance costs, labor, downtime, and waste. Furthermore, laser projectors start up faster and can be switched off via the room breaker. They reach full brightness almost instantly, maintain a consistent and uniform image for longer, and are inherently more reliable than lamp-based designs. (Note: Lamp replacement cycle is approximate and varies by model.)

  • Less Maintenance, Less Waste, Less Downtime: ECO Filter includes a Micro-Cut Filter that collects minute dust particles with an electrostatic effect. With the dust-resistant projector cabinet design, ECO Filter enables low maintenance and long-term use with less downtime. Filter replacement is recommended at 20,000 hours5 when used in typical office and classroom environments. If it’s necessary to maintain the filter before then, it can be washed and reused up to two times6, reducing wastage, cost, and labor.

  • Multi-Laser Drive Engine Enhances Reliability: Multi-Laser Drive Engine ensures stable projection in the unlikely event that light-source problems occur. PT-MZ882 Series is equipped with multiple modules consisting of many laser diodes. If one of the elements malfunctions, Failover Circuitry is activated so that projection can continue with minimal brightness reduction. This gives your presenters the confidence to work without fear of equipment failure in the middle of a presentation.



Bright and Sharp for Comfortable Viewing

  • Outstanding Image Quality in Well-Lit Spaces: Office and classroom projectors are normally used with the room lights on, so they need high brightness, powerful contrast, and accurate color to cut through with a clearly visible image. The PT-MZ882 Series has a refined optical engine that boosts light output over the previous series, Digital Light Control to optimize Dynamic Contrast performance, and Daylight View Basic to adjust image quality according to ambient room light. The result is well-balanced brightness and color with sharp and comfortable visibility, even in well-lit environments.
  • High 3,000,000:1 Dynamic Contrast: Input signals are analyzed frame by frame to regulate light output for the best contrast performance in every scene. In addition to accurately reproducing complex images that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than previous technologies. The projector’s high 3,000,000:17 contrast ratio enhances detail definition in shadows with deeper blacks, brighter whites, and more natural skin tones for an improved sense of depth and definition.

  • Daylight View Basic — Brilliant in Bright Rooms: Daylight View Basic is a dynamic adjustment technology that enhances image sharpness by clarifying detail definition in dark areas of the picture, which can be difficult to see in bright light. A sensor measures the ambient light in the room and optimizes sharpness, halftone color, contrast, and brightness for best results according to the room’s illumination.
  • Detail Clarity Processor 4 Enhances Detail Definition: Unique image correction circuitry reproduces details more clearly and sharply. It analyzes video signal frequencies in each scene and adjusts for optimal sharpness based on information extracted from the signal. Compared to conventional image processing technology, this system reproduces images with an even more natural and dimensional feel and also works to sharpen text edges for more comfortable legibility.
  • Project Widescreen Content (NEW): Widescreen conferencing software layouts can be output from a PC to a PT-MZ882 Series projector so that remote participants appear along the bottom of the screen at eye level to those seated in the room, improving communication fluency. This capability is also useful for projecting documents side by side or screening cinematic content. The PT-MZ882 Series supports 1920 x 810 (21:9) or 1920 x 640 (27:9) signals.

  • Quiet Operation Increases Engagement: With lessons, meetings, and other events often including remote participants, projector noise mustn’t distract from the presentation. Quiet projection helps people focus, whether in the room or participating remotely. The PT-MZ882BU7 includes a Quiet Mode enabling whisper-quiet 26 dB operation, helping these stylish projectors blend unobtrusively into the background to keep attention focused on the presentation.



Flexible Design Fits Any Space

  • Unobtrusive Cabinet Blends into the Room: Elegant new cabinet styling helps these projectors blend into the room environment. Use of black for the recessed base makes the side and front panels appear slimmer. By combining unobtrusive styling with quiet operation and clear image visibility, the projection (not the projector) becomes the focus of attention. All-black versions are available for easy concealment in dark environments, such as museums.
  • Quiet Operation Increases Immersion: With lessons, meetings, conferences, and other events increasingly being held online, it’s important that noise from the projector doesn’t draw attention away from the presentation. Silent projection helps people focus, whether they’re in the room or participating remotely. A Quiet Mode enables almost inaudible 27 dB1 operation, helping the PT-MZ880BU fits unobtrusively into the installation environment while keeping attention focused on the presentation.



Streamlined Workflow and Smooth UX

  • Optional Powered Lenses Adapt Projection to Your Space: PT-MZ882 Series ships with the ET-ELS20 (1.61–2.76:1) powered zoom lens and is compatible with six other optional lenses. Powered V/H lens-shift (V: ±67%, H: ±35%)8, zoom, and focus adjustment are supported via the remote control or Smart Projector Control app. The lineup of optional lenses includes the ET-ELU20 Ultra-Short-Throw Zoom Lens (0.330–0.353:1). This lens projects content without offset at the top and bottom of the image, making the PT-MZ882 Series a cost-effective solution for museums and Location-Based Entertainment (LBE) applications.
  • Smart Projector Control App Makes Your Life Easy: The free Smart Projector Control app9 simplifies projector setup and operation. You can control up to 64 projectors simultaneously and adjust settings without needing to project the OSD settings menu. You can also select test patterns, adjust lens settings via the new lens-control UI, lock brightness, and perform focus adjustment using your smartphone camera10 from distances up to 30 m (98 ft)11. For more information, visit the Smart Projector Control webpage. (Note: The PT-MZ882 Series does not support some Smart Projector Control App functions.)

  • Built-in Geometric Adjustment Functions: Geometric Adjustment is a suite of built-in functions that allow installers to correct distortion when images are projected at an angle or onto curved screens and irregular shapes. Correction extends to spherical, cylindrical, and complex screen shapes without needing a connected PC. Maintain Aspect Ratio and Independent Corner Adjustment simplify correction. At the same time, the ability to save image-adjustment data is useful whenever correction settings need to be disabled and reapplied and for saving work progress as an adjustment profile is created.

  • Compatible with Geometry Manager Pro Software: Geo Pro simplifies geometric, blending, and color uniformity adjustments, streamlining your multi-screen calibration workflow. The software expands built-in geometric and multi-screen adjustment capabilities with a Free Grid function that governs 4-corner adjustment, keystone correction, curved-screen correction, and free-form image correction via a user-friendly interface. Software-based tools for multi-screen calibration include color matching, brightness control, color uniformity, black level, and input-signal adjustment. (Note: Visit PASS to register your projector and download free Geometry Manager Pro software for Windows®. PT-MZ882 Series does not support some functions available in Geometry Manager Pro software.)

  • Contrast Sync and Shutter Sync: Contrast Sync unifies Dynamic Contrast values among multiple projectors connected via serial in/out terminals. This function increases the uniformity of images in a multi-screen system and reduces edge-blend visibility for a seamless widescreen image. Shutter Sync, meanwhile, synchronizes shutter on/off timing for immersive fade-in/fade-out effects.

  • Data Cloning Function: The data cloning function12 allows users to copy settings and save adjustment values from a main projector to sub projectors via LAN. This function reduces the time and effort required when setting up multiple projectors.

  • Easily View the Projection Angle (NEW): PT-MZ882 Series features a gyro sensor that detects changes to the projector’s body pitch and roll angles and displays the information graphically in the OSD settings menu. Installers no longer need assistance to check the projection angle as the body is adjusted. They can view the on-screen graphic and adjust the projector angle before securing the unit.

  • Integrates with Your 4K Audio-Visual System: PT-MZ882 Series accepts 4K input signals13 via HDMI™ and DIGITAL LINK connections. This is handy if you plan to distribute 4K content from a PC to various display endpoints with different screen resolutions. You don’t need to manually re-encode the video content to suit this projector series or use an external video converter, reducing system complexity.

  • Three HDMI™ Inputs Support CEC Commands: All three HDMI™ inputs are compatible with control signals sent via a CEC-command-compatible component15, giving you limited control over the projector using the compatible source device’s remote control. When connected to the projector via HDMI™, the projectors power up from Standby and commence playback automatically on command from a CEC-compatible player, such as the optional Wireless Presentation System PressIT14.

  • Works with Wireless Presentation System PressIT: Share your screen wirelessly and switch presenters freely. PressIT14 is Panasonic’s optional Wireless Presentation System that allows easy screen sharing with the press of a button. PressIT comprises a receiver connected to the projector and transmitters connected to PCs or mobile devices16. Securing power from your PT-MZ882 Series projector, which supports a 5 V/2 A power supply via DC OUT terminal, achieves a neat, stylish layout.

  • Remote Control Lock Function: For peace of mind, a remote control lock key feature prevents accidental button presses from disrupting presentations. Simply press to disable and reenable the remote keys.



Other Features

  • Supports Art-Net DMX, PJLink™, and Crestron Connected®
  • Free 360° Installation
  • Multi-Screen Support System
  • Multi-Unit Brightness and Color Control
  • DICOM Simulation Mode
  • Presentation Support System
  • Auto Image Rotation Function
  • Emulation Mode for Control Commands
  • Quick Start/Quick Off and Direct Off

Notes:

1 By weight of the total weight of plastic parts in the projector main unit. Excludes projection lenses, printed circuit boards, labels, cables, connectors, electronic components, optical components, ESD components, EMI component adhesives, and coatings.

Measurement, measuring conditions, and notation methods comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

Settings cannot be made in the following cases: When [STANDBY MODE] is set to [ECO] or when [IN STANDBY MODE] is set to [ON] in the [AUDIO SETTINGS] menu. Auto Power On is supported when the input signal is transmitted via HDMI™ or COMPUTER IN terminals.

Around this time, the light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL/QUIET Mode, Picture Mode [DYNAMIC], Dynamic Contrast [2], temperature 30 ℃ (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Panasonic recommends a checkup at the point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source and filter may be required in a shorter period. Estimated maintenance time varies depending on the environment.

5 Filter replacement cycles (measured values) are shown for environments with 0.15 mg/m3 of airborne particulate matter. The filter replacement cycle varies depending on the usage conditions and usage environment.

When washing the filter with water, please follow the procedures listed in the operating instructions. Replacement is recommended after it has been washed and reused twice or if it is not sufficiently clean after washing.

Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

V/H lens shift values are for the ET-ELS20 (equivalent to the supplied lens), ET-ELT22, ET-ELT23, and ET-ELW20. Other V/H lens shift values are as follows: V: ±60%, H: ±30% (ET-ELW22) and V: ±50%, H: ±24% (ET-ELU20). The ET-ELW21 does not support lens shift. The PT-MZ882 Series does not support some Smart Projector Control App functions. Check device compatibility at the App Store or the Google Play Store.

9 Check device compatibility at the App Store or the Google Play Store.

10 Some devices do not support the projector autofocus function.

11 When projecting a 300-inch image. The maximum distance is 3 m (10 ft) for a 100-inch image.

12 The data-cloning function is supported among models in the same series with the same resolution. It excludes passwords, projector IDs, and network settings. Data can be copied to a maximum of 99 sub projectors via LAN.

13 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/60p and 4K/50p signals input via DIGITAL LINK.

14 Wireless Presentation System PressIT sold separately. Availability may vary by country or region.

15 Depending on the connected CEC command-compatible device, the link control may not operate normally.

16 When connecting a mobile device to a transmitter, the USB Type-C terminal must support DisplayPort™ ALT Mode and power supply function (5 V/0.9 A). PressIT app (available free from the App Store or the Google Play Store) is required when using Android™ or iOS/iPadOS devices. For more details, please refer to the Operating Manual.

Specifications

Projector type LCD projector
LCD PANEL
Panel size 19.3 mm (0.76") diagonal (16:10 aspect ratio)
Display system Transparent LCD panel (x 3, R/G/B)
Pixels 2,304,000 (1920 x 1200) pixels x 3
Light source Laser diodes
Light output1 8,200 lm (ISO)2 / 8,200 lm (ANSI)3
Time until light output declines to 50 %4 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution WUXGA (1920 x 1200 pixels)
Contrast ratio2 3,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI signal input)
Screen size (diagonal) 1.02–10.16 m (40–400 in), 1.52–10.16 m (60–400 in) with the ET-ELW22,
2.54–10.16 m (100–400 in) with the ET-ELU20, 16:10 aspect ratio
Center-to-corner zone ratio2 85 %
Lens Powered zoom (throw ratio 1.61–2.76:1), powered focus F = 1.7–2.3, f = 26.8–45.5 mm (for supplied lens; optional lenses also available — see Accessories tab.)
Lens shift (from the origin point of the lens mounter) Vertical: ±67 % (powered, with supplied lens), ±60 % (with ET-ELW22), ±50 % (with ET-ELU20)

Horizontal: ±35 % (powered, with supplied lens), ±30 % (with ET-ELW22), ±24 % (with ET-ELU20)

Keystone correction range Vertical: ±25° with supplied lens (±22° with ET-ELW21/ET-ELW22),(±5° with ET-ELU20)
Horizontal: ±30° with supplied lens (±15° with ET-ELW21/ET-ELW22), (0° with ET-ELU20)
Installation Ceiling/floor, front/rear, free 360-degree installation
TERMINALS
HDMI™ IN HDMI™ x 3 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input5), CEC supported
COMPUTER IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
SERIAL/MULTI SYNC IN D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant)
MULTI SYNC OUT D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN M3 stereo mini-jack x 1 for wired remote control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
AUDIO IN M3 stereo mini-jack x 1
AUDIO OUT M3 stereo mini-jack x 1
DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control)
(HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2],
Art-Net, HDCP 2.3, Deep Color, 4K/60p5, 6 signal input)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
DC OUT USB Type A x 1 (for power supply, DC 5 V, 2 A)
Power supply AC 100–240 V, 50/60 Hz
POWER CONSUMPTION7
Maximum power consumption 465 W (5.0–2.0 A) (475 VA)
(Power consumption is 445 W at AC 200–240 V)
On-mode power consumption
(Operating mode)
[NORMAL]: 415 W (AC 100–120 V), 395 W (AC 200–240 V)
[ECO]: 295 W (AC 100–120 V), 285 W (AC 200–240 V)
[QUIET]: 290 W (AC 100–120 V), 280 W (AC 200–240 V)
Filter Included (estimated maintenance time: approx. 20,000 hours)
Operation noise2 34 dB (NORMAL/ECO), 26 dB (QUIET)
Dimensions (W x H x D) 561 x 224 x 439 mm (22 3/32" x 8 13/16" x 17 9/32") (With legs at shortest position, including lens and protruding parts)
Weight8 Approx. 18.6 kg (41.0 lb) with supplied lens
Operating environment Operating temperature: 0–45 °C (32–113 °F)9, operating humidity: 20–80% (no condensation)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Smart Projector Control for iOS/Android™, Geometry Manager Pro10
Notes:

1 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL].

2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

3 Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.

4 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2]). Estimated time until light output declines to 50 % varies depending on environment.

5 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection.

6 YPBPR 4:2:0 format only for 4K/60p and 4K/50p signals input via DIGITAL LINK.

7 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).

8 Average value. May differ depending on the actual unit.

9 Note that the projector cannot be used at altitudes 2,700 m (8,858 ft) or higher above sea level. In the following operating environments, light output may be reduced to protect the projector: when the projector is used at altitudes below 700 m (2,297 ft) and ambient temperature is 36 °C (97 °F) or higher; when the projector is used at altitudes between 700 m (2,297 ft) and 1,400 m (4,593 ft) exclusive and ambient temperature is 34 °C (93 °F) or higher; when the projector is used at altitudes between 1,400 m (4,593 ft) and 2,100 m (6,890 ft) exclusive and ambient temperature is 32 °C
(90 °F) or higher; and when the projector is used at altitudes between 2,100 m (6,890 ft) and 2,700 m (8,858 ft) exclusive and ambient temperature is 30 °C (86 °F) or higher.

10 This projector series does not support some functions available in Geo Pro software.

Accessories

Optional Lenses

Model ET-ELU20 ET-ELW21
(LNS-W21)
ET-ELW22 ET-ELW20
(LNS-W20)

ET-ELS20
(LNS-S20)
Standard Lens

ET-ELT22 ET-ELT23
Price
Add to Cart
$1,549.00
Add to Cart
$2,799.00
Price
$1,499.00
Add to Cart
$475.00
Add to Cart

Add to Cart

Add to Cart
  Panasonic ET-ELU20 lens etelw21 etelw22  etelw20 Standard Lens Panasonic ET-ELT22 lens Panasonic ET-ELT23 lens

D:W
WUXGA

0.330 – 0.353:1 0.764:1  0.786 – 0.983:1 1.21  1.66:1 1.61  2.76:1 2.72  4.48:1 4.44  7.12:1
f/stop 2.0  2.0 2.0  2.4  1.8  2.3 1.7  2.3 1.8  2.3 1.8  2.3



Other Accessories

Chief RPMA-U mount Ceiling mounts
ET-RFM200 filter Replacement air filter (ET-RFM200)
DIGITAL LINK Switcher (ET-YFB200G) DIGITAL LINK Switcher (ET-YFB200G)
Add to Cart
Wireless Presentation System (TY-WPS1)
Add to Cart
