Barco G50-W6

Laser DLP Projector, WUXGA, 6000 Center Lumens, No Lens, Black, 3-Year Warranty
Item #0601-1490 Model #R90106502

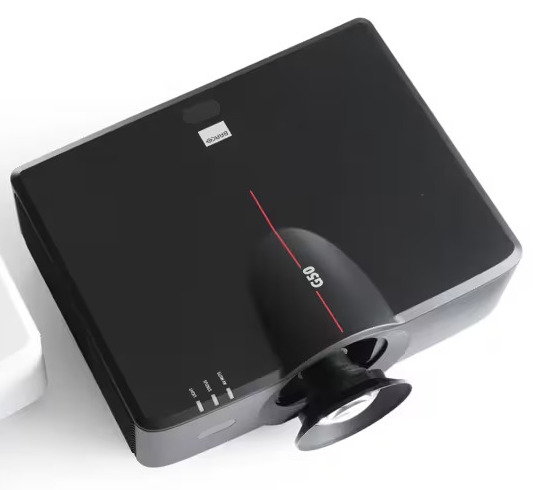

Barco G50-W6

6000 center lumens, WUXGA, DLP laser phosphor projector (no lens)

The Barco G50-W6 is an affordable and compact, yet powerful, single-chip WUXGA projector designed for single and multi-channel projections for boardrooms, museums, exhibitions, experience centers, and entry-level simulation applications. This 6000-lumen projector is part of the economical G50 series and the Barco smart line projectors. With a great price-performance ratio, the G50s are the most compact and energy efficient projectors on the market.

The laser phosphor light source and WUXGA resolution ensure great image quality, with superb colors and image uniformity. These are the smallest projectors in our offerings, with the highest light efficiency for visualizing high-quality content at its best.

Their uniform compact size, the compatibility with Barco's extensive G-series lenses and the wide lens shift range expand the projectors' flexibility, which allows you to choose the perfect fit for your specific environment.

In addition, G50 Barco projector owners can benefit from the valued Barco service and support. The G50-W6 allows for an Insights Management Suite subscription, the Barco cloud-based IoT platform to monitor, diagnose and control your projectors. And thanks to Barco's Projector Toolset software, installing and managing your G50-W6 projector(s) can be done from the comfort of your own computer.

Key Features:

  • Smallest and lightest projector in its category
  • Industry leading energy efficiency in the 5–8K lumens segment
  • Consistent image quality over time
  • Full range of interchangeable lenses (with widest lens shift)
  • Guaranteed service and support


Projector type Single chip DLP laser phosphor projector
Resolution 1,920 x 1,200 (WUXGA)

5,400 ANSI lumens
6,000 center lumens
6,400 ISO lumens

Contrast ratio 1,200:1 sequential
6,000:1 dynamic
Extreme black: 750,000:1
Brightness uniformity 90%
Light source Laser phosphor
Light source lifetime Up to 20,000 hrs
Aspect ratio 16:10
Color correction Yes
CLO (constant light output) Yes
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D

Keystone correction

Image processing Embedded warp & blend possible via Ptoolset
Lens type Lens not included. Optional G-lenses with throw ratios from 0.37:1 to 5.50:1 (See Accessories tab.)
Optical lens shift Vertical up to 100%, depending on lens
Horizontal up to 30%, depending on lens
Motorized zoom and focus
Motorized lens shift

2x HDMI In (compliant with HDMI 2.0b, HDCP2.2)
1 x Display Port (1.2a)
1 x HDBaseT(HDCP1.4)
1 x 3D SYNC In


1 x HDMI Out (Loop through HDMI1/HDMI2/HDBaseT/DP)
1 x 3D SYNC Out
1 x DC 12V Out
1 x Audio out 3.5 mm phone jack

Input resolutions Up to 4K UHD @60 Hz
Refresh rates: 24 Hz to 60 Hz for WUXGA and 4K UHD (4096 x 2160 / 3860 x 2160)

4K input signals will be scaled to the projector's output resolution

Software tools Projector Toolset

1 x RS232 (D-sub 9 pin) (PC Control)
1 x Wired In (3.5 mm phone jack) (Remote In)
1 x RJ45 (LAN)

Network connection 10/100 Ethernet, RJ45

10 W / 6 Ohm *2

Power requirements 100–240 V / 5060 Hz
Power consumption

300 W @110 V; 290 W @220 V

BTU per hour

1024 @110 V; 990 @220 V

Standby power less than 0.5 W
Noise level (typical at 25°C/77°F) 32 dB(A) 36 dB(A) depending on the mode used
Operating temperature 32 – 104 °F ( 40 °C) at sea level
Storage temperature 14 – 140 °F (-10 to 60 °C)
Operating humidity 10  85% RH, non-condensing
Storage humidity 90% RH, non-condensing
Dimensions (WxLxH) without feet: 19.1 x 14.8 x 7.1 inch / 486 x 376 x 181.2 mm
Weight without lens: 24.25 lb / 11 kg

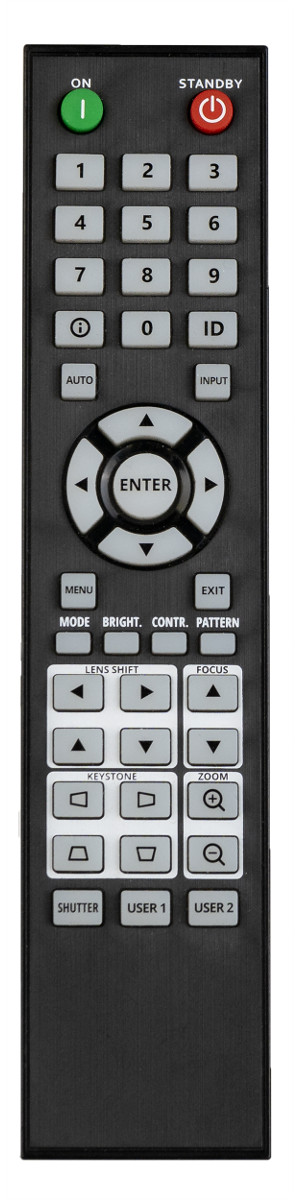

Standard accessories Power cord, wireless remote control


Warranty Limited 3 years parts and labor


Optional Lenses

G Lens Series
Model R9410231 R9802300 R9801840 R9832755 R9801784
Std Lens
R9832756 R9832778
  Barco R9409750 lens Barco R9802300 lens Barco R9801840 Barco R9832755 Barco R9801784 Barco R9832756 Barco R9832778
0.37–0.40:1 0.650.75:1 0.750.95:1 0.951.22:1 1.221.53:1 1.522.92:1 2.905.50:1
f/stop TBD 2.0–2.1 2.32.53 2.30–2.57 2.02.3 2.30–3.39 2.30–2.57
